Lanberg Free-Standing Rack 19'' 27U 600x800mm black

Accessories included - - Mounting accessories
- Front and rear door lock
- Side panel lock x2
- M6 x20 screw
Category - Root/Electronics/Networks and communication/19-inch and 10-inch racks
Color - Black
Color - RAL 9004
Description - Standing cabinet Rack 19'' 27U 600x800mm black

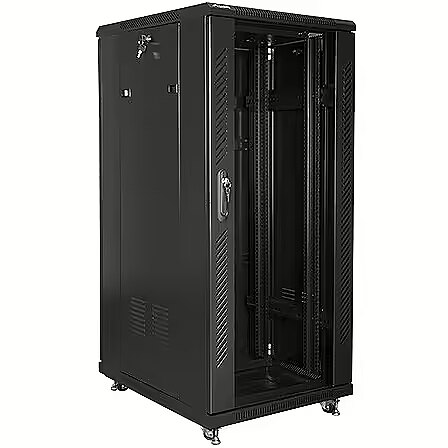

One-section standing cabinet Lanberg FF01-6827-12B is a solution designed for network construction, installation of cabling and equipment in size 19 with a maximum combined load capacity of up to 800 kg.
It can be used in data centers that require a large amount of space in the device cabinets. The wardrobe will successfully fulfill its role in large, extensive networks and server rooms, both in small, medium and large companies as well as corporations. It also works well in low voltage installations such as cable television networks, alarm and fire alarm systems, access control systems as well as CCTV and IP monitoring systems. The construction is made using high quality rolled steel, characterized by excellent design and quality. The cabinet allows full adjustment of the depth of vertical mounting rails.
It is equipped with a front door made of tempered glass with a lock, with the possibility of fitting the right or left side. It has removable side panels (with locks included) and a rear solid steel door with a lock. It is possible to insert the wiring through the closed top and bottom panels (with end caps included).
The set includes a ventilation panel with 4 230V fans. In addition, the set includes accessories for fixing support rails, M6 screws and plugs for entry panels, and thanks to the self-assembly construction (flat pack).
Designation - CE+WEEE
dimensionalWeight - 243200
dimension depth - 650 mm
dimension height - 450 mm
Dimensions - 600 x 800 x 1388 mm
dimension weight - 75500 g
dimension width - 1300 mm
ean - 5901969414936
Eans - 5901969414936
Features - Maximum weight capacity - 800 kg
Features - Product colour - Black
Features - Rack capacity - 27U
Features - Type - Free-standing cabinet
Front door type - Glass
guarantee - 36
guarantee_type - normal
Height - 27U
LCD display - No
Load (max) - 800 kg
name - Free-Standing Rack 19 27U 600x800mm black
Name - Lanberg szafa rack stojąca 19" 27U 600x800 czarna
Optional accessory - - AK-1003-B Shelf for Lanberg cabinet
- AK-1005-B Shelf for Lanberg cabinet
- AK-1007-B Drawer shelf for Lanberg standing cabinet
- AK-1008-B Universal shelf suitable for Lanberg hanging and standing cabinets
- AK-1101-B Brush panel 1U Lanberg
- AK-1201-B Cable Organizer type A Lanberg
- AK-1202-B Cable Organizer type B Lanberg
- AK-1302-S Set of 50 M6 Lanberg screws
- AK-1401-B End cap 1U Lanberg
- AK-1402-B 2U Lanberg end cap
Other features - - Floor panel: 4 wheels with brakes + adjustable feet
- Ventilation panel: 4 230V fans in the upper housing,
- Type of door: Front - Tempered glass, Rear - Steel,
- Compliance with standards: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI,
- Material: High-quality rolled steel, powder coated
- Door thickness: 5.0 mm,
- Sheet thickness: vertical mounting rails - 2.00 mm; mounting profile - 2.00 mm; rest - 1.50 mm - 1.20 mm,
- Cable openings: Top, Bottom (adjustable)
producer - Lanberg
Producer - LANBERG
producerCode - FF01-6827-12B
ProducerCode - FF01-6827-12B
productName - LANBERG FREE STANDING CABINET RACK 19" 27U 600X800 SCHWARZ
productSize - Pallet
Protection class - IP20
ShortDescription - szafa stojąca rack 19" 27U 600x800mm, do montażu, czarna
sizeX - 1600
sizeY - 800
sizeZ - 950
Stuff - Glass
Stuff - Steel
Type - Floor standing
vendpn - FF01-6827-12B
warrantyLength - 24
warrantyType - G
Weight - 84 kg
weight - 42500
Weight & dimensions - Accessories included in set - Mounting accessories, front and rear door lock, two side panel locks, 20 x M6 screws.
Weight & dimensions - Depth - 800 mm
Weight & dimensions - Door material - Front door - Tempered glass, Rear door - Steel
Weight & dimensions - Height - 1381 mm
Weight & dimensions - Size (imperial) - 48.3 cm (19")
Weight & dimensions - Weight - 72.1 kg
Weight & dimensions - Width - 600 mm
Width - 600 mm
