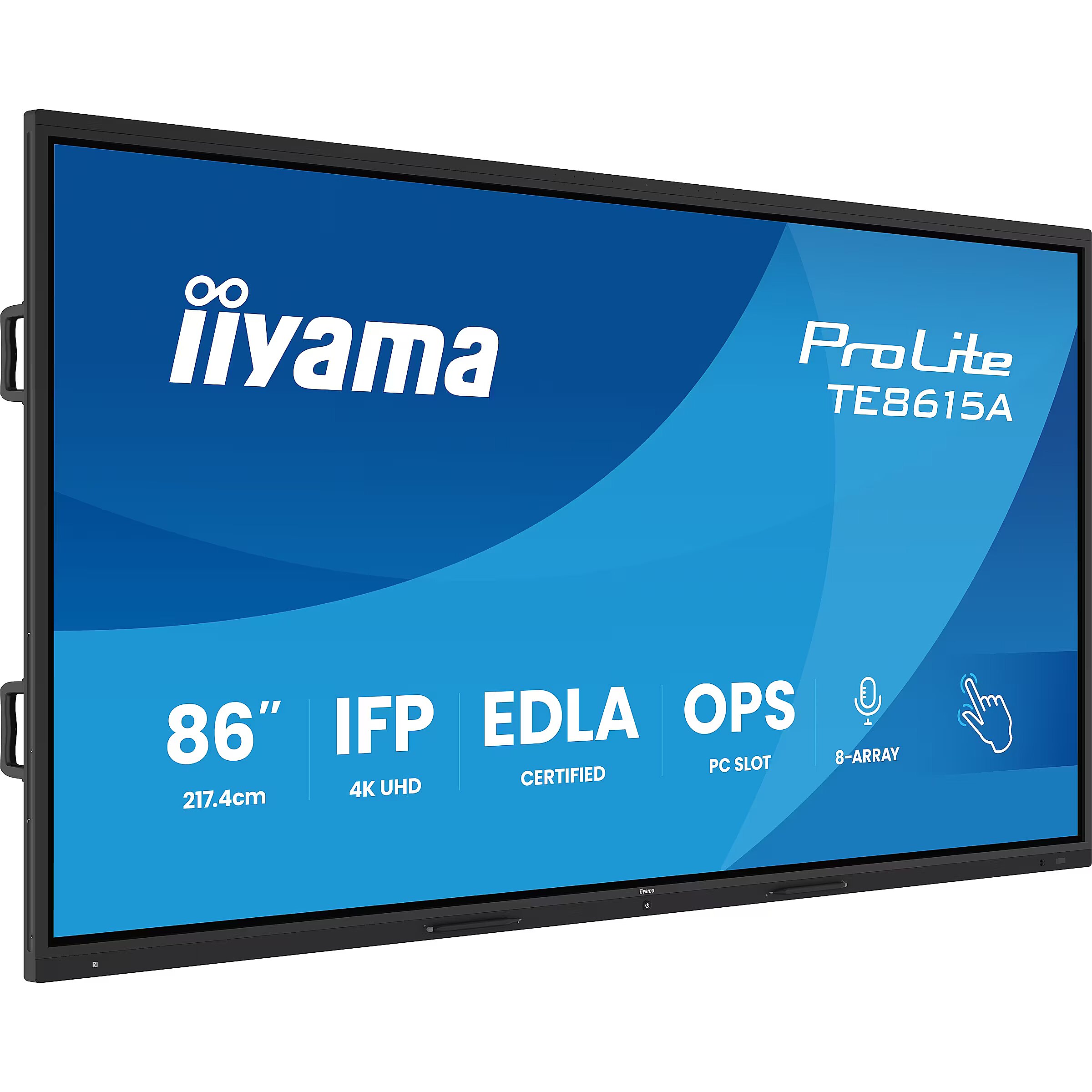

Iiyama TE8615A-B1AG

ARTIKEL1 - 86IN STYLISH IFP IIWARE21E (EDL
ARTIKEL2 - OID 14 16/128GB 40-POINTS DEEPCO
Audio - Built-in speaker(s) - Yes
Audio - Number of built-in speakers - 2
Audio - RMS rated power - 60 W
Brand - iiyama
BrandPartCode - TE8615A-B1AG
Category - Signage Displays
Certificates - Certification - CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, EPEAT, REACH (RoHS), EPEAT
Computer system - Built-in processor - Yes
Computer system - Internal memory - 16 GB
Computer system - Internal storage capacity - 128 GB
Computer system - On-board graphics card model - ARM Mali-G52
Computer system - Operating system installed - Android
Computer system - Operating system version - 14
Computer system - Processor architecture - ARM Cortex-A53+Cortex-A72
Computer system - Processor cores - 7
Computer system - Processor manufacturer - ARM
Design - Anti-glare screen - Yes
Design - Bezel colour - Black
Design - Orientation - Horizontal
Design - Panel mounting interface - 800 x 600 mm
Design - Placement supported - Indoor
Design - Product colour - Black
Design - Product design - Interactive flat panel
Design - Screen shape - Flat
Design - VESA mounting - Yes
Display - Active display area (W x H) - 1895 x 1066 mm
Display - Contrast ratio (typical) - 1200:1
Display - Display brightness - 550 cd/m²
Display - Display diagonal - 2.17 m (85.6")
Display - Display diagonal (metric) - 217.4 cm
Display - Display number of colours - 1.07 billion colours
Display - Display resolution - 3840 x 2160 pixels
Display - Glass thickness - 3.2 mm
Display - HD type - 4K Ultra HD
Display - Multi-touch - Yes
Display - Native aspect ratio - 16:9
Display - Number of simultaneous touchpoints - 40
Display - Number of simultaneous touchpoints (Android) - 32
Display - Panel type - IPS
Display - Pixel pitch - 0.493 x 0.493 mm
Display - Response time - 8 ms
Display - Surface hardness - 7H
Display - Touchscreen - Yes
Display - Touchscreen technology - Infrared
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
EANCode - 4948570124862
GRUPPE1 - Displays
GRUPPE2 - Lcd Large Format
GTIN - 4948570124862
HERSTELLER - IIYAMA CONSIGNMENT
HSTNUMMER - TE8615A-B1AG
LongDesc - Elegance and functionality come together in the ProLite TE8615A-B1AG. This 86” 4K UHD panel not only delivers precision and performance, but also brings a premium look to modern classrooms and collaborative business environments. With its button-free front panel (only a discreet power button), integrated pen holders, and a stylish fabric-covered bottom bezel that subtly houses high-quality front-facing speakers, the TE8615A elevates the visual experience of any room. It’s more than a tool—it’s part of your space. Coupled with DeepContrast-IR+ technology and Palm Rejection, it offers fluid and natural writing on the Optical Bonding LCD, eliminating parallax for an intuitive feel. Powered by iiWare 21E with Android 14 (EDLA Certified), the display integrates effortlessly into Google environments. Features like WiFi 6, Bluetooth 5.0, NFC reader, and PIR motion sensor add a layer of connectivity, energy efficiency, and access control. With iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), the TE8615A-B1AG promotes seamless teamwork—whether you're presenting, teaching, or brainstorming. The TE8615A-B1AG isn’t just an interactive display—it’s a centerpiece for connection, creativity, and collaboration, all wrapped in a refined, modern design.
LongProductName - 86" 4K UHD Google EDLA Certified IFP Interactive Display – Where Design Meets Performance
LongSummaryDescription - iiyama 86" 4K UHD Google EDLA Certified IFP Interactive Display – Where Design Meets Performance. Product design: Interactive flat panel. Display diagonal: 2.17 m (85.6"), Display resolution: 3840 x 2160 pixels, Display brightness: 550 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating system installed: Android. Product colour: Black
Operational conditions - Operating relative humidity (H-H) - -20 - 60%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features - Audio input - Mini jack
Other features - Audio output - Mini jack
Other features - Bluetooth - Yes
Other features - Bluetooth version - 5.0
Packaging content - Batteries included - Yes
Packaging content - Cables included - AC, HDMI, USB
Packaging content - Mounting kit - Yes
Packaging content - Remote control included - Yes
Packaging content - Stylus pen - Yes
Packaging data - Package depth - 2095 mm
Packaging data - Package height - 1265 mm
Packaging data - Package weight - 82.7 kg
Packaging data - Package width - 2095 mm
Performance - Ambient light sensor - Yes
Performance - HDCP - Yes
Performance - HDCP version - 2.2
Performance - Mean time between failures (MTBF) - 50000 h
Performance - Motion sensor - Yes
Performance - Number of OSD languages - 14
Performance - On Screen Display (OSD) - Yes
Performance - On Screen Display (OSD) languages - Multi
Performance - Picture-in-Picture - Yes
Performance - Purpose - Universal
Ports & interfaces - Audio Return Channel (ARC) - Yes
Ports & interfaces - Card reader integrated - Yes
Ports & interfaces - Compatible memory cards - MicroSD (TransFlash)
Ports & interfaces - DisplayPorts in - 1
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DisplayPort version - 1.2
Ports & interfaces - DVI port - No
Ports & interfaces - Ethernet LAN - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Ethernet LAN data rates - 1000 Mbit/s
Ports & interfaces - HDMI input ports quantity - 1
Ports & interfaces - HDMI output ports quantity - 1
Ports & interfaces - HDMI ports quantity - 3
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - OPS module slot - Yes
Ports & interfaces - RS-232C - Yes
Ports & interfaces - USB connector type - USB Type-A, USB Type-C
Ports & interfaces - USB port - Yes
Ports & interfaces - USB ports quantity - 5
Ports & interfaces - USB Power Delivery (USB PD) - Yes
Ports & interfaces - USB Power Delivery up to - 100 W
Ports & interfaces - USB Type-C DisplayPort Alternate Mode - Yes
Ports & interfaces - Wi-Fi - Yes
Ports & interfaces - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (SDR) per 1000 hours - 300 kWh
Power - Energy efficiency class (SDR) - G
Power - Energy efficiency scale - A to G
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 300 W
ProductName - 86" 4K UHD Google EDLA Certified IFP Interactive Display – Where Design Meets Performance
ShortSummaryDescription - iiyama 86" 4K UHD Google EDLA Certified IFP Interactive Display – Where Design Meets Performance, Interactive flat panel, 2.17 m (85.6"), 3840 x 2160 pixels, Wi-Fi
Stck_Kart - 1
Stck_Pal - 0
Storno - Y
Technical details - OPS slot - 1
Title - iiyama 86" 4K UHD Google EDLA Certified IFP Interactive Display – Where Design Meets Performance
URL - https://iiyama.com/
WarrantyInfo -
Weight & dimensions - Display depth - 87.1 mm
Weight & dimensions - Display height - 1174.3 mm
Weight & dimensions - Display weight - 68 kg
Weight & dimensions - Display width - 1955.6 mm
