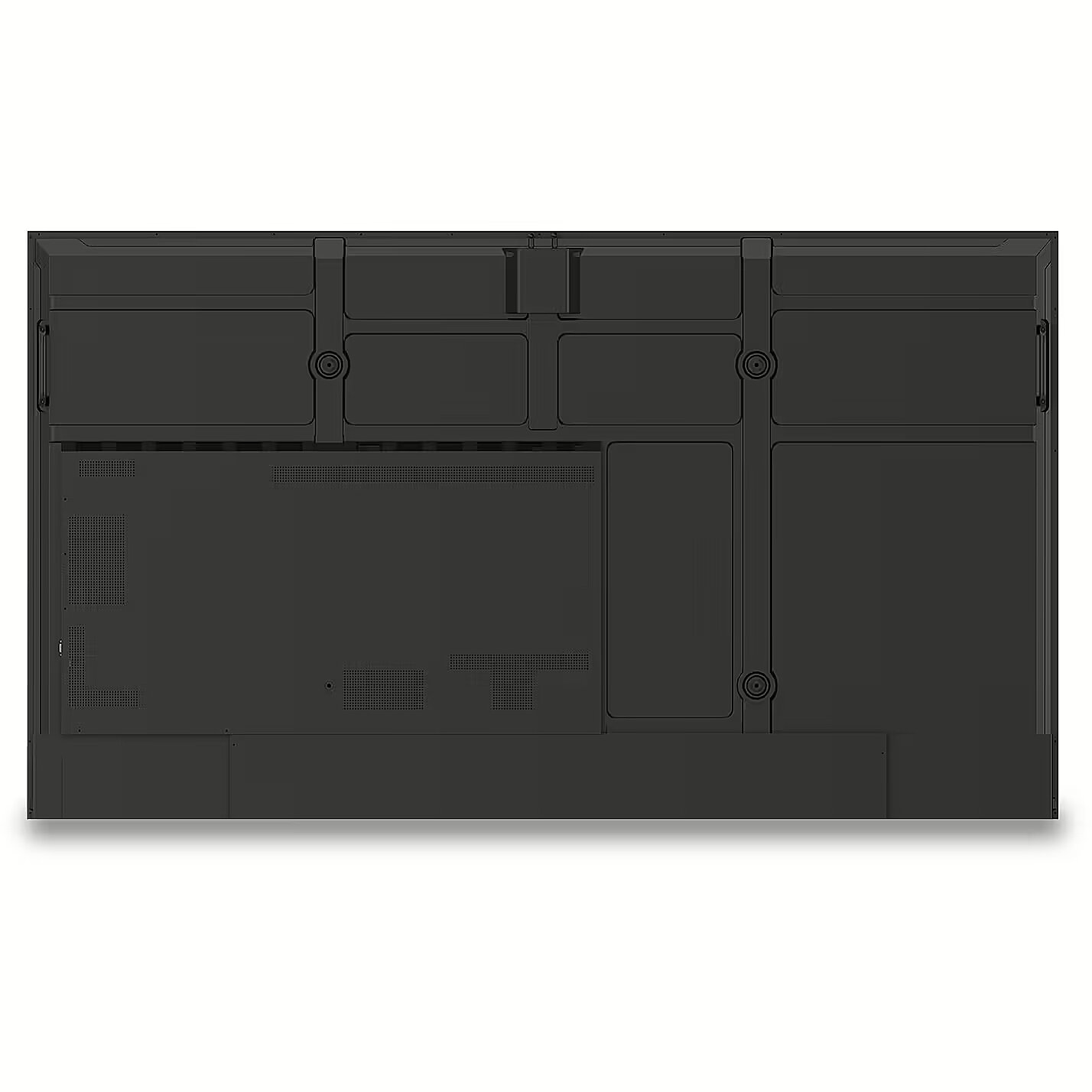

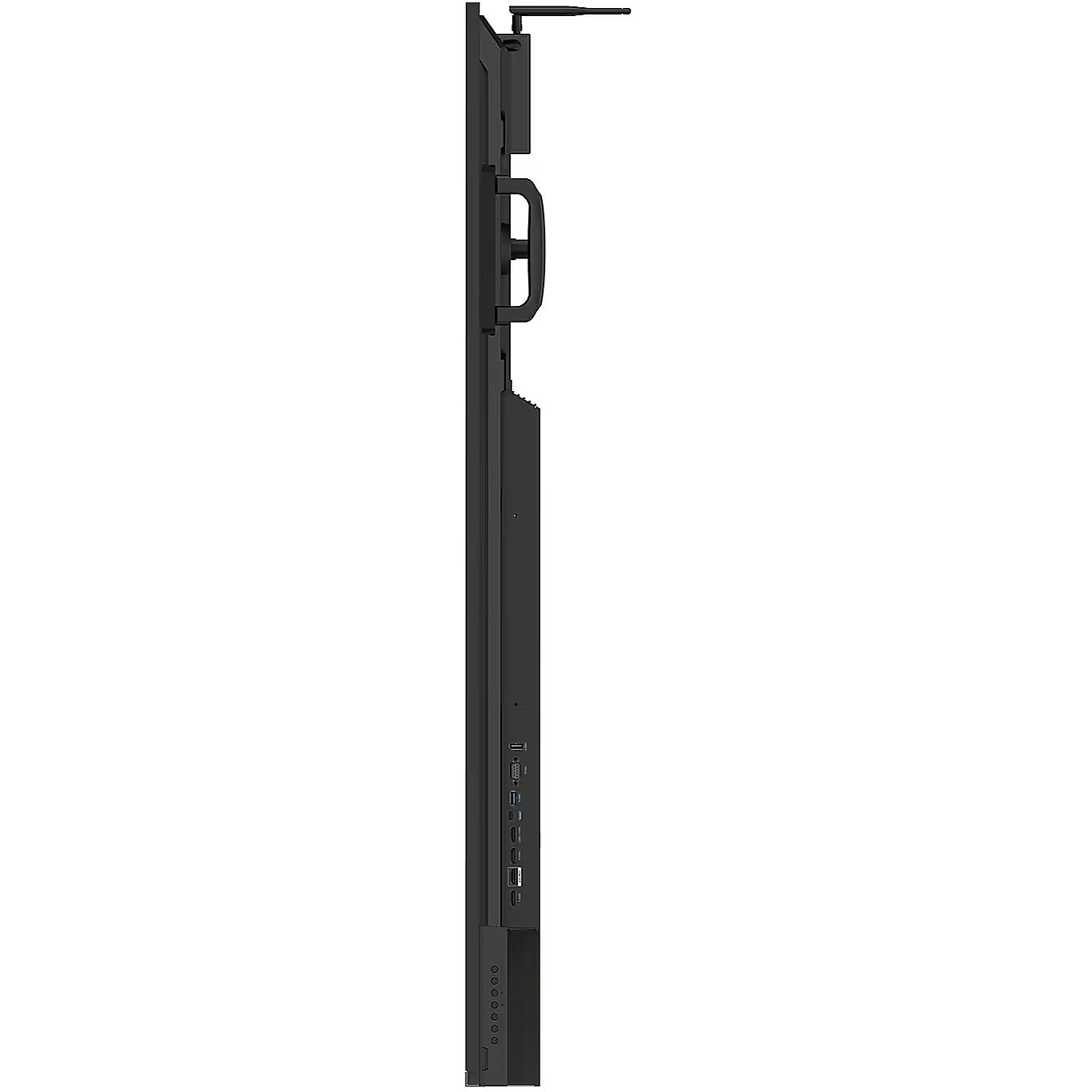

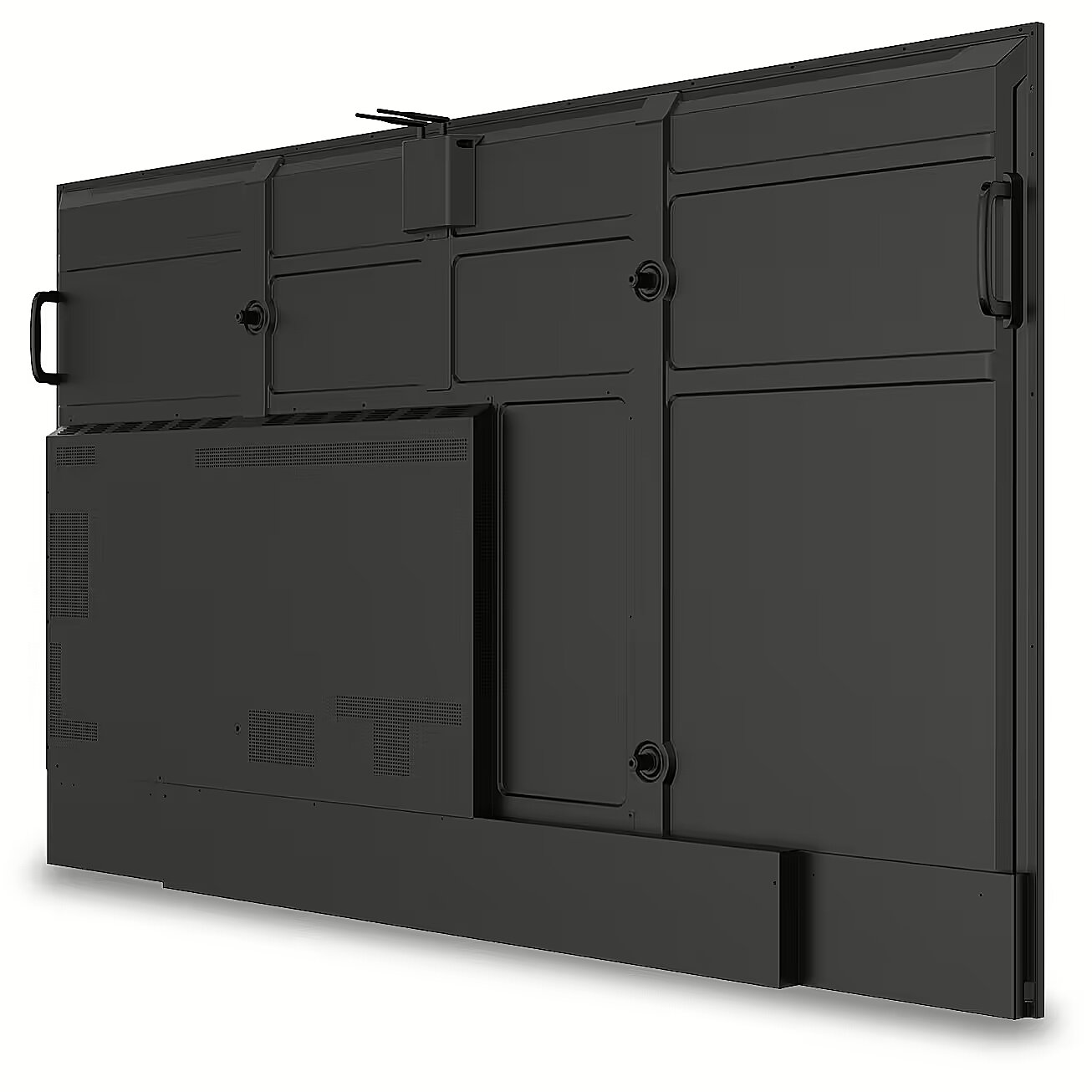

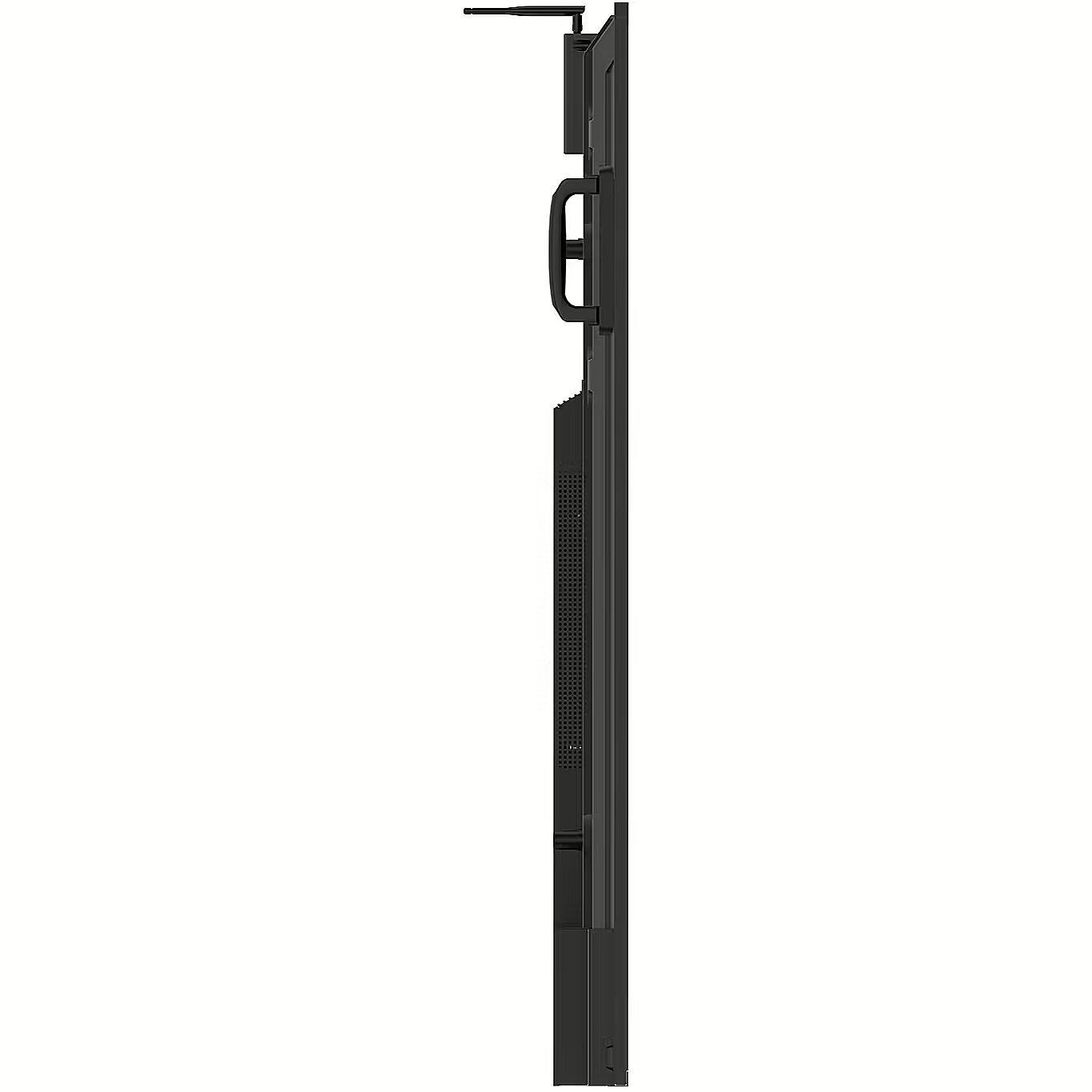

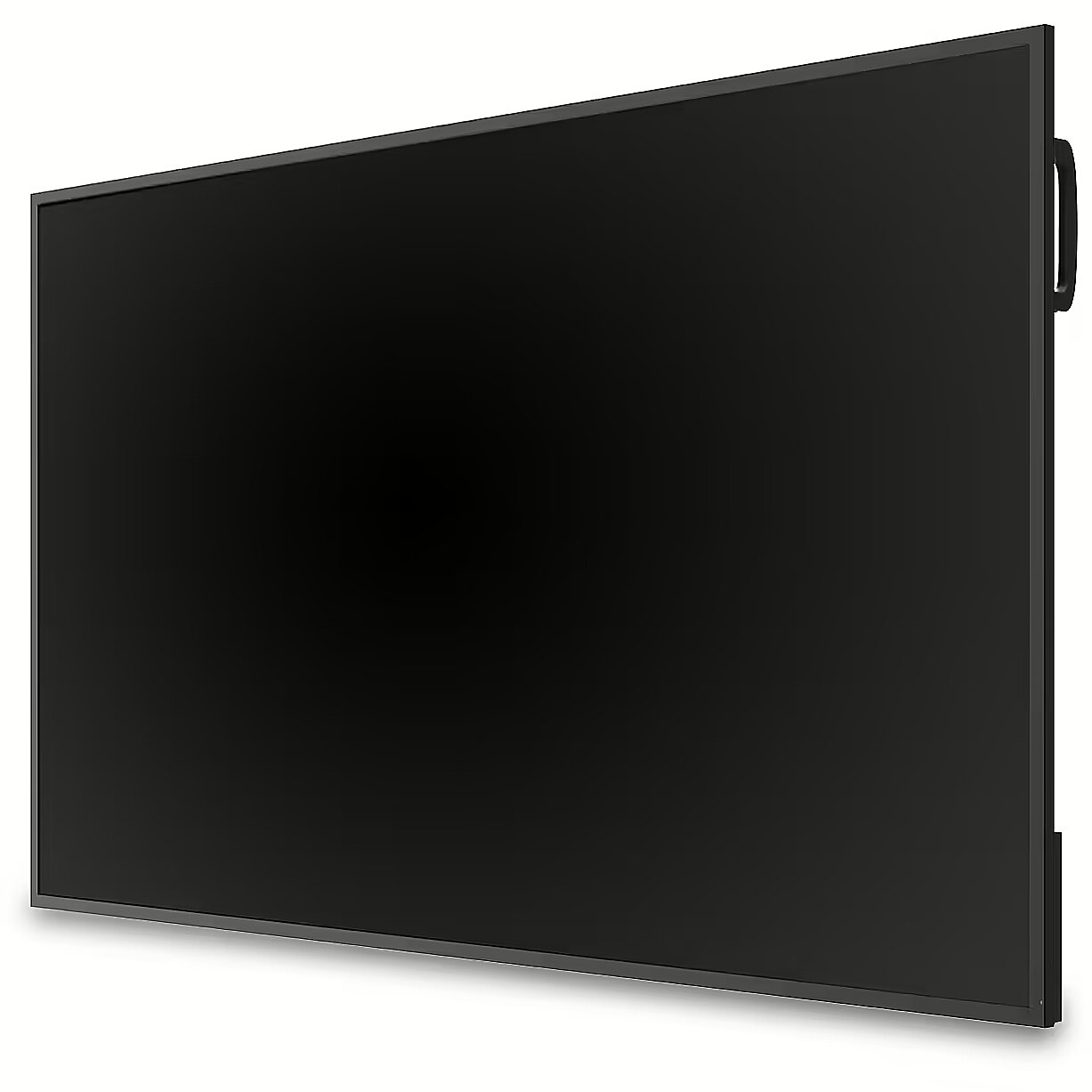

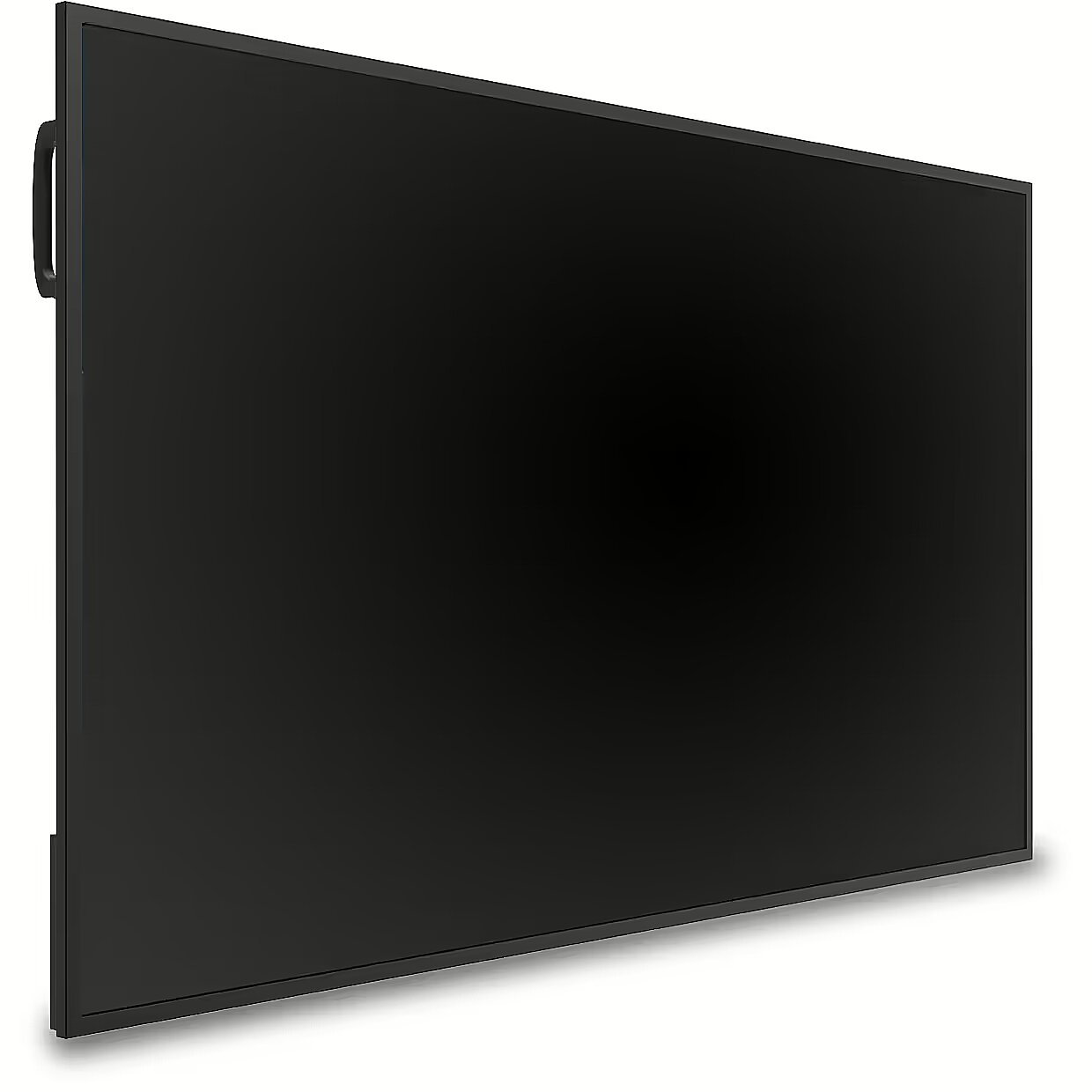

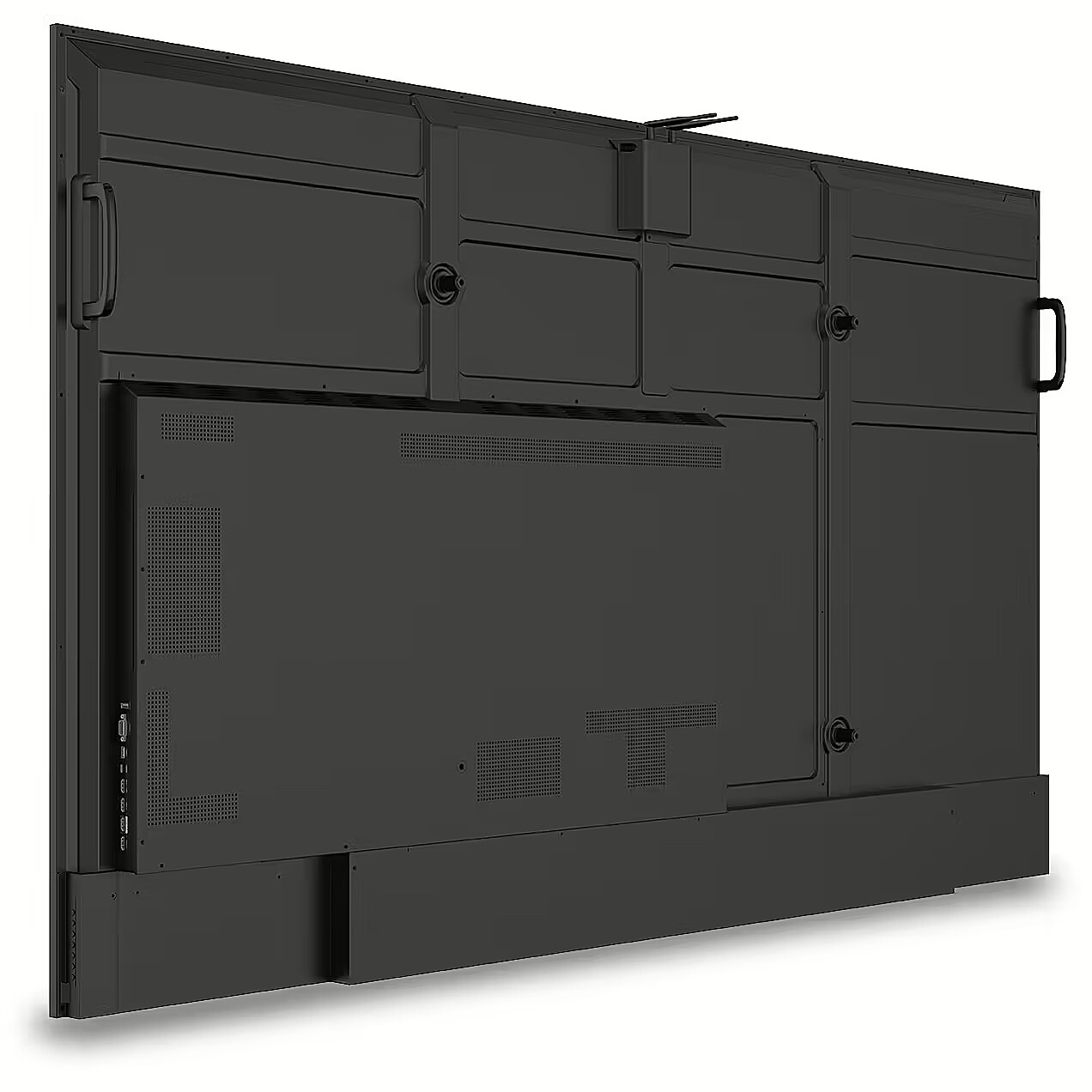

ViewSonic CDE8630, 86"

Audio - Built-in speaker(s) - Yes
Audio - Number of built-in speakers - 2
Audio - RMS rated power - 20 W
Brand - Viewsonic
BrandPartCode - CDE8630
Category - Signage Displays
Category 1 - Displays
Category 2 - Monitore
Certificates - Certification - cTUus, FCC, Energy Star 8.0, RoHS, Mexico NOM, Mexico Energy
Computer system - Built-in processor - Yes
Computer system - Computer system - Yes
Computer system - Computer system type - System on Chip (SoC)
Computer system - Internal memory - 4 GB
Computer system - Internal storage capacity - 32 GB
Computer system - On-board graphics card model - ARM Mali-G52
Computer system - Operating system installed - Android 11
Computer system - Processor cores - 4
Computer system - Processor frequency - 1.5 GHz
Design - Anti-glare screen - Yes
Design - Bezel width (bottom) - 1.5 cm
Design - Bezel width (side) - 1.5 cm
Design - Bezel width (top) - 1.5 cm
Design - Mounting type - Wall
Design - Orientation - Horizontal/Vertical
Design - Panel mounting interface - 800 x 400 mm
Design - Placement supported - Indoor
Design - Product colour - Black
Design - Product design - Digital signage flat panel
Design - Screen shape - Flat
Design - VESA mounting - Yes
Display - Contrast ratio (dynamic) - 5000:1
Display - Contrast ratio (typical) - 1200:1
Display - Display brightness - 450 cd/m²
Display - Display diagonal - 2.18 m (86")
Display - Display number of colours - 1.07 billion colours
Display - Display resolution - 3840 x 2160 pixels
Display - Display technology - LCD
Display - Haze rate - 25%
Display - HD type - 4K Ultra HD
Display - LED backlighting type - Direct-LED
Display - Native aspect ratio - 16:9
Display - Native refresh rate - 60 Hz
Display - Panel life - 50000 h
Display - Panel type - ADS
Display - Response time - 8 ms
Display - Surface hardness - 3H
Display - Touchscreen - No
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
EAN - 0766907017502
GTIN - 0766907017502
GTIN - 766907017502
LongDesc - Streamline your presentations, enhance collaboration, and succeed with the ViewSonic CDE8630 digital display. Whether your employees are in office or working remotely, they will enjoy fast and easy ways to communicate thanks to ViewBoard Cast™ screen sharing software and the myViewBoard® Display app that allows up to four participants to connect and share content. For maximum visibility even in rooms with high ambient light, these displays offer stunning 4K Ultra HD resolution, high brightness and a 25% high haze anti-glare screen. What’s more, these all-in-one displays simplify installation and maintenance thanks to a powerful secured embedded platform that delivers smooth content playback without the need for a PC or media player.Multiple Ways to Connect and ShareConnect wirelessly through your network or directly to the display. Use the ViewBoard Cast™ screen sharing software along with the web-based myViewBoard® Display app to allow up to four participants (on-site and remote) to connect and share their content regardless of what OS platform they are using (Windows, MacOS, Chrome OS, Android, iOS). In addition, AirPlay, Miracast and the optional ViewBoard Cast button all offer wireless and software-less casting options.AV Control System InteroperabilityThese displays are Crestron Connected® as well as Extron and AMX certified for seamless integration. Network admins are always in control with the ability to send control signals such as on/off, switch inputs, push firmware and security updates, and get status from the display.Centralized Device Control ManagerFor IT admins, it’s tough managing the hundreds of devices and displays that live on the network. Now with myViewBoard Manager, an easy-to-use web-based application, IT can securely set up, manage and maintain all of the displays from a centralized dashboard.Reliable 24/7 Operation RatingFeaturing a long lifespan, this professional-grade commercial display is designed for reliable use 24 hours a day, 7 days a week. Ideal in virtually any commercial application and environment, this commercial display delivers peace of mind with its robust and durable design.Superb and Stunning Picture QualityWith 4K resolution, high brightness and 25% high haze anti-glare glass treatment, these displays deliver bright, clear and sharp images in any indoor environment.Powerful Secured Embedded PlatformThis display can execute several tasks at once while providing smooth content playback without the need for a PC or media player. The embedded SoC provides PC-like performance and power to run apps, while hardened custom Android OS firmware protects the display from viruses and security breaches by preventing unknown sources to be installed on the system.Flexible InstallationWith landscape or portrait mode options, a uniform bezel width, HDMI in and HDMI out for up to 9-screen tiling (ex 1x2, 2x2, 3x2, 4x2, 3x3, 1x9, etc.) without an external HDMI matrix, this display delivers versatile video wall configuration out-of-the-box.Advanced Multi-Source CapabilityPicture in Picture (PiP) and Picture by Picture (PBP) options allow up to two independent sources to run at the same time.Integrated Content Management SystemEnjoy a cloud-based 30-day trial service subscription from ViewSonic's content management software, powered by Revel Digital platform. This allows you to instantly transfer multimedia from any HTML5 browser-based device to the display no matter where you are. Works with optional ViewSonic Signage Manager CMS (SW-216) for local content push with perpetual license.
LongProductName - 86" ADS DLED, 4K, 16:9, 450 cd/m², 1200:1, 8 ms, 178/178, 20W, RJ45, HDMI, RS-232, SPDIF, USB, 100-240 VAC, 24/7, VESA, 43.2 kg
LongSummaryDescription - Viewsonic CDE8630. Product design: Digital signage flat panel. Display diagonal: 2.18 m (86"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 450 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black
Manufacturer - Viewsonic
MPN - CDE8630
Name - Viewsonic 218.4cm CDE8630 16:9 HDMI/LAN/USB-C 500nits (Speditionsversand)
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - Quick start guide - Yes
Packaging content - Batteries included - Yes
Packaging content - Cables included - AC, HDMI, USB Type-C
Packaging content - Mounting kit - Yes
Packaging content - Remote control included - Yes
Packaging data - Package depth - 225 mm
Packaging data - Package height - 1227 mm
Packaging data - Package weight - 60.8 kg
Packaging data - Package width - 2110 mm
Performance - HDCP - Yes
Performance - HDCP version - 2.2
Performance - Operating hours (hours/days) - 24/7
Performance - Purpose - Universal
Ports & interfaces - DVI port - No
Ports & interfaces - Ethernet LAN - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Ethernet LAN data rates - 10,100,1000 Mbit/s
Ports & interfaces - HDMI input ports quantity - 2
Ports & interfaces - HDMI output ports quantity - 1
Ports & interfaces - HDMI ports quantity - 3
Ports & interfaces - HDMI version - 2.0/2.1
Ports & interfaces - OPS module slot - Yes
Ports & interfaces - RS-232 interface - Yes
Ports & interfaces - USB connector type - USB Type-A, USB Type-C
Ports & interfaces - USB port - Yes
Ports & interfaces - USB ports quantity - 3
Ports & interfaces - USB version - 2.0/3.2 Gen 1 (3.1 Gen 1)
Ports & interfaces - Wi-Fi - No
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (SDR) per 1000 hours - 318 kWh
Power - Energy efficiency class (SDR) - G
Power - Energy efficiency scale - A to G
Power - Power consumption (max) - 510 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 365 W
ProductName - CDE8630
ShortSummaryDescription - Viewsonic CDE8630, Digital signage flat panel, 2.18 m (86"), LCD, 3840 x 2160 pixels, 24/7
Technical details - OPS slot - 1
Title - Viewsonic CDE8630 Signage Display Digital signage flat panel 2.18 m (86") LCD 450 cd/m² 4K Ultra HD Black Built-in processor Android 11 24/7
URL - https://www.viewsonic.com/us/cde8630.html
WarrantyInfo - 3-Year Limited Warranty
Weight & dimensions - Display depth - 81.6 mm
Weight & dimensions - Display height - 1101 mm
Weight & dimensions - Display weight - 43.2 kg
Weight & dimensions - Display width - 1930.8 mm
