Brand - Imou
BrandPartCode - DB60/DS21-PEUR-IMOU
Camera - Built-in camera - Yes
Camera - Field of view - 164°
Camera - Fixed focal length - 2 mm
Camera - Maximum frame rate - 15 fps
Camera - Maximum video resolution - 2560 x 1920 pixels
Camera - Megapixel (approx.) - 5 MP
Camera - Night vision - Yes
Camera - Night vision distance - 5 m
Camera - Sensor type - CMOS
Category - Doorbell Kits

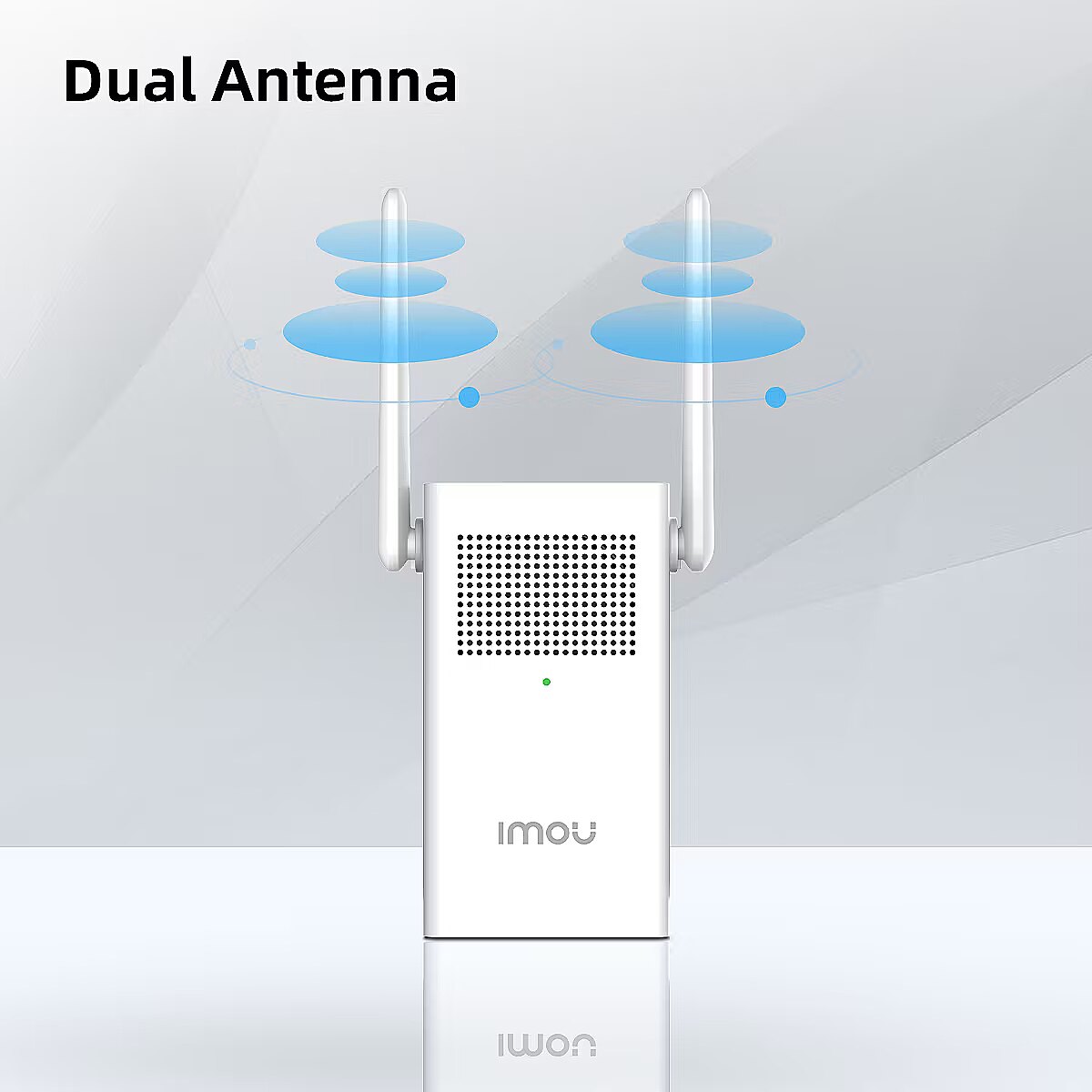

Features - Antennas quantity - 2
Features - Audio system - 2-way
Features - Best uses - Home
Features - Certification - CE EMC,CE RED,CE LVD,FCC,FCC ID,IC,ICID
Features - Human detection - Yes
Features - Motion detection supported - Yes
Features - Number of push buttons included - 1 pc(s)
Features - Product colour - Black
GTIN - 6971927232338

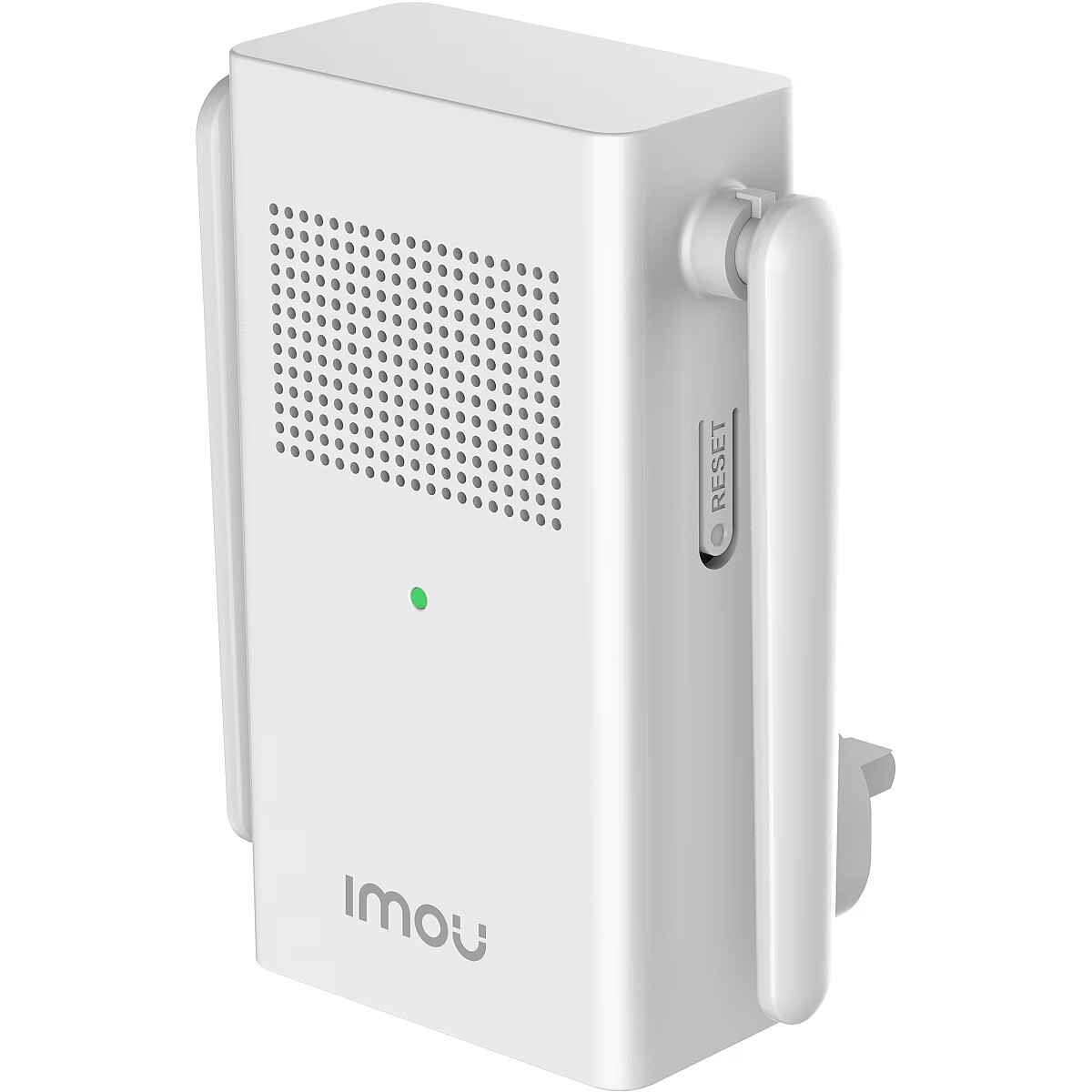

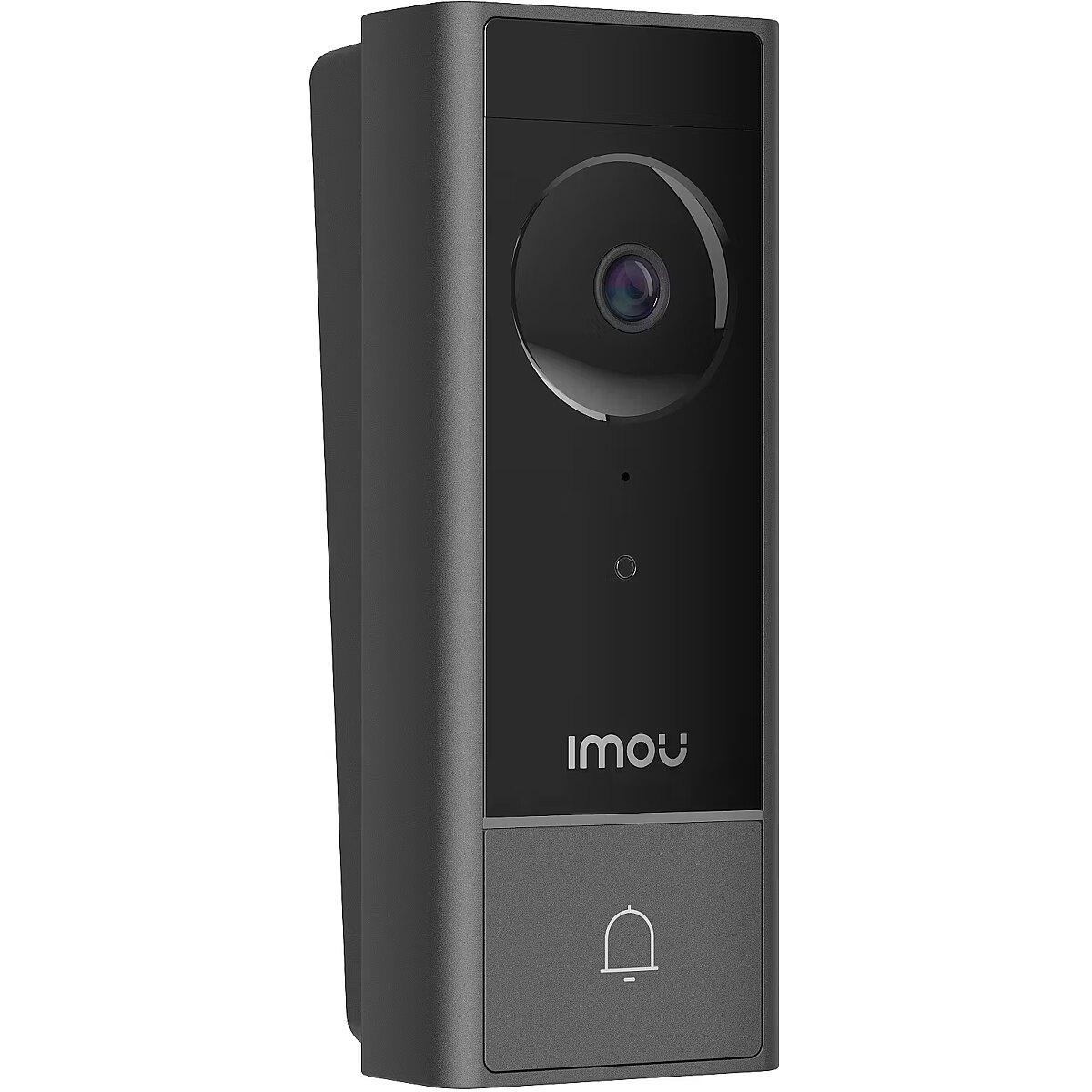

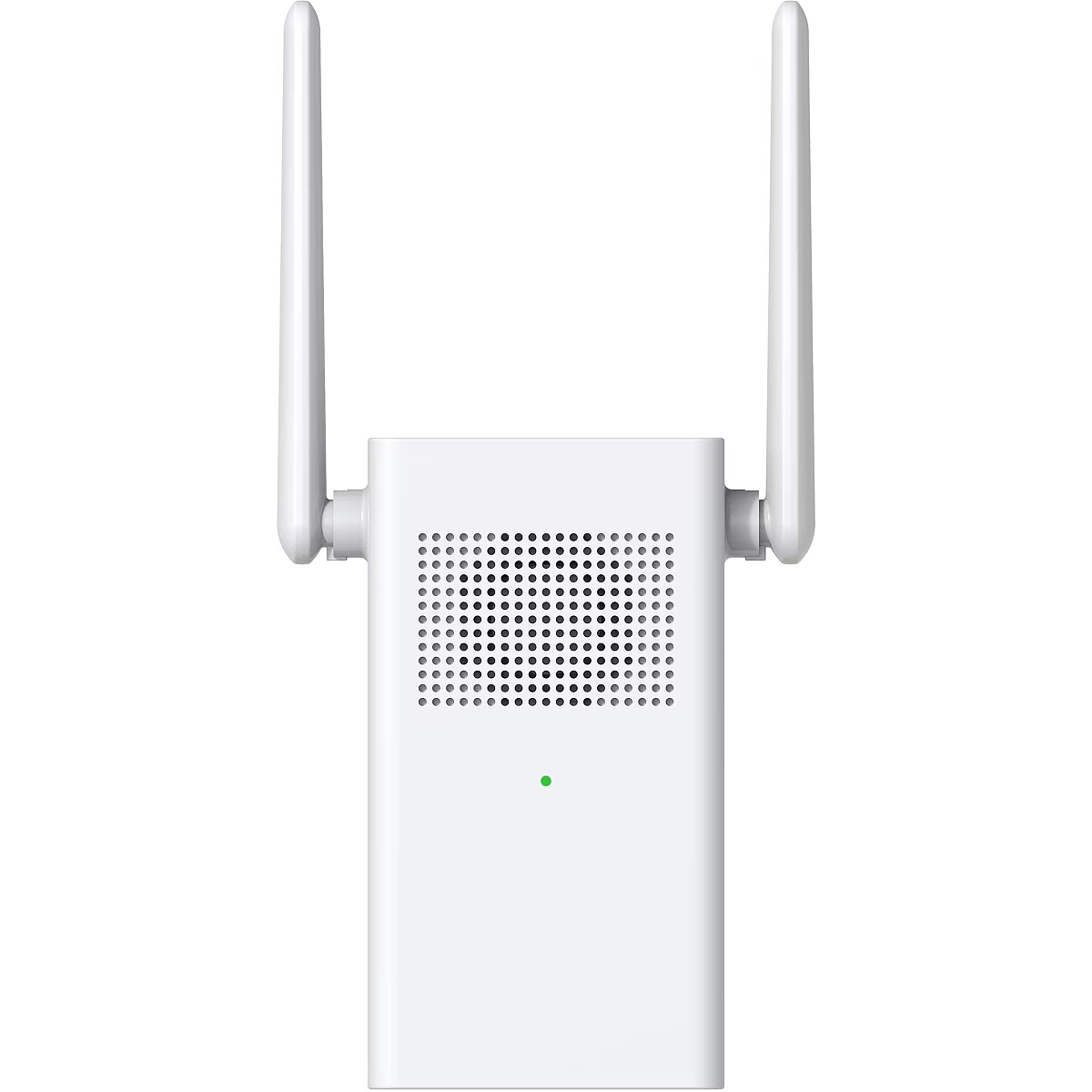

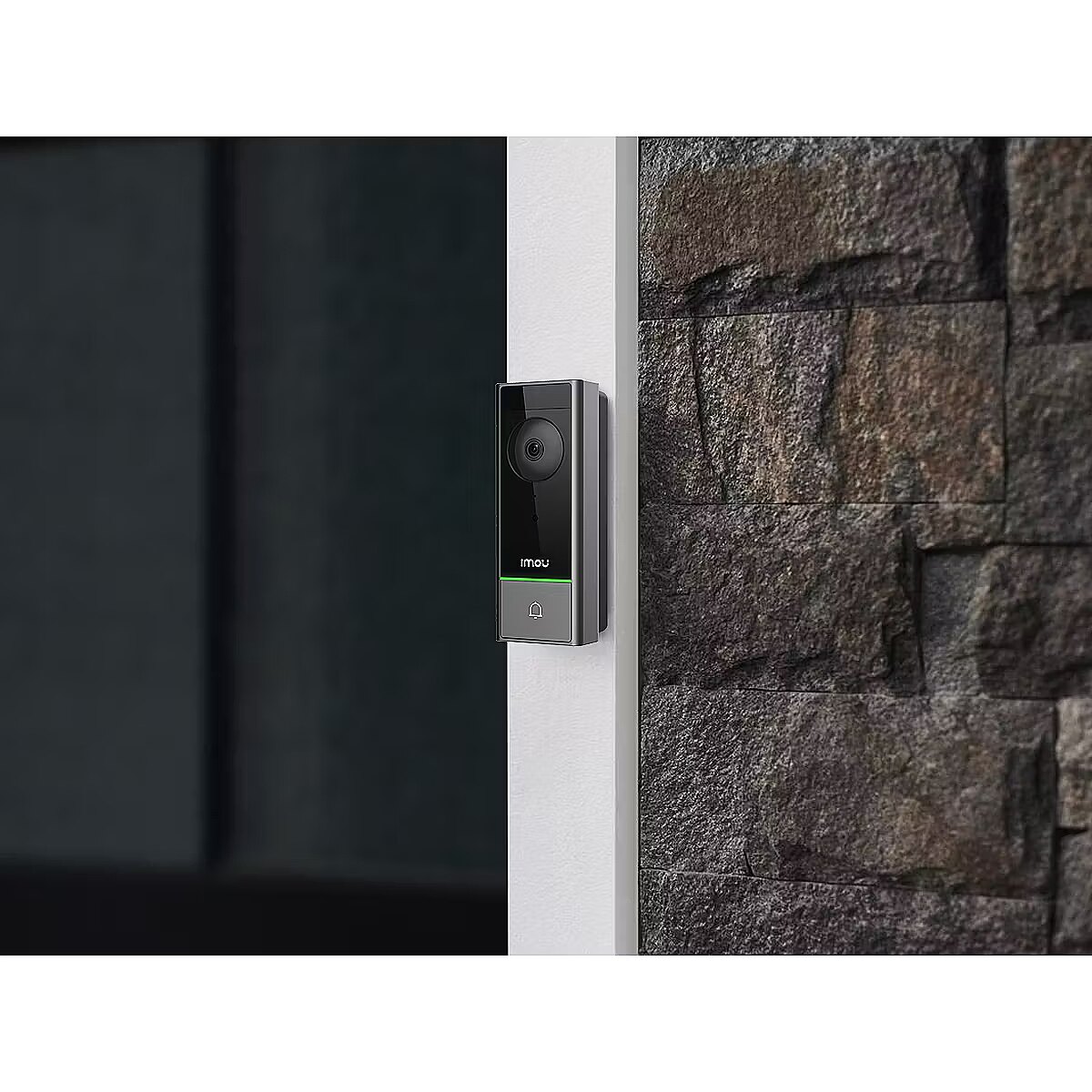

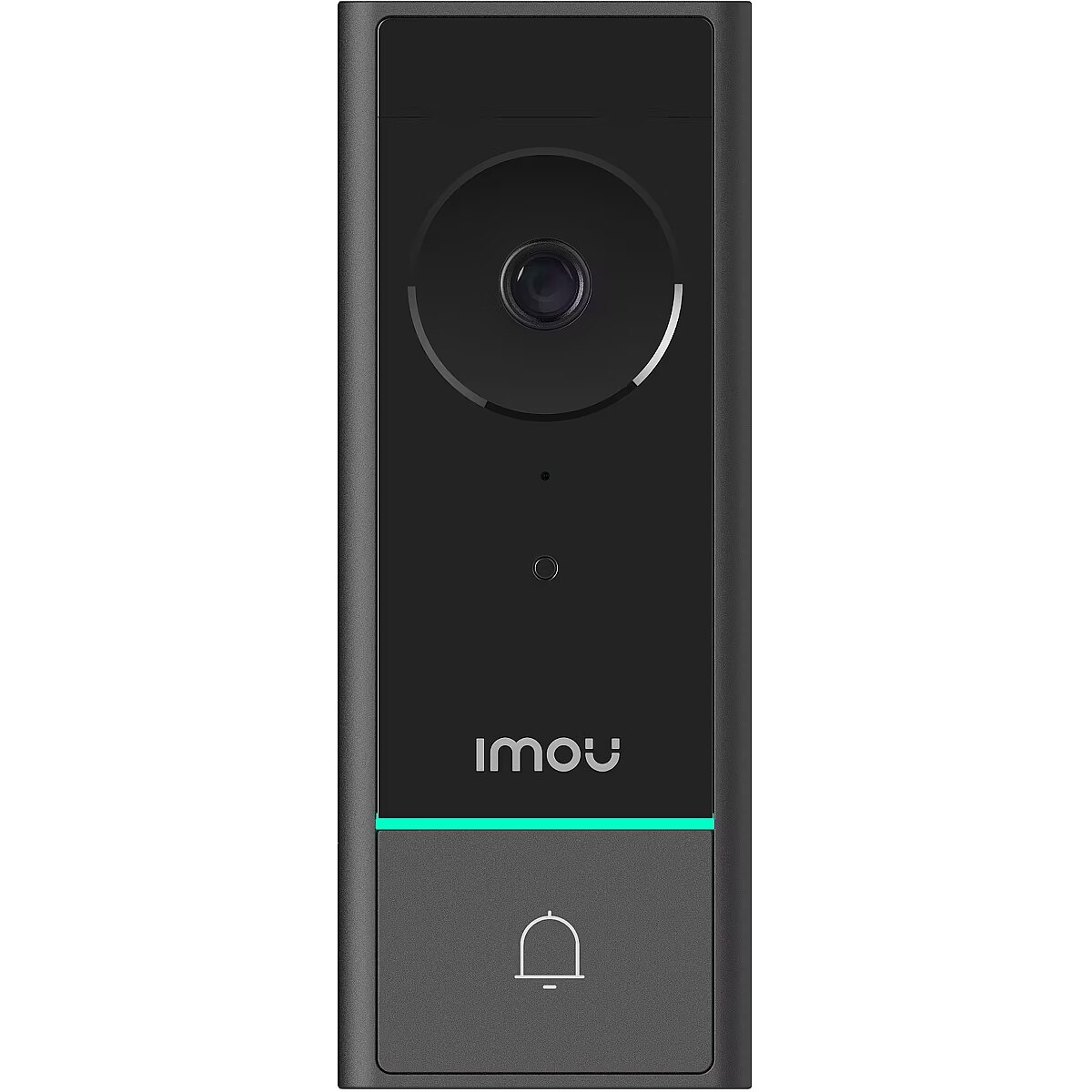

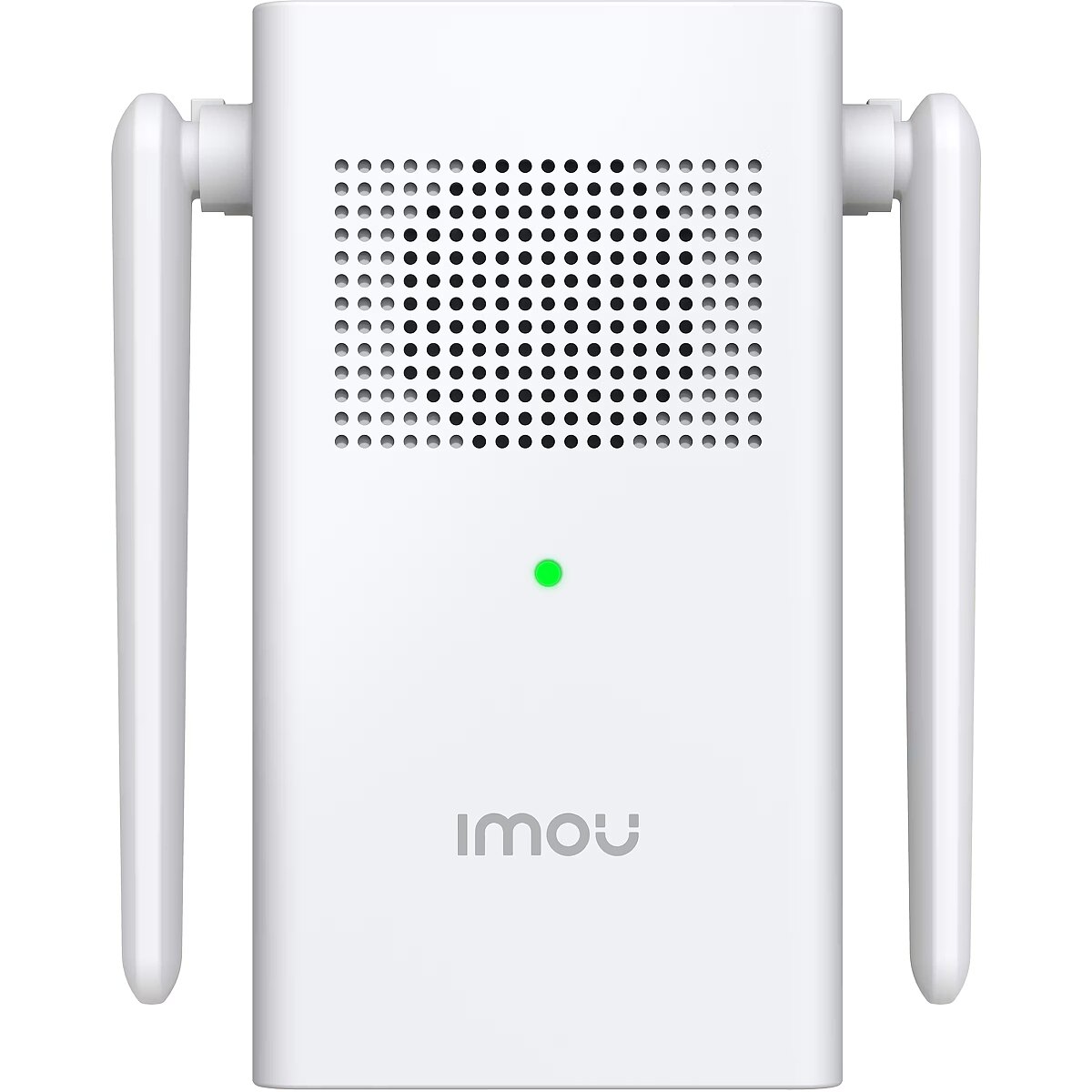

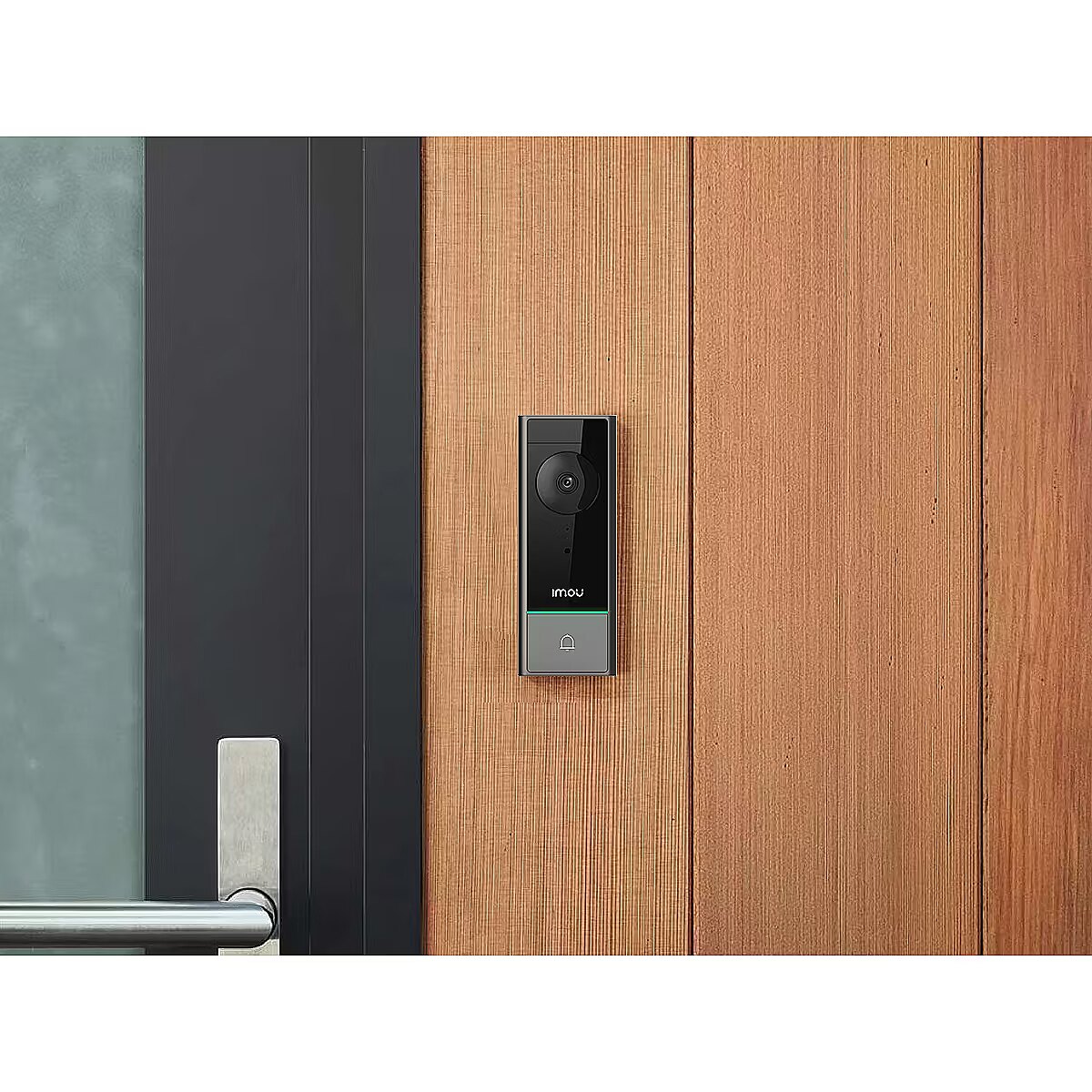

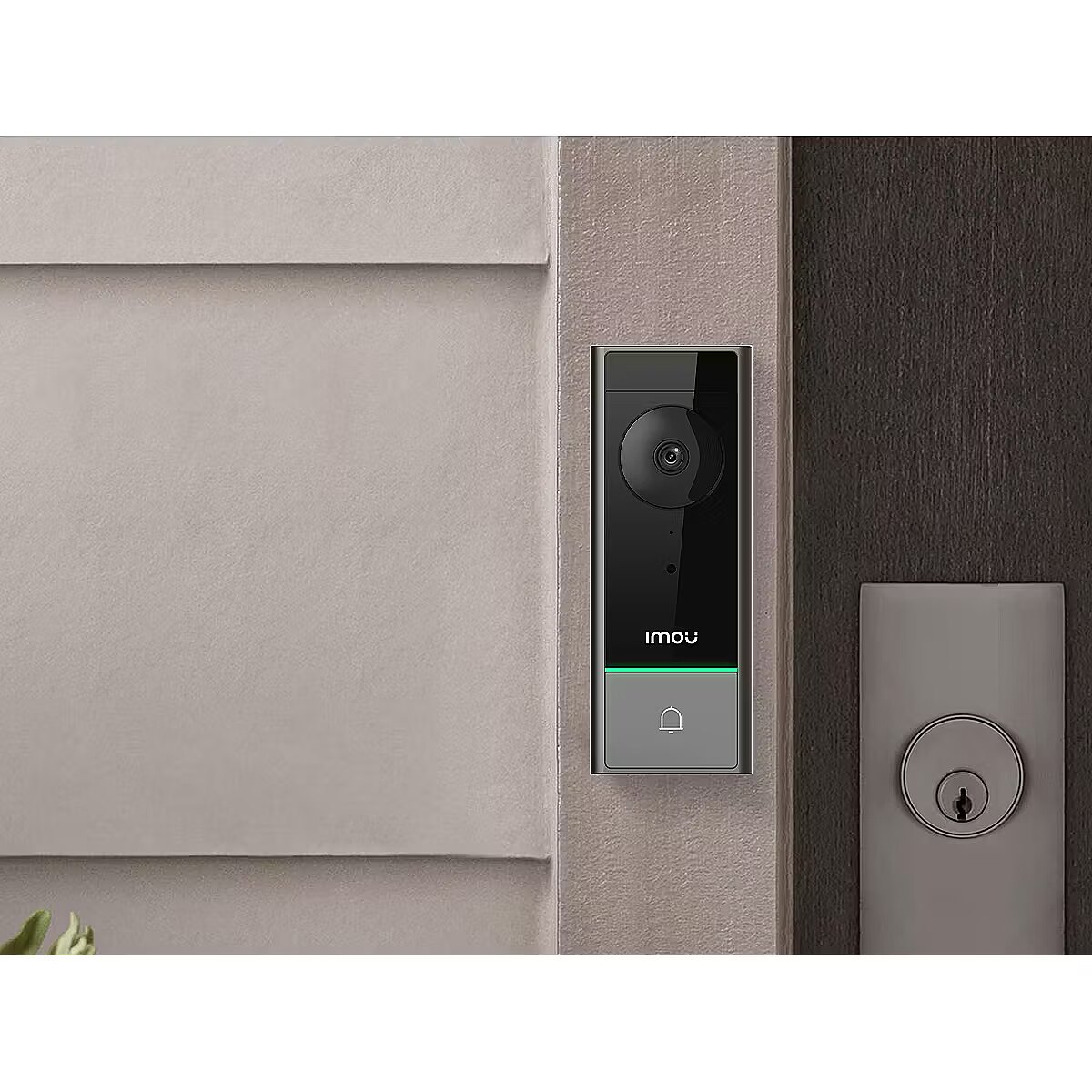

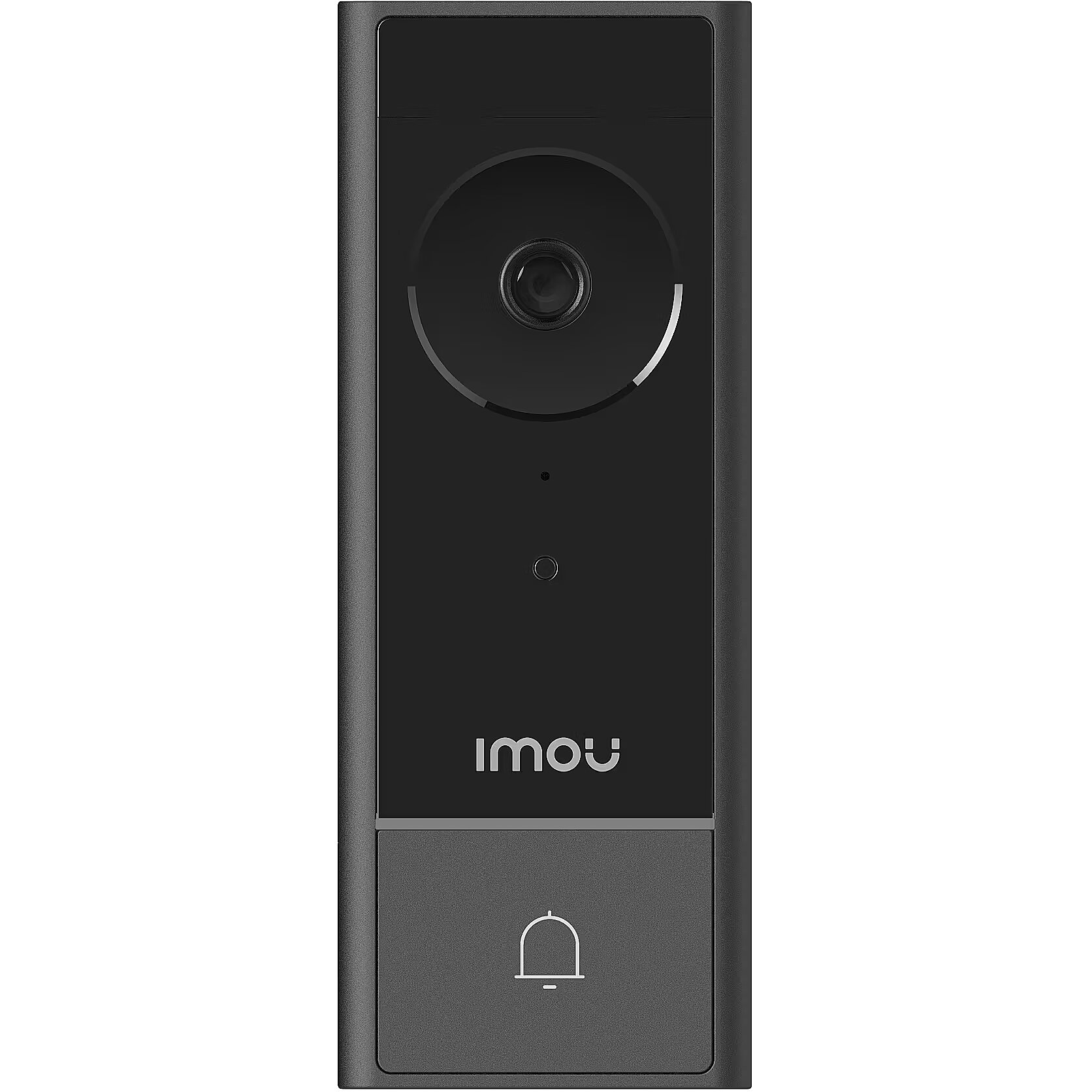

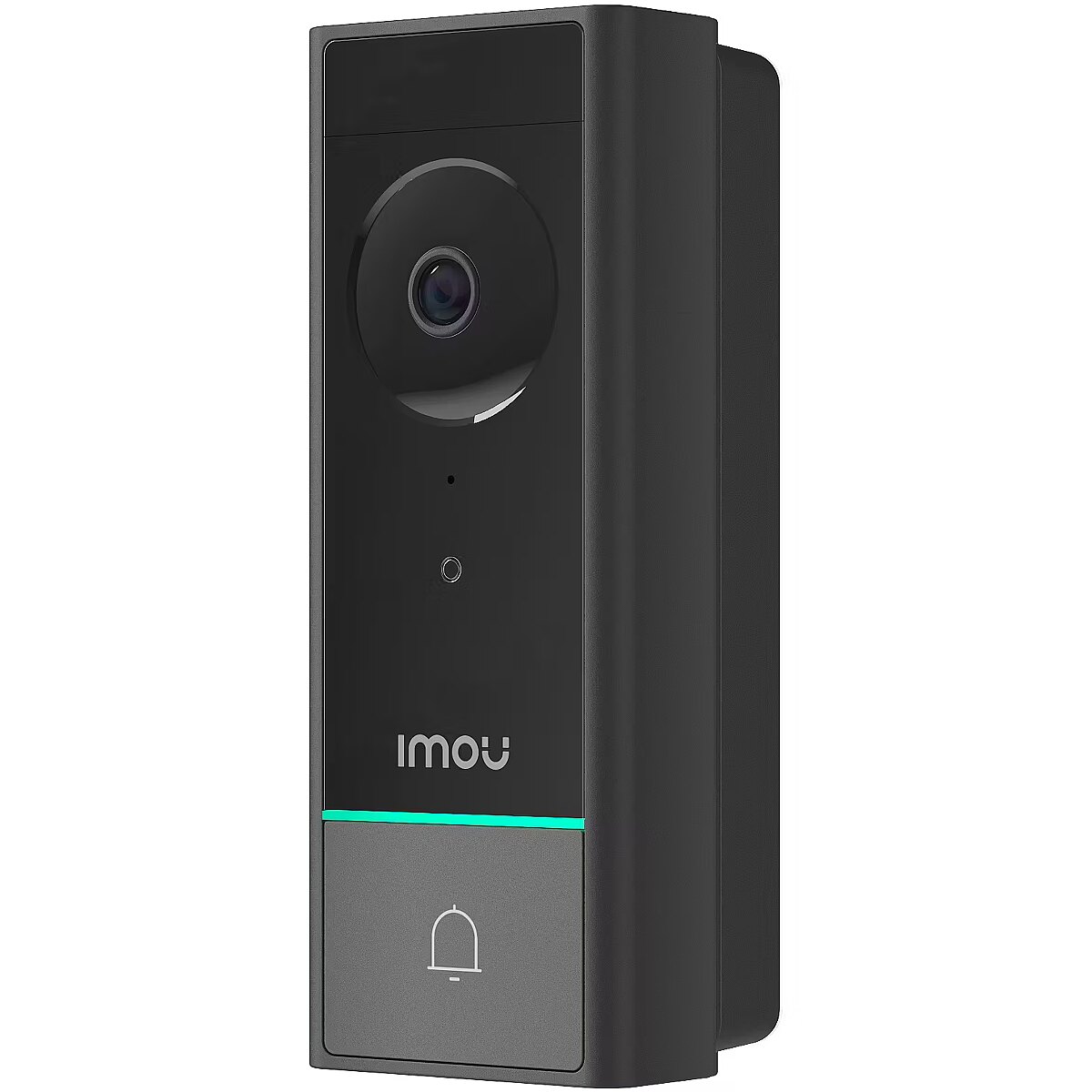

LongDesc - DB60 KitThe wireless DB60 doorbell delivers high quality images thanks to the 5 megapixel resolution. Capture all details with the wide 164° fish eye lens. The DB60 features two-way talk and quick response, ensuring you to see and answer to visitors from anywhere at any time in a practical way.The battery of this video doorbell can last up to 6 months under normal conditions. Furthermore, the DB60 is IP65 certified to withstand any weather condition and features night vision for clear images even in pitch dark. Recordings can be saved locally via a SD card or NVR, but you can also opt for Cloud service. Included in the DB60 kit is a chime to ensure you always hear the ring of the bell, even if you do not have your smart device at hand.Video resolutionThe 5MP (QHD) lens offers a great image quality to monitor your front door area, also at night thanks to the night vision mode. The H.265 image compression technique that is used ensures high-quality recordings and streams take up relatively little space and thus require less bandwidth. In this way, the available storage space and bandwidth can be used optimally. The Imou DB60 video doorbell uses 2.4 GHz WiFi and offers a great stable connection in combination with the Chime which is also a Wi-Fi extender.Two-way talk and quick responseThe DB60 features a wide fish eye lens providing a head-to-toe view of every person in front of your door. You can listen and respond to visitors with the two-way talk function. Which is also handy when you have a parcel delivery that can be left by the door. In addition the DB60 has a quick response feature, making it possible to reply to visitors with pre-recorded messages. Thanks to the high-end motion sensor and smart AI algorithm the DB60 sends out real-time notifications when someone is detected. In the settings you are able to set the detection region to only focus on specific areas.Up to 180 days security on a single chargeThis video doorbell features a rechargeable battery. Fully charged the 6.200 mAh battery can last up to 180 days under normal circumstances, based on 5 minutes of recording per day. Battery performance depends on the number of times the camera is activated. An extraordinarily high frequency will be at the expense of battery lifetime.ChimeImou DS21 chime is included in package to make sure you also hear the ring of the bell when you do not have your smart device at hand. The DS21 chime also functions as Wi-Fi extender to optimize the connectivity.InstallationDownload the Imou Life app (iOS, Android or Windows) and create an Imou account. After logging in, select the "+" sign at the top right of the Imou app to add a device. Scan the QR code on the doorbell and follow the steps in the app. Then select the WiFi network and make sure the device is close to the router during the installation process. The doorbell is ready for use in no time! For recording images, you can opt for the Imou Cloud service, but also for local storage by using a MicroSD card.What’s in the box?- 1 × Doorbell- 1x Chime- 1 × Mounting Bracket- 1 × Angled Bracket (15° horizontally)- 1 × Angled Bracket (5° vertically)- 2 × Extension Wires- 1 × Charging Cable- Installation materials- Quick start guide
LongProductName - 5MP, CMOS, 2560 x 1920px, 5m max, H.265/AAC, 15fps, IEEE802.11b/g/n, 6200 mAh, DS21
LongSummaryDescription - Imou DB60 Kit. Product colour: Black, Best uses: Home, Number of push buttons included: 1 pc(s). Audio formats supported: AAC, Video formats supported: H.265. Megapixel (approx.): 5 MP, Maximum video resolution: 2560 x 1920 pixels, Maximum frame rate: 15 fps. Connectivity technology: Wireless, Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Frequency: 2400 MHz. Power source type: USB, Input voltage: 12 - 24 V, Power consumption: 700 mA
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -20 - 50 °C
Operational conditions - Operating temperature (transmitter) - -10 - 50 °C
Packaging content - Cables included - Micro-USB
Packaging content - Drill bit included - Yes
Packaging content - Ejector pin included - Yes
Packaging content - Extension cable - Yes
Packaging content - Mounting bracket(s) included - Yes
Packaging content - Number of anchors included - 4
Packaging content - Number of cable nuts - 3
Packaging content - Number of extension cables - 2
Packaging content - Number of mounting brackets - 3
Packaging content - Number of screws included - 10 pc(s)
Packaging content - Quick start guide - Yes
Packaging content - Screws included - Yes
Performance - Audio formats supported - AAC
Performance - Built-in microphone - Yes
Performance - Built-in speaker(s) - Yes
Performance - Call notifications - Yes
Performance - Echo cancellation - Yes
Performance - Pairing button - Yes
Performance - Reset button - Yes
Performance - Transmitter reset button - Yes
Performance - Video formats supported - H.265
Ports & interfaces - Connectivity technology - Wireless
Ports & interfaces - Frequency - 2400 MHz
Ports & interfaces - Mobile operating systems supported - Android, iOS
Ports & interfaces - Wi-Fi - Yes
Ports & interfaces - Wi-Fi standards - 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Power - Battery capacity - 6200 mAh
Power - Battery type - Built-in battery
Power - Battery voltage (transmitter) - 240 V
Power - DC input voltage - 12 - 24 V
Power - Input voltage - 12 - 24 V
Power - Power consumption - 700 mA
Power - Power consumption (transmission) - 5 W
Power - Power source type - USB
Power - USB charging port - Yes

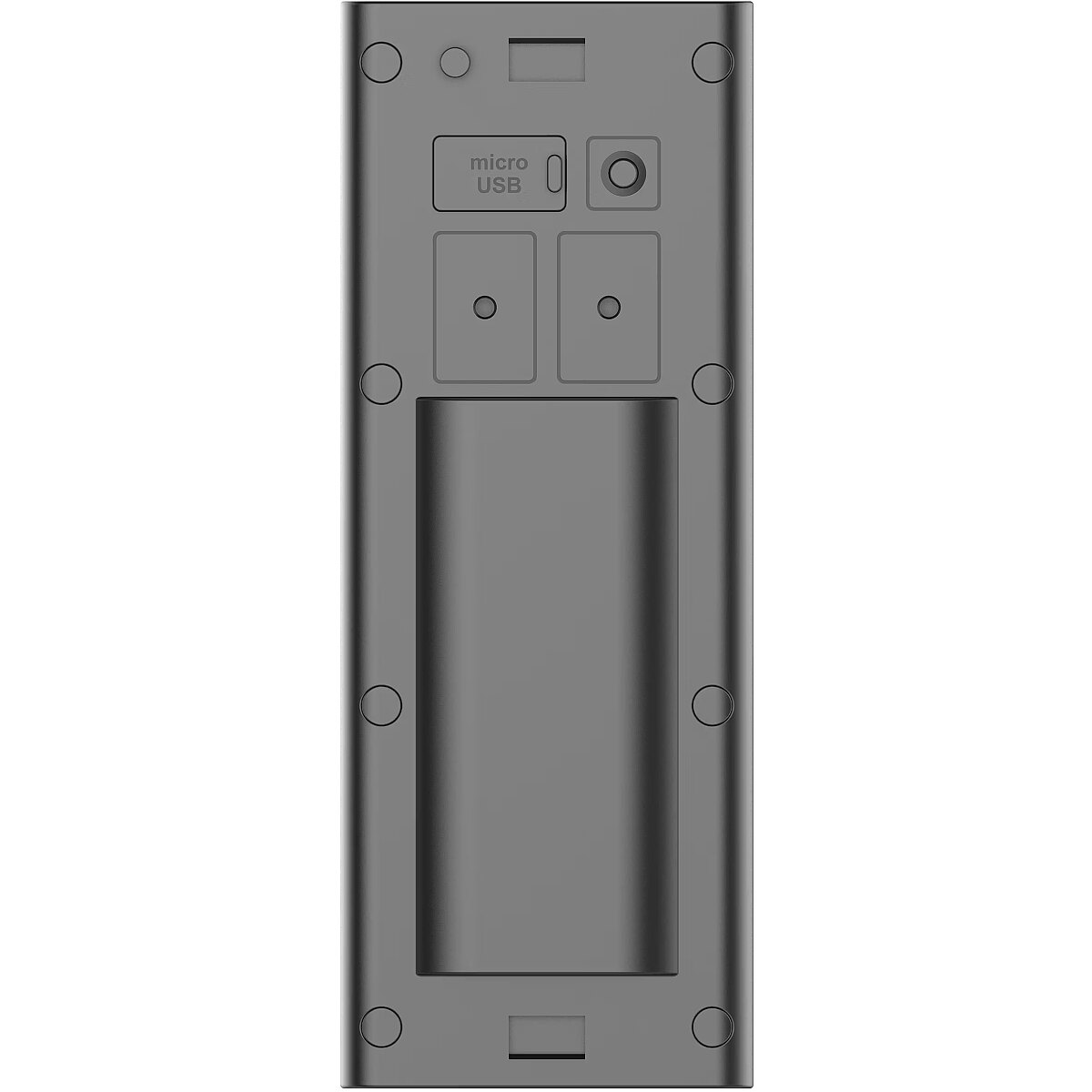

Power - USB port type - Micro-USB B
ProductName - DB60 Kit
ShortSummaryDescription - Imou DB60 Kit, Black, Home, 1 pc(s), 2-way, CE EMC,CE RED,CE LVD,FCC,FCC ID,IC,ICID, AAC
Title - Imou DB60 Kit Black
URL - https://www.imoulife.com/uk/
WarrantyInfo -
Weight & dimensions - Transmitter depth - 9.5 cm
Weight & dimensions - Transmitter height - 2.8 cm
Weight & dimensions - Transmitter weight - 230 g
Weight & dimensions - Transmitter width - 5.2 cm
