Code - FGBS-222 EU
Design - Built-in display - No
Design - LED indicators - Yes
Design - Product colour - White
dimensionalWeight - 25
EAN - 5902701701475
Features > Colour of product - White
Features > Connectivity technology - Wireless
Gross weight - 0.029 kg
Link - https://www.fibaro.com/en/products/smart-implant/smart-implant-specifications/

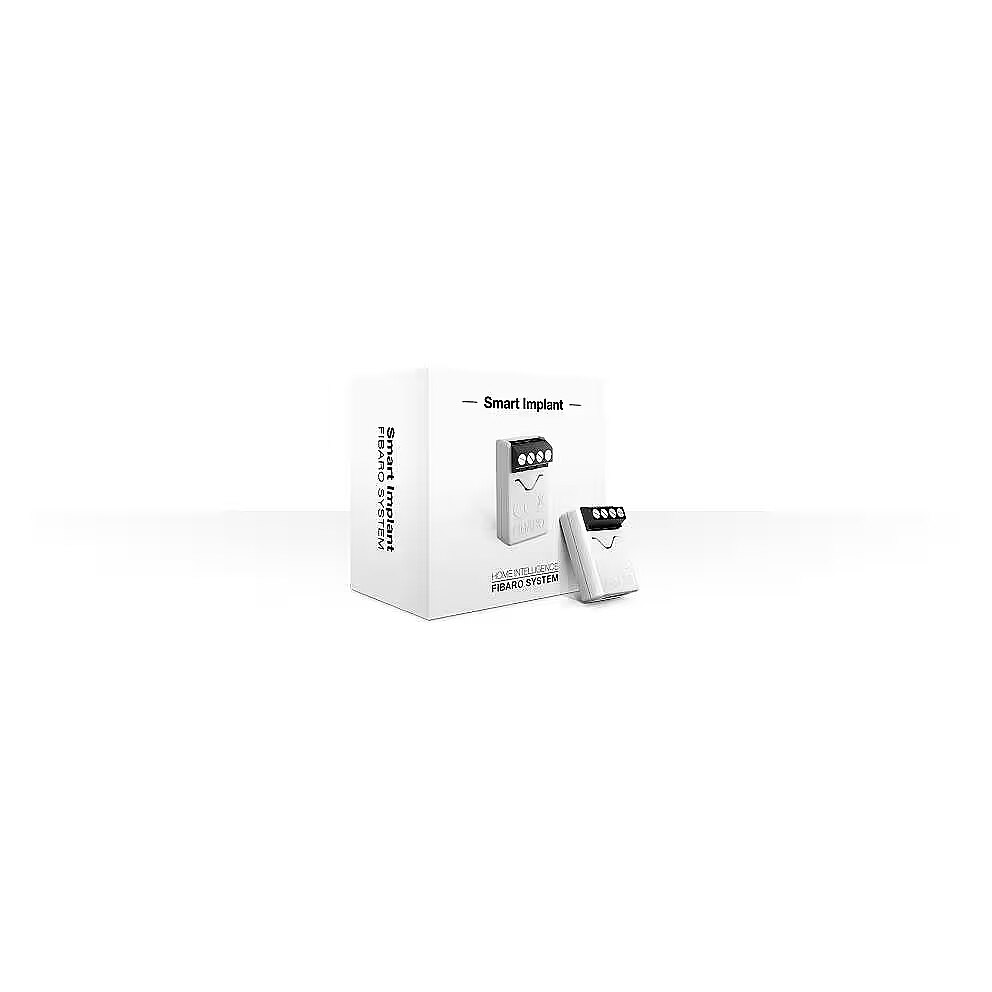

Name - Fibaro | Smart Implant | Z-Wave EU | White
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 65 mm
Package features > Gross height (mm) - 65 mm
Package features > Gross width (mm) - 31 mm
Package features > Packing quantity - 1 pc(s)
Package features > Palette Qty - 13193 pc(s)
Package features > Paper/Pasteboard - 8 g
Package features > Plastic (No PET) - 2 g
Package features > Tare weight (kg) - 0.01 kg
Package features > Volume (m3) - 0.000130975 m³
Package features > WEEE tax - No
Packaging content - Temperature sensor - Yes
Packaging content - Temperature sensor delta temperature (max) - 126 °C
Packaging content - Temperature sensor delta temperature (min) - -55 °C
Packaging content - Temperature sensor operating temperature - -55 - 126 °C
Performance - Operating frequency - 868.4 - 919.8 MHz
Performance - Operating temperature (T-T) - 0 - 40 °C
Performance - Transmission range - 0 - 50 m
Performance > Remotely operated - Yes
Performance > Type - Actors
Ports & interfaces - Connectivity technology - Wired & Wireless
Ports & interfaces - Z-Wave - Yes
Power - Input voltage - 30 V
producerCode - FGBS-222
productName - Fibaro FGBS-222 smart home central control unit Wired & Wireless White
productSize - Normal
sizeX - 65
sizeY - 65
sizeZ - 30
Technical details > Net weight - 0.019 kg
Technical details > Other features - Power supply 9-30V DC ±10%. Inputs 2 0-10V or digital inputs 1 serial 1-wire input. Outputs 2 potential-free outputs. Supported digital sensors 6 DS18B20 or 1 DHT22. Maximum current on outputs 150mA. Maximum voltage on outputs 30V DC / 20V AC ±5%. Built-in temperature sensor measurement range -55°C–126°C. Operating temperature 0–40°C. Radio frequency 868.4 or 869.8 MHz EU. Radio ransmit power max. 7 dBm (EIRP). Range up to 50m outdoors up to 40m indoors (depending on terrain and building structure). Dimensions (Length x Width x Height) 29 x 18 x 13 mm.
Technical details > Overload protection - Yes
Technical details > Producer - Fibaro
Technical details > Producer product name - Smart Implant
Technical details > Sockets quantity - 1
Technical details > Special features - Whether to control your garage door or the heating system, as an intelligent supplement to your alarm system or simply to make every device smart in your home. The FIBARO Smart Implant can also be connected to sensors in the garden that the Smart Home does not end at the front door. As a further development of the Universal binary Sensor, the FIBARO Smart Implant controls the connected device, can be used for scene control, has a temperature sensor and is compatible with binary sensors. In addition to controlling devices (ON/OFF), the device reads sensor data and amplifies the existing Z-Wave network.
Technical details > Supported network protocols - Z-Wave EU
Technical details > Transmit power - 1 mW
Technical details > Warranty - 24 month(s)
Warranty - 24
warrantyLength - 24
warrantyType - F
weight - 20
Weight & dimensions - Depth - 18 mm
Weight & dimensions - Height - 13 mm
Weight & dimensions - Width - 29 mm
