BIOS - ACPI version - 6.3
BIOS - BIOS type - AMI
BIOS - System Management BIOS (SMBIOS) version - 3.3.0
dimensionalWeight - 1950
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x8 slots - 2
Expansion slots - PCI Express x16 (Gen 4.x) slots - 5
Features - Compatible operating systems - Microsoft® Windows:
Server 2016 (64bit)
Server 2019 (64bit)
Linux:
RedHat Enterprise Linux Server 8.2 (64bit) / 7.9 (64bit)
CentOs 8.2 ( 64 bit) / 7.9 ( 64 bit)
SUSE SLES 15.2(64 bit) / 12.5(64bit)
UBuntu 20.04.1 (64 bit) /18.04.5 (64 bit) / 16.04.7 (64 bit)
Hypervisor:
VMWare® ESXi 6.7 u3 / 7.0 u1
vSphere 6.7 u3 / 7.0 u1
CITRIX Hypervisor 8.1.0
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - EEB
Graphics - Graphics card - AST2500
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Number of chassis fan connectors - 8
Internal I/O - Number of SATA III connectors - 16
Internal I/O - Power fan connector - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Memory - Maximum RDIMM memory - 3.2 TB
Memory - Memory slots type - DIMM
Memory - Memory voltage - 1.2 V
Memory - Number of memory slots - 16
Memory - Supported memory clock speeds - 3200
Memory - Supported memory types - DDR4-SDRAM
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8211E
Operational conditions - Operating temperature (T-T) - 10 - 35 °C
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Processor - Compatible processor series - AMD EPYC 7003
Processor - Maximum number of SMP processors - 2
Processor - Processor manufacturer - AMD
Processor - Processor socket - LGA 4094
producerCode - ROME2D16-2T

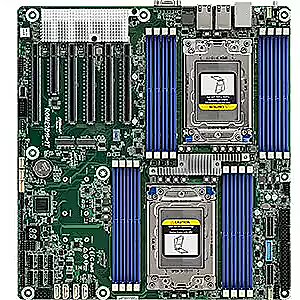

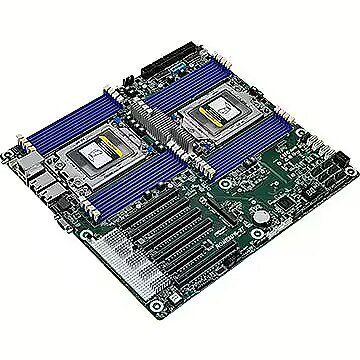

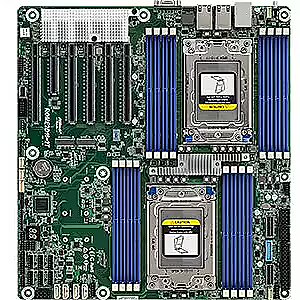

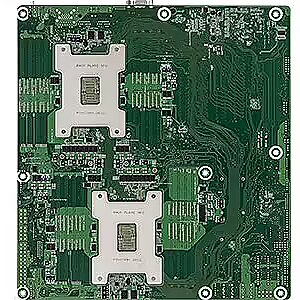

productName - Asrock ROME2D16-2T motherboard LGA 4094 EEB
productSize - Normal

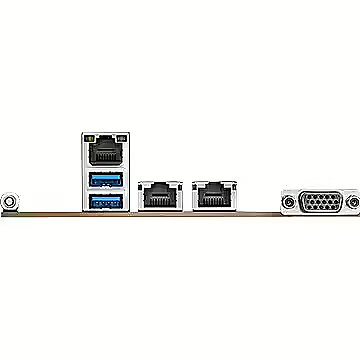

Rear panel I/O ports - COM ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 3
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
sizeX - 387
sizeY - 360
sizeZ - 70
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
warrantyLength - 36
warrantyType - G
weight - 2235
Weight & dimensions - Depth - 330 mm
Weight & dimensions - Width - 305 mm
