BIOS - ACPI version - 6.4
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - System Management BIOS (SMBIOS) version - 3.5
dimensionalWeight - 1303
Expansion slots - PCI Express x4 (Gen 4.x) slots - 1
Features - Component for - Server
Features - Motherboard chipset - AMD B650 Express
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - CPU
Features - PC health monitoring - Fan
Features - PC health monitoring - Voltage
Graphics - On-board graphics card model - Aspeed AST2600
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - TPM connector - Yes
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 32 GB
Memory - Memory slots type - DIMM
Memory - Memory voltage - 1.1 V
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 5200 MHz
Memory - Supported memory clock speeds - 3600
Memory - Supported memory clock speeds - 5200
Memory - Supported memory types - DDR5-SDRAM
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Operational conditions - Operating relative humidity (H-H) - 20 - 90%
Operational conditions - Operating temperature (T-T) - 10 - 35 °C
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Processor - Compatible processor series - AMD Ryzen™ 3
Processor - Compatible processor series - AMD Ryzen™ 5
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
producerCode - B650D4U-2L2T/BCM

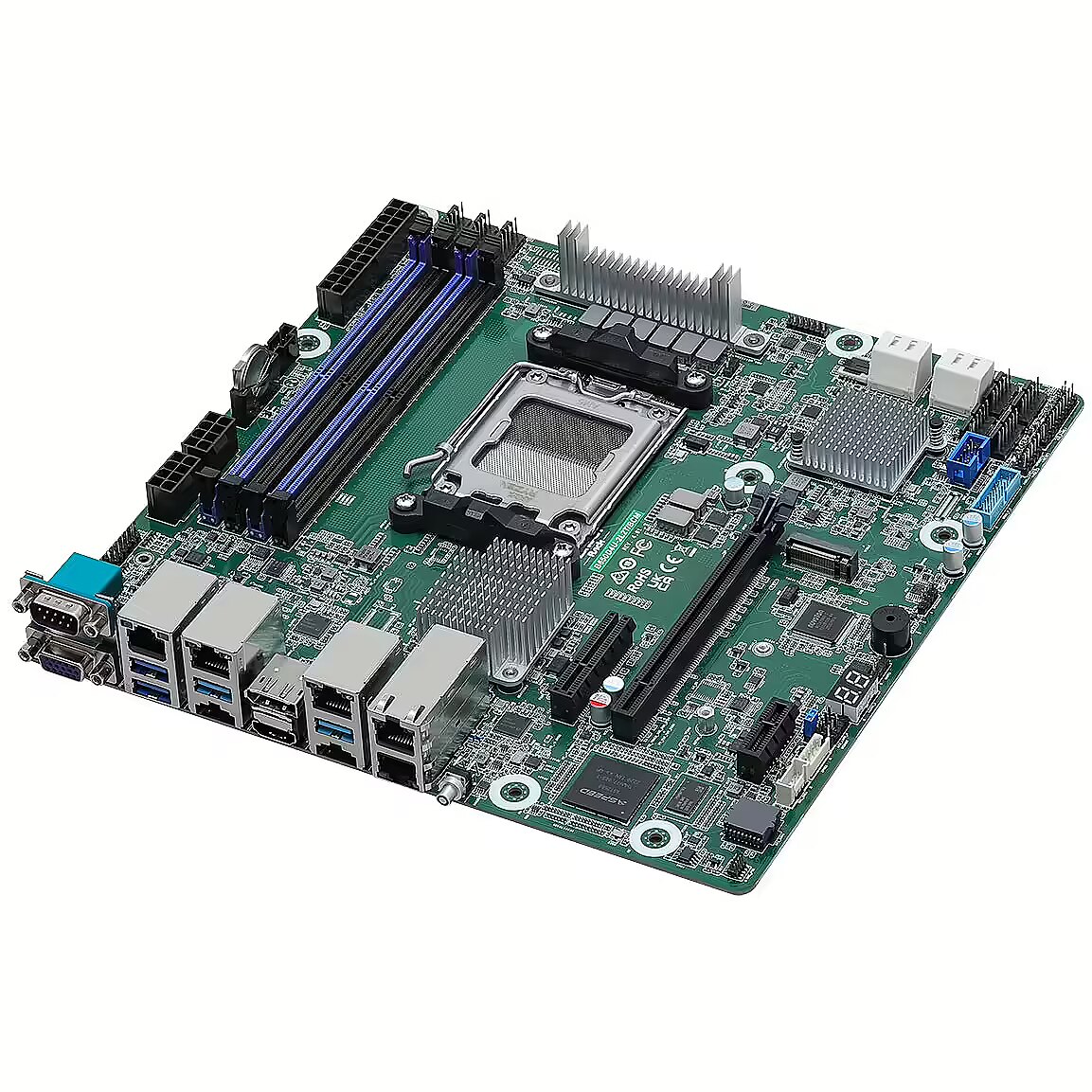

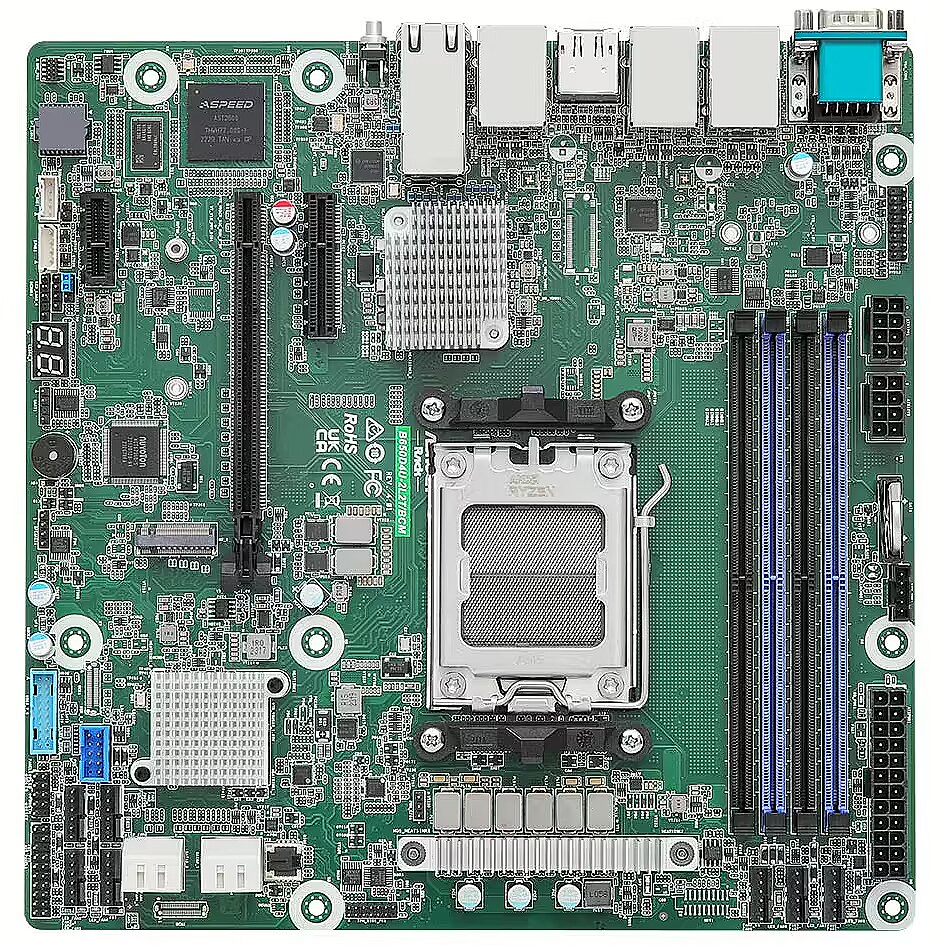

productName - Asrock B650D4U-2L2T/BCM motherboard AMD B650 Express Socket AM5 micro ATX
productSize - Normal

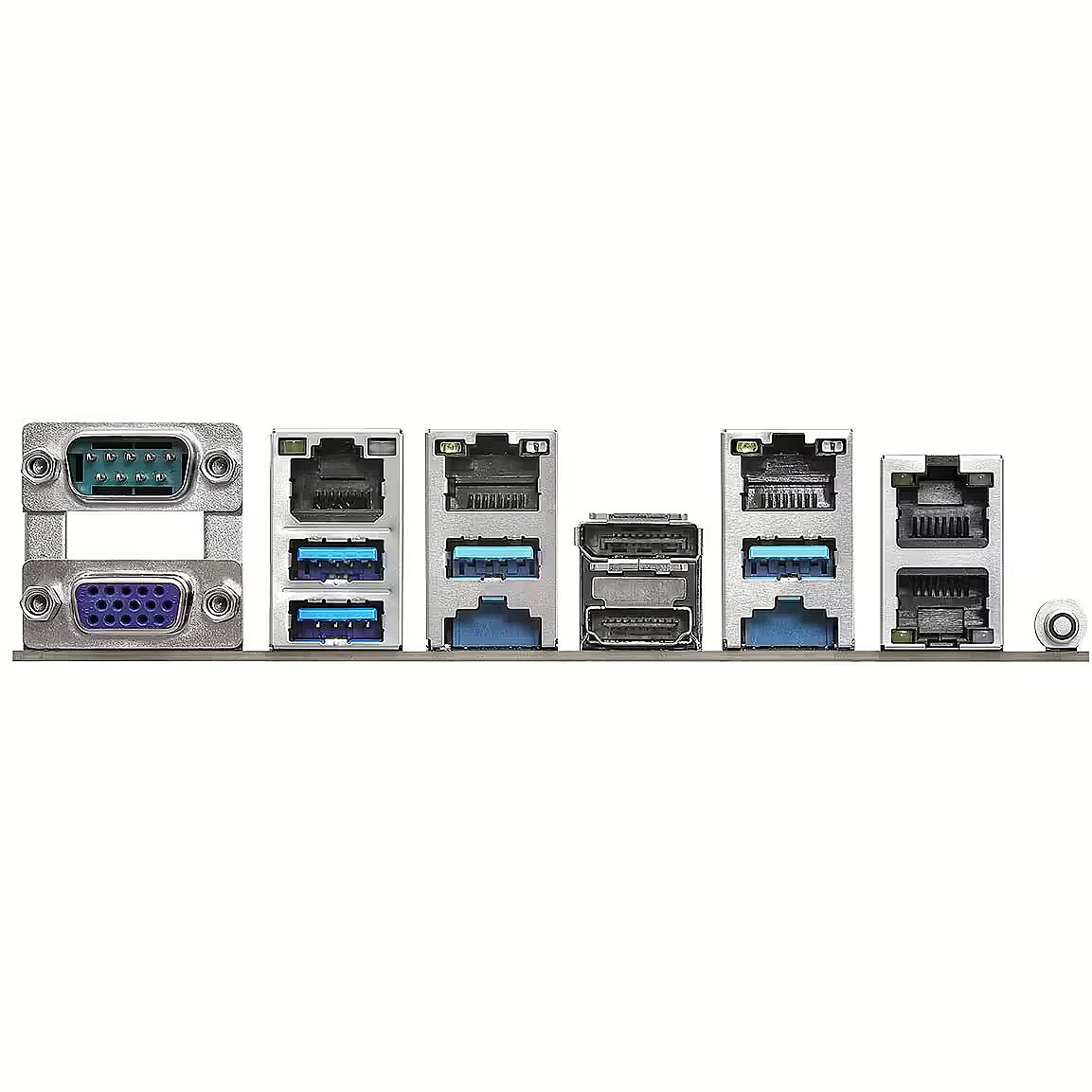

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 4
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - IPMI LAN (RJ-45) port - Yes
Rear panel I/O ports - Serial ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
sizeX - 305
sizeY - 75
sizeZ - 285
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
warrantyLength - 36
warrantyType - G
weight - 1150
Weight & dimensions - Depth - 243.8 mm
Weight & dimensions - Width - 243.8 mm
