BIOS - ACPI version - 2.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - AMI
BIOS - System Management BIOS (SMBIOS) version - 2.8
dimensionalWeight - 42
Expansion slots - PCI Express x16 (Gen 4.x) slots - 7
Features - Component for - Server
Features - Motherboard chipset - AMD WRX80
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - PC health monitoring - CPU
Features - PC health monitoring - Fan
Features - PC health monitoring - LED
Features - PC health monitoring - Voltage
Graphics - On-board graphics card memory - 512 MB
Graphics - On-board graphics card model - Aspeed AST2500
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Number of SATA III connectors - 12
Internal I/O - TPM connector - Yes
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum RDIMM memory - 128 GB
Memory - Memory slots type - DIMM
Memory - Memory voltage - 1.2 V
Memory - Number of memory slots - 8
Memory - Supported memory types - DDR4-SDRAM
Network - Ethernet LAN - Yes
Network - LAN controller - Intel X710-AT2
Network - Wi-Fi - No
Operational conditions - Operating relative humidity (H-H) - 20 - 90%
Operational conditions - Operating temperature (T-T) - 10 - 35 °C
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Processor - Compatible processor series - AMD Ryzen Threadripper 1000 Series
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket sWRX8
producerCode - WRX80D8-2T

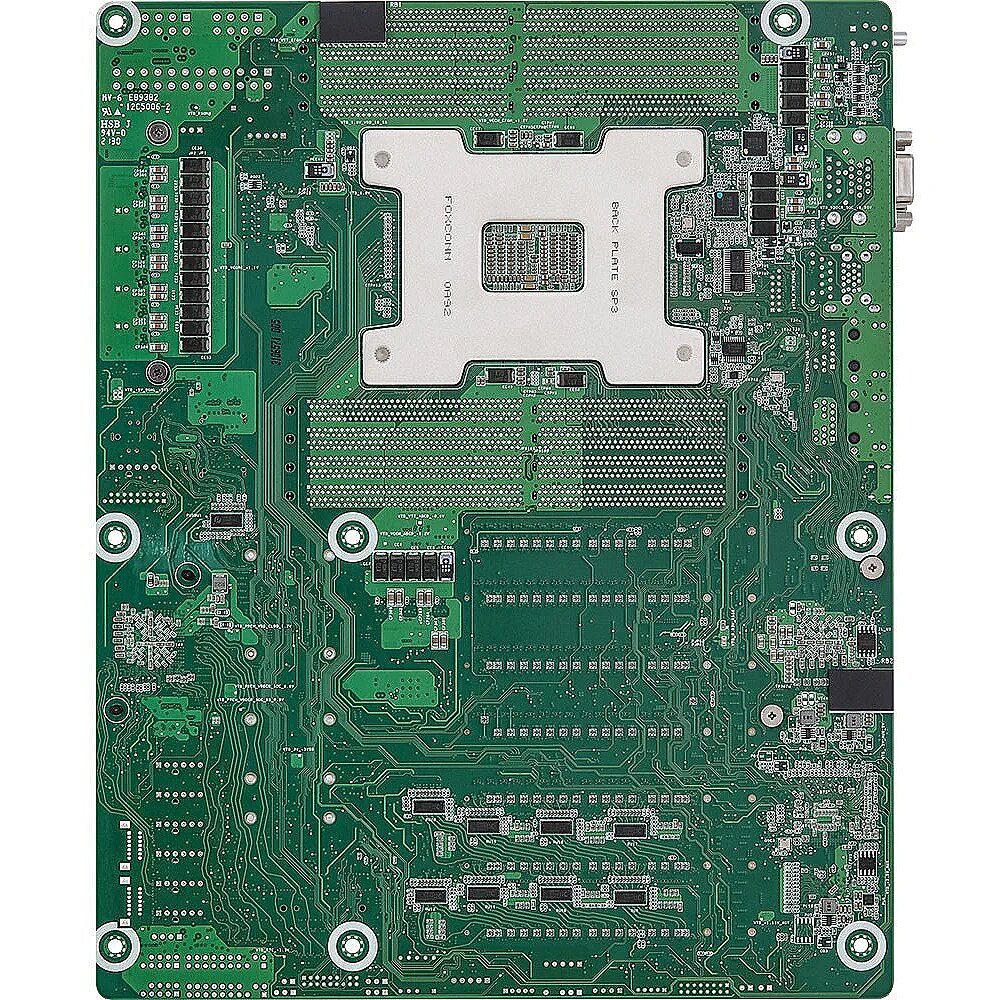

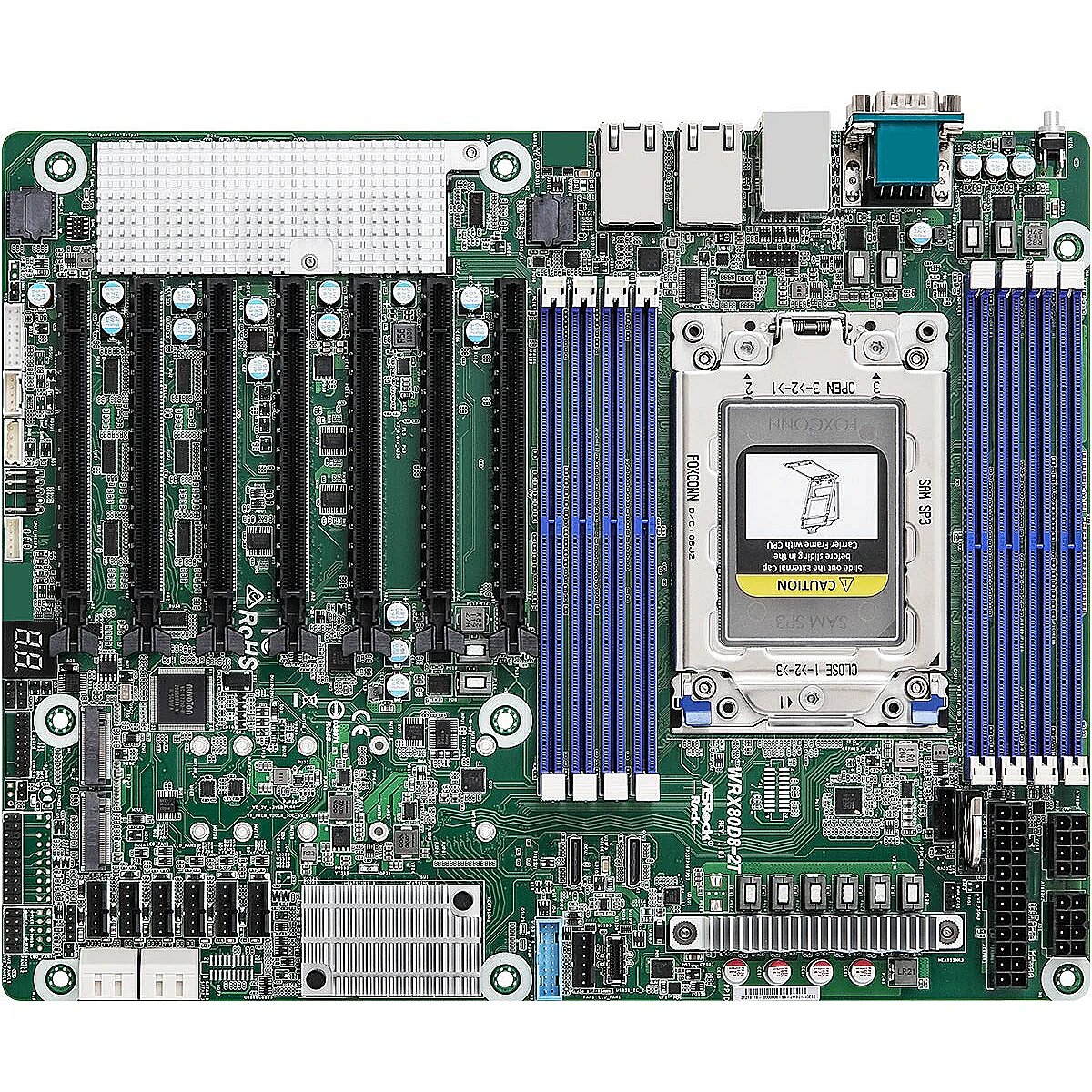

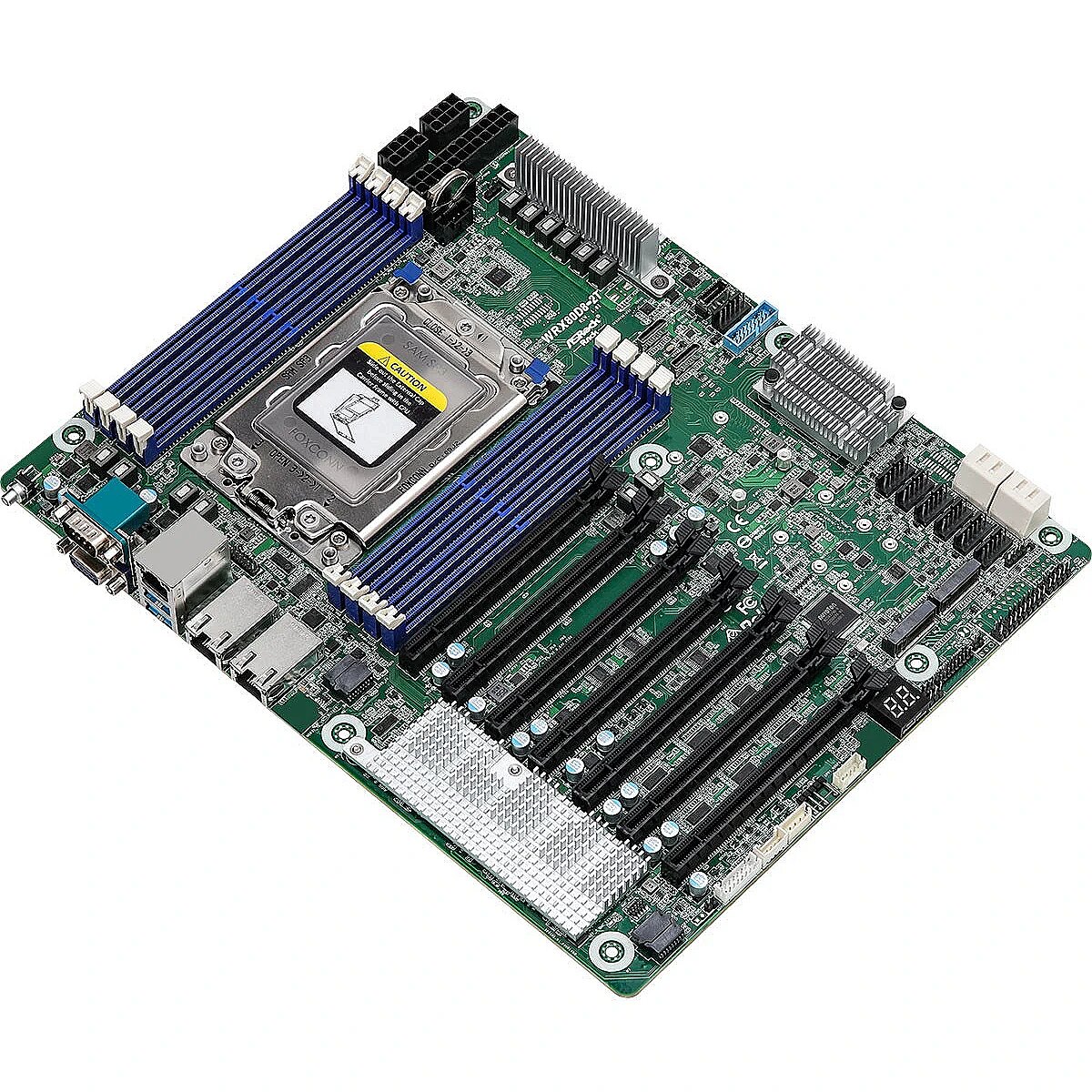

productName - Asrock WRX80D8-2T motherboard AMD WRX80 Socket sWRX8 ATX
productSize - Normal

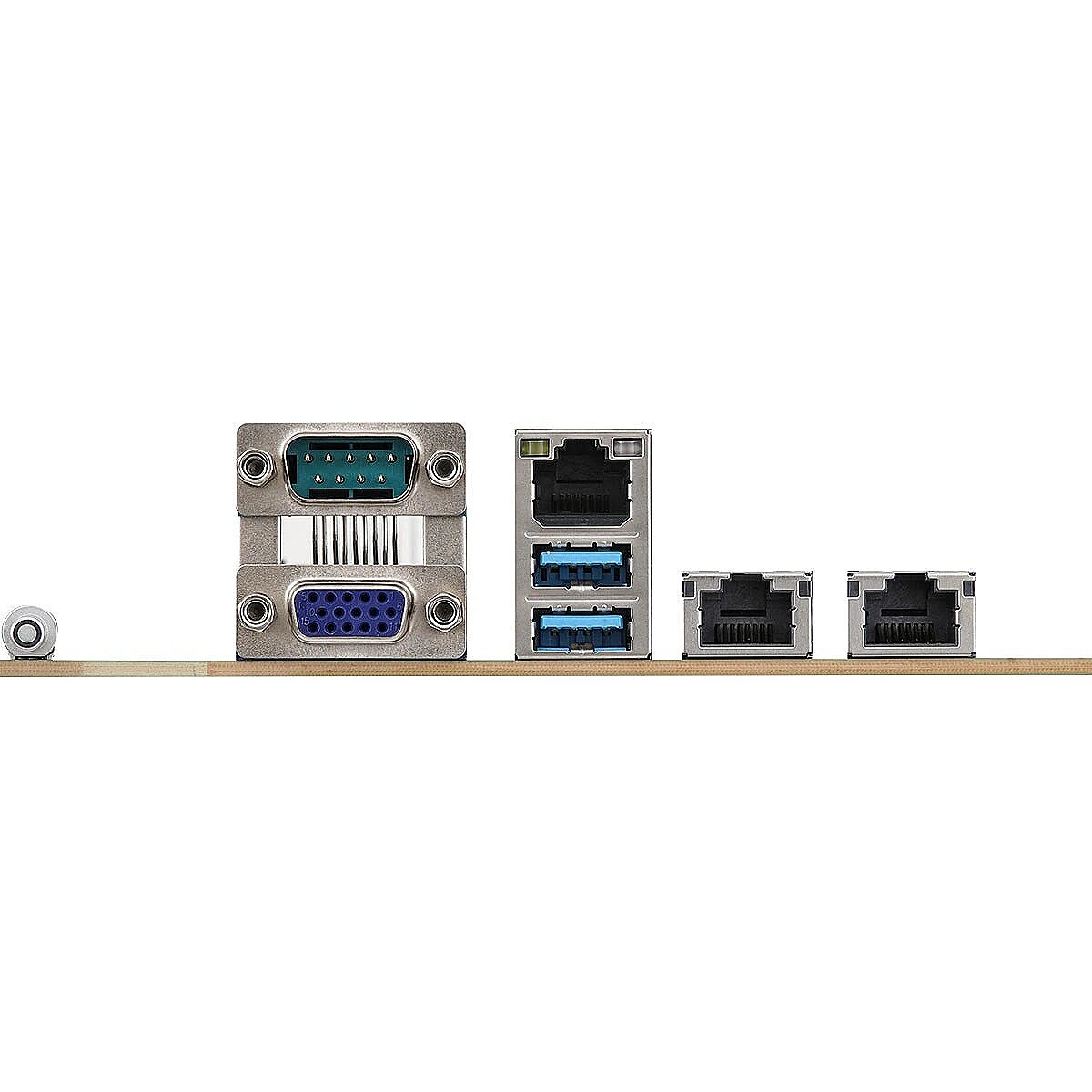

Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 3
Rear panel I/O ports - IPMI LAN (RJ-45) port - Yes
Rear panel I/O ports - Serial ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
sizeX - 350
sizeY - 2
sizeZ - 300
Storage controllers - Supported storage drive interfaces - M.2, SATA III
warrantyLength - 36
warrantyType - G
weight - 1698
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
