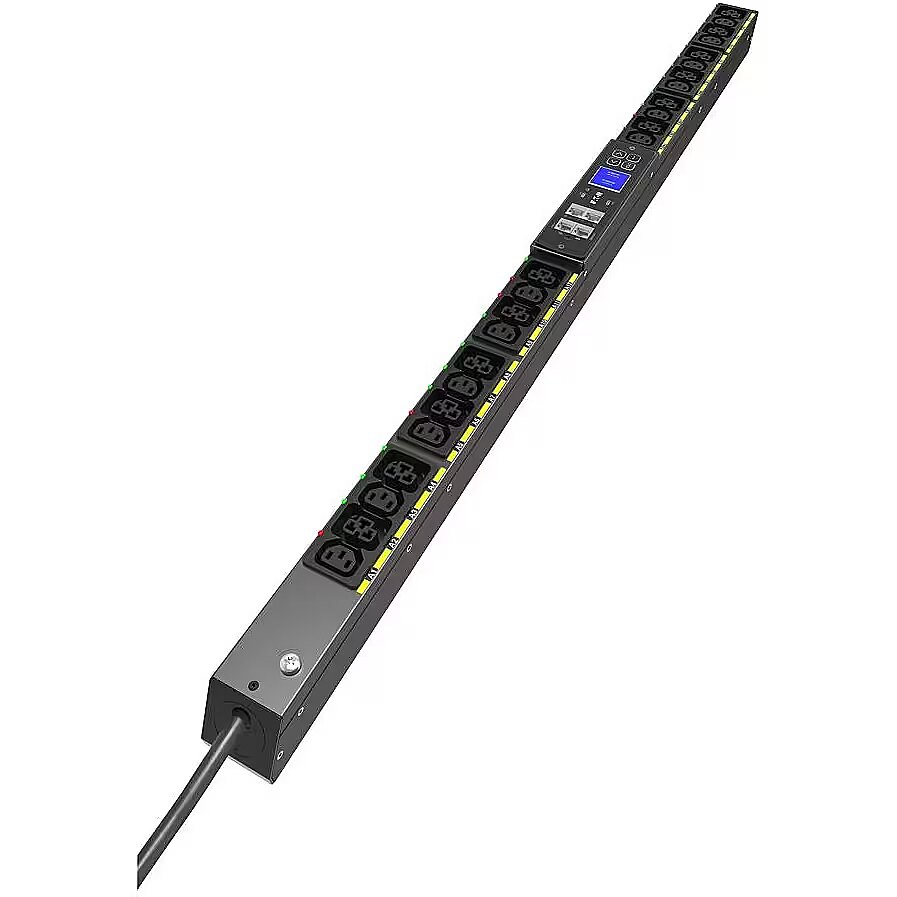

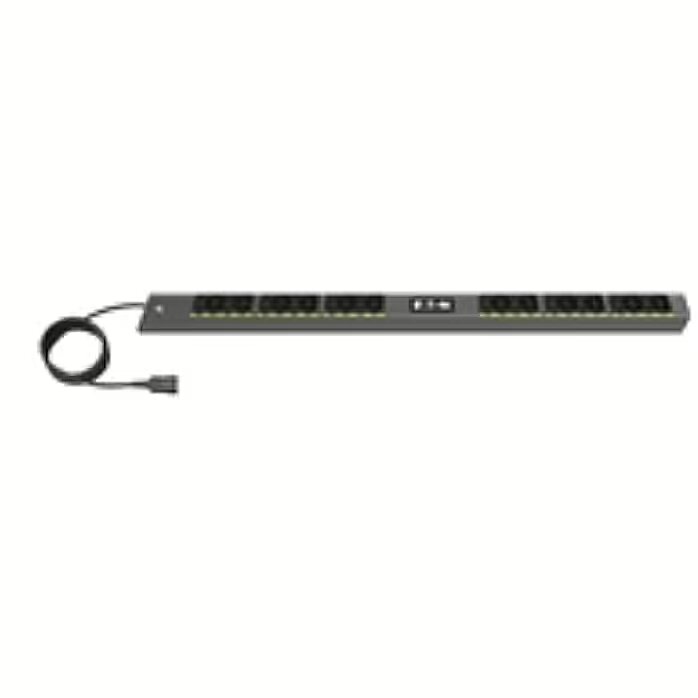

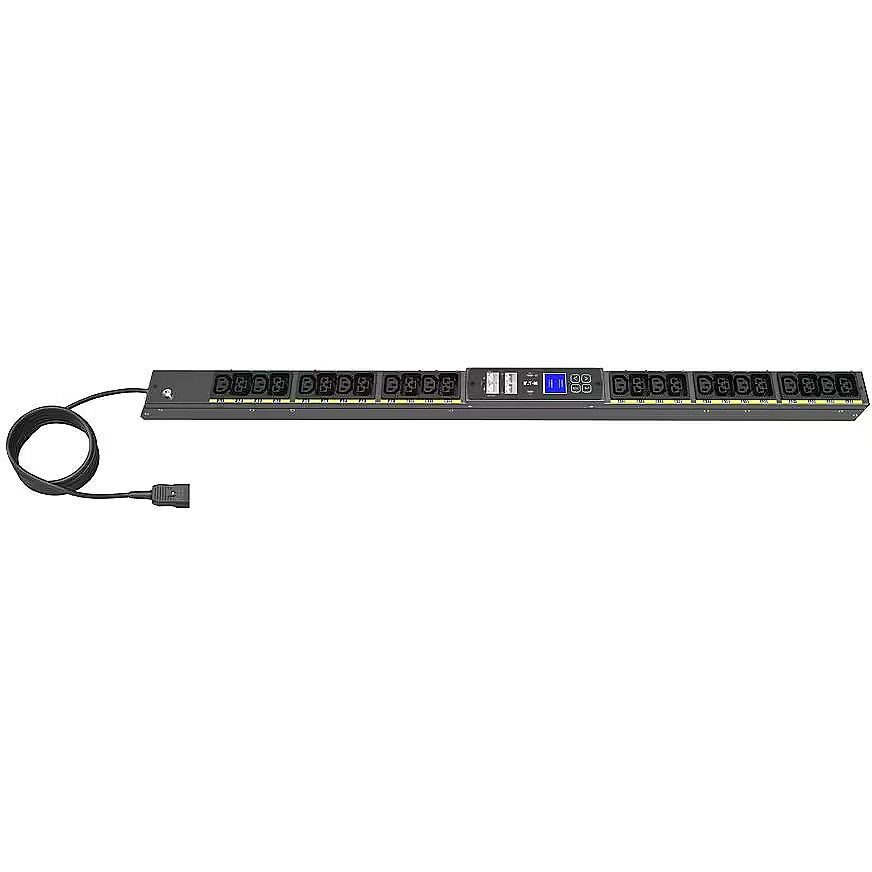

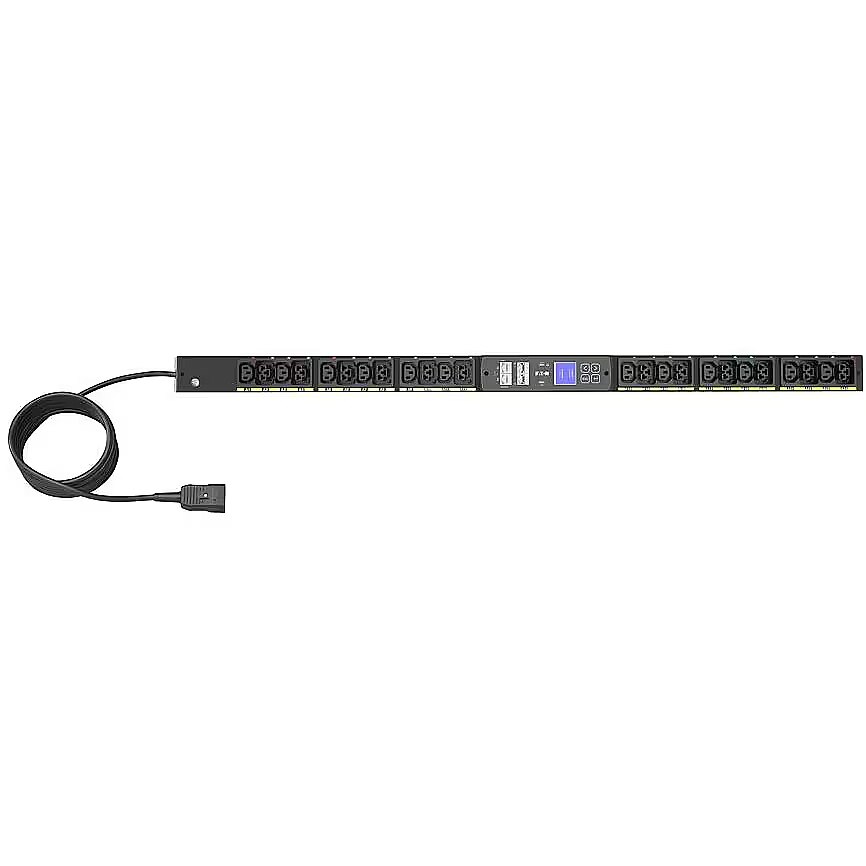

Eaton PDU G4 SW 0U C20 16A 1P 12xC13,12xC39

Accessories included - Rack PDU Accessories for rack mounting Quick Start Guide Safety instructions
ACinputfrequency - 50/60 Hz
ACoutletsquantity - 24 AC outlet(s)
ACoutlettypes - C13 coupler, C39 coupler
ARTIKEL1 - PDU G4 SW 0U C20 16A 1P 12XC13
ARTIKEL2 - 12XC39
Breite - 0.22
Cablecolour -
Cablelength - 3 m
Certificates -
Color - Black
Depth - 53 mm
Description - PDU strip G4 SW 0U C20 16A 1P 12xC13,12xC39 EVSWFC20A Remote management Universal C39 socket supporting C14 or C20 plugs Sockets with a system that secures both plugs of standard power cables and those with the P-Lock system Cybersecurity standards UL 2900-1 and IEC 62443-4-2 Hot-Swap Network Control Module (Hot Swap) Network cascading, connection of up to 32 PDUs in a loop Sharing power between two PDU control modules ensures constant access to PDU data and sensors IEC Class 1 billing accuracy +/- 1% Gigabit network card with 2 x Gb ports Support for RestAPI, Modbus TCP, SNMP, LDAP, HTTPS protocols Socket management: remote on/off, restart and sequential boot Optional temperature/humidity sensor
Design -
Designation - CE+WEEE
dimension depth - 130 mm
dimension height - 130 mm
Dimensions - 53 x 52 x 1000 mm
dimension weight - 4666 g
dimension width - 220 mm
ean - 3553340697258
EANCode - 3553340697258
Environment requirements -
Features -
Formfactor -
Gewicht - 4.62
GRUPPE1 - Power Protection
GRUPPE2 - Power Product Cpnt
guarantee - 36
guarantee_type - external
Height - 1000 mm
HERSTELLER - EATON
HighLights -
Hoehe - 0.13
HSTNUMMER - EVSWFC20A
Input power ports - IEC-C20
Laenge - 1.18
LEDindicators -
LongDesc -
ManufDatasheet -
Maximumcurrent - 16 A
Maximuminputcurrentperphase -
Maximumpower - 3700 W
Mounting - Vertical
name - Board PDU G4 SW 0U C20 16A 1P 12xC13,12xC39 EVSWFC20A
Nominalinputvoltage - 200-240 V
Nominaloutputvoltage -
OperatingtemperatureTT - 0 - 60 °C
Operationalconditions -
Other features -
Outputconnections -
Output power ports - 12 x IEC-C13
Output power ports - 12 x IEC-C19
Output power ports - 12 x IEC-C39
Packagingcontent - Rack PDURack mounting accessoriesQuickstart guideSafety Instructions
Packagingdata -
PDUtypes - Switched
Portsinterfaces -
Power -
Powerplug -
ProdDesc - PDU G4 SW 0U C20 16A 1P 12xC13,12xC39
producer - Eaton
Productcolour - Black
Productcondition - Original
ProductHighLights -

• Remote Site Management
• Versatile C39 outlet supports C14 or C20 power cord plug
• High retention outlets designed to securely fit standard power cords and support P-Lock power cords

ProductPicture - https://www.tdbaltic.ee/images/products/EATON/EVSWFC20A_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/EATON/EVSWFC20A_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/EATON/EVSWFC20A_3.jpg
ProductPicture3 -
ProductPicture4 -
ProductPicture5 -
Rackcapacity - 22.5U
Rackmounting -
Rackmountkit -
Stck_Kart - 1
Stck_Pal - 1
Storno - Y
Supported protocols and standards -
Type - Single-phase
vendpn - EVSWFC20A
Warranty - 24 months
Warrantyandmisc -
Weight - 3.01 kg
Weight - 3.7 kg
Weightdimensions -
Width - 52 mm
