Brand - APC
BrandPartCode - AP9613
Category - UPS Accessories
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Certificates - Certification - REACH
RoHS
EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-6, FCC 15 A
Certification - EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-6, FCC Part 15 Class A
Depth, mm - 114
Description - APC DRY CONTACT I/O SMARTSLOT CARD
EAN - 0731304293842
Features - Product colour - Black
GTIN - 731304293842
GTIN - 0731304293842
GTIN - 7313042938426
Height - 165.000000
Height, mm - 38
Length - 50.000000
Logistics data - Harmonized System (HS) code - 85079080
Logistics data - Total carbon footprint (kg of CO2e) - 282.46

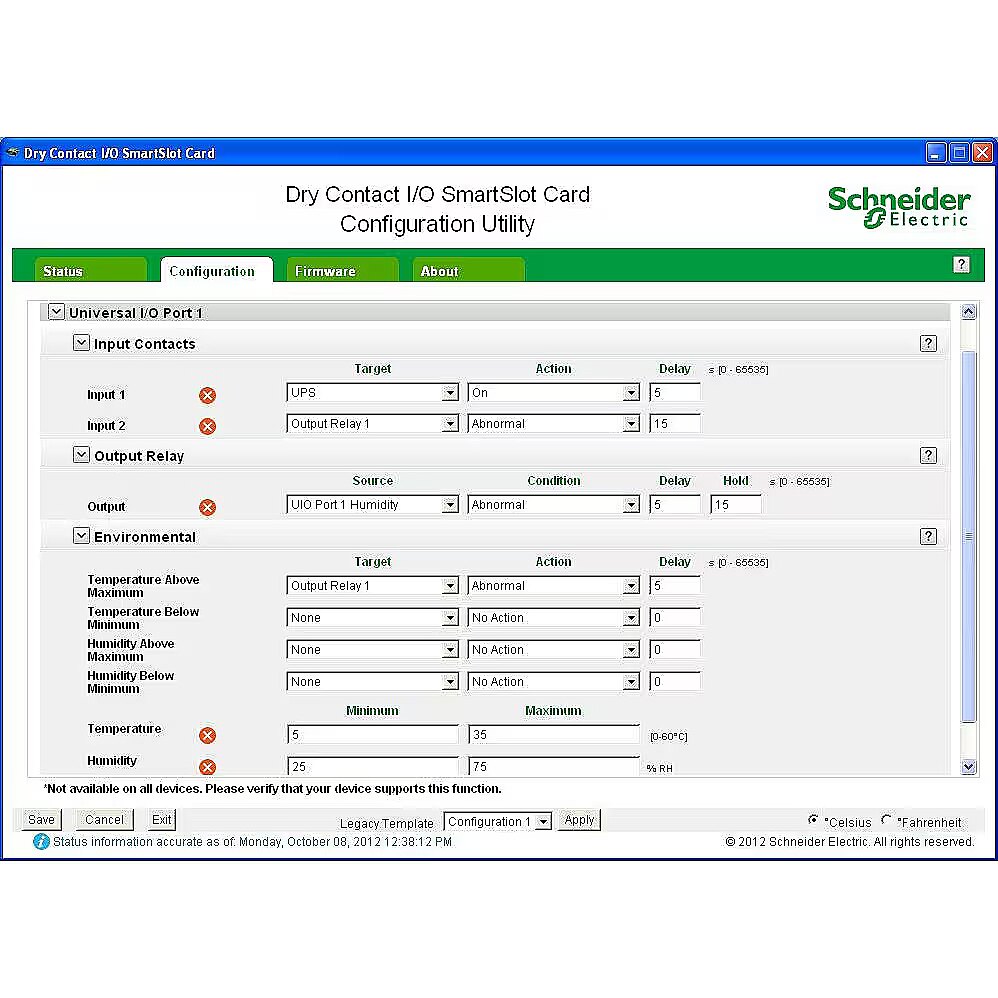

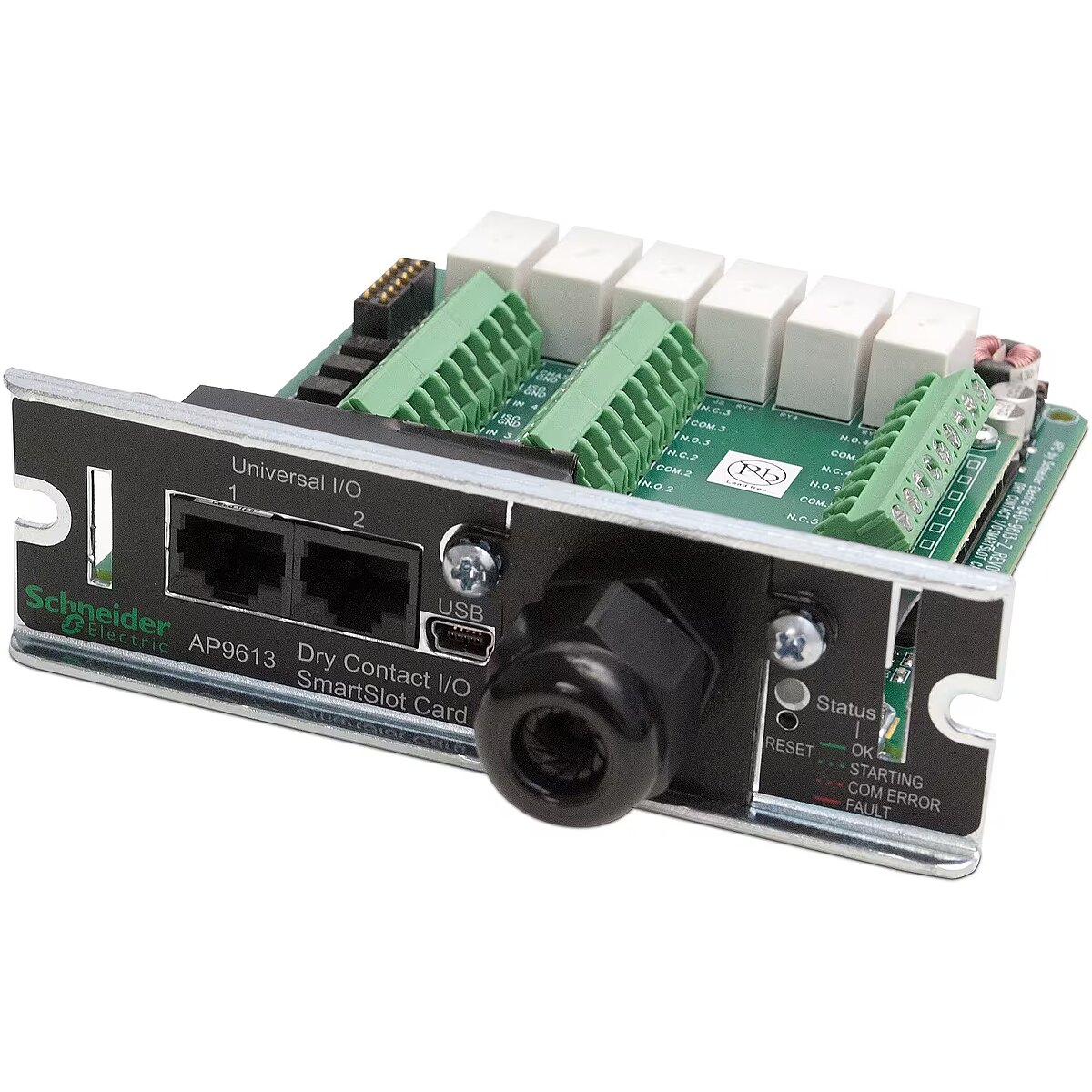

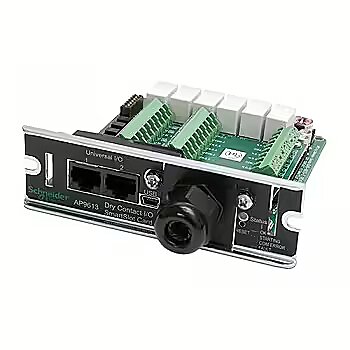

LongDesc - This product is EOL and replaced by the AP9614The Dry Contact I/O Card provides 6 configurable output relays and 4 input contacts to monitor external triggers and initiate actions on external devices. The 2 Universal I/O (UIO) ports support optional environmental sensors and the Dry Contact I/O Accessory. The Dry Contact I/O Accessory provides 2 additional dry contact input and relay output interfaces. Connect the included USB cable to the Card and a PC to use the Configuration Utility user interface. Configure UPS settings and output relay, input contact and environmental sensor actions based on status changes or UPS events.
LongProductName - Dry contact, Management Options, Dry Contact I/O Card, monitor external UPS environmental sensors, output relays, and input contacts
LongSummaryDescription - APC Dry contact, Management Options, Dry Contact I/O Card, monitor external UPS environmental sensors, output relays, and input contacts. Product colour: Black. Certification: REACH RoHS EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, EN61000-4-2, EN61000-4-3,.... Width: 121 mm, Depth: 114 mm, Height: 38 mm
Manufacturer - APC
ManufacturerPartNumber - AP9613
MPN - AP9613
Name - APC AP9613 I/O SmartSlot-Karte mit potenzialfreiem Kontakt (Dry Contact)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -15 - 65 °C
PeriodofWarranty - 2 Y
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
ProductName - Dry contact, Management Options, Dry Contact I/O Card, monitor external UPS environmental sensors, output relays, and input contacts
ShortSummaryDescription - APC Dry contact, Management Options, Dry Contact I/O Card, monitor external UPS environmental sensors, output relays, and input contacts, Black, REACH RoHS EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, EN61000-4-2, EN61000-4-3,..., 0 - 40 °C, -15 - 65 °C, 121 mm, 114 mm
Storage temperature range (T-T), °C - -15 - 65
Title - APC Dry contact, Management Options, Dry Contact I/O Card, monitor external UPS environmental sensors, output relays, and input contacts
UPS devices and accessories - Yes
URL - https://www.apc.com/
WarrantyInfo - 2 year
Weight - 0.46
Weight - 0.500000
Weight & dimensions - Depth - 114 mm
Weight & dimensions - Height - 38 mm
Weight & dimensions - Weight - 210 g
Weight & dimensions - Width - 121 mm
Weight, kg - 0.21
Width - 235.000000
Width, mm - 121
