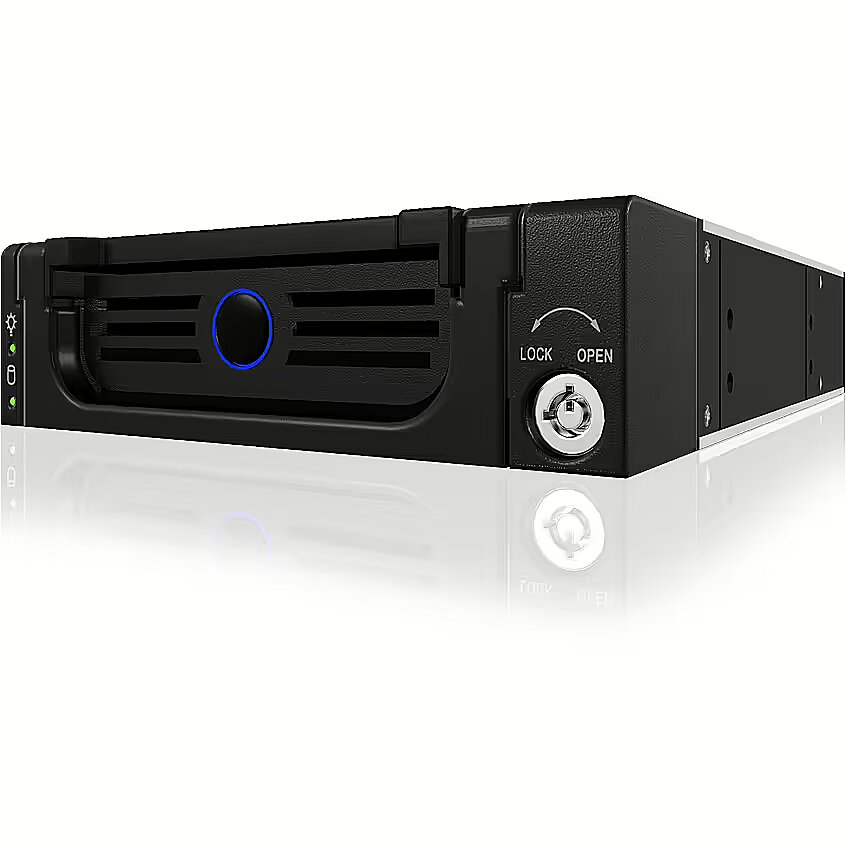

Raidsonic Icy Box Aluminium 5.25" Mobile Rack for 3.5" SATA HDD

Stuff - Aluminum
Brand - ICY BOX
BrandPartCode - 20042
EAN_code - 4250078182979
Category_1 - Hard Drives and Pendrives
EAN - 4250078182979
guarantee - 24
WarrantyInfo -
guarantee_type - normal
GTIN - 0070530200423
GTIN - 070530200423
GTIN - 4035259133267
GTIN - 4250078180708
GTIN - 4250078182962
GTIN - 4250078182979
GTIN - 5704327138532
HDD interface - SATA III - 6 Gb/s
HDD interface - SATA I - 1,5 Gb/s
HDD interface - SATA II - 3 Gb/s
Weight - 0,82
Weight - 800 g
Weight & dimensions - Weight - 800 g
Weight & dimensions - Width - 146 mm
Weight & dimensions - Depth - 188 mm
Weight & dimensions - Height - 42 mm
Category - Drive Bay Panels
Category_2 - Mobile HDD Racks
ean - 4250078182979
Description - IB-138SK-B-II Aluminum pocket for 3.5" SATA hard drives
Functions:
- SATA - SATA connector
- Plug & Play and Hot Swap
- Compact design (188 mm deep)
- Anti-dust flap
- 2x power connectors (4 pin and 15 pin)
- Aluminum housing
- Front-mounted fan
- Power button lock
- Blue LED
- LED diodes indicating power supply and disk access
- Available colors: black, silver and beige
The perfect drive pocket
ICY BOX pocket was created for SATA hard drives. The connection is made via rear connectors directly on the SATA controller on the motherboard. Cooling the hard disk is ensured by a fan located at the front. Thanks to the built-in "Blue Eye" LED, the pocket stands out among other products.
Innovative construction
The fact that you can disconnect the media from your pocket is not new anymore. However, the carrier itself is perfectly closed, which makes it completely safe during transport. The fan provides excellent hard disk cooling.
Not just a castle
The place where you will find the castle also has an additional function. It also serves as a power switch! The hard disk can only be powered if the hard disk is in the pocket. Thanks to this you will never forget to lock your pocket.
All good things come in three ways
There are three SATA interfaces: SATA I, II and III (the latter supports a maximum speed of 6 Gbps). Three LEDs indicate power and access to the hard disk as well as the decoration of the front of the pocket. The most important function, of course, is to connect a 3.5 "hard disk.
Gross Weight Kg - 1
vendpn - IB-138SK-B-II
Accessories included -
Form factor (width) - 3,5'' (LFF)
Logistics data - Master (outer) case gross weight - 18 kg
Logistics data - Master (outer) case height - 265 mm
Logistics data - Master (outer) case width - 420 mm
Logistics data - Master (outer) case length - 330 mm
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 84733080
Logistics data - Products per master (outer) case - 20 pc(s)
Short description - Wechselrahmen ICY-BOX IB-138 Alu SATA BLACK 1x 3.5" SATA in 5.25" Schacht
ShortSummaryDescription - ICY BOX IB-138SK-B-II, Carrier panel, Black, 2.5", SATA, Aluminium, 1 fan(s)
Other features -
Designation - CE+WEEE
dimension height - 45 mm
dimension width - 150 mm
dimension depth - 195 mm
Dimensions - 146 x 42 x 188 mm
dimension weight - 833 g
name - IB-138SK-B-II 3,5'' HDD SATA
Name - ICY BOX IB-138SK-B-II
Features - Data transfer rate - 6 Gbit/s
Features - HDD interface - SATA
Features - HDD size - 2.5"
Features - Hot-swap - Yes
Features - LED indicators - HDD, Power
Features - Material - Aluminium
Features - Number of HDDs supported - 1
Features - Product colour - Black
Features - Type - Carrier panel
Features - Fan diameter - 4 cm
Features - Number of fans - 1 fan(s)
Packaging data - Package weight - 850 g
Packaging data - Package height - 195 mm
Packaging data - Package width - 155 mm
Packaging data - Package depth - 45 mm
Packaging content - Cables included - SATA
Packaging content - Number of lock keys included - 2 pc(s)
Packaging content - Number of screws - 12
Packaging content - Quantity per pack - 1 pc(s)
Title - ICY BOX IB-138SK-B-II Carrier panel Black
LongDesc - Innovative designThat the carrier can be disconnected from the mobile rack, that is nothing new. But making the carrier hermetic so it is safe for transport is. The fan is not installed as usually on the platine, but it is installed on the front of the carrier, this way the air circulation is better.Not only a lockWhat seems like a normal lock is much more than that. as long as the lock is not closed, no power will come to the HDD. In this way it is impossible to forget locking the media.All good things are threeThe IB-138 is available in three different colors: Beige, black and silver. It supports three SATA versions (I/II/III) with up to 6 Gbit/s transfer rates and three LED indicators to inform regarding HDD access, power and deco-LED (Blue-eye). Finally primarily 3.5" HDDs belong in the slot.
LongSummaryDescription - ICY BOX IB-138SK-B-II. Type: Carrier panel, Product colour: Black, HDD size: 2.5". Width: 146 mm, Depth: 188 mm, Height: 42 mm. Package width: 155 mm, Package depth: 45 mm, Package height: 195 mm. Quantity per pack: 1 pc(s), Cables included: SATA, Number of lock keys included: 2 pc(s). Products per master (outer) case: 20 pc(s), Master (outer) case width: 420 mm, Master (outer) case length: 330 mm
LongProductName - Mobile rack for 1x HDD/SSD for 1x 5.25" bay with lock and LED ring
Ports & interfaces - Card reader integrated - No
Ports & interfaces - External SATA ports quantity - 2
Technical_details - A Better Place for Internals This mobile rack is made for the employment of an additional SATA HDD in the computer. The SATA connector at the back leads directly to the SATA controller of the motherboard. Cooling comes from the frontal fan. Optically appealing is the “Blue Eye”, the LED at the front of the drawer. Case made of valuable aluminium. - SATA zu SATA interface
- Plug & Play and Hot Swap
- 2x Power connector (4Pin and 15Pin)
- Compact construction, 188 mm deep
- All aluminium material Ports & interfaces Interface 1x 4Pin Molex, 1x 15Pin SATA eSATA ports quantity 1 Number of expansion bays total (free) 1x 5.25'' Weight & dimensions Weight 800 g ge weight 850 g Design Material Aluminium Fan diameter 40 mm Colour of product Black LED indicators HDD, Power Packaging content PATA, SATA Other Featuress Product dimensions (WxDxH) 146 x 42 x 188 mm Package Product dimensions (WxDxH) 155 x 45 x 195 mm Case or master carton Product dimensions (W x D x H) 420 x 330 x 265 mm Storage Number of hard drives supported 1 Hard drive size 3.5 " Supported hard disk drive interfaces Serial ATA, Serial ATA II Hot-swap Yes Performance Maximum Data Transfer Rate 3 Gbit/s USB powered No Plug and Play Yes
ProductName - IB-138SK-B-II
producer - IcyBox
Manufacturer - Icy Box
Manufacturer_code - 20042
Manufacturer Code - IB-138SK-B-II BLACK
Manufacturer Name - Raidsonic
Type - Internal enclosure
URL - https://icybox.de/en/product.php?id=338
Color - Black
Connectors - SATA
