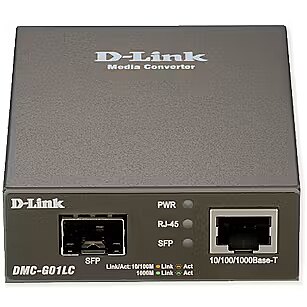

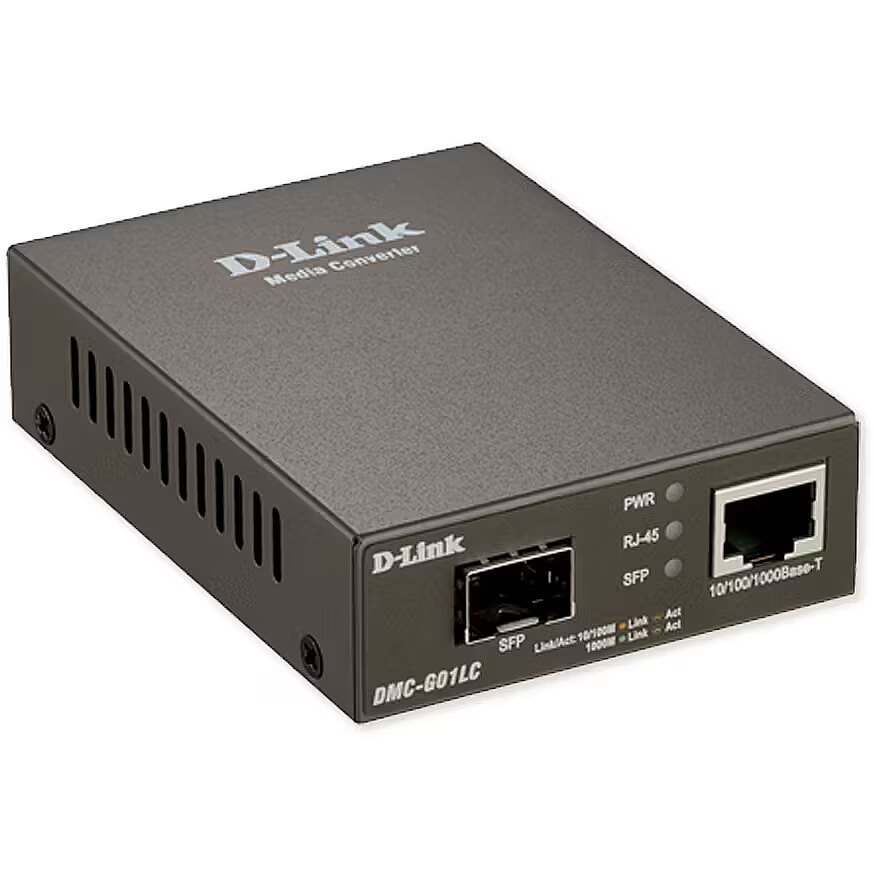

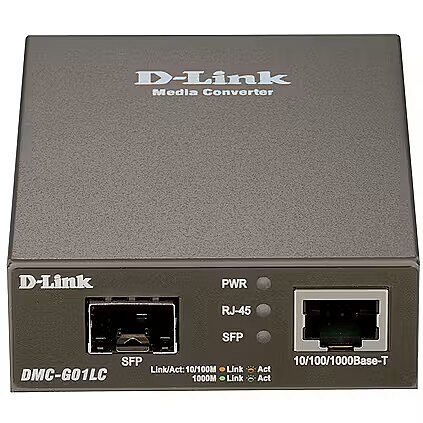

D-Link DMC-G01LC 10/100/1000 to SFP Media Converter

Accessories included -
Brand - D-Link
BrandPartCode - DMC-G01LC/E
Category - Network Media Converters
Certificates - Certification - CE, FCC, VCCI, BSMI
Certificates - Safety - LVD, UL/cUL
Code - DMC-G01LC/E
Color - Black
Description - Standalone 1000BaseT to SFP Media Converter DMC-G01LC The D-Link 10/100/1000Base-T to SFP Standalone Media Converter converts an Ethernet connection to fiber optics, enabling long-distance connections. Instead of investing in an entire cabinet, the DMC-G01LC provides high-quality conversion on its own. This means you can save space and reduce costs while extending your network over long distances, depending on the SFP transceiver you install. The DMC-G01LC provides 1000 Mbps full duplex, maximizing your network's potential. No space wasted The compact size allows the converter to be placed anywhere without the need for an additional enclosure. The dimensions of 70 x 95 x 25 mm allow for convenient installation wherever it is needed, especially in tight spaces such as telecom cabinets or distribution boxes.
Designation - CE+WEEE
dimension depth - 60 mm
dimension height - 90 mm
Dimensions - 75 x 60 x 23 mm
dimension weight - 300 g
dimension width - 150 mm
EAN - 790069415982
ean - 790069415982
Features - Internal - No
Features - LED indicators - Yes
Features - Product colour - Grey
GTIN - 0790069415982
GTIN - 790069415982
guarantee - 24
guarantee_type - normal
Inputs - 1 x SFP
Link - https://eu.dlink.com/uk/en/products/dmc-g01lc-1000baset-to-sfp-media-converter
Logistics data - Harmonized System (HS) code - 85176990
Logistics data - Master (outer) cases per pallet (air) - 40 pc(s)
Logistics data - Master (outer) cases per pallet (sea) - 64 pc(s)
Logistics data - Pallet gross length - 110 cm
Logistics data - Pallet gross weight (air) - 341.1 kg
Logistics data - Pallet gross weight (sea) - 534.6 kg
Logistics data - Pallet gross width - 120 cm
Logistics data - Pallet height (air) - 131 cm
Logistics data - Pallet height (sea) - 2.02 m
Logistics data - Products per pallet (air) - 800 pc(s)
Logistics data - Products per pallet (sea) - 1280 pc(s)
Logistics data - Products per shipping (inner) case - 20 pc(s)
Logistics data - Shipping (inner) case gross weight - 8.04 kg
Logistics data - Shipping (inner) case height - 23.6 cm
Logistics data - Shipping (inner) case length - 50.4 cm
Logistics data - Shipping (inner) case net weight - 7.16 kg
Logistics data - Shipping (inner) case width - 29.4 cm
LongDesc - D-Link’s DMC-G01LC standalone media Converter turns a copper Ethernet link into a fiber link, allowing for an ultra-fast, long distance connection. Installation of a standalone media converter is simple, and allows you to tap into fiber speeds with ease. Instead of requiring an investment in an entire chassis, a standalone media converter provides the same high-quality conversion on a unit-by-unit basis. You can save space and cut costs while still extending your network over long distances of 10 km and beyond on a fiber optic line.SFP Optical Transceivers for Maximum FlexibilityThe fiber side of the DMC-G01LC utilizes a 100/1000 SFP port for maximum flexibility. Using the appropriate SFP transceiver (purchased separately) it can support either multimode or single-mode fiber, varying wavelengths, and speeds of either 100 Mbps or 1000 Mbps.10/100/1000 Copper SpeedsThe copper side of the DMC-G01LC auto-negotiates to 10Mbps, 100Mbps or 1000Mbps, ensuring the connection functions at the highest possible speed while remaining compatible with the link partner. It supports auto MDI/MDIX, half/full duplex operation at 10/100 Mbps and full duplex operation at 1000 Mbps.Plug & PlayThe DMC-G01LC supports standard technologies that makes it easy to operate, like 802.3u. 802.3x and 802.3ab. There’s no management software to configure – simply connect the power, connect the cables, and start converting.
LongProductName - 10/100/1000 to SFP Media Converter, EU Plug
LongSummaryDescription - D-Link DMC-G01LC/E. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, Ethernet interface type: Gigabit Ethernet. Mean time between failures (MTBF): 506711 h. Product colour: Grey. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 230 - 240 V, Output voltage: 5 V, Output current: 1 A
name - D-Link DMC-G01LC/E
Name - D-Link | 1000BaseT to SFP Standalone Media Converter | DMC-G01LC | Gigabit SFP port | 10/100/1000 Mbps port
Network - Auto MDI/MDI-X - Yes
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Maximum data transfer rate - 1000 Mbit/s
Network - Networking standards - IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Networking > Converter input interface - Gigabit SFP port
Networking > Converter output interface - 10/100/1000 Mbps port
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -10 - 70 °C
Operational conditions > Operating temperature (T-T) - 0 to 50 °C
Operational conditions > Storage relative humidity (H-H) - 10 to 90 %
Operational conditions > Storage temperature (T-T) - -10 to 70 °C
Other features - 1 x 10/100/1000 Mbps port IEEE 802.3u/x/3ab Auto-negotiation for each port Full duplex operation at 1000 Mbps / Half/full duplex operation at 10/100 Mbps Auto MDI/MDIX Supports Jumbo frames up to 9216 bytes at 1000 Mbps MTBF: 506,711 hours Operating temperature: 0 to 50°C Storage temperature: -10 to 70°C Operating humidity: 10 to 90% Storage humidity: 5 to 90%
Outputs - 1 x Ethernet
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 105.00 mm
Package features > Gross height (mm) - 60.00 mm
Package features > Gross width (mm) - 80.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 3300 pc(s)
Package features > Paper/Pasteboard - 90.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare other - 1.80 g
Package features > Tare weight (kg) - 0.10 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging data - Package depth - 134 mm
Packaging data - Package height - 95 mm
Packaging data - Package weight - 358 g
Packaging data - Package width - 101 mm
Performance - Mean time between failures (MTBF) - 506711 h
Ports & interfaces - Connectivity technology - Wired

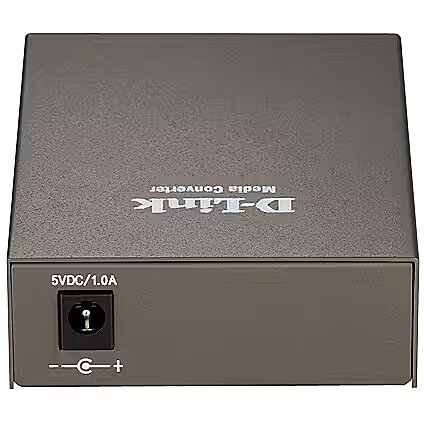

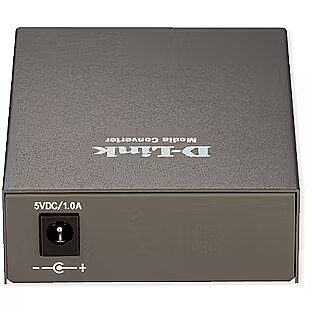

Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Fiber optic connector - SFP
Ports & interfaces - Fiber ports quantity - 1
Power - Input voltage - 230 - 240 V
Power - Output current - 1 A
Power - Output voltage - 5 V
producer - D-Link
Producer product family - 1000BaseT to SFP Standalone Media Converter
Producer product name - DMC-G01LC
ProductName - DMC-G01LC/E
ShortSummaryDescription - D-Link DMC-G01LC/E, 1000 Mbit/s, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, Gigabit Ethernet, 10,100,1000 Mbit/s, 506711 h, Grey
Special functions -
Technical details > Gross weight - 0.30 kg
Technical details > Net weight - 0.20 kg
Technical details > Other features - IEEE 802.3u/x/3ab; Auto-Negotiation for each port; Full-Duplex operation at 1000 Mbps/Half/Full-Duplex operation at 10/100 Mbps; Auto MDI/MDIX; Supports Jumbo frames up to 9216 bytes at 1000 Mbps
Technical details > Producer - D-Link
Title - D-Link DMC-G01LC/E network media converter 1000 Mbit/s Grey
URL - https://us.dlink.com
Usage - Fiber
vendpn - DMC-G01LC/E
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo -
Weight & dimensions - Depth - 95 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Width - 70 mm
