Aktsia sihtmärk - 0
ARTIKEL1 - 4P SERIAL-ETHERNET-ADAPTER
ARTIKEL2 - .
Bränd - StarTech.com
Brändi osade kood - I43-SERIAL-ETHERNET
EAN-kood - 0065030906012
Garantiiinfo - 2 aastat
Globaalne kaubakood - 0065030906012
Globaalne kaubakood - 065030906012
GRUPPE1 - Kaablid
GRUPPE2 - Jada kaabel
HST NUMBER - I43-SERIAL-ETHERNET
Kaal - 0.64
Kaal ja mõõtmed - Kaal - 400 g
Kaal ja mõõtmed - Laius - 179 mm
Kaal ja mõõtmed - Pakendi kaal - 600 g
Kaal ja mõõtmed - Pakendi kõrgus - 55 mm
Kaal ja mõõtmed - Pakendi laius - 166 mm
Kaal ja mõõtmed - Pakendi sügavus - 242 mm
Kaal ja mõõtmed - Sügavus - 60 mm
Kaal ja mõõtmed – Kõrgus - 23 mm
Kategooria - Seeria konverterid/kordajad/isolaatorid
Kuidas sul läheb? - 0
Laenge - 0
laius - 0
Logistikaandmed – peamine (välimine) kasti kõrgus - 280 mm
Logistikaandmed – peamine (välimine) kasti laius - 410 mm
Logistikaandmed – peamine (välimine) kasti pikkus - 430 mm
Logistikandmed – tooted ühe peamise (välimise) kasti kohta - 15 tükki

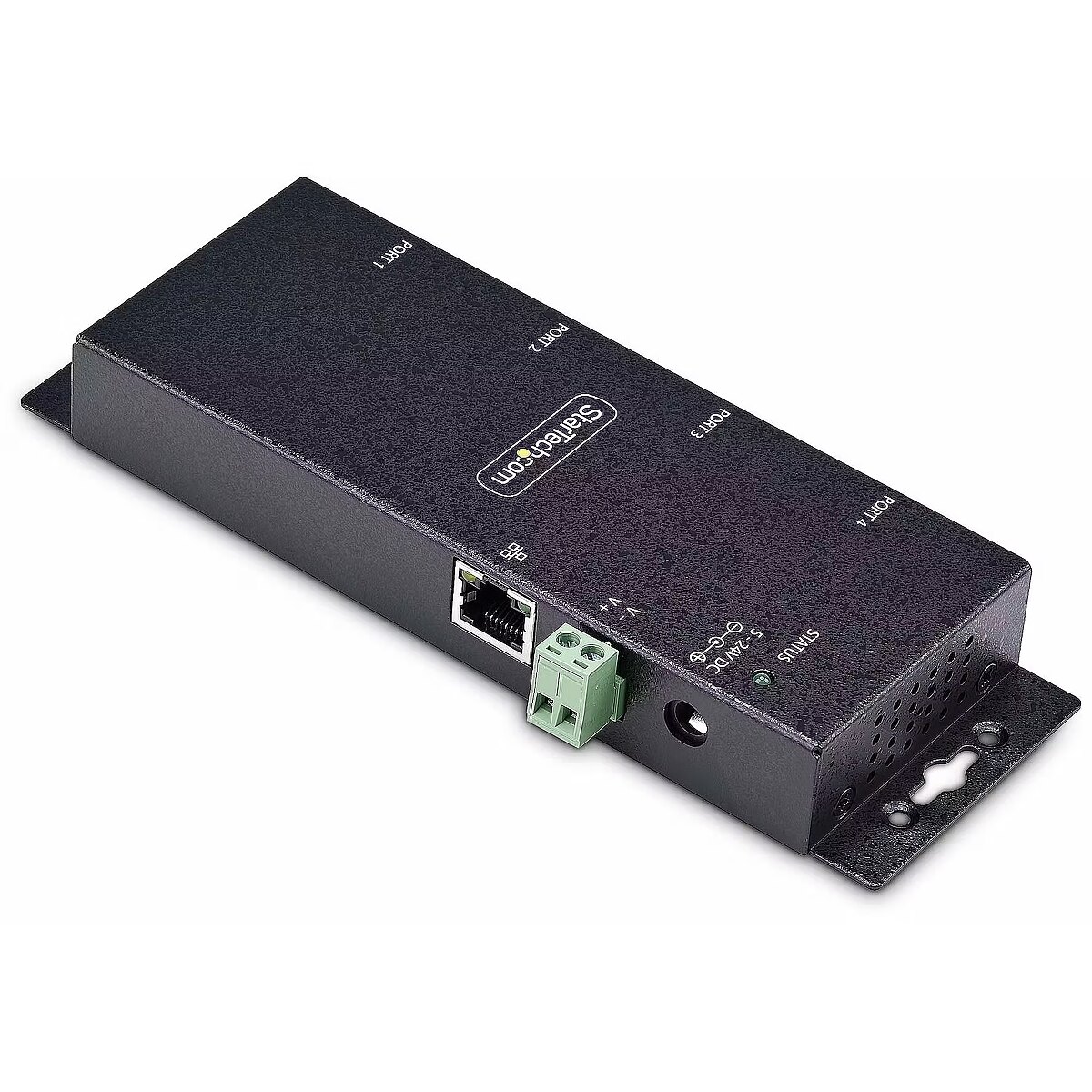

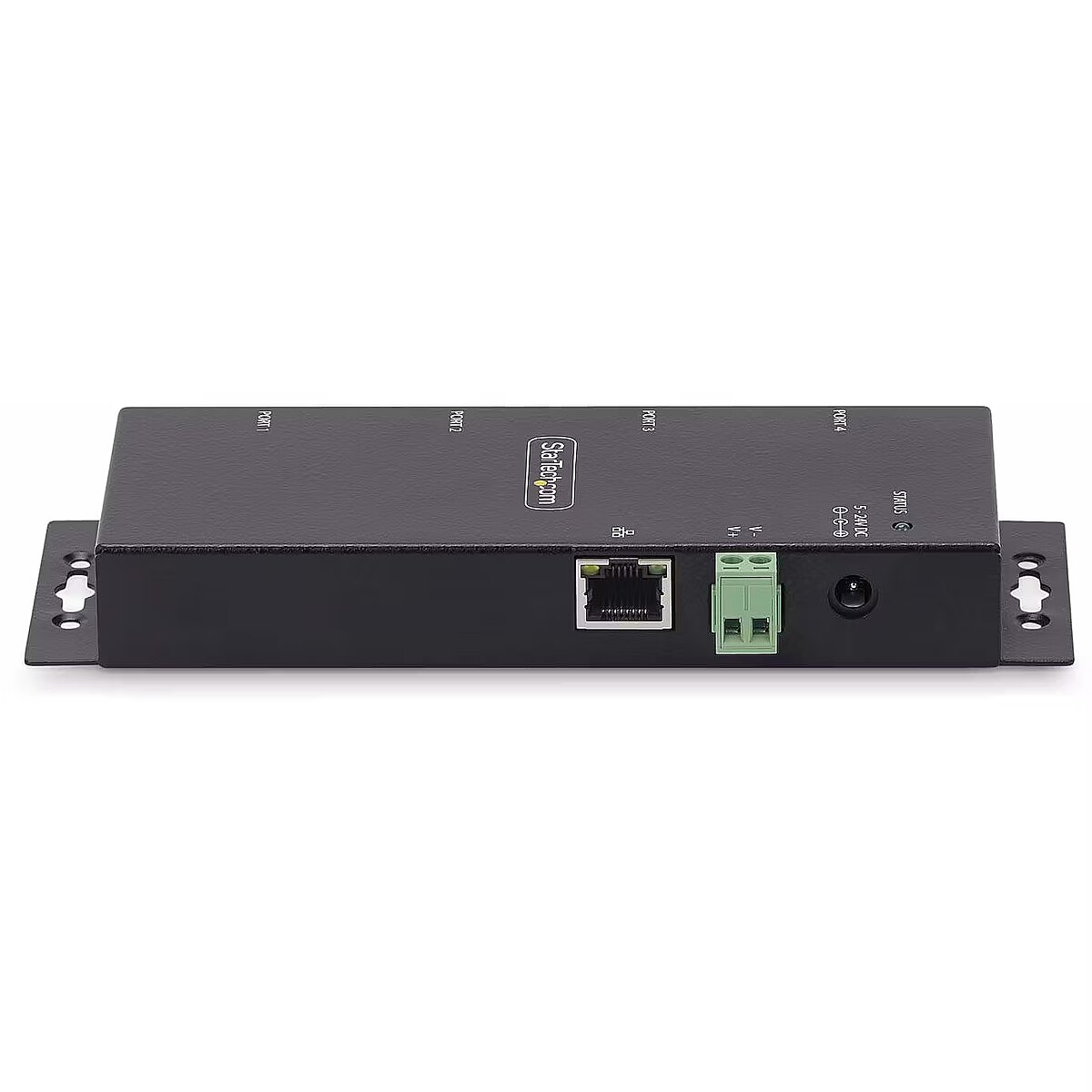

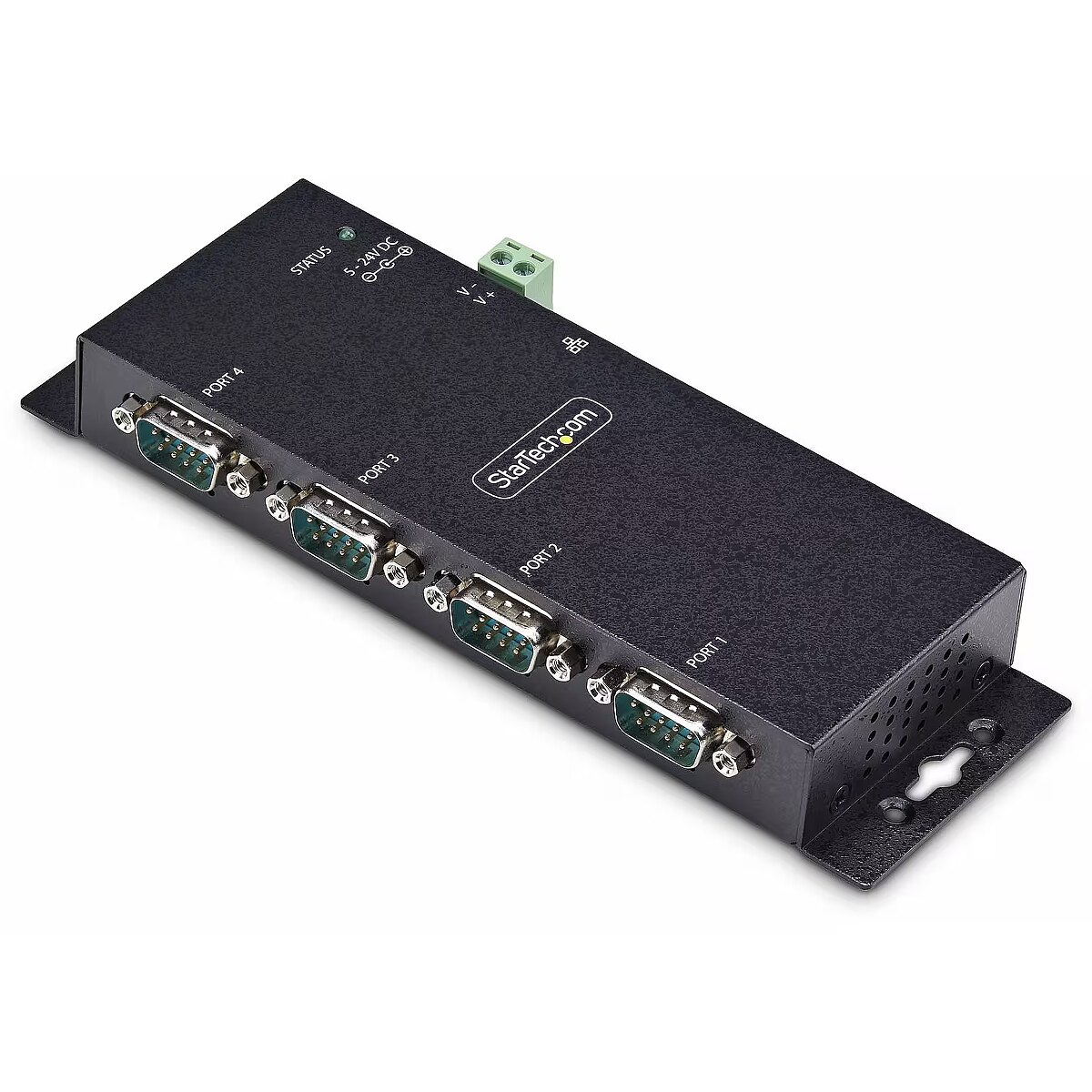

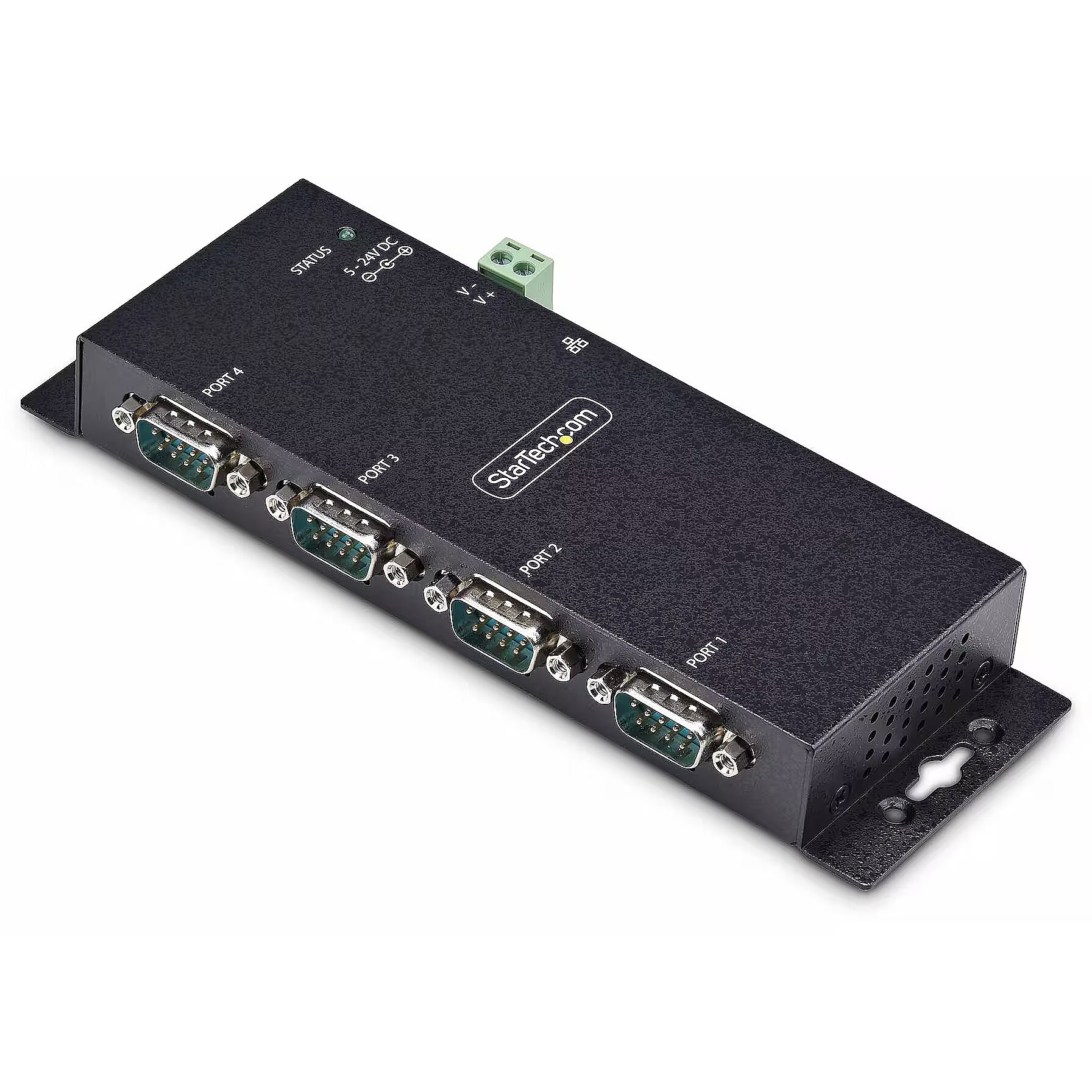

Lühikokkuvõte - StarTech.com 4-portiline jadaport-Ethernet-adapter, IP-jadaport-seade server kaugjuhtimiseks RS232 seadmetele, seinale/DIN-siinile paigaldatav, metallkorpus, RJ45 LAN-DB9 jadaport-konverter, IEEE 802.3i, IEEE 802.3u, 0–60 °C, -20–75 °C, 5–95%, 179 mm, 60 mm
Materjal - Korpuse materjal - Teras
Näidik - LED-näidikud - Jah
Pakendamisandmed - Käsiraamat - Jah

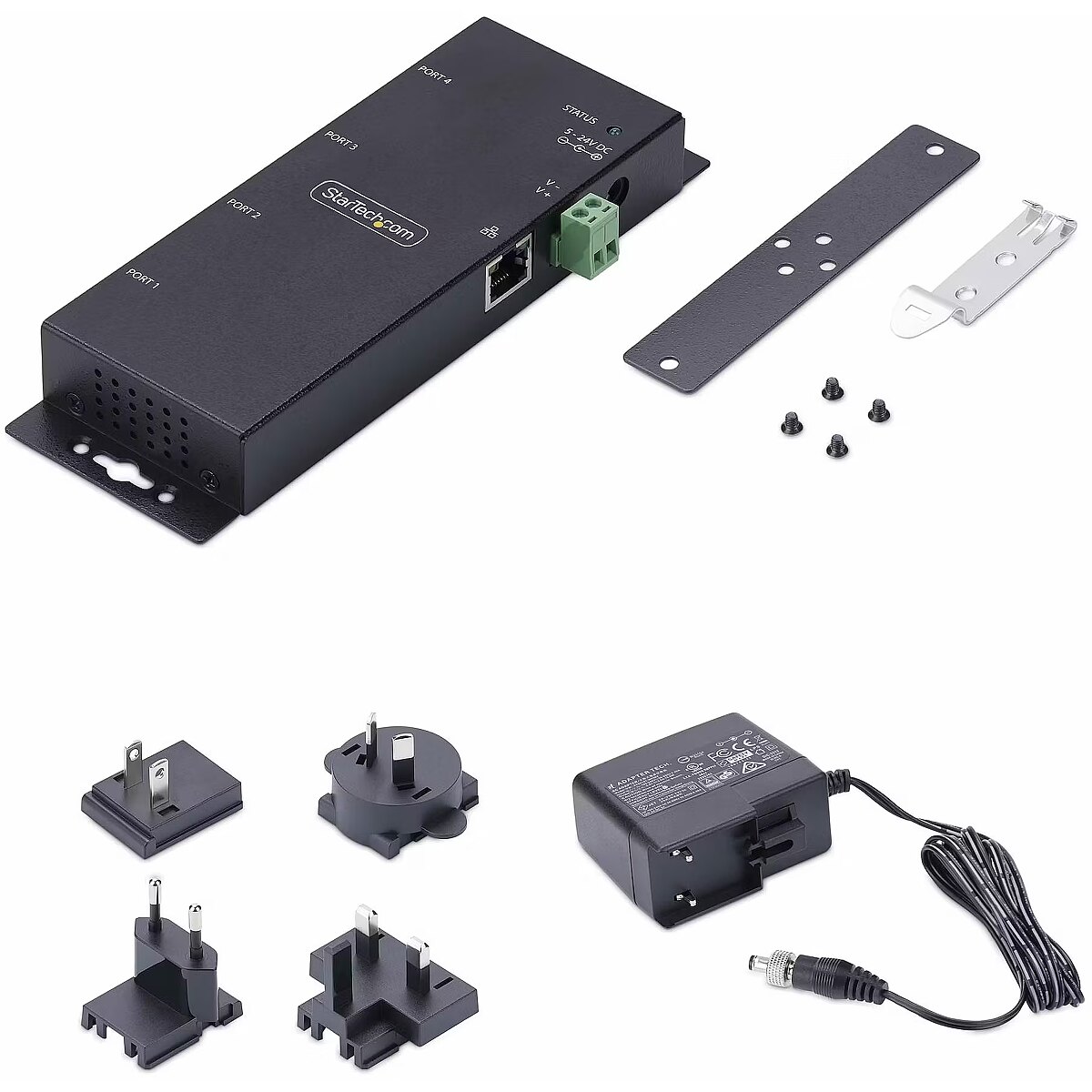

Pakendi sisu - AC adapter kaasas - Jah
Pakendi sisu - DIN-siin kaasas - Jah
Pakendi sisu – kaasasolevate kruvide arv - kaks tükki

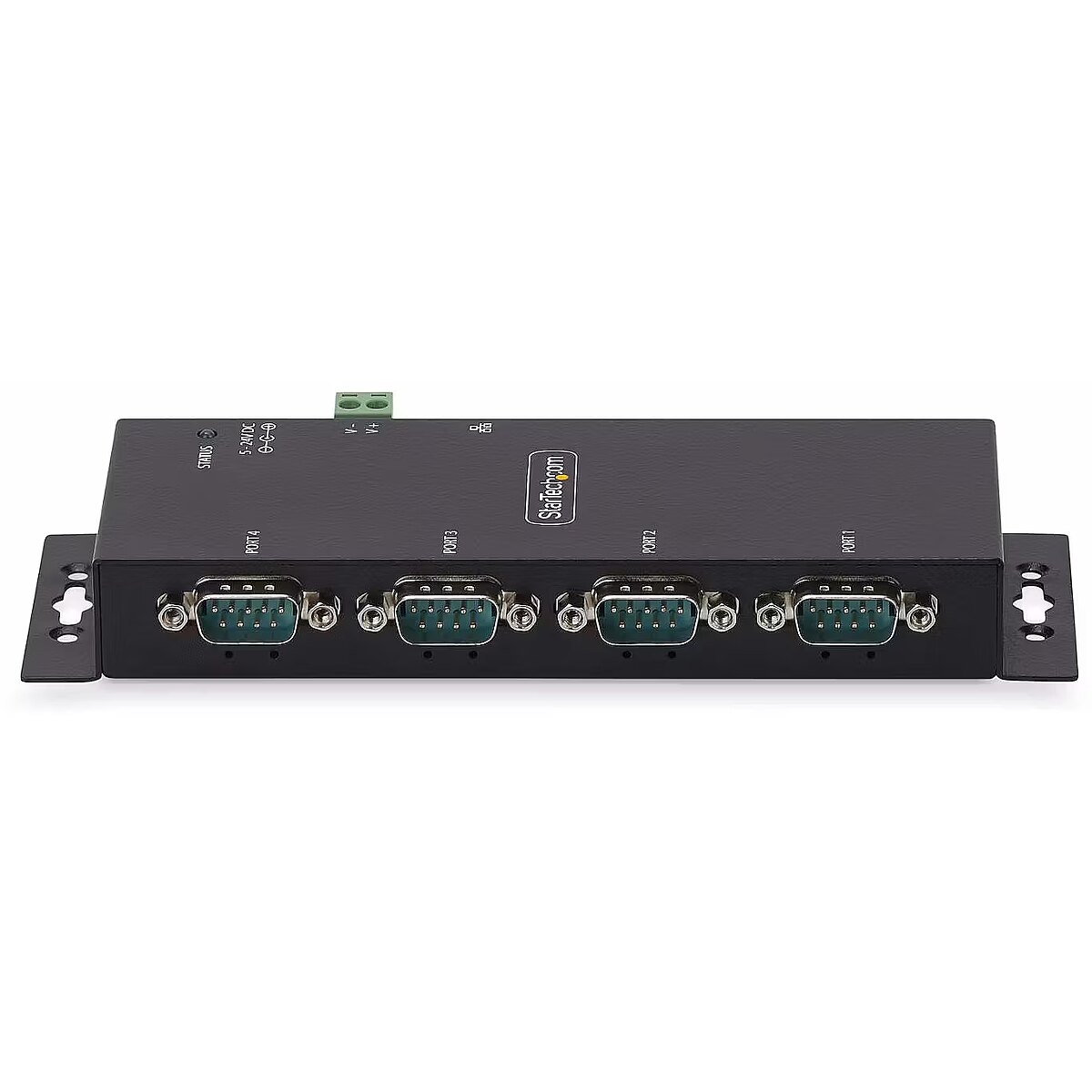

Pealkiri - StarTech.com 4-portiline jadaport-Ethernet-adapter, IP-jadaport-seade server kaugjuhtimiseks RS232 seadmetele, seinale/DIN-siinile paigaldatav, metallkorpus, RJ45 LAN-DB9 jadaport-konverter
Pikk kirjeldus - Optimeerige RS-232 ühenduvus seeria seadmete haldamiseks IP-võrgusSee 4-portiline seeria-IP-konverter on tõhus lahendus mitmesuguste RS232 seeria seadmete kaugühendamiseks ja juhtimiseks IP-põhise võrgu kaudu.Konfiguratsioon ja haldusDB9-Ethernet-adapterite perekond kasutab ühtset Windows Virtual COM Port tarkvara ja veebikasutajaliidest (WebUI), mis tagab ühtse kasutuskogemuse. Kasutajad saavad Windows tarkvara abil vaadata ja hallata kõiki võrgus olevaid seadmeservereid ning seadistada virtuaalseid COM-porte. Alternatiivina pakub WebUI platvormist sõltumatut meetodit, mis võimaldab kasutajatel neile seadmeserveritele juurde pääseda ja neid seadistada mis tahes operatsioonisüsteemist. See paindlikkus tagab, et administraatorid saavad oma seadmeserverite võrku tõhusalt hallata, sõltumata kasutatavast operatsioonisüsteemist.Tooteperekond hõlmab järgmisi valikuid:• 1-portiline jadaport-Ethernet-adapter PoE-ga (I13P-SERIAL-ETHERNET)• 1-portiline jadaport-Ethernet-adapter (I13-SERIAL-ETHERNET)• 2-portiline jadaport-Ethernet-adapter (I23-SERIAL-ETHERNET)• 4-portiline jadaport-Ethernet-adapter (I43-SERIAL-ETHERNET)Paindlik paigaldamine ja vastupidav korpusKaks toitevalikut, DC-pistik ja klemmplokk, tagavad paigaldamise paindlikkuse ja mugavuse. Muundur on paigutatud täismetallkorpusesse, mis tagab vastupidavuse rasketes tingimustes. DB9 üle IP muundur sisaldab kõiki vajalikke seinale ja DIN-siinile paigaldamiseks vajalikke kinnitusdetaile. Mitmed paigaldusavad korpuse küljel võimaldavad paigaldada muunduri igas rakenduses kõige sobivamas asendis. Mõõtmed 7x2,3x0,9 tolli (178x59,4x23 mm).Etherneti ja toite valikudTAA-vastav IP-sarjaliidese konverter on varustatud ühe RJ45 10/100 Mbps Etherneti portiga ja toetab Telnet Server (RFC2217), TCP Server, TCP Client ja UDP protokolle mitmekülgse võrgusiduvuse tagamiseks. See sisaldab ka universaalset toiteadapterit, toetab ESD taseme 4 ülepingekaitset ja võib vajadusel varustada 5 VDC pingega pin 9 kaudu. StarTech.com eelis
Pikk kokkuvõte - StarTech.com 4-portiline jadaport-Ethernet-adapter, IP-jadaport-seade server kaugjuhtimiseks RS232 seadmetele, seinale/DIN-siinile paigaldatav, metallkorpus, RJ45 LAN-DB9 jadaport-konverter. Võrgustandardid: IEEE 802.3i, IEEE 802.3u. Laius: 179 mm, sügavus: 60 mm, kõrgus: 23 mm. Sisendpinge: 100–240 V, sisendvool: 0,48 A, väljundpinge: 5 V. Korpuse materjal: teras. Komplektis olevate kruvide arv: 2 tk.
Pikk tootenimi - StarTech.com 4-portiline jadaport-Ethernet-adapter, IP-jadaport-seade server kaugjuhtimiseks RS232 seadmetele, seinale/DIN-siinile, LAN-DB9
Stck_kaart - 9998
Tarkvara – toetatud Windows-operatsioonisüsteemid - Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Tehnilised andmed - Andmebitid - 7, 8
Tehnilised andmed - Baudikiirus - 921.6 Kbit/s

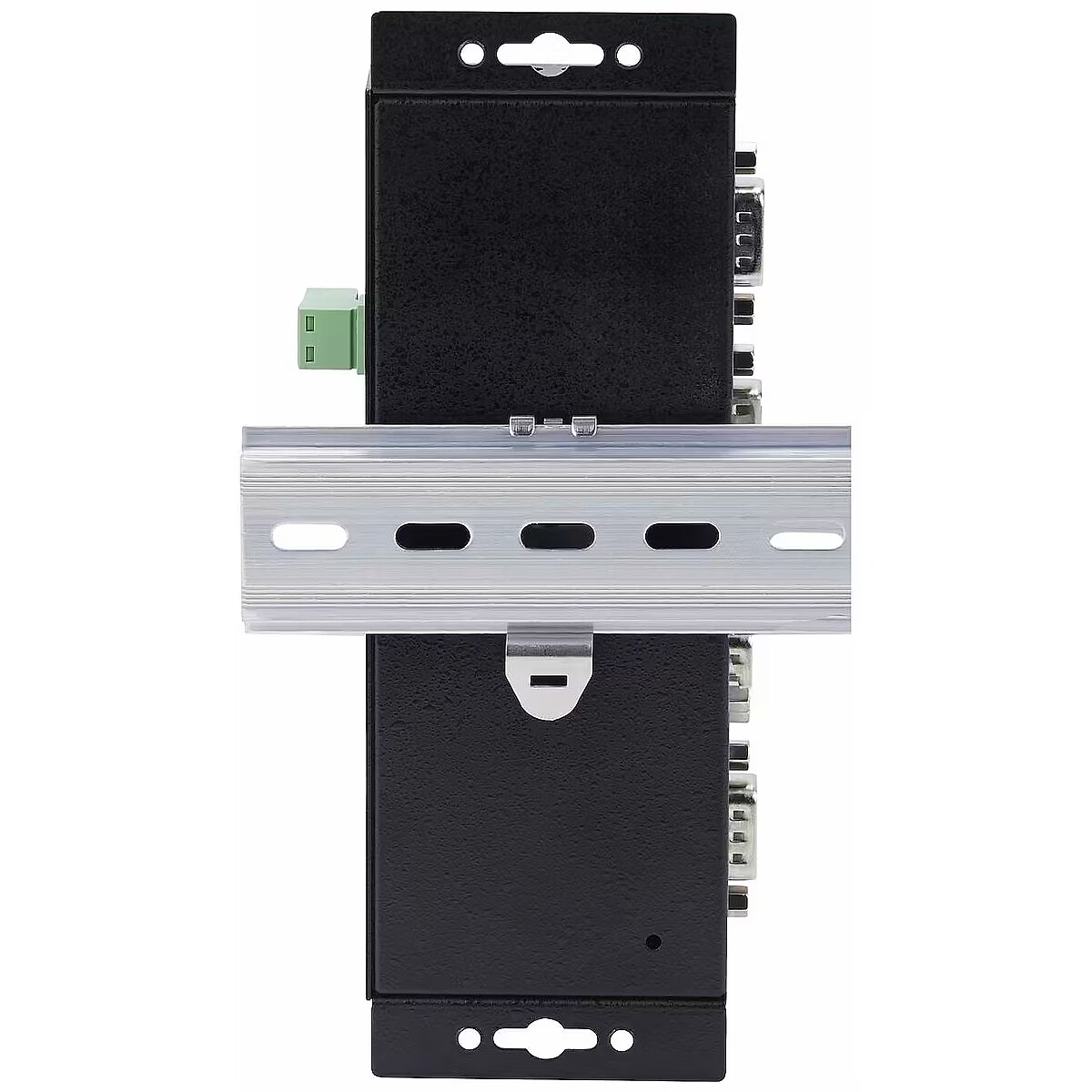

Tehnilised andmed - Paigaldamine - Sein/DIN
Tehnilised andmed - Sariportide arv - 4
Tehnilised andmed - Toote värv - Must
Tehnilised andmed - Vastavussertifikaadid - Kaubanduslepingute seadus (TAA)
Tehnilised andmed - Väljundliides - RJ-45
Tehnilised andmed - Ühenduse tüüp - Naine/Naine
Tehnilised andmed – Elektrostaatilise lahenduse (ESD) kaitse (kontakt) - 8 kilovolt
Tehnilised andmed – Elektrostaatilise lahenduse (ESD) kaitse (õhk) - 15 kilovolt
Tehnilised andmed – Host-liides - RS-232
Tehnilised andmed – Stop-bitid - 1, 2
Tehnilised andmed – voolu reguleerimise tüüp - Ei, RTS/CTS, XON/XOFF
Tehnilised andmed – Ühendus 1 - DB-9
Tehnilised andmed – Ühendus 2 - RJ-45
Tehnilised üksikasjad – pariteedibit - Paarsed, paaritu, tühik
Toote nimi - 4-portiline jadaport-Ethernet-adapter, IP-jadaportseade server kaugjuhtimiseks RS232 seadmetele, seinale/DIN-siinile paigaldatav, metallkorpus, RJ45 LAN-DB9 jadaportkonverter
TOOTJA - STARTECH
Töötingimused - Ladustamistemperatuur (T-T) - -20 - 75 °C
Töötingimused - Töötemperatuur (H-H) - 5 - 95%
Töötingimused - Töötemperatuur (T-T) - 0 - 60 °C
Tühistamine - Ja
Veebiaadress - https://www.startech.com/
Võimsus - Sisendpinge - 100 - 240 V
Võimsus - Sisendvool - 0.48 A
Võimsus - väljundpinge - 5 V
Võimsus - väljundvool - 3 A
Võimsus - Võimsustarbimine (tüüpiline) - 15 W
Võrk - automaatne läbirääkimine - Jah
Võrk - Auto MDI/MDI-X - Jah
Võrk - Täisdupleks - Jah
Võrk - Võrgustandardid - IEEE 802.3i, IEEE 802.3u
Stck_Pal - 0
ARTIKEL1 - 4P SERIAL TO ETHERNET ADAPTER
ARTIKEL2 - .
Brand - StarTech.com
BrandPartCode - I43-SERIAL-ETHERNET
EANCode - 0065030906012
WarrantyInfo - 2 Years
GTIN - 0065030906012
GTIN - 065030906012
GRUPPE1 - Cables
GRUPPE2 - Serial Cable
HSTNUMMER - I43-SERIAL-ETHERNET
Gewicht - 0.64
Weight & dimensions - Weight - 400 g
Weight & dimensions - Width - 179 mm
Weight & dimensions - Package weight - 600 g
Weight & dimensions - Package height - 55 mm
Weight & dimensions - Package width - 166 mm
Weight & dimensions - Package depth - 242 mm
Weight & dimensions - Depth - 60 mm
Weight & dimensions - Height - 23 mm
Category - Serial Converters/Repeaters/Isolators
Hoehe - 0
Laenge - 0
Breite - 0
Logistics data - Master (outer) case height - 280 mm
Logistics data - Master (outer) case width - 410 mm
Logistics data - Master (outer) case length - 430 mm
Logistics data - Products per master (outer) case - 15 pc(s)
ShortSummaryDescription - StarTech.com 4-Port Serial to Ethernet Adapter, IP Serial Device Server For Remote RS232 Devices, Wall/DIN Rail Mountable, Metal Housing, RJ45 LAN to DB9 Serial Converter, IEEE 802.3i, IEEE 802.3u, 0 - 60 °C, -20 - 75 °C, 5 - 95%, 179 mm, 60 mm
Material - Housing material - Steel
Indication - LED indicators - Yes
Packaging data - Manual - Yes
Packaging content - AC adapter included - Yes
Packaging content - DIN rail included - Yes
Packaging content - Number of screws included - 2 pc(s)
Title - StarTech.com 4-Port Serial to Ethernet Adapter, IP Serial Device Server For Remote RS232 Devices, Wall/DIN Rail Mountable, Metal Housing, RJ45 LAN to DB9 Serial Converter
LongDesc - Streamline RS-232 connectivity for serial device management over IPThis 4-port serial to IP converter is an efficient solution for remotely connecting and controlling a variety of RS232 serial devices over an IP-based network.Configuration and ManagementThe DB9 to Ethernet Adapter family shares the same Windows Virtual COM Port software and Web User Interface (WebUI) for a unified experience. Users can employ the Windows software to view and manage all device servers within a network and to set up virtual COM ports. Alternatively, the WebUI provides a platform-independent method, allowing users to access and configure these device servers from any operating system. This flexibility ensures that administrators can manage their network of device servers efficiently, regardless of the operating system they are using.The product family includes the following options:• 1-Port Serial to Ethernet Adapter with PoE (I13P-SERIAL-ETHERNET)• 1-Port Serial to Ethernet Adapter (I13-SERIAL-ETHERNET)• 2-Port Serial to Ethernet Adapter (I23-SERIAL-ETHERNET)• 4-Port Serial to Ethernet Adapter (I43-SERIAL-ETHERNET)Flexible Installation and Rugged ChassisDual power options, DC jack and terminal block, provide installation flexibility and convenience. The converter is housed in a full metal enclosure for durability in harsh environments. The DB9 over IP converter includes all necessary wall and DIN rail mounting hardware. Multiple mounting holes along the chassis allow it to be installed in the most useful orientation for any application. Dimensions of 7x2.3x0.9in (178x59.4x23mm).Ethernet and Power OptionsThe TAA-compliant IP-to-serial converter features a single RJ45 10/100 Mbps Ethernet port and supports Telnet Server (RFC2217), TCP Server, TCP Client, and UDP protocols for versatile network connectivity. It also includes a universal power adapter, supports ESD level 4 surge protection, and can supply 5VDC over pin 9 if required.The StarTech.com Advantage
LongSummaryDescription - StarTech.com 4-Port Serial to Ethernet Adapter, IP Serial Device Server For Remote RS232 Devices, Wall/DIN Rail Mountable, Metal Housing, RJ45 LAN to DB9 Serial Converter. Networking standards: IEEE 802.3i, IEEE 802.3u. Width: 179 mm, Depth: 60 mm, Height: 23 mm. Input voltage: 100 - 240 V, Input current: 0.48 A, Output voltage: 5 V. Housing material: Steel. Number of screws included: 2 pc(s)
LongProductName - StarTech.com 4-Port Serial to Ethernet Adapter, IP Serial Device Server For Remote RS232 Devices, Wall/DIN Rail, LAN to DB9
Stck_Kart - 9998
Software - Windows operating systems supported - Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Technical details - Data bits - 7, 8
Technical details - Baud rate - 921.6 Kbit/s
Technical details - Mounting - Wall/DIN
Technical details - Serial ports quantity - 4
Technical details - Product colour - Black
Technical details - Compliance certificates - Trade Agreements Act (TAA)
Technical details - Output interface - RJ-45
Technical details - Connector gender - Female/Female
Technical details - Electrostatic Discharge (ESD) protection (contact) - 8 kV
Technical details - Electrostatic Discharge (ESD) protection (air) - 15 kV
Technical details - Host interface - RS-232
Technical details - Stop bits - 1, 2
Technical details - Flow Control type - No, RTS/CTS, XON/XOFF
Technical details - Connector 1 - DB-9
Technical details - Connector 2 - RJ-45
Technical details - Parity bit - Even, No, Odd, Space
ProductName - 4-Port Serial to Ethernet Adapter, IP Serial Device Server For Remote RS232 Devices, Wall/DIN Rail Mountable, Metal Housing, RJ45 LAN to DB9 Serial Converter
HERSTELLER - STARTECH
Operational conditions - Storage temperature (T-T) - -20 - 75 °C
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 60 °C
Storno - Y
URL - https://www.startech.com/
Power - Input voltage - 100 - 240 V
Power - Input current - 0.48 A
Power - Output voltage - 5 V
Power - Output current - 3 A
Power - Power consumption (typical) - 15 W
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Full duplex - Yes
Network - Networking standards - IEEE 802.3i, IEEE 802.3u
