15pin D-sub Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Brand - Dahua Technology
BrandPartCode - NVR2108HS-S3
Category - Network Video Recorders (NVR)
Category Code - NVR
CPU - Embedded Linux
Description - 8 IP channel max, up to 12MP resolution 80Mbps record rate VGA/HDMI up to 1-channel 12MP @30 fps; 6-channel 1080p @ 30 fps 1 SATA port, up to 16 TB 3.5” HDD, 10/100M LAN No front panel control, no Alarm I/O, 2 USB Smart 1U case (white), mouse included ONVIF (profile T/S/G); CGI; SDK Connected to the third-party network cameras 4-channel SMD Plus (AI by camera), secondary filtering for human and motor vehicle SMD Plus Free IP monitoring software available
Desktop/pedestal Mounting Type - Yes
Dimensions - 260 × 232.7 × 47.6mm
Features - Certification - CE: EN62368-1; EN55032; EN55024; EN55035; EN61000-
3-2; EN61000-3-3; EN50130-4
FCC: Part 15 Subpart B
Features - LED indicators - HDD, Network, Power
Features - Product colour - Black
Features - Rack capacity - 1U
Features - Rack mounting - Yes
Full Description Line - Channels 8|Drives/bays 1|Desktop/pedestal|Rack|CPU Embedded Linux|SATA|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|Power supply requirements 12 VDC, 1.5 A|Power consumption 10 Watts|Dim. 260 × 232.7 × 47.6mm|Temp. range –10 °C to +55 °C
GTIN - 6923172533197
Hard drive - HDD interface - SATA
Hard drive - Maximum storage capacity - 16 TB
Hard drive - Number of HDDs installed - 1
HDMI Input/Output connectors - 1
LongDesc - Series OverviewDahua Lite series NVR is easy to install, cost effective and compatible with a wide variety of third-party devices, providing a great solution for small and medium surveillance systems. It is ideal for home safety, supermarkets, warehouses, educational institutions, and financial institutions.Perimeter Protection by CameraAutomatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy.SMD Plus by CameraWith intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.AI SearchWith AI search, operators can search for videos by the attributes of targets and event types, which helps them to quickly and efficiently investigate where and when targets appeared and events took place.
LongProductName - 8 Channel Compact 1U 1HDD Network Video Recorder
LongSummaryDescription - Dahua Technology Lite NVR2108HS-S3. Video input channels: 8 channels, Video recording modes: 1080p, Operating system installed: Embedded LINUX. Maximum storage capacity: 16 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100 Mbit/s, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server;.... Rack capacity: 1U, LED indicators: HDD, Network, Power, Product colour: Black. Output current: 1.5 A, Output voltage: 12 V
Model - DHI-NVR2108HS-S3
Number of Channels - 8
Number of drives/bays - 1
Operating temperature range - –10 °C to +55 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 93%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Performance - Audio codecs - PCM; G711A; G711U; G726
Performance - Backup function - Yes
Performance - Input bandwidth - 80 Mbit/s
Performance - Maximum frame rate - 30 fps
Performance - Operating system installed - Embedded LINUX
Performance - Output bandwidth - 60 Mbit/s
Performance - Playback modes - Pause, Play, Stop
Performance - Recording modes - Manual
Performance - Video codecs - Smart H.265; H.265; Smart H.264; H.264
Performance - Video input channels - 8 channels
Performance - Video recording modes - 1080p
Ports & interfaces - Audio RCA inputs - 1
Ports & interfaces - Audio RCA outputs - 1
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Ethernet LAN data rates - 10,100 Mbit/s
Ports & interfaces - HDMI output - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Supported network protocols - HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); P2
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - Output current - 1.5 A
Power - Output voltage - 12 V
Power consumption - 10 Watts
Power supply requirements - 12 VDC, 1.5 A
Processor - Built-in processor - Yes
ProductName - NVR2108HS-S3
Rack Mounting Type - Yes
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 33.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 31.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.4 kg
Shipping Box Width Shipping/Package Box Dimensions - 9 cm
ShortSummaryDescription - Dahua Technology Lite NVR2108HS-S3, 8 channels, 1080p, Embedded LINUX, Smart H.265; H.265; Smart H.264; H.264, PCM; G711A; G711U; G726, Pause, Play, Stop
System requirements - Browser supported - Chrome; IE 9 or later; Firefox
System requirements - Mobile operating systems supported - Android, iOS

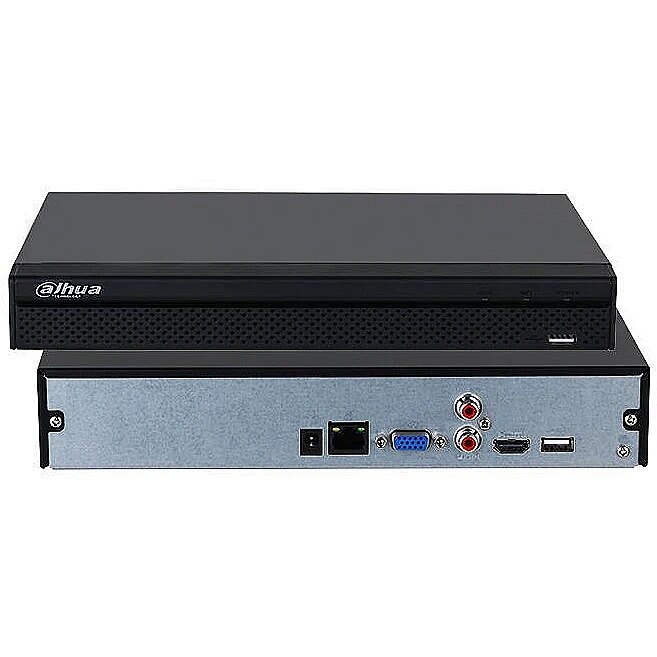

Title - Dahua Technology Lite NVR2108HS-S3 network video recorder 1U Black
Unit Box Height - 0.315
Unit Box Length - 0.335
Unit Box Width - 0.09
Unit Brutto Volume - 0.009497 cubm
Unit Gross Weight - 1.4 kg
Unit Net Weight - 0.81 kg
URL - https://www.dahuasecurity.com/products/
USB 2.0 Input/Output connectors - 2
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR2-S3-Series/1HDD/NVR2108HS-S3
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 232.7 mm
Weight & dimensions - Height - 47.6 mm
Weight & dimensions - Package depth - 333 mm
Weight & dimensions - Package height - 315 mm
Weight & dimensions - Package weight - 1.33 kg
Weight & dimensions - Package width - 89 mm
Weight & dimensions - Weight - 810 g
Weight & dimensions - Width - 260 mm
