Code - KNVRDS7608NXIK18PD
dimensionalWeight - 2106
EAN - 6942160489780
Features - On/off switch - Yes
Features - Product colour - Black
Features - Rack capacity - 1U
Features - Rack mounting - Yes
Link - https://www.hikvision.com/europe/products/IP-Products/Network-Video-Recorders/Pro-Series/ds-7608nxi-k1-8p-d-/?q=ds-7608nxi-k1-8p-d-&pageNum=1&position=1&hiksearch=true

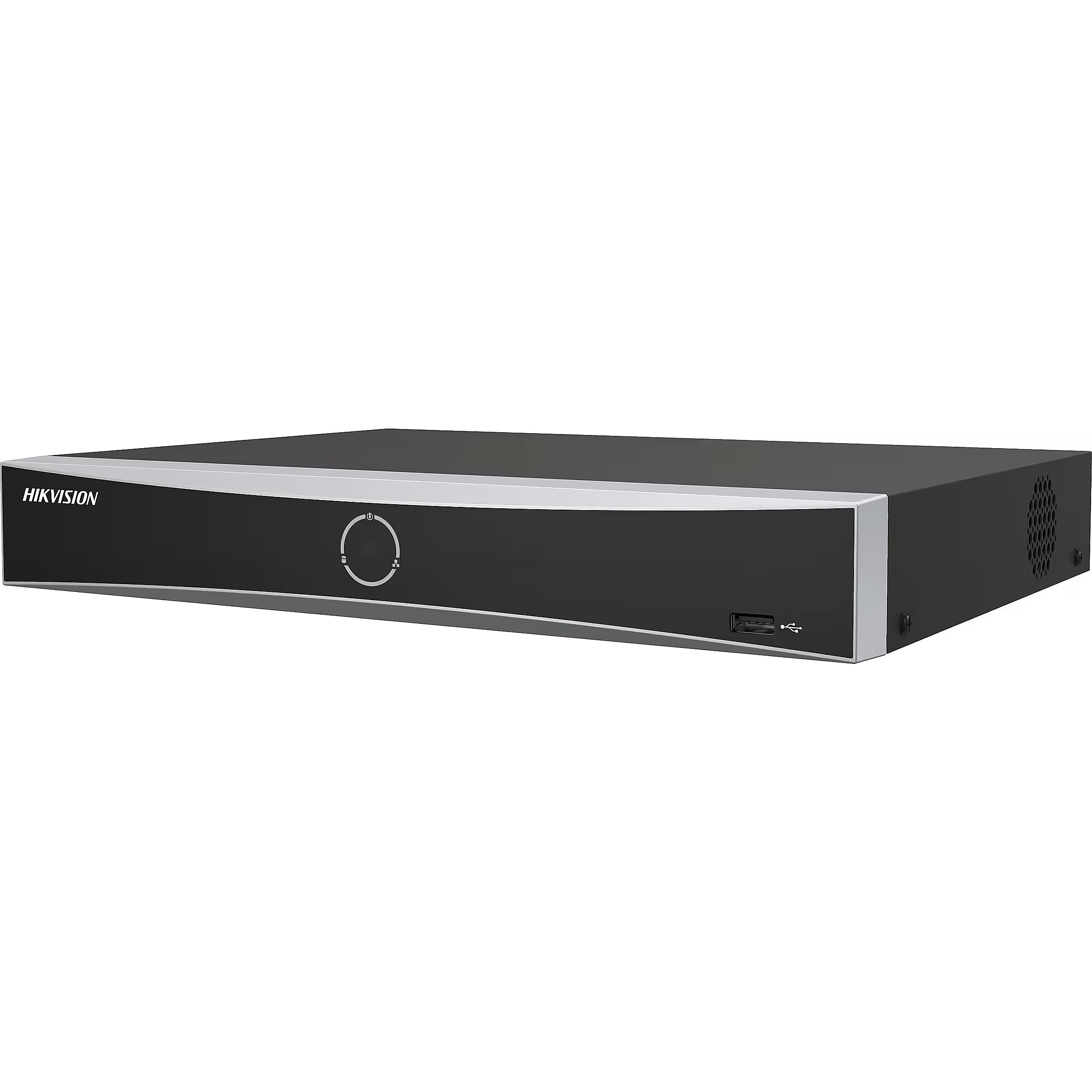

Name - Hikvision | 8-ch PoE 1U K Series AcuSense 4K NVR | DS-7608NXI-K1/8P(D) | 1
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Other features > Number of SATA connectors - 1
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 240 mm
Package features > Gross height (mm) - 48 mm
Package features > Gross width (mm) - 320 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 234 pc(s)
Package features > Paper/Pasteboard - 160.00 g
Package features > Plastic (No PET) - 40.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.0036864 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Performance - Face detection - Yes
Performance - Input bandwidth - 80 Mbit/s
Performance - Maximum resolution - 3840 x 2160 pixels
Performance - Output bandwidth - 80 Mbit/s
Performance - Video input channels - 8 channels
Performance > Capacity - Up to 16 TB capacity for each HDD
Ports & interfaces - Audio RCA inputs - 1
Ports & interfaces - Audio RCA outputs - 1
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Ethernet LAN data rates - 10
Ports & interfaces - Ethernet LAN data rates - 100 Mbit/s
Ports & interfaces - Ethernet LAN data rates - 1000
Ports & interfaces - HDMI output - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Power over Ethernet (PoE) - Yes
Ports & interfaces - Power over Ethernet (PoE) ports quantity - 8
Ports & interfaces - Supported network protocols - TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - Output current - 1.875 A
Power - Output voltage - 48 V
Power - Power - 75 W
Power - Power consumption (typical) - 10 W
Power - Power over Ethernet (PoE) power per port - 30 W
producerCode - DS-7608NXI-K1/8P
productName - Hikvision DS-7608NXI-K1/8P Network Video Recorder (NVR) PoE 1U Black
productSize - Normal
Safety warning - Warnings - Do not expose the device to moisture or extreme temperatures.
sizeX - 420
sizeY - 85
sizeZ - 295
Storage - HDD interface - SATA
Storage - HDD interface - SATA II
Storage - HDD interface - SATA III
Storage - Maximum storage capacity - 10 TB
Storage - Number of HDDs supported - 1
Technical details > Gross weight - 1.20 kg
Technical details > Net weight - 1.00 kg
Technical details > Producer - Hikvision
Technical details > Producer product family - 8-ch PoE 1U K Series AcuSense 4K NVR
Technical details > Producer product name - DS-7608NXI-K1/8P(D)
Warranty - 36
Warranty - 36 month(s)
warrantyLength - 36
warrantyType - F
weight - 1840
Weight & dimensions - Depth - 240 mm
Weight & dimensions - Height - 48 mm
Weight & dimensions - Weight - 1 kg
Weight & dimensions - Width - 320 mm
Wireless LAN features - Wi-Fi - No
