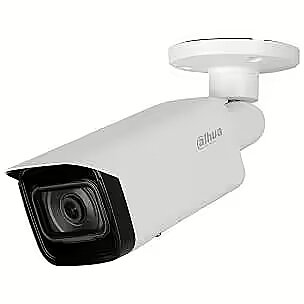

Camera design - Bullet
Category Code - FNC
Description - 1/2.8” CMOS, 3840 × 2160 @ 30FPS max Minimum illumination: 0.0008 lux @F1.6 (Color, 30 IRE); 0.0004 lux @F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) True Day/Night with ICR Filter, BLC / HLC / True WDR (120dB), 3D DNR, Defog Fixed lens 2.8 mm (110°) Up to 80 smart IR Illumination H.265+, H.265, H.264+, H.264, H.264B, H.264H, MJPEG, ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P Micro SD: Max 256GB, 1/1 Audio I/O, 1/1 Alarm I/O, Built-in microphone With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc. Bullet design, metal shell, IP67, IK10, -40°C~+60°C Power ePoE / PoE / 12VDC power, 9.8W max Free IP monitoring software available
Electronic Shutter Speed - ePoE / PoE / 12VDC
Environment - Outdoor
Focal Length - 3.6 mm
IR Illumination - Yes
Lens Mount - M12
Microphone - Built-in
MicroSD Card Slot Input/Output connectors - 1
Model - IPC-HFW5842T-ASE-0360B-S3
Network Camera Type - Fixed/Outdoor
Operating temperature range - -40°C~+60°C
Power consumption - 9.8 Watts
Power options - 12V/PoE
Power supply requirements - ePoE / PoE / 12VDC
Product Net Weight - 0.82 kg
Resolution - 8 Mega Pixel
RJ45 Input/Output connectors - 1
Sensor size - 1/2.8” CMOS
Supports card capacities up to - 256GB
Unit Box Height - 0.11
Unit Box Length - 0.3
Unit Box Width - 0.12
Unit Calculated Volume - 0.00396 cubm
Unit Calculated Weight - 1.23 kg
Units per Shipping Box - 1
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizMind-S-Series/8MP/IPC-HFW5842T-ASE-S3=S3
Warranty - 36 months
