Brand - TP-Link
BrandPartCode - VIGI NVR4064H
Category - Network Video Recorders (NVR)
Category 1 - Netzwerk
Category 2 - Netzwerkkameras
EAN - 4895252500776
Features - Buzzer off - Yes
Features - Product colour - Black
Features - Rack mounting - Yes
Features - Reset button - Yes
GTIN - 4895252500776
Hard drive - HDD capacity - 0 GB
Hard drive - HDD interface - SATA
Hard drive - Maximum storage capacity - 16 TB
Hard drive - Number of HDDs supported - 4
LongDesc - Dual Ethernet Ports DesignMulti-Address ModeAllows for the implementationof two different gatewaysNetwork Fault-ToleranceCreates a safeguard orredundancy for your dataPort AggregationRealizes bandwidth stackand mutual backupOne-Click System InitializeVIGI NVRs enable quick camera additions, HDDinitialization, and storage scheduling with a single click,reducing setup expenses.
LongProductName - 64-ch, 320Mbps, HDMI, VGA, 4K
LongSummaryDescription - TP-Link VIGI NVR4064H. Video input channels: 64 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 64 channels. Maximum storage capacity: 16 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP,.... Product colour: Black. Power consumption (max): 48.38 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz
Manufacturer - TP-Link
MPN - VIGI NVR4064H(UN)

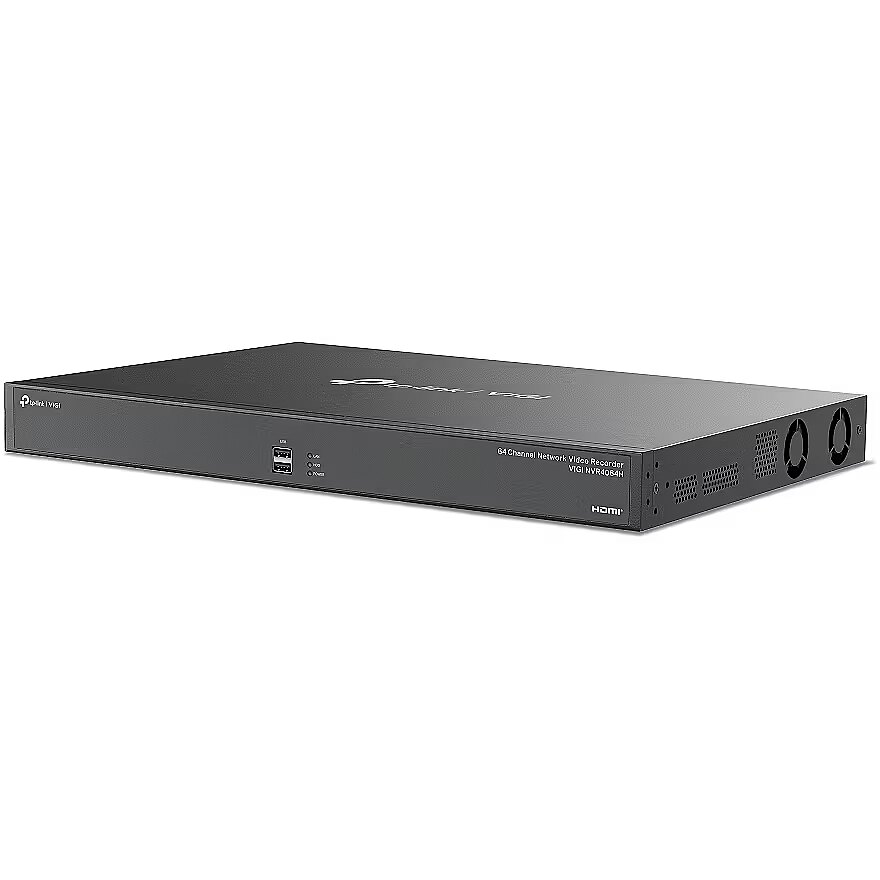

Name - TP-Link Omada Network Video Recorder VIGI NVR4064H 64 Channel
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Packaging content - Cables included - AC, Power
Packaging content - Quick installation guide - Yes
Performance - Alarm input channels - 16
Performance - Alarm output channels - 4
Performance - Audio system - 2-way
Performance - Backup function - Yes
Performance - Input bandwidth - 320 Mbit/s
Performance - Maximum resolution - 3840 x 2160 pixels
Performance - Number of simultaneously playbacked channels - 64 channels
Performance - Output bandwidth - 320 Mbit/s
Performance - Playback modes - Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
Performance - Recording modes - Manual, Schedule
Performance - Supported resolutions - 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Performance - Video formats supported - H.264, H.264+, H.265, H.265+
Performance - Video input channels - 64 channels
Performance - Video loss detection - Yes
Performance - Video motion detection - Yes
Performance - Video recording modes - 720p, 1080p

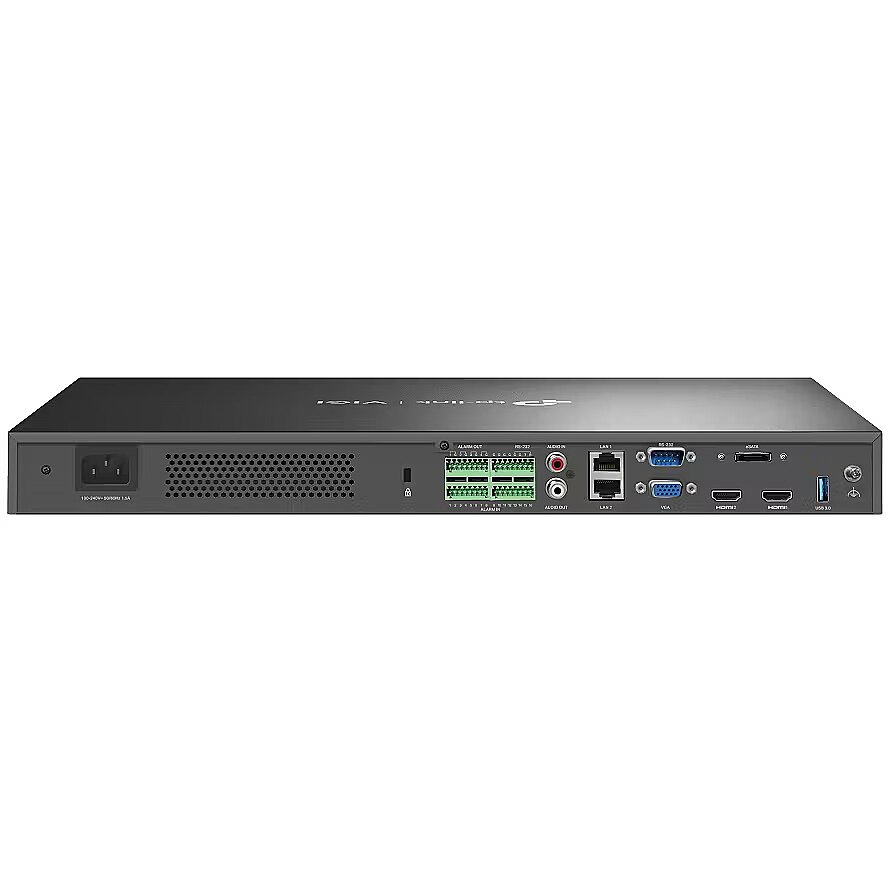

Ports & interfaces - Audio output - 1
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Ethernet LAN data rates - 10,100,1000 Mbit/s
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - Line-in - Yes
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - Supported network protocols - UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Output current - 1.5 A
Power - Power consumption (max) - 48.38 W
ProductName - VIGI NVR4064H
ShortSummaryDescription - TP-Link VIGI NVR4064H, 64 channels, 3840 x 2160 pixels, 64 channels, 720p, 1080p, 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, H.264, H.264+, H.265, H.265+
System requirements - Browser supported - Chrome (57+), Firefox (52+), Edge (91+)
System requirements - Mobile operating systems supported - Android, iOS
Title - TP-Link VIGI NVR4064H network video recorder Black
URL - https://www.tp-link.com/my/business-networking/vigi-network-video-recorder/vigi-nvr4064h/#highlights
WarrantyInfo -
Weight & dimensions - Depth - 330 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Package depth - 528 mm
Weight & dimensions - Package height - 100 mm
Weight & dimensions - Package weight - 5 kg
Weight & dimensions - Package width - 440 mm
Weight & dimensions - Weight - 4 kg
Weight & dimensions - Width - 440 mm
