Alarm In Input/Output connectors - 1
Alarm Out Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Camera - Camera pan control - Yes
Camera - Camera tilt control - Yes
Camera - Minimum illumination - 0.005 lx
Camera design - Bullet
Category Code - FNC
Description - > 5-MP 1/2.7" CMOS image sensor, excellent low luminance performance and high definition of images. > Outputs max. 5 MP (2960 × 1668) @20 fps and supports 4MP (2688 × 1520) @25/30 fps. > H.265 codec, high compression rate, ultra-low bit rate. > Built-in IR LED, max. IR distance: 50 m. > ROI, SMART H.264 +/H.265+, AI H.264/H.265. flexible coding, applicable to various bandwidth and storage environments. > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human). > Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. > Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic. > 12 VDC/PoE power supply, easy for installation. > IP67 protection. > SMD 4.0, AI SSA.
Design - Form factor - Bullet
Design - Mounting type - Ceiling/Wall/Pole
Design - Product colour - White
dimensionalWeight - 742
Dimensions - 192.7 × 70.5 × 66.4 mm
Effective pixels - 2960 (H) × 1668 (V)
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Environment - Outdoor
Image sensor - Number of sensors - 1
Image sensor - Sensor type - CMOS
IR Illumination - Yes
Lens Mount - M12
Lens system - Number of lenses - 1
Model - IPC-HFW3541E-AS-0360B-S2
Network - Bluetooth - No
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network Camera Type - HDTV/Megapixel/Outdoor
Night vision - Night vision - Yes
Operating temperature range - –40 °C to +60 °C
Packaging content - Number of cameras - 1
Performance - Connectivity technology - Wired
Performance - Placement supported - Indoor & outdoor
Performance - Type - IP security camera
Pixel Resolution - 5 Mega Pixel
Power - Power source type - DC, PoE
Power consumption - 6.5 Watts
Power options - 12V/PoE
Power supply requirements - 12 VDC/PoE (802.3af)
producerCode - IPC-HFW3541E-AS-0360B-S2

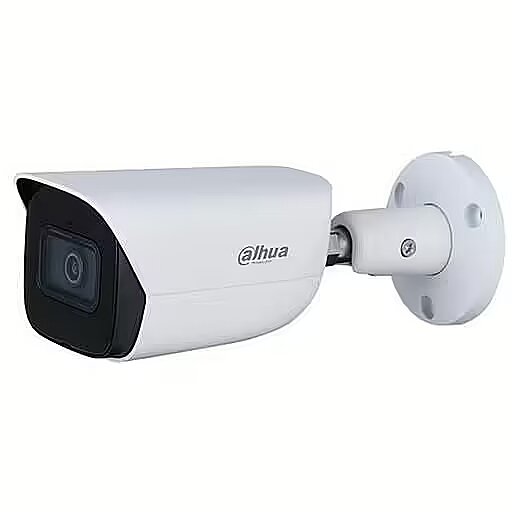

productName - Dahua Technology WizSense 5MP Lite AI IR Fixed focal Bullet IP security camera Indoor & outdoor Ceiling/Wall/Pole
Product Net Weight - 0.59 kg
productSize - Normal
RJ45 Input/Output connectors - 1
Sensor size - 1/2.7"
sizeX - 250
sizeY - 110
sizeZ - 135
Storage - Built-in HDD - No
Supports card capacities up to - 256GB
Unit Box Height - 0.11
Unit Box Length - 0.25
Unit Box Width - 0.14
Unit Calculated Volume - 0.00385 cubm
Unit Calculated Weight - 0.76 kg
Units per Shipping Box - 1
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/3-Series/5MP/IPC-HFW3541E-AS-S2=S2
Video - Total megapixels - 5 MP
Warranty - 36 months
warrantyLength - 36
warrantyType - F
weight - 760
