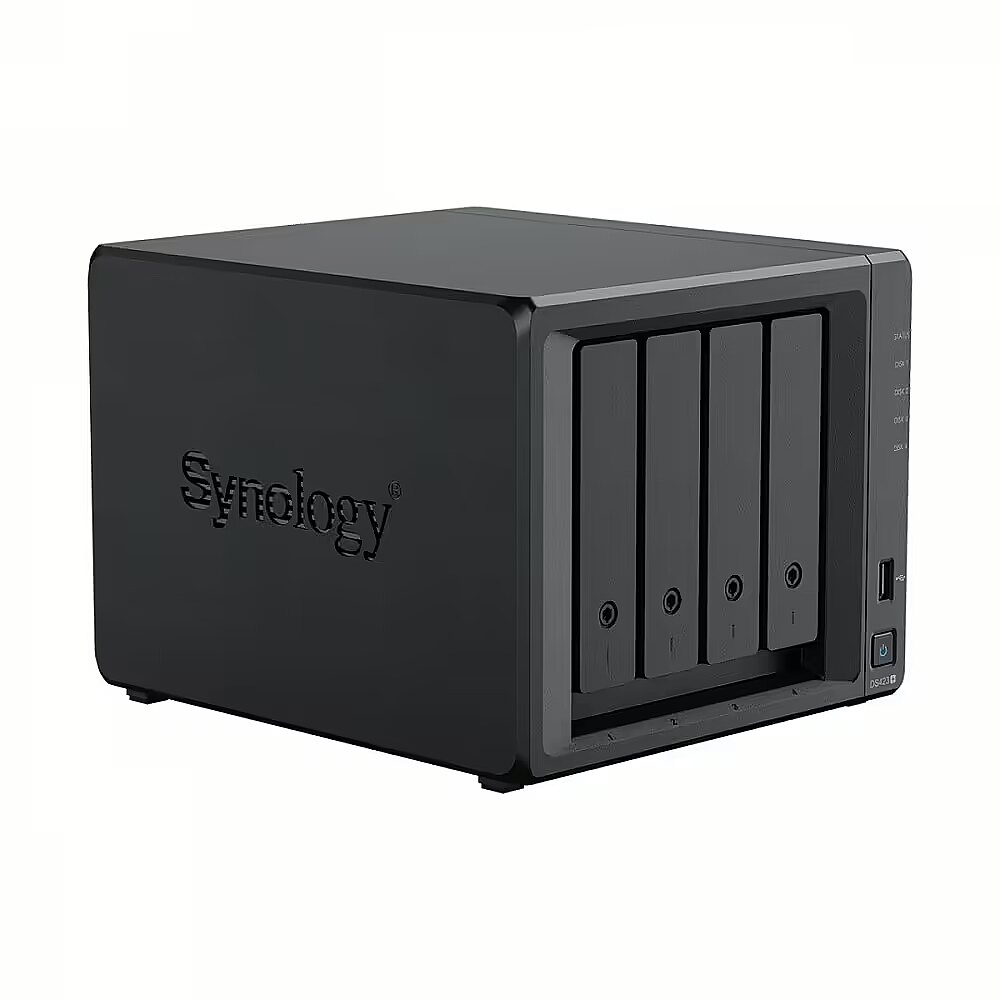

Synology DiskStation DS423+, 4-Bay

Accessories included - Main unit  Accessories package Power supply Power cable 2 x LAN RJ-45 cable Quick Installation Guide
Built-in RAM memory - 2 GB
category - Peripherals|Networking & WLAN|NAS
Category - Root/Electronics/Networks and communication/NAS - file servers
Category 1 - Netzwerk
Category 2 - NAS-Systeme
Category_1 - Network and Servers
Category_2 - NAS
code - DS423+
Dane techniczne: Częstotliwość procesora - 2000 MHz (Boost 2.7 GHz)
Dane techniczne: Format szerokości dysku twardego - 2.5 cala
Dane techniczne: Format szerokości dysku twardego - 3.5 cala
Dane techniczne: Format szerokości dysku twardego - M.2 NVMe (2280)
Dane techniczne: Grupa produktowa - NAS - serwery plików Synology
Dane techniczne: Gwarancja - 2 lata w serwisie sprzedawcy
Dane techniczne: Głośność pracy - 19.8 dB
Dane techniczne: Ilość pamięci RAM - 2 GB
Dane techniczne: Interfejs dysku twardego - M.2
Dane techniczne: Interfejs dysku twardego - Serial ATA III
Dane techniczne: Interfejs LAN - 2 x RJ-45 1GbE
Dane techniczne: Maks. ilość dysków twardych - 6 (4 x 2.5/3.5 + 2 x M.2)
Dane techniczne: Maks. rozmiar pamięci - 6 GB
Dane techniczne: Obsługiwany typ RAID - Basic
Dane techniczne: Obsługiwany typ RAID - JBOD
Dane techniczne: Obsługiwany typ RAID - RAID 0
Dane techniczne: Obsługiwany typ RAID - RAID 1
Dane techniczne: Obsługiwany typ RAID - RAID 5
Dane techniczne: Obsługiwany typ RAID - RAID 6
Dane techniczne: Obsługiwany typ RAID - RAID 10
Dane techniczne: Obsługiwany typ RAID - Synology Hybrid RAID
Dane techniczne: Obudowa - wolnostojąca
Dane techniczne: Procesor - Intel Celeron J4125
Dane techniczne: Producent - Synology
Dane techniczne: System - Syology
Dane techniczne: Typ pamięci - SO-DIMM
Dane techniczne: Waga - 2.18 kg
Dane techniczne: Wymiana dysków hot-swap - tak
Dane techniczne: Wymiary - 166 x 199 x 223 mm
Dane techniczne: Zarządzanie - Syslog
Dane techniczne: Zasilanie - zasilacz zewnętrzny
Dane techniczne: Zastosowanie - kopie zapasowe
Dane techniczne: Zastosowanie - media serwer
Dane techniczne: Zastosowanie - serwer baz danych
Dane techniczne: Zastosowanie - serwer FTP
Dane techniczne: Zastosowanie - serwer iTunes
Dane techniczne: Zastosowanie - serwer plików
Dane techniczne: Zastosowanie - serwer syslog
Dane techniczne: Zastosowanie - serwer VPN
Dane techniczne: Zastosowanie - serwer WWW
Dane techniczne: Zastosowanie - stacja fotograficzna
Dane techniczne: Zastosowanie - stacja monitoringu
Dane techniczne: Zastosowanie - stacja pobierająca dane
Dane techniczne: Złącza zewnętrzne - 2 x RJ-45
Dane techniczne: Złącza zewnętrzne - 2 x USB 3.2 Gen 1
Description - DiskStation DS423+ Compact storage centre with 100% data ownership With Synology's comprehensive DiskStation Manager (DSM) operating system, the DS423+ provides comprehensive solutions for business data protection and management, easy document collaboration and remote file access, and can serve as the core of an IP camera-based surveillance system - all in a compact desktop format. A storage platform built for homes and small offices With a maximum capacity of 72 terabytes, the DS423+ is ideal for teams of professionals, small businesses looking to centralise storage, or as a node in distributed deployments. The DSM system on the DS423+ uses an advanced Btrfs file system to protect data from corruption and allows users to quickly undo any unintended or malicious changes using snapshot technology. The DS423+ features two easy-access M.2 NVMe slots that can be used to connect high-speed flash cache or create SSD storage volumes without occupying standard drive bays. SSD storage pools are ideal for tasks requiring low latency and high random write performance, while SSD cache volumes can significantly improve I/O performance on slower HDD volumes. Local storage with cloud integration The DS423+ provides intuitive file management and sharing with Synology Drive, which combines cross-platform file access with the privacy offered by local storage. For remote teams and multi-location businesses, cross-location file synchronisation is available for mirroring between Synology devices. The hybrid cloud capabilities provided by Synology Hybrid Share allow users to combine the benefits of an on-premise and cloud solution by storing infrequently used data in the cloud while caching frequently used files on the local device for access at LAN speeds. Backup centre with multi-layered data protection Ensuring continuous protection of critical data from today's cyber threats is essential to avoid irreversible loss of valuable information. Synology's Active Backup Suite allows IT infrastructure such as Windows and Linux systems, Hyper-V/VMware virtual machines and Microsoft 365 / Google Workspace accounts to be securely backed up to the DS423+ and easily restored when needed. For added redundancy, you can also back up and snapshot data from a specific point in time stored on the NAS server and send it off-site to another location or cloud service. Compact Surveillance Server Synology Surveillance Station is an advanced video management system that currently protects over 500,000 sites worldwide. With support for the ONVIF standard and more than 8,300 approved IP cameras, users can choose the devices best suited to their needs. Surveillance Station makes it easy to set up and manage up to 40 cameras on the DS423+ with a modern and customisable interface. For deployments spread over large areas or multiple buildings, floor plans and Google Maps or OpenStreetMap can be overlaid to maximise situational awareness. Surveillance Station allows for easy encryption, backup and archiving of recordings, as well as simultaneous cloud recording with the optional C2 Surveillance tool. Surveillance Station is highly scalable and suitable for deployments of any size - from small business deployments with a few cameras to large-scale deployments with thousands of cameras in hundreds of locations. Tame the data chaos in your home office Sleek and compact Powerful functionality in a 4-bay chassis Consolidate and share Store, organise and share up to 72TB of data. Integrated data protection Includes hardware and software security designed to protect your data - trusted by millions. Versatile and advanced The versatile DS423+ can serve as a central storage device as well as a media centre. Btrfs: Advanced file system for data protection Synology DiskStation Manager (DSM) operating system on the DS423+ utilises the advanced Btrfs file system to protect data from corruption and roll back any unintended or malicious changes with snapshot technology. Store, share and protect Manage all your documents, photos and other files, back up applications and devices, and protect your physical assets with professional video monitoring. Performance with Synology drives Enjoy highly durable performance and reliability with enterprise-class drives with built-in data protection designed for Synology systems.   More possibilities with DiskStation Manager Take advantage of the suite of performance, management, and security solutions available in the web-based operating system, Synology DSM. Central Management System Conveniently manage a fleet of Synology NAS servers through a central console. Security Protect your Synology NAS from the most advanced threats with industry-leading security solutions. Synology High Availability Seamlessly switch servers in a cluster in the event of server failure to minimize the impact on application performance.
Design - Built-in display - No
Design - Built-in speaker(s) - No
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Cooling type - Active
Design - Fan diameter - 8 cm
Design - Fan diameter 2 - 8 cm
Design - LED indicators - Yes
Design - Number of fans - 2 fan(s)
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 3625
dimension depth - 245 mm
dimension height - 260 mm
Dimensions - 166 x 199 x 223 mm
dimension weight - 3582 g
dimension width - 290 mm
Disk type - HDD
Disk type - SSD
ean - 4711174725007
EAN - 4711174725007
Eans - 4711174725007
EAN_code - 4711174725007
Expansion slots - 2 x M.2
Fan - 9.2 cm
Form factor (width) - 2,5'' (SFF)
Form factor (width) - 3,5'' (LFF)
guarantee - 36
guarantee_type - normal
HDD interface - SATA
Hot-swapping support - Yes
Housing - Tower
I/O connectors - 2 x RJ-45 LAN
I/O connectors - 2 x USB 3.0
Management, monitoring, configuration -
Manufacturer - Synology
Manufacturer_code - DS423+
Max. number of disks - 4
Max memory size - 6 GB
Memory - Internal memory - 2 GB
Memory - Internal memory type - DDR4
Memory - Maximum RAM supported - 6 GB
Memory type - SODIMM DDR4
MPN - DS423+
Name - 4-Bay Synology DS423+ - Celeron J4125
name - Server NAS DS423+ 4x0HDD 2GB J4125 2xRJ45 2xUSB3.2.1 3Y
name - Synology DiskStation DS423+ NAS Server, 2GB RAM, 2x Gb LAN - 4-Bay
Name - Synology DS423+
Name - Synology DS423+, NAS
Network - Copper ethernet cabling technology - 10BASE-T
Network - Copper ethernet cabling technology - 100BASE-T
Network - Copper ethernet cabling technology - 1000BASE-T
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000 Mbit/s
Network - iSCSI support - Yes
Network - Supported network protocols - SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Network architecture - GigabitEthernet
Network interface - 2 x 10/100/1000 Mbit/s
Network protocols - SMB1 (CIFS) SMB2 SMB3 NFSv3 NFSv4 NFSv4.1 NFS Kerberized sessions iSCSI HTTP HTTPs FTP SNMP LDAP CalDAV
Number of available memory slots - 0
Number of fans - 2
Number of HDDs installed - 0
Number of memory slots used - 1
Operational conditions - Operating altitude - 0 - 5000 m
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other disk parameters -
Other features -
Packaging content - Cables included - AC
Packaging content - Cables included - LAN (RJ-45)
Packaging content - External power adapter - Yes
Packaging content - Power cables quantity - 1
Performance - Access Control List (ACL) - Yes
Performance - Backup features - Cloud
Performance - Backup features - iSCSI LUN
Performance - Backup function - Yes
Performance - Browser supported - Google Chrome, Firefox, Microsoft Edge, Safari
Performance - Built-in FTP server - Yes
Performance - Buzzer - Yes
Performance - Card reader integrated - No
Performance - Device class - Home & Home Office
Performance - Multilingual support - Yes
Performance - Noise level - 22.9 dB
Performance - Number of users - 1024 user(s)
Performance - On/off switch - Yes
Performance - Reset button - Yes
Performance - Security algorithms - HTTPS
Performance - Security algorithms - SSH
Performance - Security algorithms - SSH-1.5
Performance - Security algorithms - SSH-2
Performance - Security algorithms - SSL/TLS
Performance - System log - Yes
Performance - Type - NAS
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Ports & interfaces - USB port - Yes
Power - AC input frequency - 50 / 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Number of power supply units - 1
Power - Power consumption (sleep) - 4.97 W
Power - Power consumption (typical) - 32.41 W
Power - Power supply location - External
Power - Power supply unit (PSU) capacity - 90 W
Power - Redundant power supply (RPS) support - No
Power supply - Power supply: 90 W AC input voltage: 100V to 240V AC Power frequency: 50/60 Hz, Single phase Power consumption: 28.3 W (access); 8.45 W (hard drive hibernation)
Processor - Intel Celeron J4125 Number of processors: 1 Processor architecture: 64-bit Processor frequency: 4-core 2.0 (basic) / 2.7 (turbo) GHz Hardware encryption mechanism (AES-NI)
Processor - Processor cores - 4
Processor - Processor family - Realtek
Processor - Processor frequency - 1.7 GHz
Processor - Processor manufacturer - Realtek
Processor - Processor model - RTD1619B
Producent: Nazwa producenta / importera - SynologySynology GmbHGrafenberger Allee 29540237 DüsseldorfNiemcyEmail: pl_sales@synology.com
producer - Synology
Producer - Synology
producerCode - DS423+
ProducerCode - DS423+
productName - Synology DiskStation DS423 NAS/storage server Ethernet LAN Black
productSize - Normal
RAID - Yes
RAID levels - 0
RAID levels - 1
RAID levels - 5
RAID levels - 6
RAID levels - 10 (1+0)
RAID levels - JBOD
ShortDescription -
sizeX - 285
sizeY - 265
sizeZ - 240
Software - Operating system installed - DiskStation Manager
Storage - Hot-swap drive bays - Yes
Storage - Installed storage drive type - No
Storage - Maximum supported storage capacity - 108 TB
Storage - Number of M.2 (M & B) slots - 2
Storage - Number of storage drives supported - 4
Storage - RAID levels - 0
Storage - RAID levels - 1
Storage - RAID levels - 5
Storage - RAID levels - 6
Storage - RAID levels - 10
Storage - RAID levels - JBOD
Storage - RAID support - Yes
Storage - Storage drives installed - No
Storage - Storage drive size - 2.5/3.5"
Storage - Storage drive sizes supported - 2.5
Storage - Storage drive sizes supported - 3.5
Storage - Supported file systems - BTRFS
Storage - Supported file systems - exFAT
Storage - Supported file systems - ext3
Storage - Supported file systems - ext4
Storage - Supported file systems - FAT32
Storage - Supported file systems - HFS+
Storage - Supported file systems - NTFS
Storage - Supported storage drive interfaces - Serial ATA
Storage - Supported storage drive types - HDD & SSD
Technical details - Sustainability certificates - CCC
Technical details - Sustainability certificates - CE
Technical details - Sustainability certificates - Federal Communications Commission (FCC)
Technical details - Sustainability certificates - UKCA
Total number of memory slots - 1
vendpn - DS423+
warrantyLength - 36
warrantyType - G
Weight - 2.18 kg
Weight - 3,60
Weight - 3.46
weight - 3605
Weight & dimensions - Depth - 168 mm
Weight & dimensions - Height - 230 mm
Weight & dimensions - Weight - 2.21 kg
Weight & dimensions - Width - 184 mm
