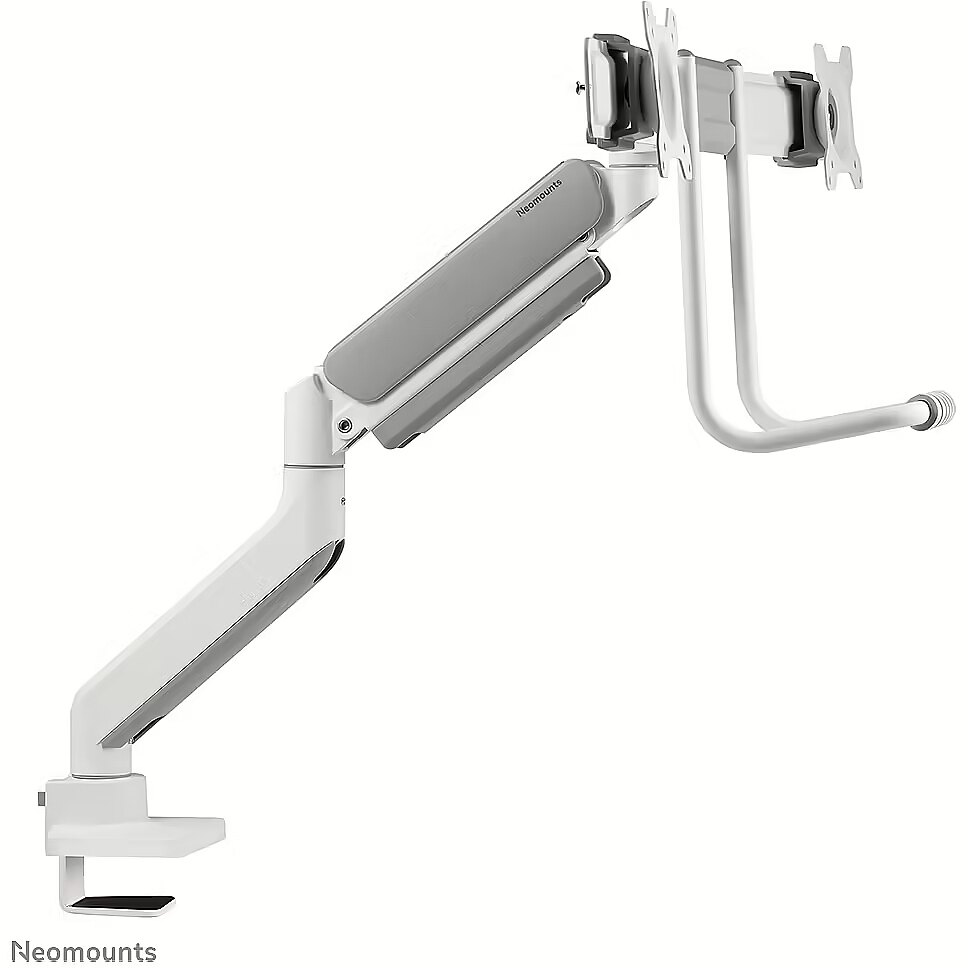

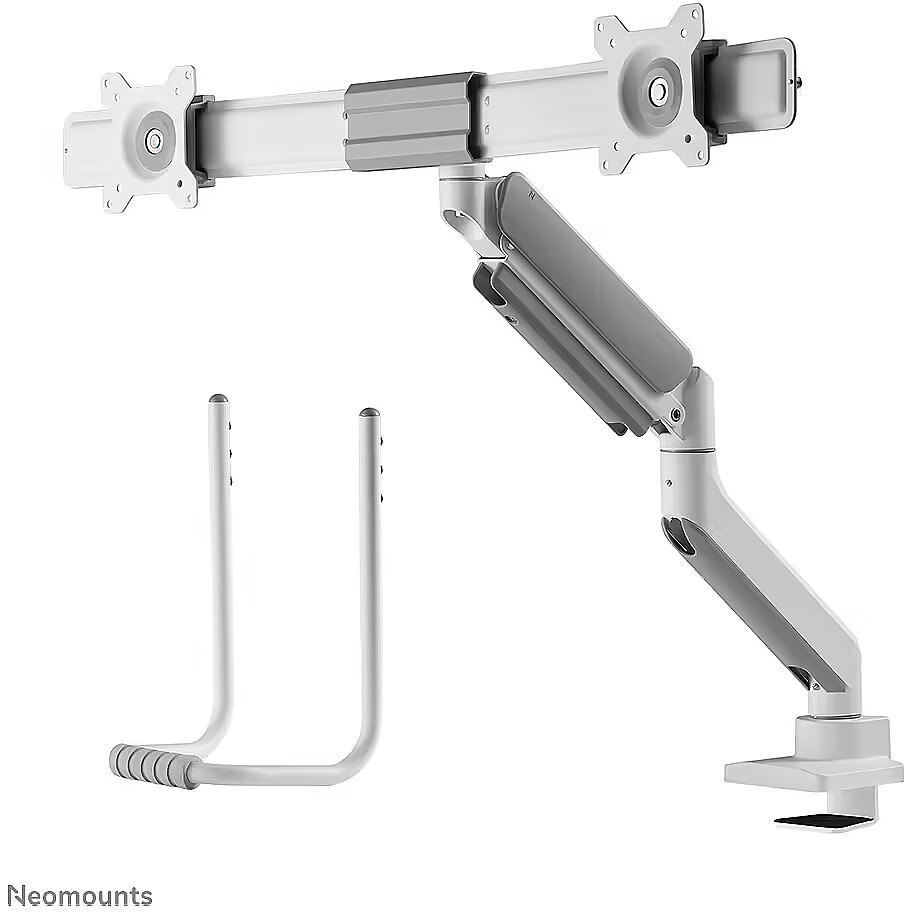

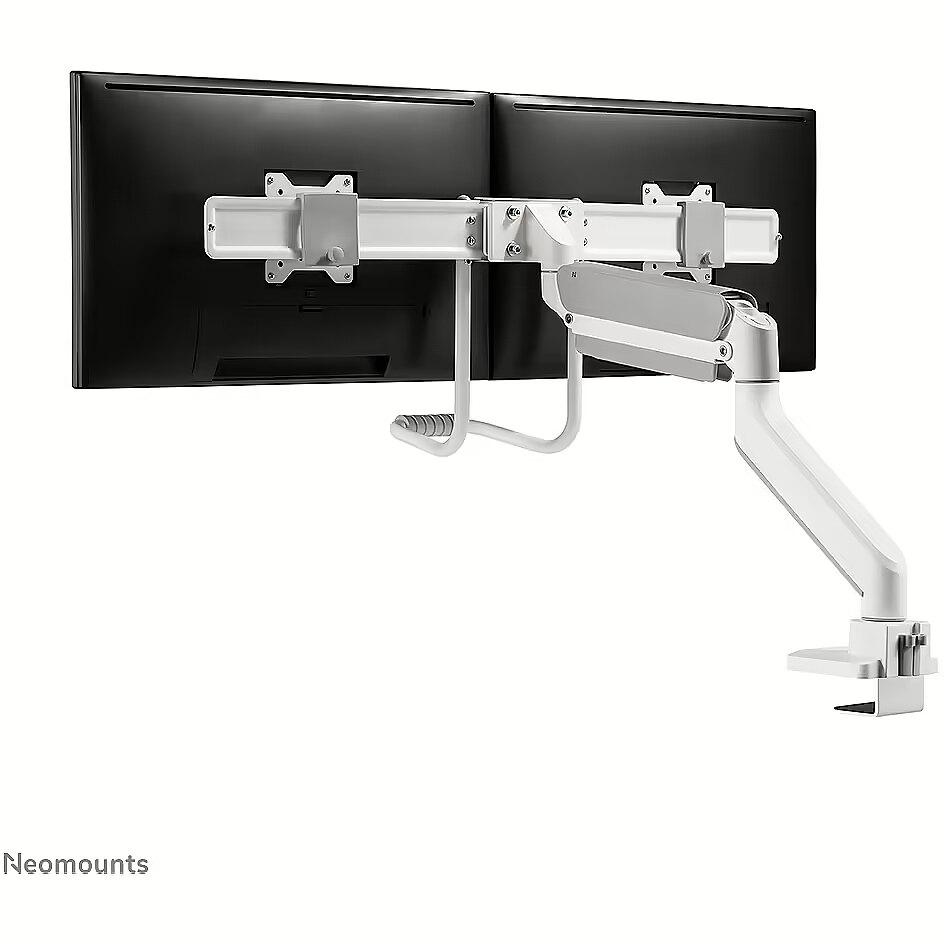

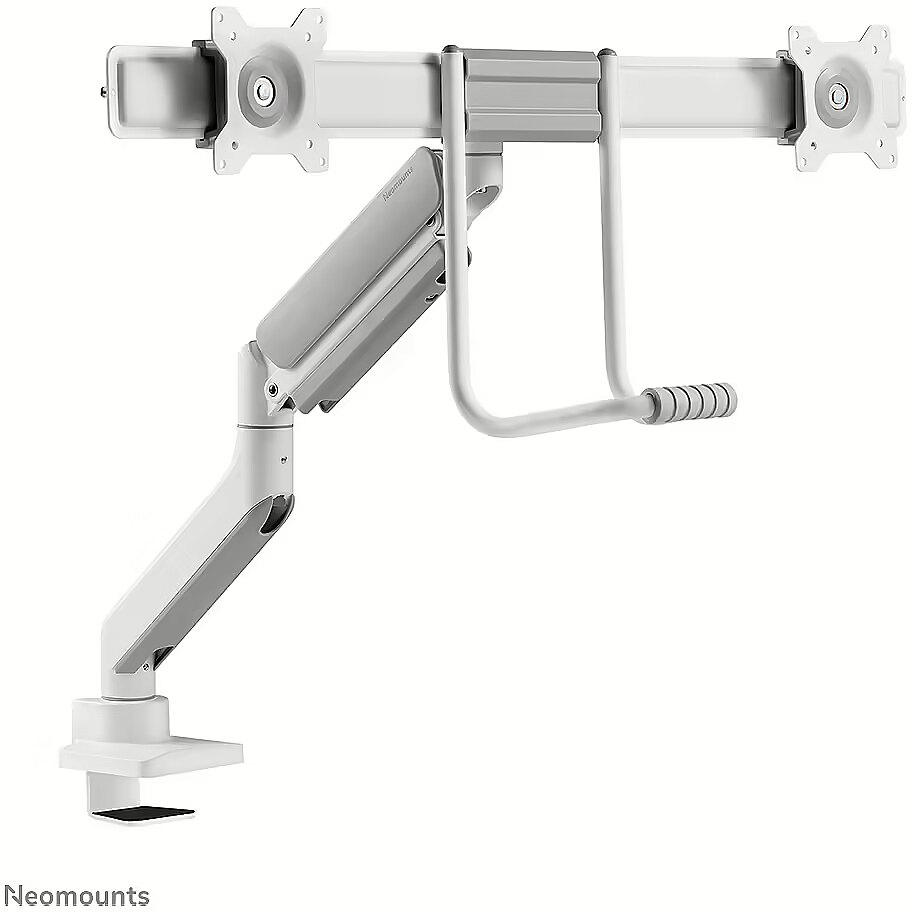

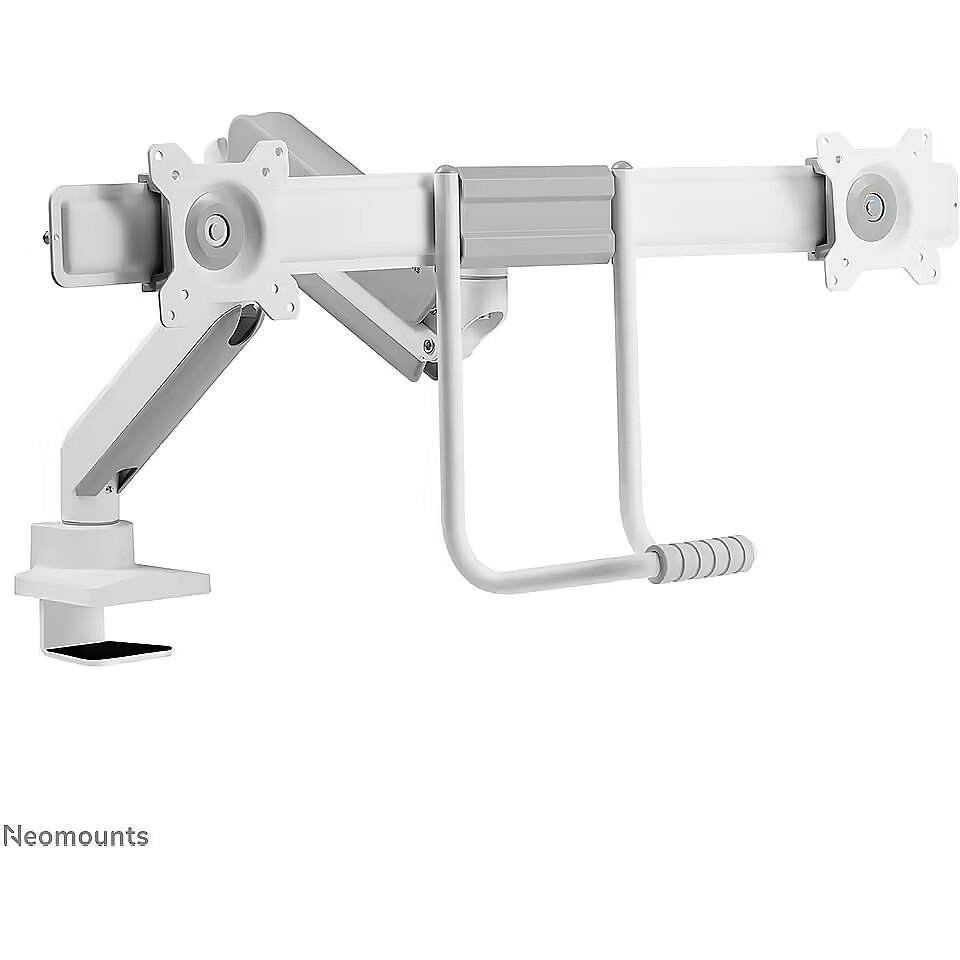

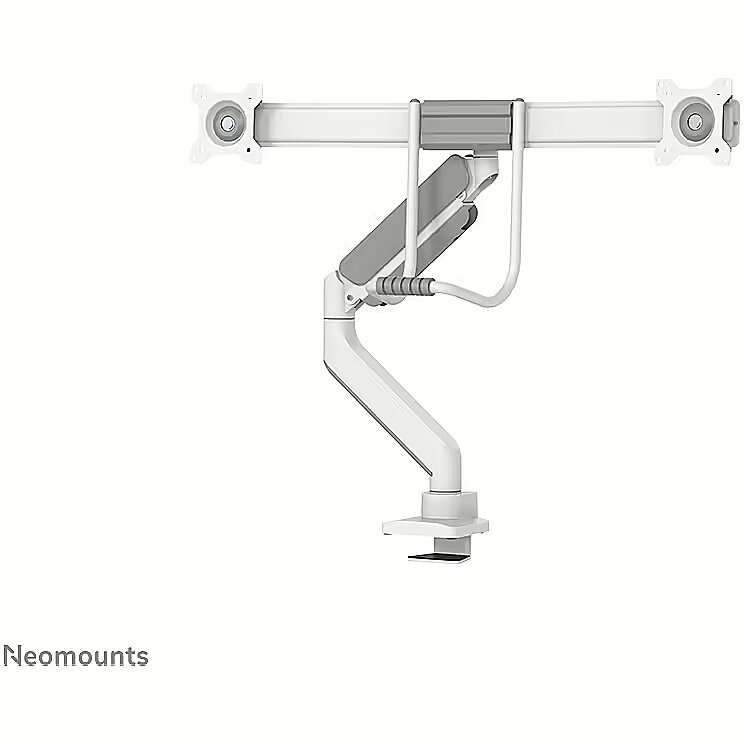

Newstar Full motion desk monitor arm for 2 screens, 17-32"

75 mm x 75 mm VESA mounting interface - Yes
100 mm x 100 mm VESA mounting interface - Yes
Brand - Neomounts
BrandPartCode - DS75-450WH2
Category - Monitor Mounts & Stands
Category 1 - Displays
Category 2 - Display Zubehör
Category Code - MAS
CnCode CnCode - 83021000
Colour - White

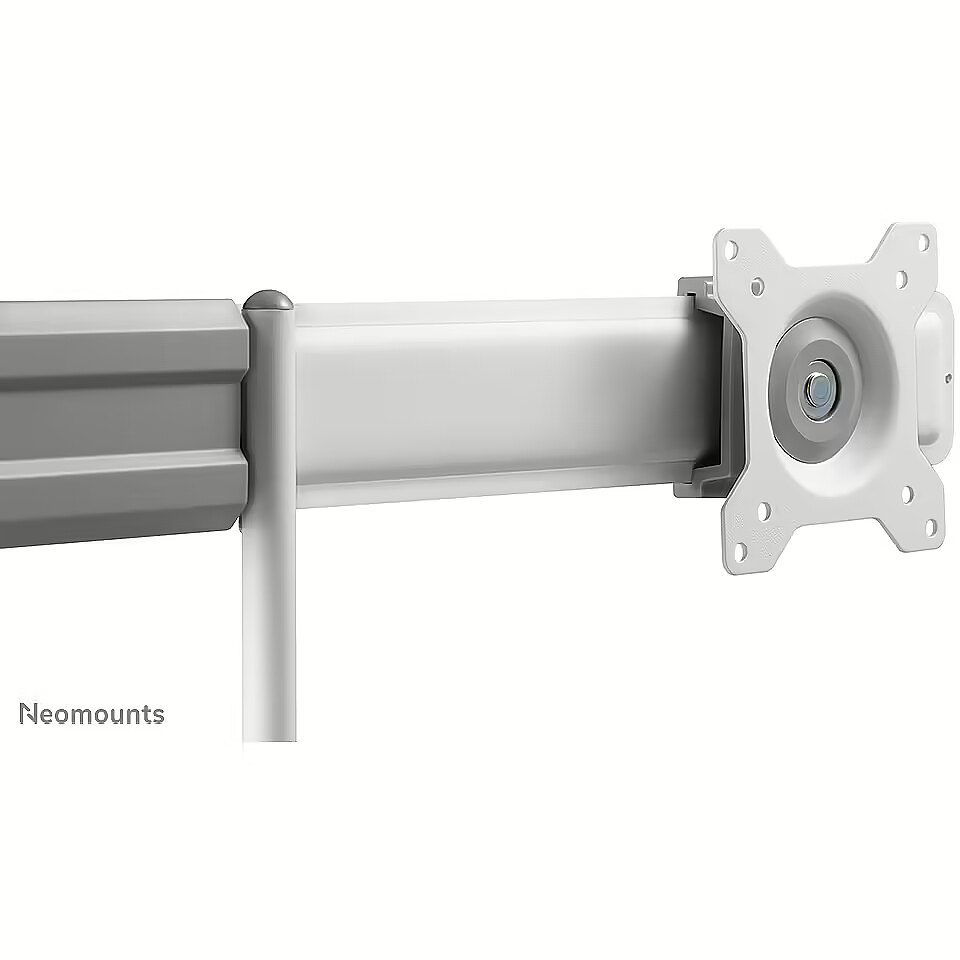

Description - The DS75-450WH2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts by Newstar's VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation. Functionality Type: Full motion Height adjustment: 28 cm Width adjustment: 54 cm Depth adjustment: 68 cm Tilt (degrees): +10°, -10° Swivel (degrees): +10°, -10° Rotate (degrees): +180°, -180° Height: 64,6 cm Width: 76,1 cm Adjustment type: Gas spring Depth: 11,5 cm
Design - Housing material - Steel
Design - Product colour - White
EAN - 8717371449490
Ergonomics - Adjustable depth - Yes
Ergonomics - Angle of rotation - 360°

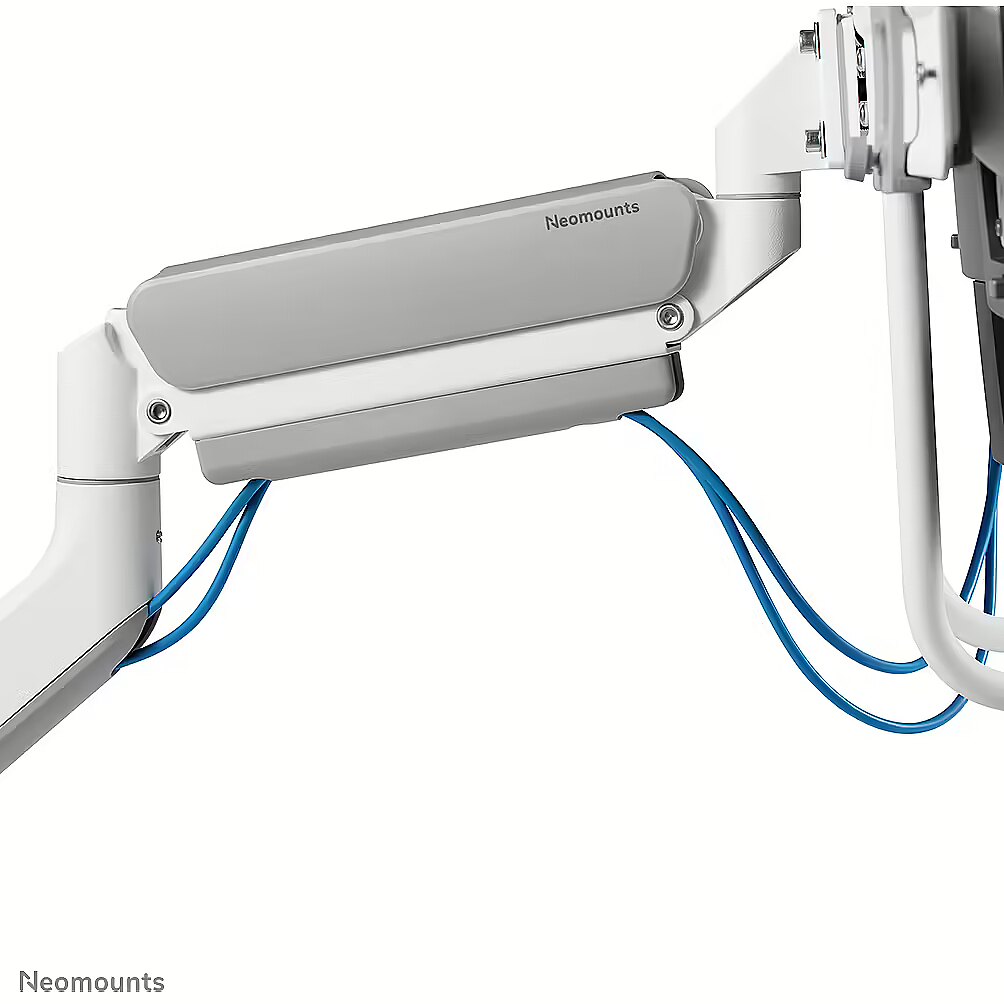

Ergonomics - Cable management - Yes
Ergonomics - Depth adjustment range - 0 - 680 mm
Ergonomics - Height adjustment - Yes
Ergonomics - Height adjustment range - 0 - 280 mm
Ergonomics - Height adjustment type - Gas spring
Ergonomics - Rotating - Yes
Ergonomics - Swivel angle - 20°
Ergonomics - Swivel angle range - -90 - 90°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -10 - 10°
Fits screens sized - 17-32"
Full Description Line - Fits screens sized 17-32"|75 mm x 75 mm|100 mm x 100 mm|Colour White
GTIN - 8717371449490
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 7326909890
Logistics data - Master (outer) case gross weight - 15.9 kg
Logistics data - Master (outer) case height - 460 mm
Logistics data - Master (outer) case length - 325 mm
Logistics data - Master (outer) case net weight - 14.3 kg
Logistics data - Master (outer) case width - 335 mm
Logistics data - Products per master (outer) case - 2 pc(s)
Logistics data - Products per pallet (EU) - 40 pc(s)

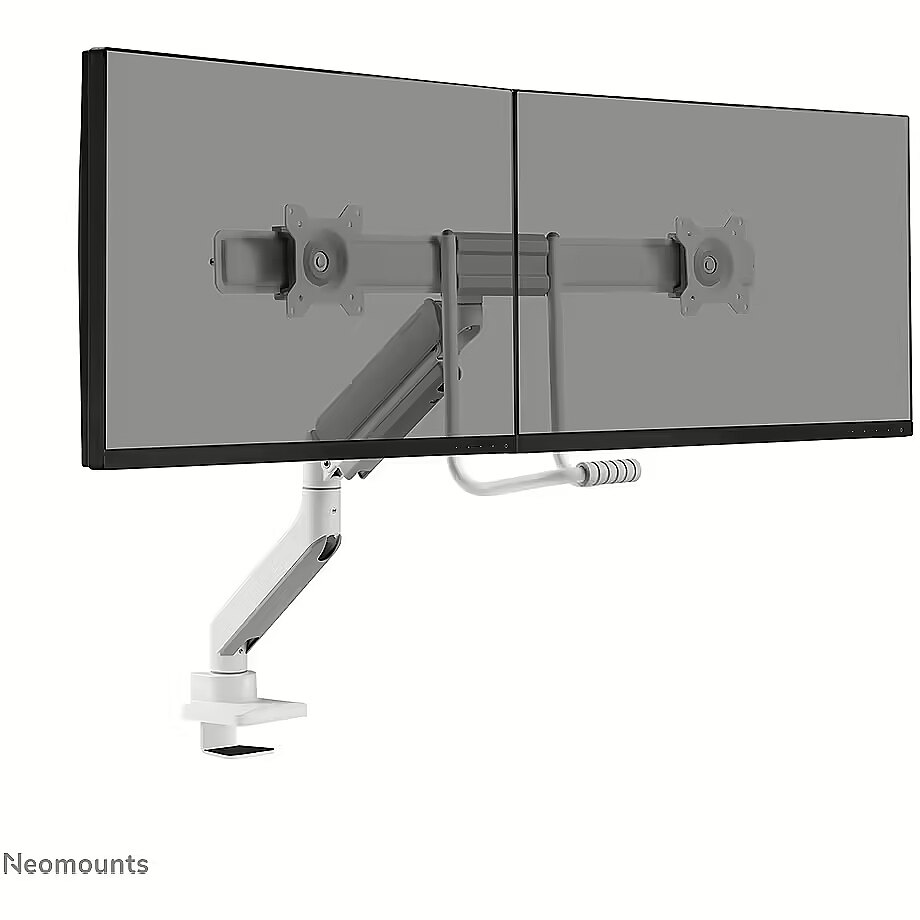

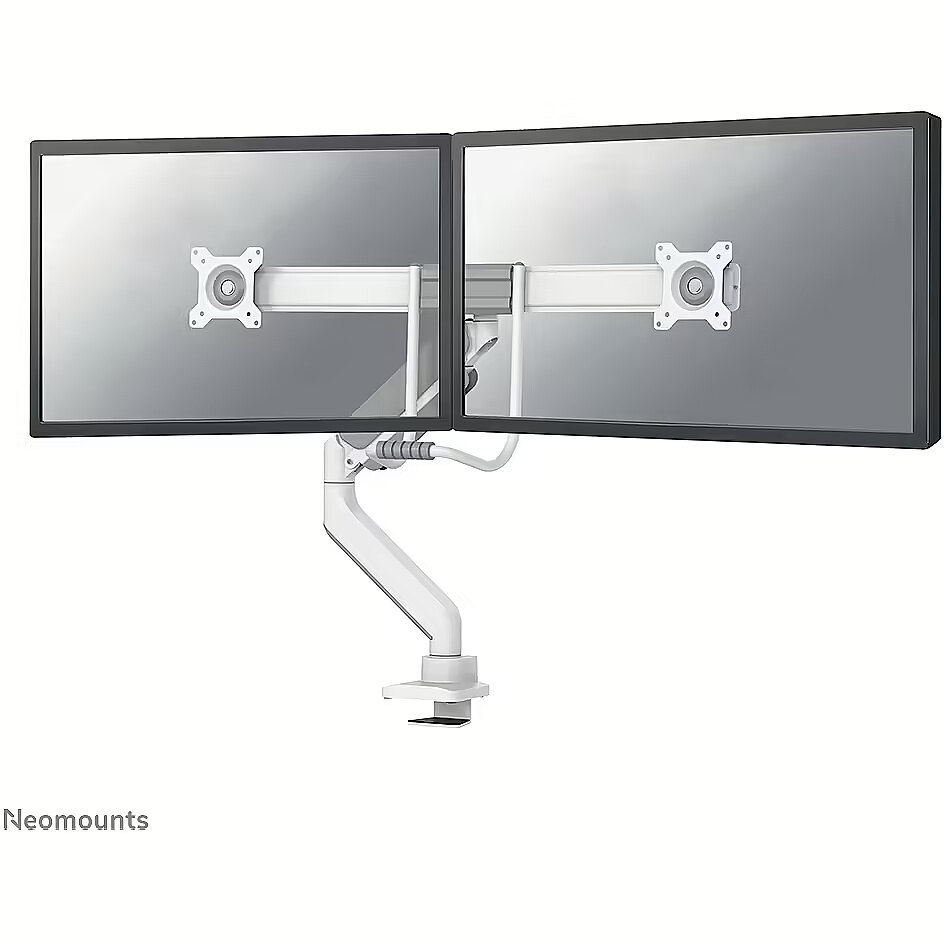

LongDesc - The Neomounts DS75-450WH2 NEXT Core is a full motion desk mount for two flat screens up to 32" with a maximum weight capacity of 8 kg per screen. The versatile tilt (20°), rotate (360°) and swivel (20°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screens. Additionally, the mount has gas spring height adjustment (27,7-56 cm) and depth adjustment (0-50,5 cm), to create the perfect working position. The DS75-450WH2 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.The DS75-450WH2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.For wall installation, the AWL75-450WH wall adapter is optionally available.
LongProductName - Neomounts NEXT Core DS75-450WH2 Dual crossbar monitor arm - 17-32" - 1-8 kg/screen - gas spring - 180°-stop - Topfix - Easy Install-model - 100% plastic-free packaging - white
LongSummaryDescription - Neomounts DS75-450WH2 Monitor arm 17-32" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -10 - 10°. Product colour: White
Manufacturer - Newstar
Model - DS75-450WH2
Mounting - Desk thickness (max) - 4.5 cm
Mounting - Desk thickness (min) - 1 cm
Mounting - Maximum screen size - 81.3 cm (32")
Mounting - Maximum VESA mount - 100 x 100 mm
Mounting - Maximum weight capacity (per display) - 8 kg
Mounting - Minimum screen size - 43.2 cm (17")
Mounting - Minimum VESA mount - 75 x 75 mm
Mounting - Mounting - Clamp/Grommet
Mounting - Mounting type - Desk
Mounting - Number of displays supported - 2
Mounting - Panel mounting interface - 75 x 75,100 x 100 mm
MPN - DS75-450WH2
Name - Neomounts Full Motion Tischhalterung für zwei Flachbildschirme 17-32'' 7KG 2x 8KG White
Number of screens - 2
Other features - Minimum weight - 1 kg
Other features - Warranty period - 5 year(s)
Other features - Width adjustment range - 0 - 540 mm
Packaging content - Mounting kit - Yes
Packaging data - Package depth - 152 mm
Packaging data - Package height - 445 mm
Packaging data - Package net weight - 7.9 kg
Packaging data - Package weight - 7.9 kg
Packaging data - Package width - 320 mm
ProductName - Neomounts DS75-450WH2 Monitor arm 17-32" - gas spring - Topfix - 180°-stop
Product Net Weight - 4.2 kg
Shipping Box Depth Shipping/Package Box Dimensions - 45.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 32.5 cm
Shipping Box Weight Shipping/Package Box Dimensions - 7.45 kg
Shipping Box Width Shipping/Package Box Dimensions - 15.5 cm
ShortSummaryDescription - Neomounts DS75-450WH2 Monitor arm 17-32" - gas spring - Topfix - 180°-stop, Clamp/Grommet, 43.2 cm (17"), 81.3 cm (32"), 100 x 100 mm, Height adjustment, White
Title - Neomounts DS75-450WH2 Monitor arm 17-32" - gas spring - Topfix - 180°-stop
Unit Box Height - 0.325
Unit Box Length - 0.455
Unit Box Width - 0.155
Unit Calculated Volume - 0.02292 cubm
Unit Calculated Weight - 7.45 kg
Units per Shipping Box - 1
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=DS75-450WH2
Vendor Homepage - www.neomounts.com/desk/monitor-arms/ds75-450wh2-neomounts-by-newstar-monitor-desk-mount/
Warranty - 60 months
WarrantyInfo - 5 year
Weight - 7.54
Weight & dimensions - Depth - 115 mm
Weight & dimensions - Height - 646 mm
Weight & dimensions - Weight - 6.4 kg
Weight & dimensions - Width - 853 mm
