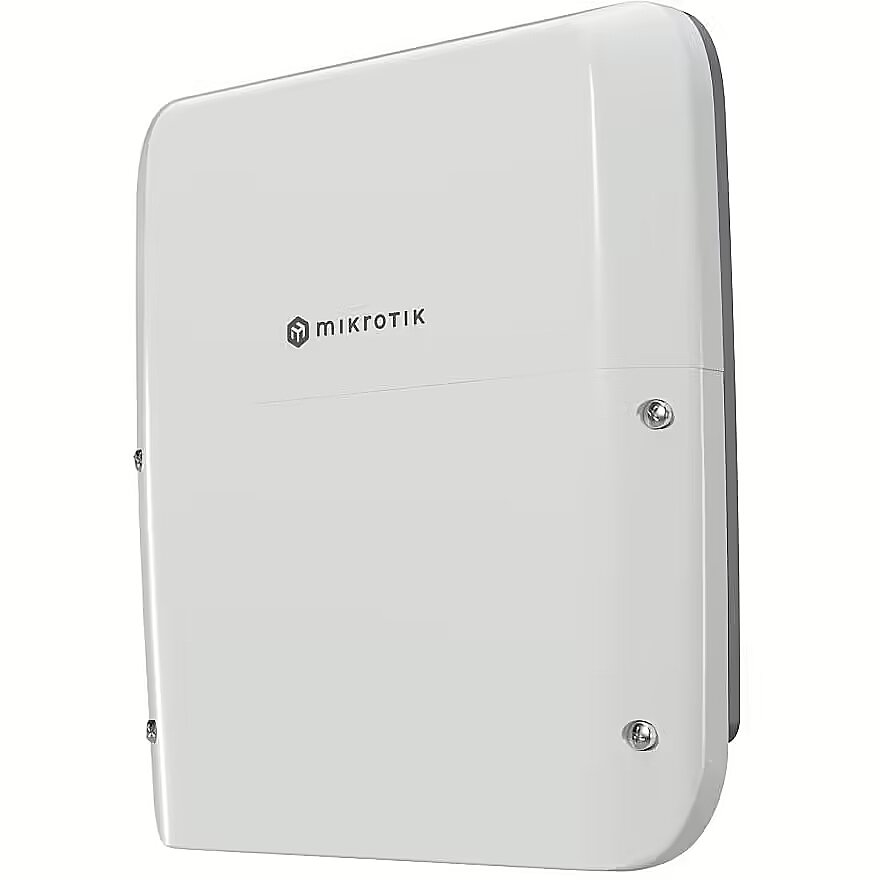

MikroTik RB5009UPr+S+OUT

Category 1 - Netzwerk
Category 2 - Router
3G/4G USB modem compatibility WAN connection - No
brand - MikroTik
DC-in jack Ports & interfaces - Yes
Design - Product colour - Grey
DSL WAN WAN connection - No
Power consumption (typical) Power - 150 W
Ethernet interface type Network - 2.5 Gigabit Ethernet, Gigabit Ethernet
Ethernet LAN (RJ-45) ports Ports & interfaces - 8
Ethernet WAN WAN connection - No
EAN - 4752224008459
Warranty - 12 months
warrantyLength - 12
warrantyType - G
mpn - RB5009UPr+S+OUT
Weight - 1.96
weight - 2.1 kg
weight - 1901
category - MikroTik > Ethernet rūteri > RouterBoard
Category Code - ROU
Mean time between failures (MTBF) Features - 200000 h
Description - As a network administrator, you never know when the next windstorm, lightning, flood, heatwave, or a power outage will strike. But with the right tools you can protect your network from most troubles! Here’s our wishlist for the perfect tool:
- easy to deploy
- works well in ANY weather
- provides extensive power redundancy
- can be connected via most common networking interfaces
- has a CPU that is strong enough to take full advantage of the most powerful
- networking software in the world – RouterOS v7
- doesn’t cost a fortune Adding an IP66-rated waterproof enclosure to the RB5009 series allowed us to meet all the requirements! The brand new RB5009UPr+S+OUT is a compact, cost-effective solution that will revolutionize your network tower setups. You’re getting one of the most powerful outdoor networking devices for the best price on the market! Like the indoor version, this RB5009 has 7x Gigabit Ethernet ports, one 2.5 Gigabit Ethernet port, a 10G SFP+ cage, and a full sized USB3 port! When we say “extensive power redundancy”, we really mean it: the unit offers 9 possible ways of powering. There’s a 2-pin power connector on the front, as well as PoE-in and PoE-out on all eight Ethernet ports. The board can use any of these sources to power itself, choosing the one with the highest voltage when multiple sources are available. RB5009 takes up to 21W to power itself. If you’re using PoE-in, the board will stay on even if 8 of your 9 power sources suddenly go down. Unprecedented redundancy! All power options support a wide voltage range of 24 – 57 V. However, you can not mix the voltages. Each PoE-out port can supply up to 25W of power. All the ports combined are limited to 130W, which should be enough for most setups. You can specify maximum available power from your power sources manually, if necessary. If you’re using PoE-out to power other devices, you have to provide power via the 2-pin connector to power those. This product also features single voltage PoE-out – it can either be 802.3at/af compatible OR low-voltage PoE-out. That is determined by the voltage on the 2-pin connector, as no voltage conversion is done on this board. When it comes to processing power and available use-cases, this router can do it all: PPPoE termination, DHCP to customers, Local Queuing, MPLS Push/Pop/Swap and MPLS Forwarding, VPLS/VXLAN Termination, Hardware bridging, and so much more! The RB5009 series keep redefining affordable reliability for small, medium, and even large ISPs!
Summary - Mikrotik RB5009UPr+S+OUT. Networking standards: IEEE 802.3af, IEEE 802.3at, Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet. USB version: 3.2 Gen 1 (3.1 Gen 1). Processor manufacturer: Marvell, Processor model: 88F7040, Processor frequency: 1400 MHz. Product colour: White. Power consumption (typical): 150 W, Power source type: PoE
Manual Packaging content - Yes
height - 0.09 m
Height Weight & dimensions - 57 mm
width - 0.25 m
Width Weight & dimensions - 222 mm
MPN - RB5009UPR+S+OUT
Model - RB5009UPR+S+OUT
dimensionalWeight - 1120
Vendor Homepage - https://mikrotik.com/product/rb5009_out
Name - Mikrotik RB5009UPr+S+OUT
Operating system installed Features - RouterOS
title - MikroTik RB5009UPr+S+OUT
length - 0.32 m
Voltage monitoring Features - Yes
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 1
Power over Ethernet (PoE) ports quantity Ports & interfaces - 8
Power over Ethernet (PoE) Power - Yes
Protocols - DHCP client - Yes
Protocols - DHCP server - Yes
Protocols - DMZ support - Yes
Processor model Features - 88F7040
Processor frequency Features - 1400 MHz
Processor manufacturer Features - Marvell
Certification Features - CE, EAC, ROHS
SFP+ module slots quantity Ports & interfaces - 1
SFP WAN WAN connection - No
SIM card slot WAN connection - No
Internal storage capacity Features - 1 GB
Internal memory Features - 1024 MB
Built-in processor Features - Yes
sizeZ - 238
sizeX - 314
Depth Weight & dimensions - 239 mm
sizeY - 75
Temperature monitoring Features - Yes
Power source type Power - PoE
productName - Router Mikrotik RB5009UPr+S+OUT Total Ethernet Ports:9; Architecture:ARM 64bit; CPU core:4
productSize - Normal
Product colour Design - White
Manufacturer - MikroTik
producerCode - RB5009UPr+S+OUT
Security - Security algorithms - WPA
Security - Security algorithms - WPA2
Security - Security algorithms - WPA3-PSK
Security - IP address filtering - Yes
Security - MAC address filtering - Yes
Security - URL filtering - Yes
Security - VPN support - PPTP/L2TP/IPSec
Security - Network address translation (NAT) - Yes
Operating temperature (T-T) Operational conditions - -40 - 70 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -20 - 55 °C
USB ports quantity Ports & interfaces - 1
USB version Ports & interfaces - 3.2 Gen 1 (3.1 Gen 1)
Networking standards Network - IEEE 802.3af, IEEE 802.3at
Network - Ethernet interface type - Gigabit Ethernet
Network - VLAN support - No
Network - Networking standards - IEEE 802.11a
Network - Networking standards - IEEE 802.11a/b/g/n
Network - Networking standards - IEEE 802.11ac
Network - Networking standards - IEEE 802.11ax
Network - Networking standards - IEEE 802.11n
WAN connection - Ethernet WAN - Yes
WAN connection - SFP WAN - Yes
Unit Calculated Volume - 0.006961 cubm
Unit Calculated Weight - 1.96 kg
Units per Pallet - 0
Units per Shipping Box - 5
Unit Box Height - 0.075
Unit Box Width - 0.24
Unit Box Length - 0.31
