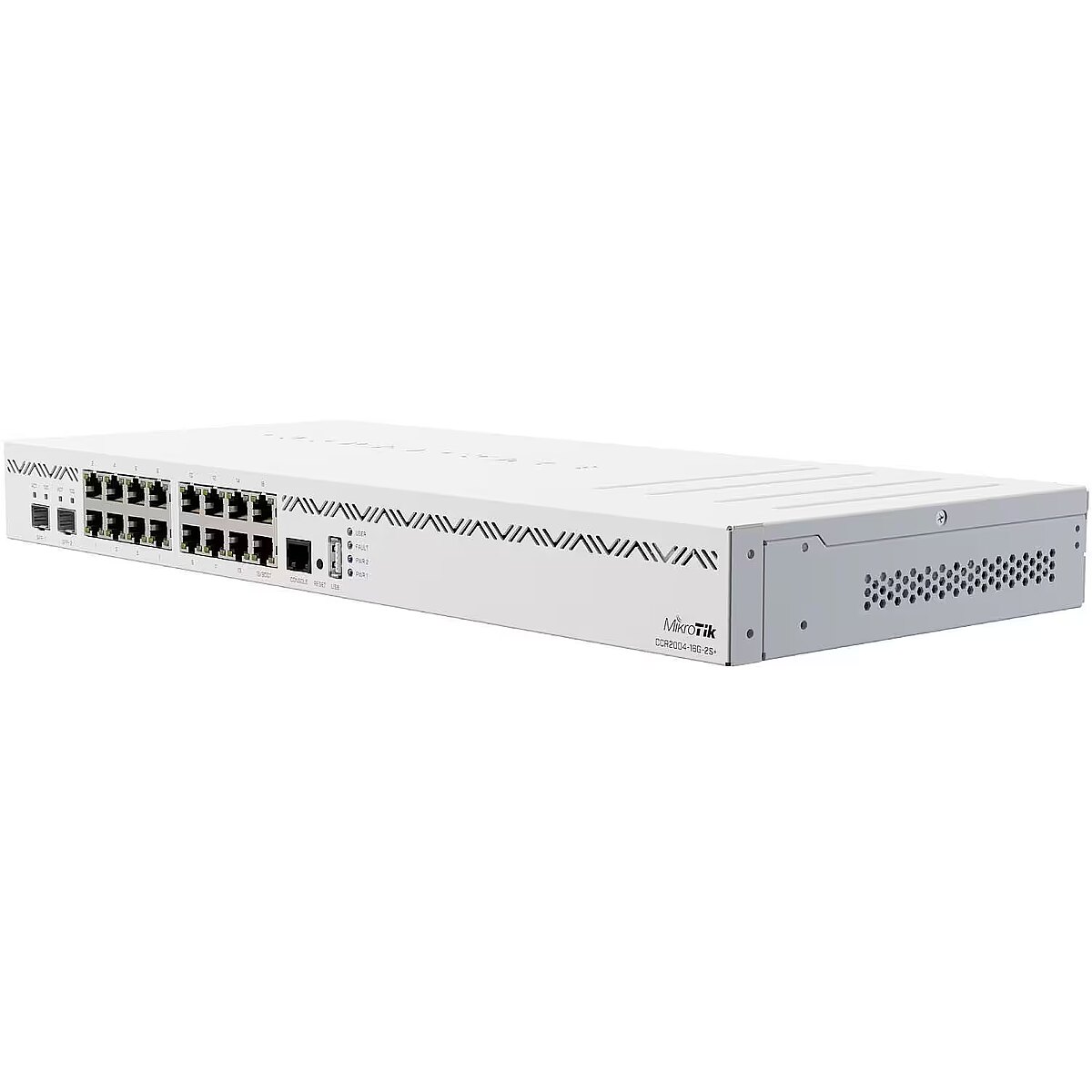

MikroTik CCR2004-16G-2S+

Category 1 - Netzwerk
Category 2 - Router
3G/4G USB modem compatibility WAN connection - No
brand - MikroTik
Design - Rack mounting - Yes
Design - Rack capacity - 1U
Design - Product colour - White
DSL WAN WAN connection - No
Eans - 4752224007704
Power consumption (typical) Power - 48 W
Special functions -
Ethernet interface type Network - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Ports & interfaces - 16
Ethernet LAN data rates Network - 10,100,1000 Mbit/s
Ethernet WAN WAN connection - Yes
EAN - 4752224007704
Flash memory Features - 128 MB
Features - Voltage monitoring - Yes
Features - Temperature monitoring - Yes
Warranty - 12
guarantee - 12
Warranty - 12 months
guarantee_type - normal
warrantyLength - 12
warrantyType - G
Management, monitoring, configuration -
Harmonized System (HS) code Logistics data - 85176990
mpn - CCR2004-16G-2S+
I/O ports - 1 x Serial port (RJ-45 )
I/O ports - 2 x 10Gbit SFP/SFP+
I/O ports - 16 x 10/100/1000 Mbit/s
Cabling technology Network - 10/100/1000Base-T(X)
weight - 2.9 kg
Weight - 2.693
weight - 2700
Weight & dimensions - Width - 443 mm
Weight & dimensions - Depth - 44 mm
Weight & dimensions - Height - 210 mm
Category - Root/Electronics/Networks and communication/Switchers
category - MikroTik > Ethernet rūteri > Cloud Core Router
Category Code - ROU
ean - 4752224007704
Mean time between failures (MTBF) Features - 200000 h
Description - Podobnie jak inne modele z serii CCR2004, ten CCR jest również wyposażony w procesor Annapurna Labs Alpine v2 z 4 64-bitowymi rdzeniami ARMv8-A Cortex-A57 pracującymi z częstotliwością 1,7 GHz. Ale oto różnica. Ten potężny router wyprzedza wszystkie poprzednie modele CCR jeżeli chodzi o wydajność jednordzeniową, a to jest najważniejszy aspekt, jeśli chodzi o duże operacje oparte na przetwarzaniu na połączenie. Jak na przykład kolejki. Ale to nie wszystko! Ma również najlepszą wydajność pojedynczego rdzenia na wat i najlepszą ogólną wydajność na wat spośród wszystkich urządzeń CCR.

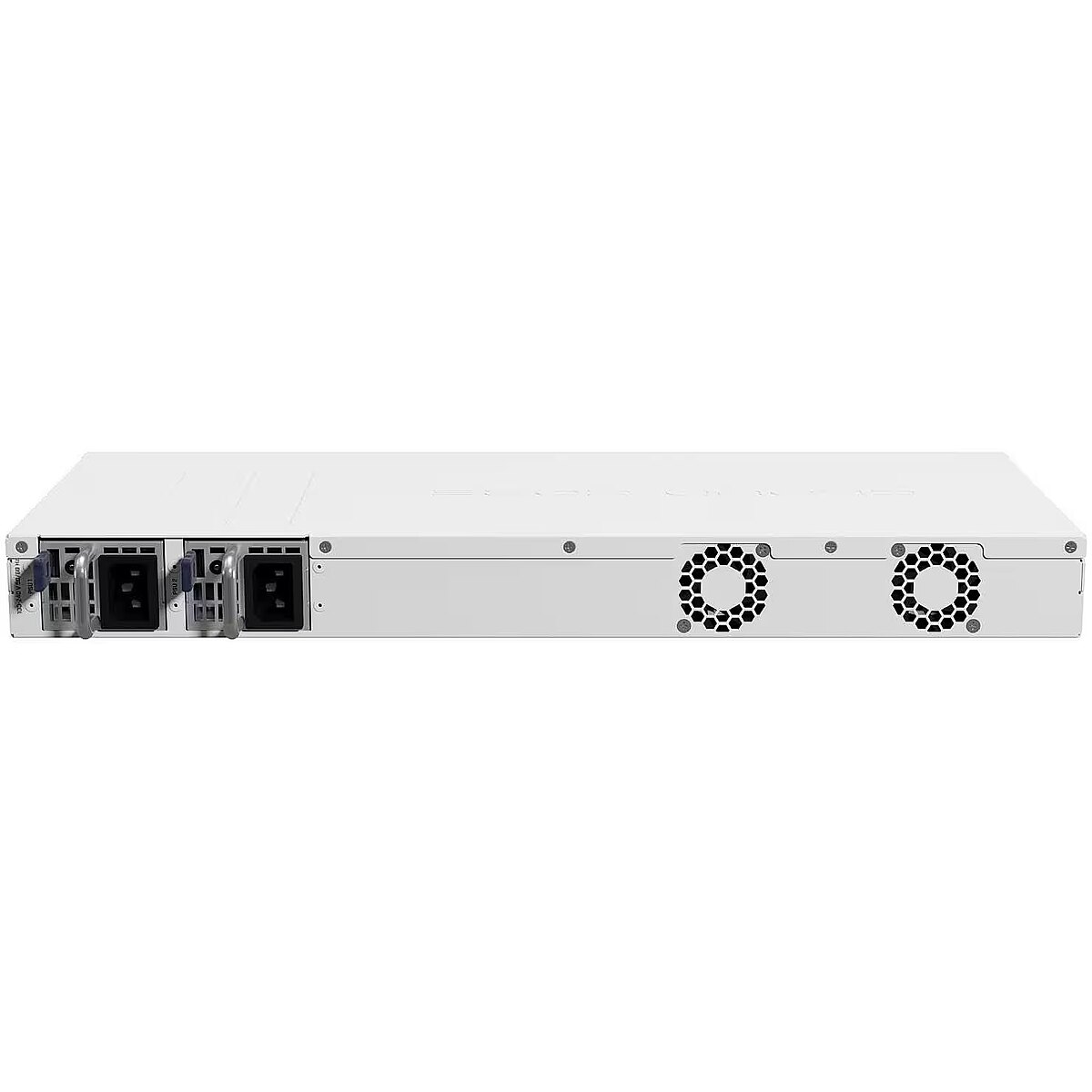

Nowy router ma 18 portów przewodowych, w tym 16 portów Gigabit Ethernet i dwie klatki 10G SFP+. Jak wszystkie urządzenia CCR, jest dostarczany w klasycznej białej obudowie rack 1U. Wbudowane podwójne nadmiarowe zasilacze są dołączone, więc masz o jedną rzecz mniej do zmartwienia. Posiada aktywne chłodzenie.
Każda grupa 8 portów Gigabit Ethernet jest podłączona do oddzielnego układu przełączników rodziny Marvell Amethyst. Każdy układ przełącznika ma pełnodupleksową linię 10 Gb/s podłączoną do procesora. To samo dotyczy każdej klatki SFP+ oddzielnej linii pełnodupleksowej 10 Gb/s. Płyty są dostarczane z 4 GB pamięci RAM DDR4 i 128 MB pamięci NAND.
Idealne rozwiązanie typu wszystko w jednym dla małych i średnich firm. Łatwy i wydajny. Z nowym CCR2004 możesz przenieść swoją sieć biurową na wyższy poziom.

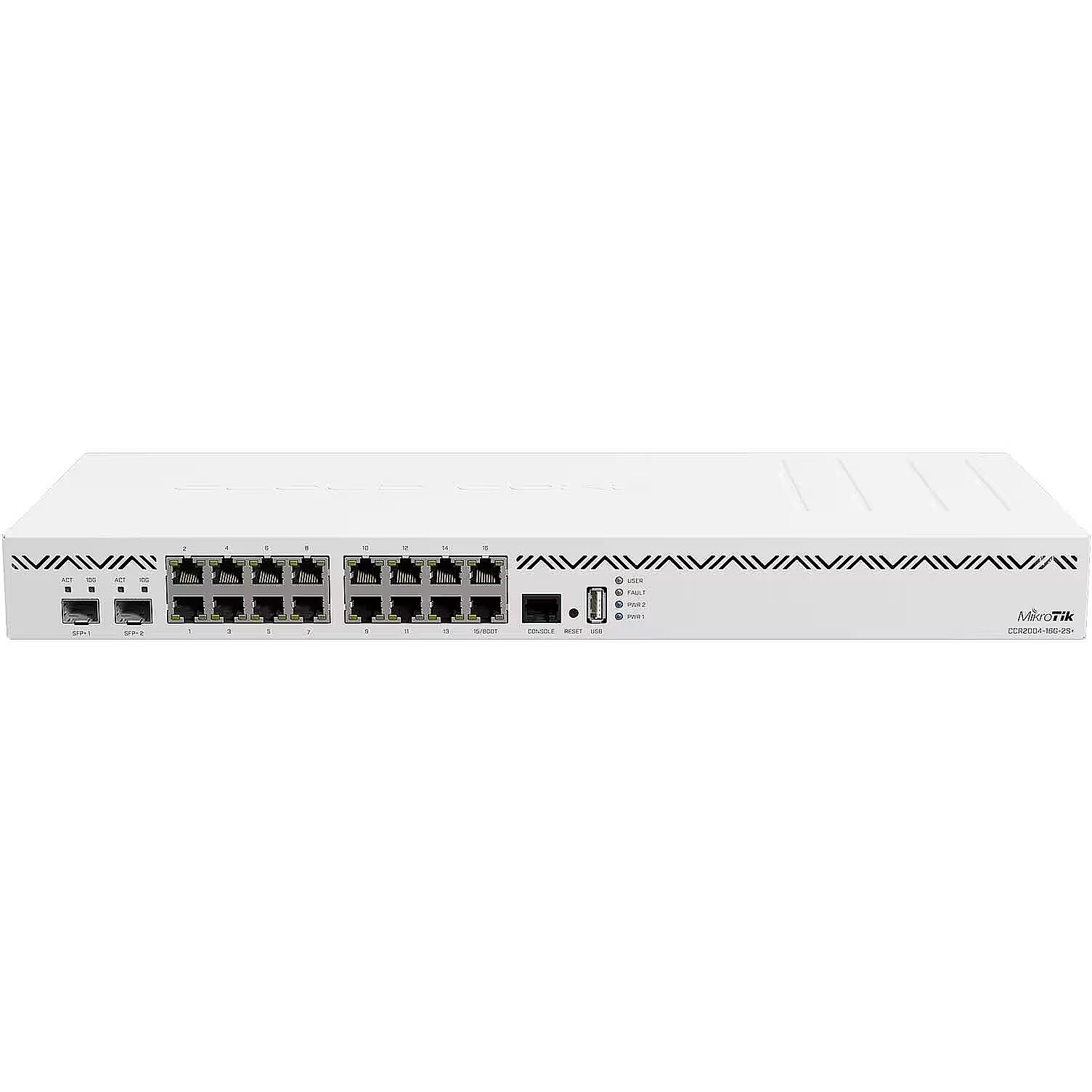

Description - Like the other models in CCR2004 series, this CCR also features the Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores running at 1,7GHz. But here’s the difference. This powerful router crushes all previous CCR models in single-core performance, and that is the most important aspect when it comes to heavy operations based on per-connection processing. Like queues, for example.But that’s not all! It also has the best single-core performance per watt and best overall performance per watt among all the CCR devices. Better for the planet, better for the bills, it’s a win-win! The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a RJ-45 console port on the front panel. Like all CCR devices, it comes in a classic white 1U rackmount case. Built-in dual redundant power supplies are included, so you have one less thing to worry about. And, of course, there is active cooling to keep things nice and cool. Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage - a separate 10 Gbps full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND storage. So as you can see - no bottlenecks. As long as the CPU can handle the processing, all ports can reach wire speed. And this CPU is a beast that can handle a lot. If we look at the performance, you can see that it is trading blows with our CCR1009. Even surpassing it in CPU-heavy configurations! And if that wasn’t enough – it can even reach the performance of CCR1016. The best part? This brand new CCR is among the most affordable options out there - not only within the CCR series, but on the market in general.One of the most common ways to use this device would be: Gigabit Ethernet ports for the internal network; SFP+ ports for downlink and uplink. The perfect all-in-one solution for small and medium-sized businesses. Easy and efficient. With the new CCR2004, you can take your office network to the next level. Without breaking the bank.
vendpn - CCR2004-16G-2S+
Summary - Mikrotik CCR2004-16G-2S+. Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X), Ethernet LAN data rates: 10,100,1000 Mbit/s. Compliance certificates: RoHS. Processor manufacturer: Annapurna Labs, Processor frequency: 1700 MHz, Flash memory: 128 MB. Product colour: White, Rack capacity: 1U. Power consumption (typical): 48 W, Power source type: AC, AC input voltage: 100 - 240 V
Accessories included -
Code - CCR2004-16G-2S+
height - 0.08 m
Height Weight & dimensions - 210 mm
Hard drive > Storage capacity - 128 MB
width - 0.3 m
Width Weight & dimensions - 443 mm
Link - https://help.mikrotik.com/docs/pages/viewpage.action?pageId=48660518
Link - https://mikrotik.com/product/ccr2004_16g_2splus#fndtn-specifications
Logistics data - Harmonized System (HS) code - 85176990
ShortDescription -
MPN - CCR2004-16G-2S+
Model - CCR2004-16G-2S+
Other features - Architektura: 64-bitowe ARM Procesor: AL32400 Liczba rdzeni procesora: 4 Częstotliwość nominalna procesora: 1700 MHz Licencja RouterOS: 6 System operacyjny: RouterOS (tylko v7) Rozmiar pamięci RAM: 4 GB Rozmiar pamięci: 128 MB Typ pamięci: NAND MTBF: około 200 000 godzin w 25C Testowana temperatura otoczenia: -20°C do 60°C Przyspieszenie sprzętowe IPsec: Tak
Other features > USB ports quantity - 1
Designation - CE+WEEE
dimension height - 470 mm
dimension width - 300 mm
dimension depth - 60 mm
Dimensions -
dimensionalWeight - 1563
dimension weight - 2600 g
Vendor Homepage - https://mikrotik.com/product/ccr2004_16g_2s_#fndtn-specifications
Name - MikroTik CCR2004-16G-2S+
Name - Mikrotik CCR2004-16G-2S+
Name - Mikrotik Cloud Core Router CCR2004-16G-2S+, 2x10G SFP+ ports, 16x Gigabit LAN ports, 1x RJ45 Serial port, 4 core CPU, 4 GB RAM, Dual redundant power supply, CPU and PCB temperature monitor, RouterOS L6 | Cloud Core Router | CCR2004-16G-2S+ | No Wi-Fi | 1 | 12 month(s)
name - Router xDSL 16 GbE SFP+ CCR2004-16G-2S
Safety warning - Warnings - Make sure the unit is stably mounted and ventilated.
Safety warning - Warnings - Do not open the appliance - risk of electric shock.
Safety warning - Warnings - Do not use in damp conditions.
Features - Flash memory - 128 MB
Features - Mean time between failures (MTBF) - 200000 h
Features - Processor frequency - 1700 MHz
Features - Processor manufacturer - Annapurna Labs
Features - Certification - CE, EAC, ROHS
Features - Internal memory - 4096 MB
Features - Internal memory type - DDR4
Features - Built-in processor - Yes
Package features > Gross width (mm) - 210 mm
Package features > Gross height (mm) - 55 mm
Package features > Gross depth (mm) - 420 mm
Package features > Volume (m3) - 0.004851 m³
Package features > Paper/Pasteboard - 360 g
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 178 pc(s)
Package features > Plastic (No PET) - 40 g
Package features > Tare weight (kg) - 0.4 kg
Package features > Embeeded battery - No
Package features > WEEE tax - Yes
Package features > WEE classification - CL109:6:2017-04-01
title - MikroTik CCR2004-16G-2S+
length - 0.48 m
Voltage monitoring Features - Yes
Ports & interfaces > SFP+ ports quantity - 2
Ports & interfaces - Ethernet LAN (RJ-45) ports - 16
Ports & interfaces - SFP module slots quantity - 2
PDF - https://www.blobs.lt/products/3/3/4/2/4/3/0eae3a9cf765dc49344b2a9f55f202d5/original.pdf
Processor > Processor model - AL32400
Processor frequency Features - 1700 MHz
Processor manufacturer Features - Annapurna Labs
Rack mounting Design - Yes
Rack capacity Design - 1U
Certificates - Compliance certificates - RoHS
Certification Features - CE, EAC, ROHS
SFP module slots quantity Ports & interfaces - 2
SIM card slot WAN connection - No
Internal memory Features - 4096 MB
Internal memory type Features - DDR4
Input current Power - 0.9 A
Built-in processor Features - Yes
sizeZ - 57
sizeX - 473
Depth Weight & dimensions - 44 mm
System Requirements -
Software -
Dane techniczne: Pamięć Flash - 128 MB
Dane techniczne: Gwarancja - 2 lata w serwisie sprzedawcy
Dane techniczne: Zarządzalność - tak
Dane techniczne: Przeznaczenie - do szaf RACK 19"
Dane techniczne: Port konsolowy - 1 szt.
Dane techniczne: Wysokość - 44 mm
Dane techniczne: Szerokość - 443 mm
Dane techniczne: Liczba portów LAN 10/100/1000 - 16 szt.
Dane techniczne: Procesor - 1.7 GHz
Dane techniczne: Pamięć RAM - 4096 MB
Dane techniczne: Sloty SFP+ 10G - 2 szt.
Dane techniczne: Głębokość - 210 mm
Dane techniczne: Producent - MikroTik
Dane techniczne: Ilość rdzeni - 4 szt.
Dane techniczne: Typ - zarządzalny
Dane techniczne: Możliwość instalacji w szafach 19' - tak
Technical details > Gross weight - 3.3 kg
Technical details > Warranty - 12 month(s)
Technical details > Other features - Like the other models in CCR2004 series, this CCR also features the Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores running at 1,7GHz. But here’s the difference. This powerful router crushes all previous CCR models in single-core performance, and that is the most important aspect when it comes to heavy operations based on per-connection processing. Like queues, for example.But that’s not all! It also has the best single-core performance per watt and best overall performance per watt among all the CCR devices. Better for the planet, better for the bills, it’s a win-win! The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a full-size USB and RJ-45 console port on the front panel. Like all CCR devices, it comes in a classic white 1U rackmount case. Built-in dual redundant power supplies are included, so you have one less thing to worry about. And, of course, there is active cooling to keep things nice and cool. Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage - a separate 10 Gbps full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND storage. So as you can see - no bottlenecks. As long as the CPU can handle the processing, all ports can reach wire speed. And this CPU is a beast that can handle a lot. If we look at the performance, you can see that it is trading blows with our CCR1009. Even surpassing it in CPU-heavy configurations! And if that wasn’t enough – it can even reach the performance of CCR1016. The best part? This brand new CCR is among the most affordable options out there - not only within the CCR series, but on the market in general.One of the most common ways to use this device would be: Gigabit Ethernet ports for the internal network; SFP+ ports for downlink and uplink. The perfect all-in-one solution for small and medium-sized businesses. Easy and efficient. With the new CCR2004, you can take your office network to the next level. Without breaking the bank.
Technical details > Net weight - 2.90 kg
Technical details > Software type - RouterOS 6 (v7 only)
Technical details > Producer - MikroTik
sizeY - 290
Temperature monitoring Features - Yes
Power supply - Liczba wejść AC: 2 Zakres wejścia AC: 100-240 Częstotliwość (Hz): 50/60 Maksymalny pobór mocy: 48 W Maksymalny pobór mocy bez załączników: 35 W Liczba wentylatorów: 2
Power source type Power - AC
Product model code - CCR2004-16G-2S+
productName - Mikrotik CCR2004-16G-2S+ wired router Gigabit Ethernet White
productSize - Normal
Product colour Design - White
producer - Mikrotik
Producer - MikroTik
Manufacturer - MikroTik
producerCode - CCR2004-16G-2S+
ProducerCode - CCR2004-16G-2S+
Producer product name - CCR2004-16G-2S+
Producer product family - Cloud Core Router
Wireless LAN features > Wi-Fi band - No Wi-Fi
Security -
Full duplex Network - Yes
Operating temperature (T-T) Operational conditions - -20 - 60 °C
Operational conditions - Operating temperature (T-T) - -20 - 60 °C
Operational conditions > Operating temperature (T-T) - -20°C to 60°C °C
Type - xDSL
AC input voltage Power - 100 - 240 V
AC input frequency Power - 50 - 60 Hz
Compliance certificates Certificates - RoHS
Color - White
Power - Input current - 0.9 A
Power - Power source type - AC
Power - AC input voltage - 100 - 240 V
Power - AC input frequency - 50 - 60 Hz
Power - Power consumption (typical) - 48 W
Power > Power consumption (max) - 48 W
Network architecture - GigabitEthernet
Networking > CPU frequency - 1700 MHz
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000 Mbit/s
Network - Cabling technology - 10/100/1000Base-T(X)
Network - Full duplex - Yes
WAN connection - 3G/4G USB modem compatibility - No
WAN connection - DSL WAN - No
WAN connection - Ethernet WAN - Yes
WAN connection - SIM card slot - No
Unit Calculated Volume - 0.007496 cubm
Unit Calculated Weight - 2.63 kg
Units per Shipping Box - 1
Unit Box Height - 0.055
Unit Box Width - 0.29
Unit Box Length - 0.47
