Brand - Aerocool
BrandPartCode - GRAPHITEV1
category - Cases & Modding|PC Cases|Mid Towers|Windowed Mid Towers
Category - Computer Cases
code - ACCM-PB24013.11
Cooling - Front fans diameters supported - 120,140 mm
Cooling - Front radiator sizes supported - 120,240,280,360 mm
Cooling - Number of front fans supported (max) - 3
Cooling - Number of rear fans supported (max) - 1
Cooling - Number of top fans supported (max) - 2
Cooling - Rear fans diameters supported - 120,140 mm
Cooling - Rear fans installed - 1x 140 mm
Cooling - Rear radiator sizes supported - 120 mm
Cooling - Top fans diameters supported - 120,140 mm
Cooling - Top radiator sizes supported - 120,240 mm
Design - Cable management - Yes
Design - Form factor - Midi Tower
Design - Material - ABS, SPCC, Steel
Design - Maximum CPU cooler height - 18 cm
Design - Maximum graphics card length - 34.8 cm
Design - Number of 2.5" bays - 4
Design - Number of 3.5" bays - 2
Design - Number of expansion slots - 10
Design - Product colour - Black
Design - Supported motherboard form factors - ATX, micro ATX, Mini-ITX
Design - Type - PC
ean - 4710562759433
GTIN - 4710562759433

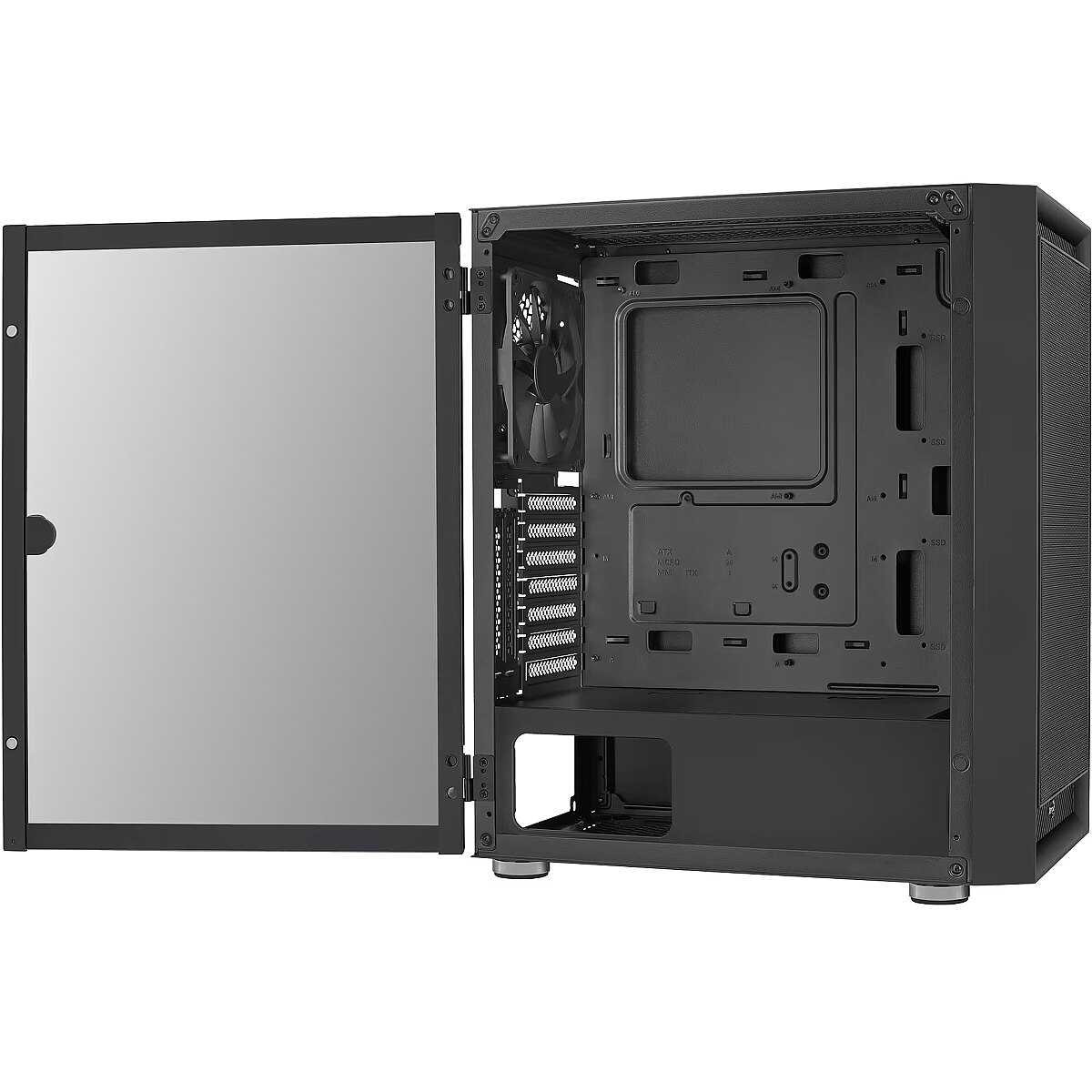

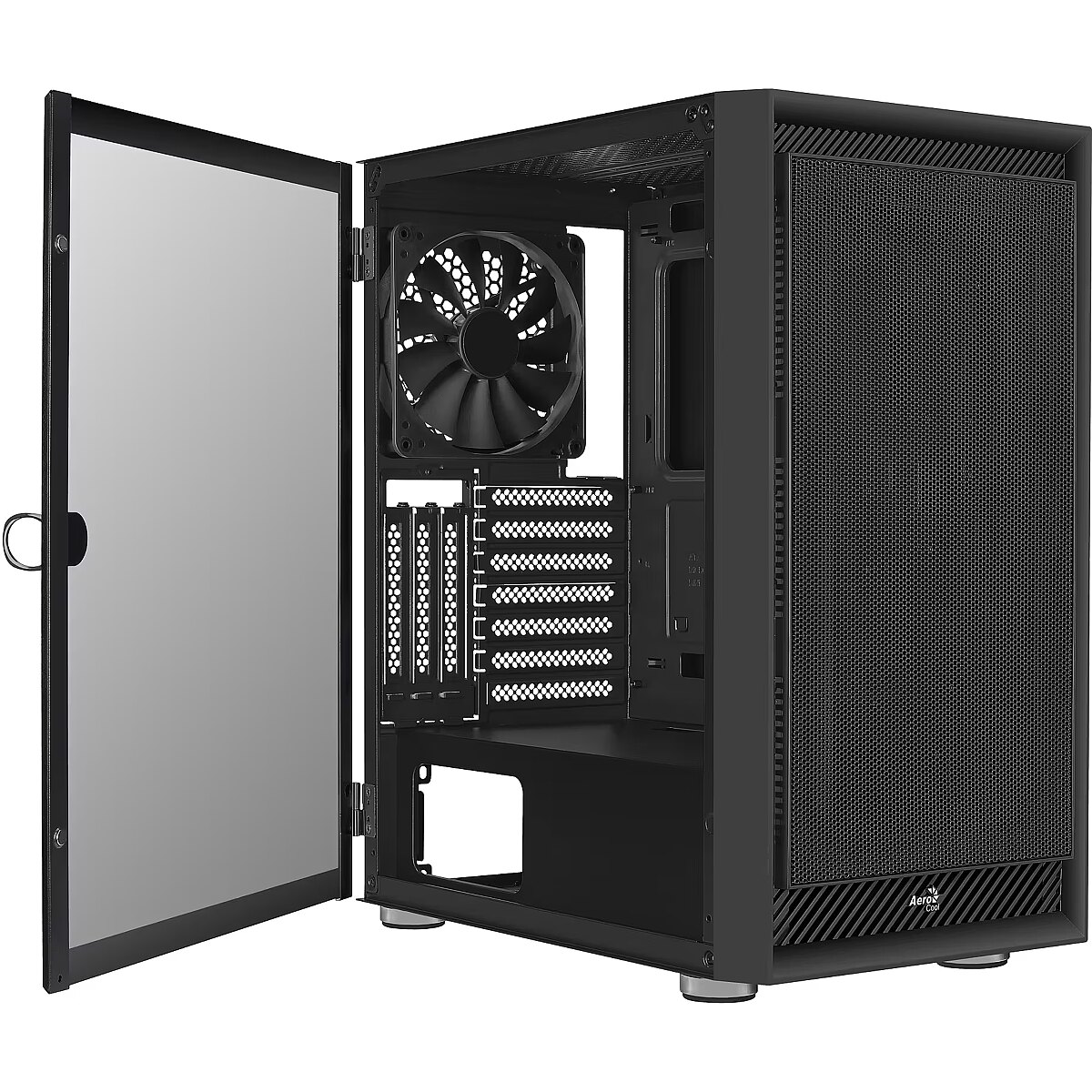

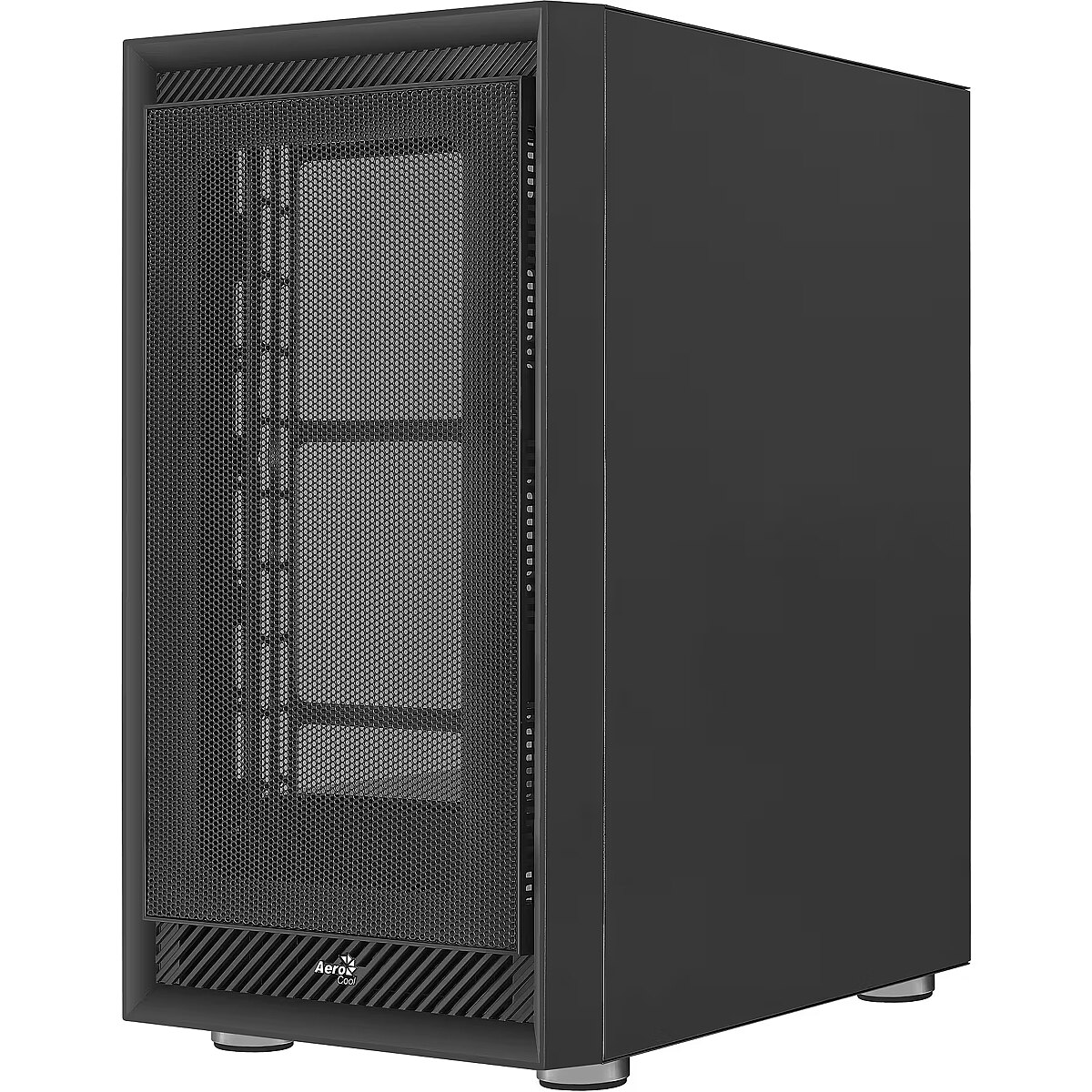

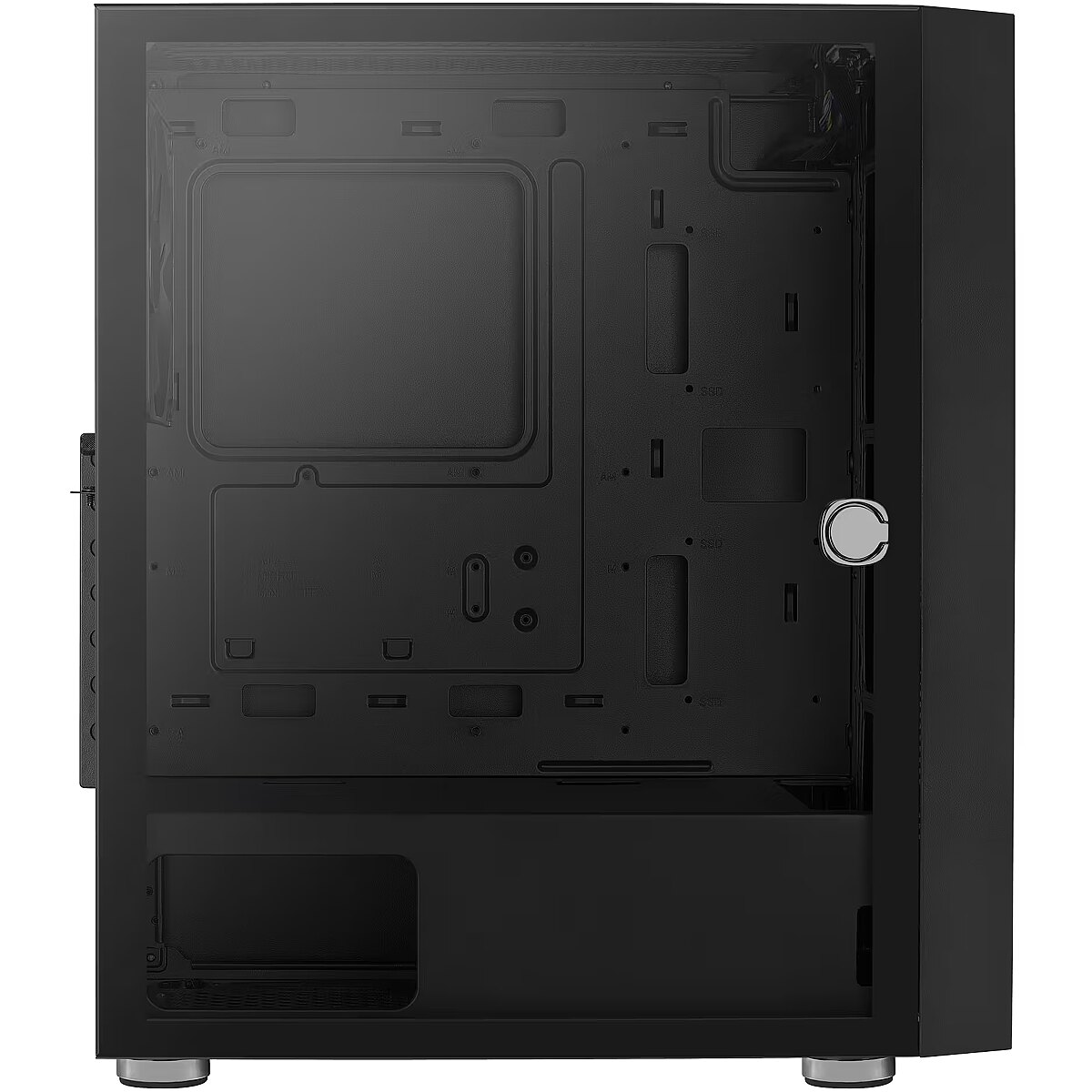

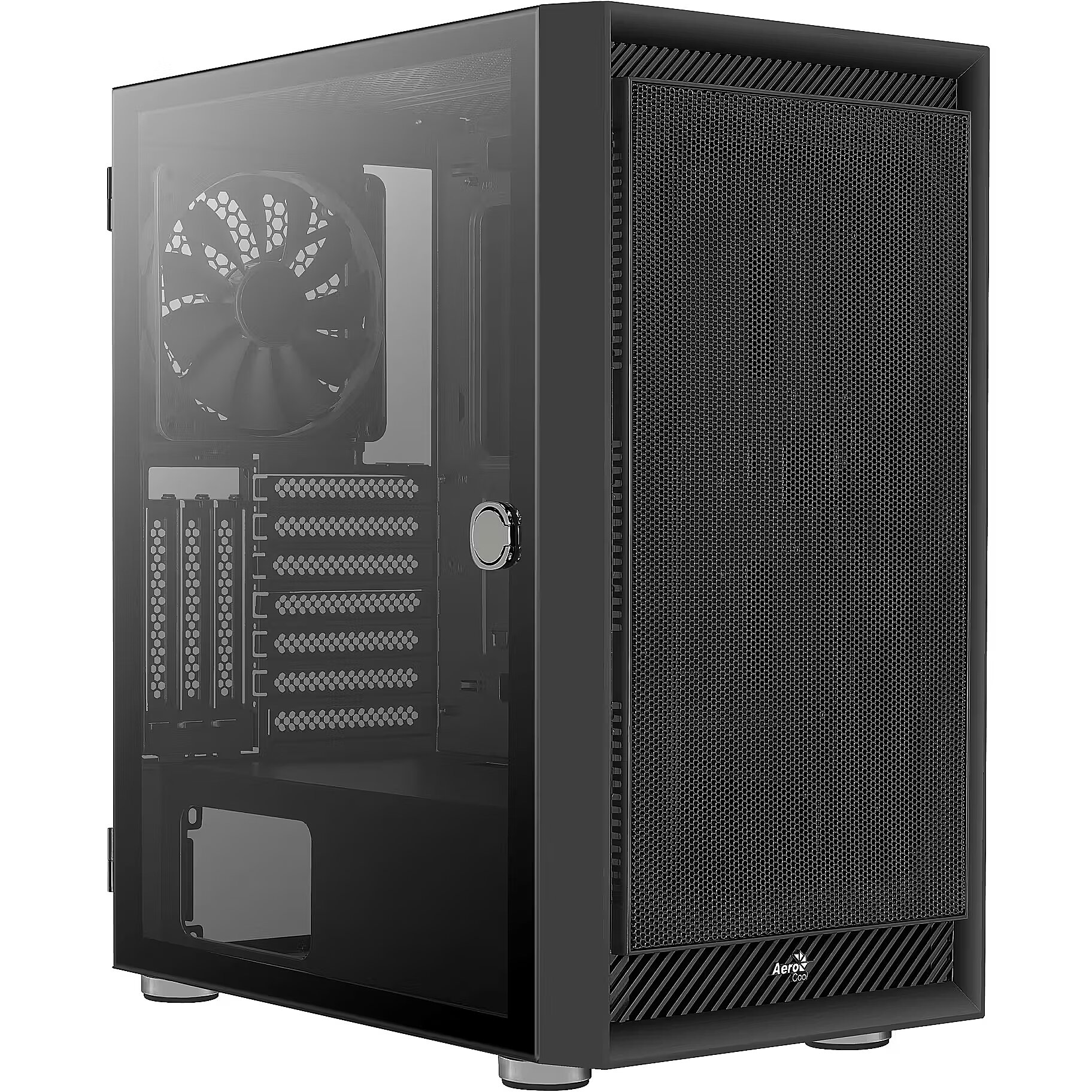

LongDesc - Featuring a mesh front panel design, this high-performance mid tower case allows for increased air circulation and viewing of your front LED fans. Full tempered glass side panel with a convenient hinge mechanism and handle allows for easy opening and closing while showcasing the inside of your rig. Comes with three additional vertical expansion slots, allowing for vertical graphics card installation.WIDE AND STURDY CHASSIS DESIGNFeaturing a chassis design focused on delivering increased interior space, you now have more freedom and possibilities to customize your PC how you want.With more room for your graphics card, coolers and fans, and even your motherboard, the Graphite will allow you to fully maximize the performance of your PC build.EXPANSION SLOTS FOR VERTICAL GRAPHICS CARD INSTALLATIONBuilt with three additional vertical expansion slots, allowing you to install your graphics card at a vertical position.Supports Nvidia® Geforce RTX 30 series graphics cards including Founder’s Edition.MESH FRONT PANEL DESIGNFeaturing a mesh front panel design, this case allows for clear viewing of your front LED fans while improving air flow and ventilation.FULL TEMPERED GLASS SIDE PANEL WITH HINGE DESIGNFull tempered glass side panel with a convenient hinge mechanism and handle allows for easy opening and closing while showcasing the inside of your rig.EFFICIENT CABLE MANAGEMENTComes equipped with two cable passthrough tubes on the motherboard tray to keep your cables neat, tidy, and secure.AIR COOLINGSupports air cooling in the front, top, and rear of the case to enhance cooling performance.- Front: 120mm x 3 or 140mm x 2 (Max.)- Top: 120mm x 2 or 140mm x 2 (Max.)- Rear: 120mm x 1 or 140mm x 1 (Max.)LIQUID COOLINGSupports liquid cooling in the front, top, and rear of the case for maximum efficiency cooling.- Front: 120/240/280/360mm Radiator (Optional)- (radiator length LongProductName - Mid Tower, ATX/micro ATX/mini-ITX, 230 x 460 x 406mm, 1x Ø 140mm
LongSummaryDescription - Aerocool GRAPHITEV1 Computer Case Mesh Front Panel. Form factor: Midi Tower, Type: PC, Product colour: Black. Supported power supply form factors: ATX. Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 140 mm, Rear fans diameters supported: 120,140 mm. Supported HDD sizes: 2.5,3.5", SSD form factor: 2.5". Width: 230 mm, Depth: 406 mm, Height: 460 mm
name - Aerocool Graphite v1 Midi-Tower - schwarz
Packaging data - Package weight - 6.28 kg
Ports & interfaces - Audio input - Yes
Ports & interfaces - Audio output - Yes
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Power supply - Power supply included - No
Power supply - Supported power supply form factors - ATX
ProductName - GRAPHITEV1 Computer Case Mesh Front Panel
ShortSummaryDescription - Aerocool GRAPHITEV1 Computer Case Mesh Front Panel, Midi Tower, PC, Black, ATX, micro ATX, Mini-ITX, ABS, SPCC, Steel, 18 cm
Storage - SSD form factor - 2.5"
Storage - Supported HDD sizes - 2.5,3.5"
Title - Aerocool GRAPHITEV1 Computer Case Mesh Front Panel
URL - https://aerocool.io/product/graphite/
WarrantyInfo -
Weight & dimensions - Depth - 406 mm
Weight & dimensions - Height - 460 mm
Weight & dimensions - Material thickness - 0.5 mm
Weight & dimensions - Weight - 5.27 kg
Weight & dimensions - Width - 230 mm
