Brand - COUGAR
BrandPartCode - 382WA30.0001
Category - Computer Cases
Cooling - Fan speed - 300 - 1200 RPM
Cooling - Front fans diameters supported - 120,140,160 mm

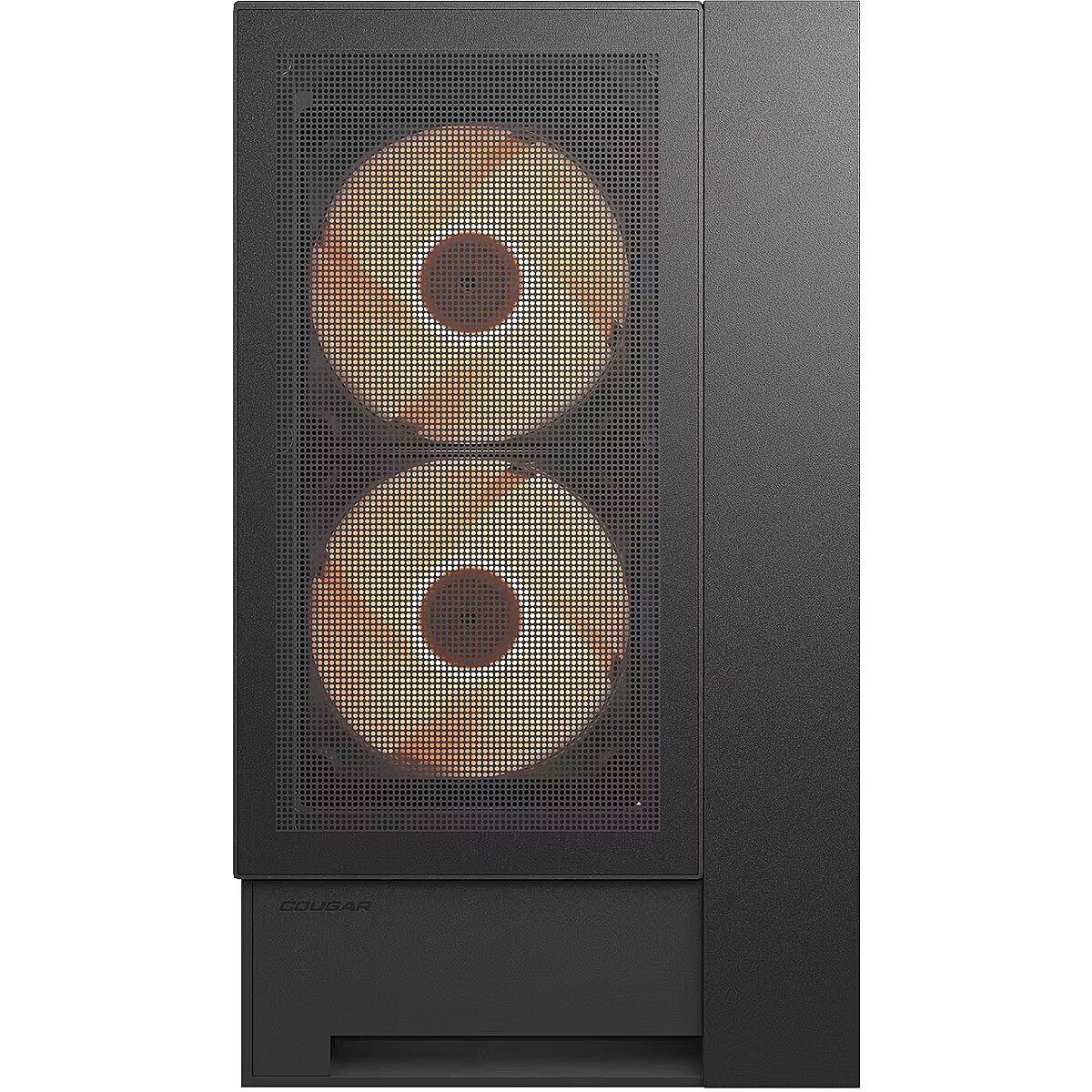

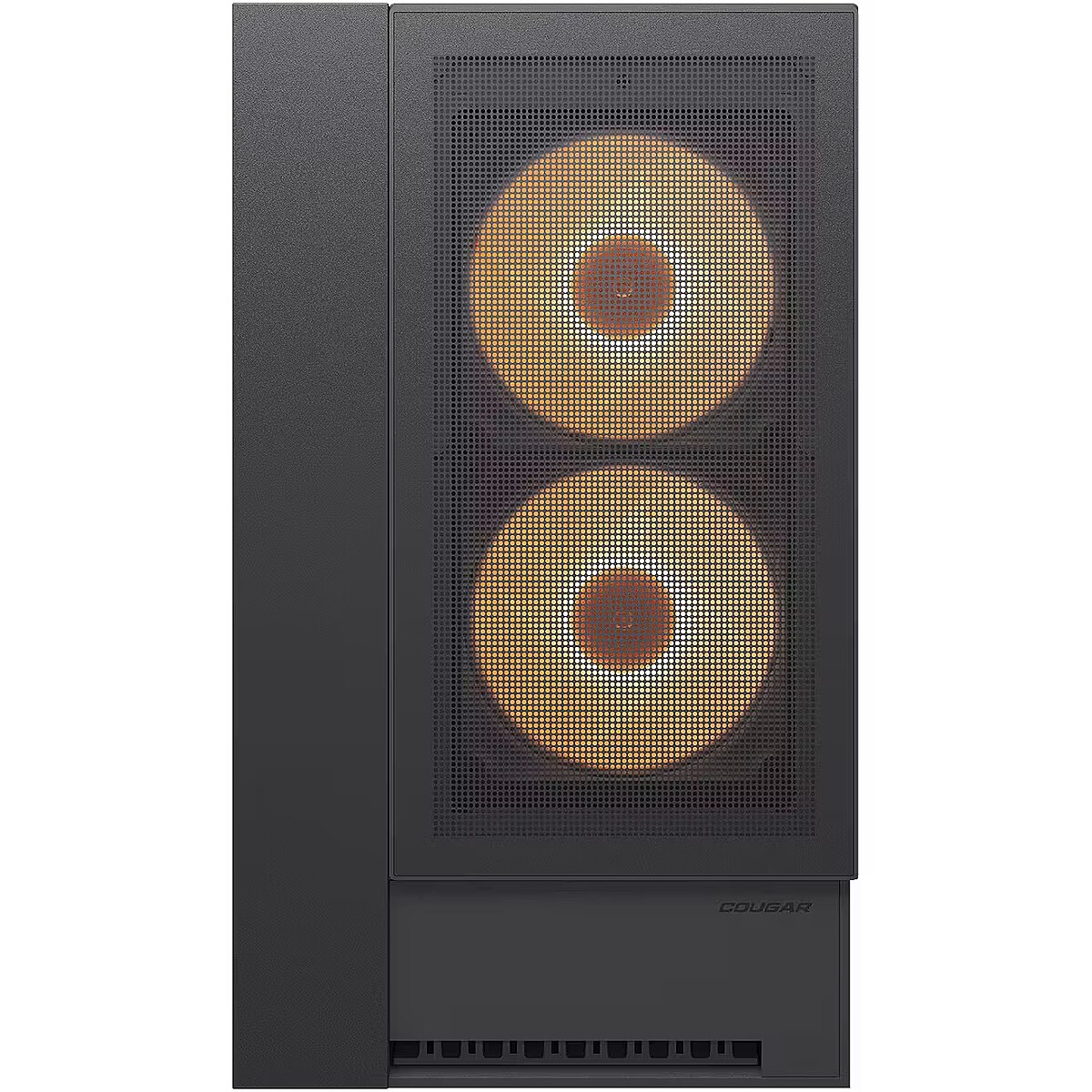

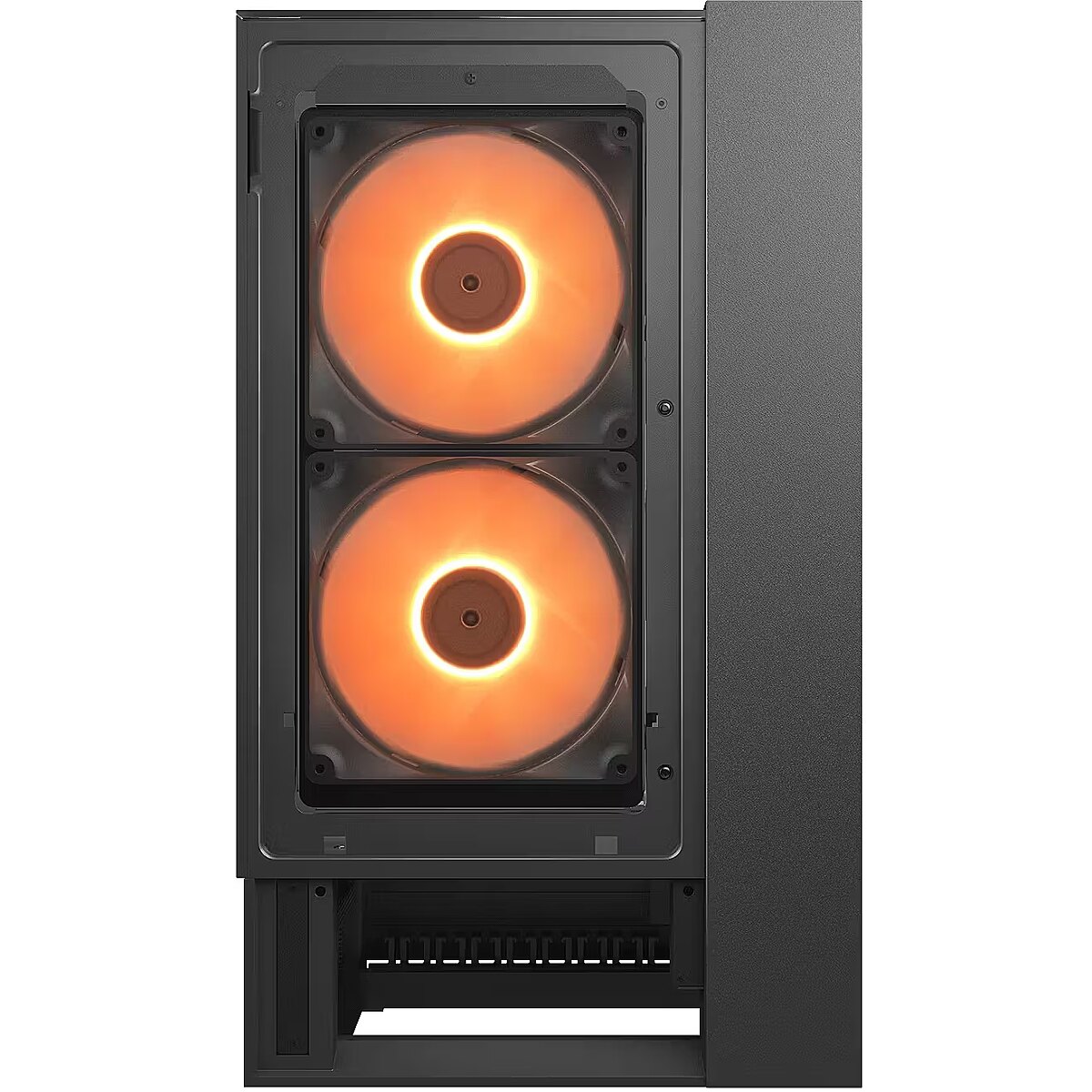

Cooling - Front fans installed - 2x 160 mm
Cooling - Front radiator sizes supported - 120,140,240,280 mm
Cooling - Number of front fans supported (max) - 2
Cooling - Number of rear fans supported (max) - 2
Cooling - Number of side fans supported (max) - 3
Cooling - Pulse-width modulation (PWM) support - Yes
Cooling - Rear fans diameters supported - 120,140 mm
Cooling - Rear radiator sizes supported - 120,140,240,280 mm
Cooling - Side fans diameters supported - 120 mm
Cooling - Side radiator sizes supported - 240,360 mm
Design - Cable management - Yes
Design - Form factor - Midi Tower
Design - Illumination - Yes
Design - Maximum CPU cooler height - 17 cm
Design - Maximum graphics card length - 38 cm
Design - Maximum PSU length - 20 cm
Design - Number of 2.5" bays - 2
Design - Number of 3.5" bays - 2
Design - Number of expansion slots - 7
Design - Product colour - Black
Design - Side window - Yes
Design - Supported motherboard form factors - ATX, micro ATX, Mini-ITX
Design - Type - PC
GTIN - 4710483779442
Logistics data - Country of origin - China
LongDesc - Your Build. Your Vision. Any Side You Like.The OmnyX gives you the power to play, create and perform with unprecedented flexibility. Experience true freedom of orientation and maximum airflow with COUGAR’s revolutionary Omnidirectional Dynamic Flow System. Take a side, and showcase your masterpiece.Omnidirectional Dynamic Flow System (ODF)The Omnidirectional Dynamic Flow System, is a groundbreaking new PC chassis structure developed by COUGAR, built around powerful airflow, creative flexibility and the perfectly equal viability of right, left and center orientations.Locking in an absolute mirrored front and rear fan capacity maximizes the surface area of the GPU in contact with constant, maximum airflow, irrespective of the case’s orientation.The ODF System’s symmetrical layout facilitates the ability to flow seamlessly between different orientations, maintaining the full functionality of position-dependent features.Take A SideA perfectly symmetrical design makes for complete freedom of orientation. With dual transparent glass panels putting your build on display from any angle, the OmnyX looks stunning whether it’s placed on the right, left, or center.Bigger Fans. Jetstream Cooling.The first ever – and only- PC case on the market with preinstalled quad 160mm PWM fans, the OmnyX delivers superior airflow straight out of the box, with room for a total fan capacity of 7. The mirrored front-to-rear alignment creates a naturally strong jetstream effect, with two front-mounted fans drawing in cold air and two rear-mounted fans expelling hot air in a direct, uninterrupted path. An equal distribution of reverse and forward blade fans allow for flexible intake modes, creating a smooth, directionally consistent airflow no matter how you choose to orient your build.Game Over for Cable ClutterThe ultimate zero-visibility cable management solution: all cabling is routed through the integrated base compartment, frontloading an ultra-clean interior from the start at setup.Ambidextrous IO ModuleAn ingenious sliding rail system lets you position the IO module with full functionality on either the left or right side of the OmnyX. This smart design frees up additional connector space, expanding the conventional port array to 4x USB 3.0 Type-A and 2x USB 3.2 Gen 2 Type-C.Bracketless Vertical GPU MountingThe OmnyX accommodates a maximum GPU length of 380mm which can be vertically mounted without a bracket, maximizing surface exposure area to airflow for superior cooling. This also naturally aligns the GPU with gravity for inherent stability, mitigating the risk of damage to premium hardware from accidental displacement.The Future of Motherboard CompatibilityThe OmnyX is also fully compatible with reverse connector motherboards, including ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth. We’re not just ready for the gaming rigs of the future: we welcome them.Quick Release MechanismMagnetic dust filter panel and quick release covers on the cable management compartment make removal and maintenance a breeze.Streamlined InstallationDetachable fan brackets, SSD/HDD bracket and PSU bracket let you install these components without hassle.Create Without LimitPersonalize your build with a near-endless choice of customizable covers.Light. Speed.The OmnyX features an integrated universal fan hub that enables seamless coordination of PWM fan speed and lighting. This allows you to control the RGB lighting without needing additional software, or motherboard software synchronization.
LongProductName - Mid Tower, Mini ITX / Micro ATX / ATX, 300 x 520 x 470 mm, Black
LongSummaryDescription - COUGAR OmnyX. Form factor: Midi Tower, Type: PC, Product colour: Black. Front fans installed: 2x 160 mm, Front fans diameters supported: 120,140,160 mm, Side fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 300 mm, Depth: 470 mm, Height: 520 mm. Package width: 390 mm, Package depth: 635 mm, Package height: 575 mm
Other features - Commodity Classification Automated Tracking System (CCATS) - 8473309000
Packaging data - Package depth - 635 mm
Packaging data - Package height - 575 mm
Packaging data - Package weight - 15.4 kg
Packaging data - Package width - 390 mm
Ports & interfaces - Combo headphone/mic port - Yes
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 2
Power supply - Power supply included - No
ProductName - OmnyX
ShortSummaryDescription - COUGAR OmnyX, Midi Tower, PC, Black, ATX, micro ATX, Mini-ITX, 17 cm, 38 cm
Storage - Supported HDD sizes - 2.5,3.5"

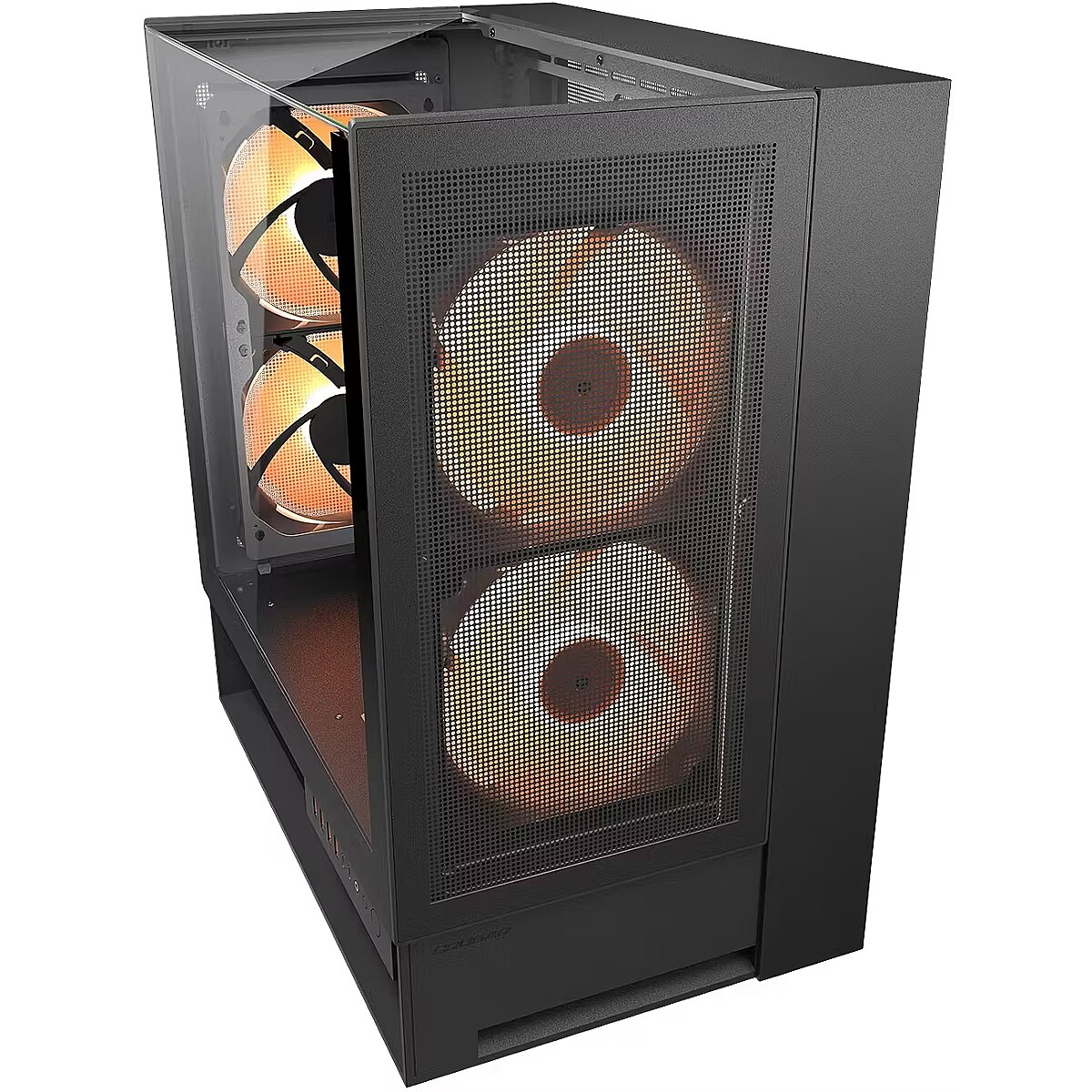

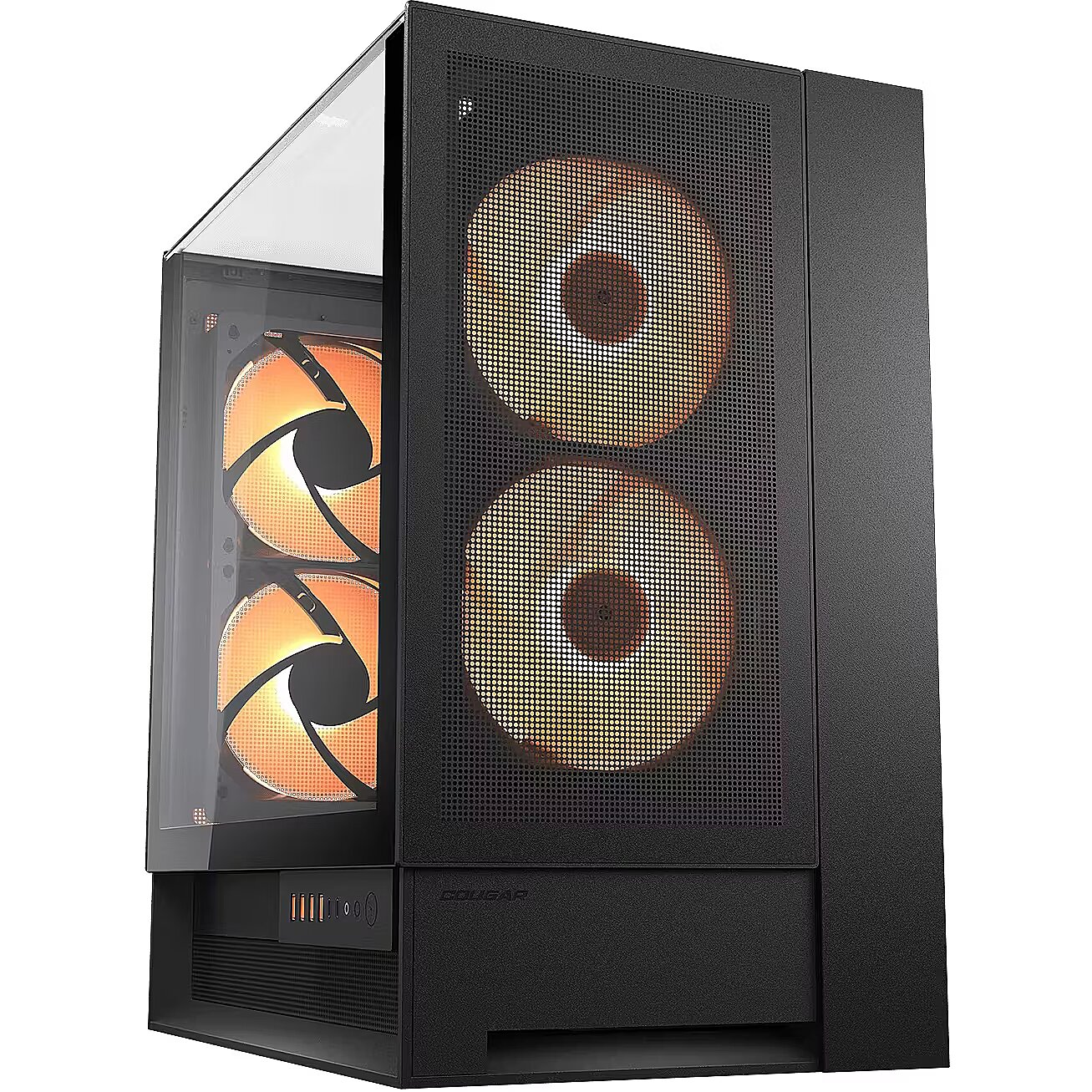

Title - COUGAR OmnyX Midi Tower Black
URL - https://cougargaming.com/us/products/cases/omnyx/
WarrantyInfo -
Weight & dimensions - Depth - 470 mm
Weight & dimensions - Height - 520 mm
Weight & dimensions - Weight - 12.6 kg
Weight & dimensions - Width - 300 mm
