Brand - MSI
BrandPartCode - GEFORCE RTX 4060 GAMING X 8G
Card's length - 240 to 280 mm
Category - Graphics Cards
Category Code - VGP
Category_1 - Graphics Cards
Category_2 - Graphics Cards PCIe - Nvidia
Chipset - NVIDIA GeForce RTX 4060
Code - GeForce RTX 4060 GAMING X 8G
Cooling system - Dual Slot Fansink
CUDA Cores - 3072
Description - GeForce RTX™ 4060 GAMING X 8G WITH DLSS 3 Game, stream, create. The GeForce RTX™ 4060 lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA Studio. Boost Clock / Memory Speed 2595 MHz / 17 Gbps 8GB GDDR6 DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a) TWIN FROZR 9 Thermal Design TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow. Copper Baseplate: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes. Core Pipe: A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink. Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling. Afterburner Take full control with the most recognized and widely used graphics card overclocking software in the world. MSI Center The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Design - Cooling technology - MSI TORX FAN 5.0
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Illumination - Yes
Design - Number of fans - 2 fan(s)
Design - Product colour - Grey
Dimensions - 247 x 130 x 41 mm

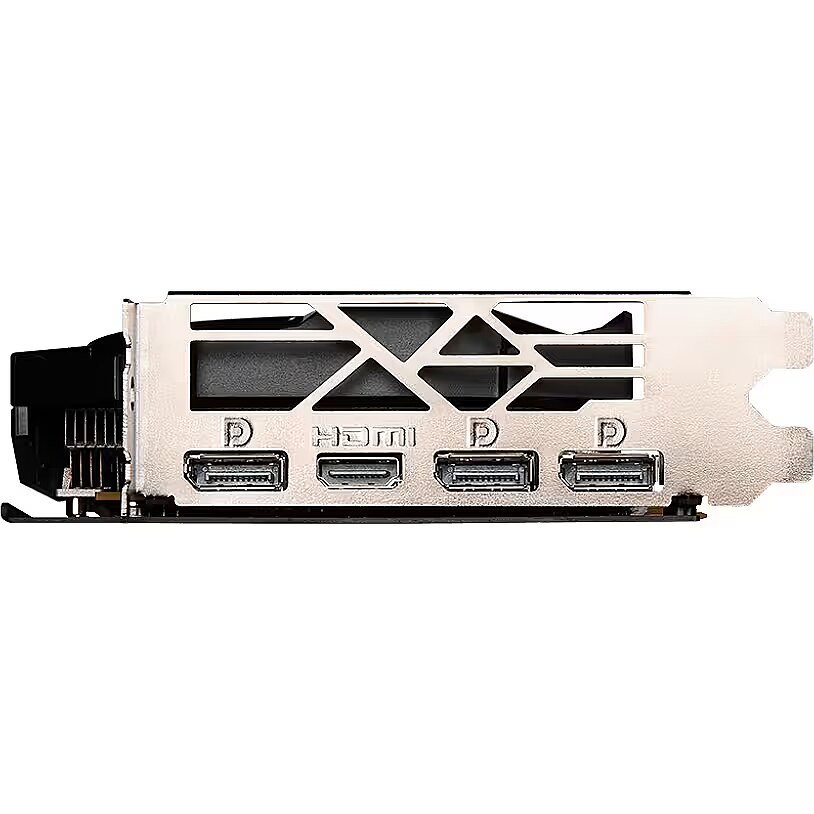

DisplayPort Input/Output connectors - 3
EAN - 4711377115476
EAN_code - 4711377115476
Full Description Line - NVIDIA GeForce RTX 4060|Graphics memory size 8 GB|GDDR6|128 bit|PCIE 4.0 8x|Memory CLK 17 Gbps|GPU boost clock 2595 MHz|7680x4320|Cooling Dual Slot Fansink|1xHDMI|3xDisplayPort
GPU boost clock - 2595 MHz
Graphic card features - HDCP
Graphics connector - PCIE 4.0 8x
Graphics memory size - 8 GB
Graphics memory type - GDDR6
GTIN - 4711377115476
HDMI Input/Output connectors - 1
Link - https://www.msi.com/Graphics-Card/GeForce-RTX-4060-GAMING-X-8G
LongDesc - MSI GeForce RTX™ 4060 GAMING X 8GGame, stream, create. The GeForce RTX™ 4060 lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA Studio.GAMING IN STYLE!Play with style! GAMING is upgraded with TWIN FROZR 9 to sustain intense performance during gaming and content creation. A high-speed style matches high-performance capabilities for gamers who want to go all out.STRENGTH AND ARTISTRYMSI envisioned the GAMING series as the favored graphic cards solution for all sorts of gamers, including adventure seekers, esport competitors, livestream broadcasters, and more. GAMING reflects both the spirit of gamers and the intense performance within the cards with a styled exterior that erupts with colorful lights between bold lines and edges.TWIN FROZR 9 THERMAL DESIGN:Stay cool and quiet. MSI’s TWIN FROZR 9 thermal design enhances heat dissipation all around the graphics card.TORX FAN 5.0:TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.A fan cowl extends a bit beyond the general enclosure to lengthen the wind’s passageway, allowing airflow to stabilize and move smoother through the fans. Bulging notches under the cowl help to reduce recirculation, thus further improving airflow stability and reducing some noise.COPPER BASEPLATE:Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.KEEPING THE CORE COOL:Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate and spread the heat along the full length of the heatsink.Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors for optimizing the balance between cooling and quieter acoustics.
LongProductName - NVIDIA GeForce RTX 4060, 2475MHz, 8GB GDDR6, 128 bit, PCI Express 4.0, 1 x HDMI (2.1a), 3 x DP (1.4a), CUDA, DirectX 12 Ultimate, OpenGL 4.6, 115W
LongSummaryDescription - MSI GAMING GEFORCE RTX 4060 X 8G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4060, Processor frequency: 2610 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 2 fan(s)
Manufacturer - MSI
Manufacturer_code - V516-003R
Max resolution - 7680x4320
Memory - Data transfer rate - 17 Gbit/s
Memory - Discrete graphics card memory - 8 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 128 bit
Memory > Discrete graphics adapter memory - 8 GB
Memory > Graphics adapter memory type - GDDR6
Memory > Memory clock speed - 17000 MHz
Memory bus - 128 bit
Memory CLK - 17 Gbps
Model - GeForce RTX 4060 GAMING X 8G
Name - MSI GeForce RTX 4060 GAMING X 8G, graphics card (DLSS 3, 3x DisplayPort, 1x HDMI 2.1)
Name - MSI | GeForce RTX 4060 GAMING X 8G | NVIDIA | 8 GB | GeForce RTX 4060 | GDDR6 | HDMI ports quantity 1 | PCI Express Gen 4 x 8 | Memory clock speed 17000 MHz
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 247.00 mm
Package features > Gross depth master carton - 725 mm
Package features > Gross height (mm) - 41.00 mm
Package features > Gross height master carton - 310 mm
Package features > Gross width (mm) - 130.00 mm
Package features > Gross width master carton - 465 mm
Package features > Net weight master carton - 16 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 656 pc(s)
Package features > Paper/Pasteboard - 393.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.41 kg
Package features > Tare weight master carton - 1.777 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging data - Package type - Box
Packaging data - Package weight - 1 kg
Performance - AMD FreeSync - No
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - NVIDIA G-SYNC - Yes
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express 4.0
Ports & interfaces > DisplayPorts quantity - 3
Ports & interfaces > HDMI ports quantity - 1
Ports & interfaces > Interface type - PCI Express Gen 4 x 8
Power - Minimum system power supply - 550 W
Power - Power consumption (typical) - 115 W
Power - Supplementary power connectors - 1x 8-pin
Power connectors - 8 pin
Power consumption - 115 Watts
Processor - CUDA - Yes
Processor - CUDA cores - 3072
Processor - Graphics processor - GeForce RTX 4060
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Processor boost clock speed - 2595 MHz
Processor - Processor frequency - 2610 MHz
Processor > Graphics processor - GeForce RTX 4060
Processor > Graphics processor family - NVIDIA
Producer product name - GeForce RTX 4060 GAMING X 8G
ProductName - GEFORCE RTX 4060 GAMING X 8G
Shipping Box Depth Shipping/Package Box Dimensions - 33 cm
Shipping Box Height Shipping/Package Box Dimensions - 22 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1 kg
Shipping Box Width Shipping/Package Box Dimensions - 8 cm
ShortSummaryDescription - MSI GAMING GEFORCE RTX 4060 X 8G, GeForce RTX 4060, 8 GB, GDDR6, 128 bit, 7680 x 4320 pixels, PCI Express 4.0
Technical details > Gross weight - 1.00 kg
Technical details > Net weight - 0.59 kg
Technical details > Producer - MSI
Title - MSI GAMING GEFORCE RTX 4060 X 8G graphics card NVIDIA 8 GB GDDR6
Unit Box Height - 0.22
Unit Box Length - 0.33
Unit Box Width - 0.08
Unit Brutto Volume - 0.005808 cubm
Unit Gross Weight - 1 kg
Unit Net Weight - 0.587 kg
URL - https://www.msi.com/Graphics-Card/GeForce-RTX-4060-GAMING-X-8G/Overview
Vendor Homepage - www.msi.com/Graphics-Card/GeForce-RTX-4060-GAMING-X-8G
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
Weight - 1,00
Weight & dimensions - Depth - 41 mm
Weight & dimensions - Height - 130 mm
Weight & dimensions - Length - 247 mm
Weight & dimensions - Weight - 587 g
GeForce embleem näitab, et see graafikakaart on piisavalt võimas, et ühilduda uusimate VR (Virtual Reality) seadmetega nagu Oculus Rift, HTC Vive (SteamVR) jne.
