Brand - GIGABYTE
BrandPartCode - GV-N4070WF3OC-12GD
Card's length - 240 to 280 mm
Category - Graphics Cards
Category Code - VGP
Category_1 - Graphics Cards
Category_2 - Graphics Cards PCIe - Nvidia
Chipset - NVIDIA GeForce RTX 4070
Cooling system - Dual Slot Fansink
CUDA Cores - 5888
Description - GIGABYTE GeForce RTX 4070 WINDFORCE OC 12G + Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing + 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering + 3rd Generation RT Cores: Up to 2X ray tracing performance + Powered by GeForce RTX 4070 + Integrated with 12GB GDDR6X 192bit memory interface + WINDFORCE Cooling System + Protection metal back plate WINDFORCE COOLING SYSTEM The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation. ALTERNATE SPINNING Reduce the turbulence of adjacent fans and increase airflow pressure. SMOOTH AIRFLOW GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure. 3D ACTIVE FAN The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. UNIQUE BLADE FAN The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface. GRAPHENE NANO LUBRICANT Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter. PROTECTION METAL BACK PLATE The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
Design - Cooling technology - GIGABYTE WINDFORCE 3X
Design - Cooling type - Active
Design - Illumination - No
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
Dimensions - 261x126x50mm
DisplayPort Input/Output connectors - 3
EAN_code - 4719331312930
GPU boost clock - 2475 MHz
Graphics connector - PCIE 4.0 16x
Graphics memory size - 12 GB
Graphics memory type - GDDR6X
GTIN - 0889523037003
GTIN - 889523037003
GTIN - 4719331312930
HDMI Input/Output connectors - 1
LongDesc - The Ultimate Platform for Gamers and CreatorsPowered by GeForce RTX 40 Series and DLSS 3New Streaming MultiprocessorsUp to 2x performance and power efficiencyFourth-Gen Tensor CoresUp to 4x performance with DLSS 3 vs. brute-force renderingThird-Gen RT CoresUp to 2x ray tracing performanceWINDFORCE COOLING SYSTEMThe WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.ALTERNATE SPINNINGReduce the turbulence of adjacent fans and increase airflow pressure.SMOOTH AIRFLOWGIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.3D ACTIVE FANThe 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.UNIQUE BLADE FANThe airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.GRAPHENE NANO LUBRICANTGraphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.SCREEN COOLINGExtended heatsink allows air to pass through, providing better heat dissipation.EXCELLENT IN ESSENTIALPROTECTION METAL BACK PLATEThe metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.BUILD STRONGULTRA DURABLEUltra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.FRIENDLY PCB DESIGNFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.GIGABYTE CONTROL CENTERGIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
LongProductName - GeForce RTX™ 4070,2490 MHz, 5888 CC, 21 Gbps, 12 GB, GDDR6X, 192 bit, PCI-E 4.0, 7680x4320, Multi-view, 650W
LongSummaryDescription - GIGABYTE GV-N4070WF3OC-12GD. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4070, Processor frequency: 2100 MHz. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR6X, Memory bus: 192 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s)
Manufacturer - GigaByte
Manufacturer_code - GV-N4070WF3OC-12GD
Max resolution - 7680x4320
Memory - Data transfer rate - 21 Gbit/s
Memory - Discrete graphics card memory - 12 GB
Memory - Graphics card memory type - GDDR6X
Memory - Memory bus - 192 bit
Memory bus - 192 bit
Memory CLK - 21 Gbps
Model - GeForce RTX 4070 WINDFORCE OC 12G (rev. 1.1)
Name - GIGABYTE GeForce RTX 4070 WINDFORCE X3 OC, graphics card (DLSS 3, 3x DisplayPort, 1x HDMI 2.1)
Packaging content - User guide - Yes
Packaging data - Package type - Box
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 1.4
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express 4.0
Power - Minimum system power supply - 650 W
Power - Supplementary power connectors - 1x 8-pin
Power connectors - 8 pin
Power consumption - 650 Watts
Processor - CUDA - Yes
Processor - CUDA cores - 5888
Processor - Graphics processor - GeForce RTX 4070
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Processor boost clock speed - 2490 MHz
Processor - Processor frequency - 2100 MHz
ProductName - GV-N4070WF3OC-12GD
Product Net Weight - 1 kg
ShortSummaryDescription - GIGABYTE GV-N4070WF3OC-12GD, GeForce RTX 4070, 12 GB, GDDR6X, 192 bit, 7680 x 4320 pixels, PCI Express 4.0

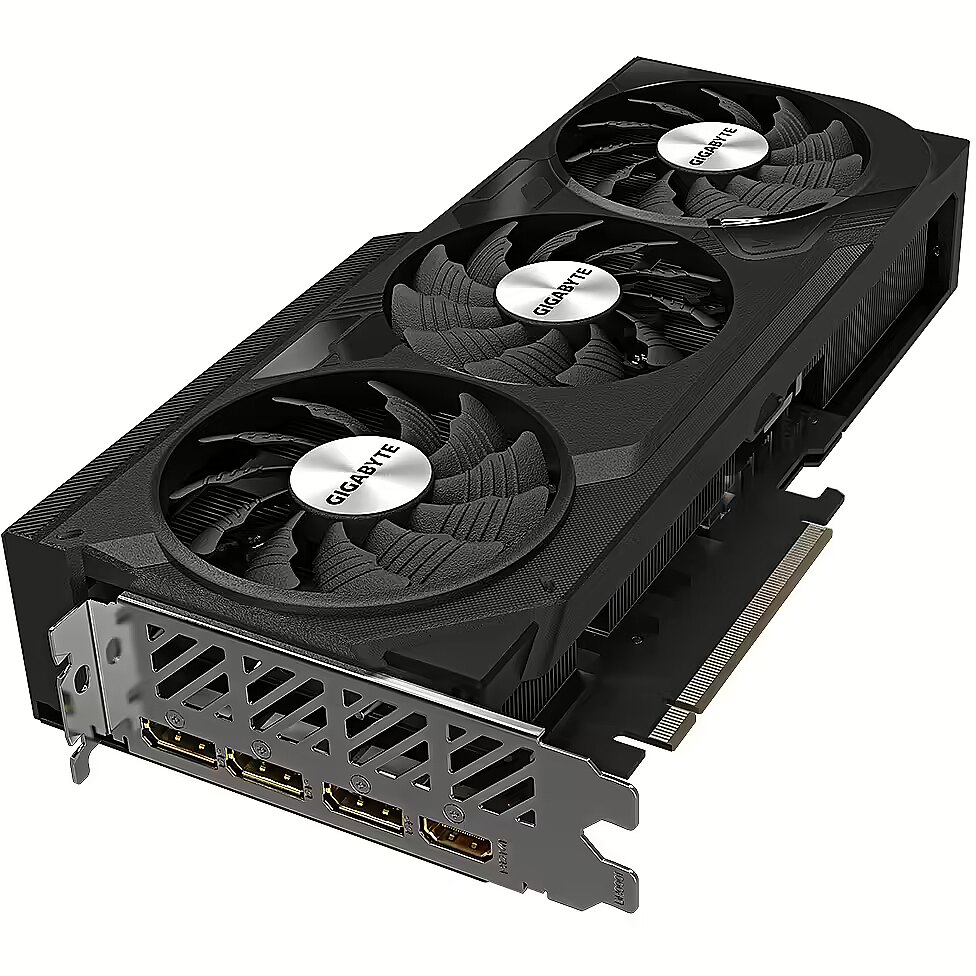

Title - GIGABYTE GV-N4070WF3OC-12GD graphics card NVIDIA GeForce RTX 4070 12 GB GDDR6X
Unit Box Height - 0.221
Unit Box Length - 0.08
Unit Box Width - 0.332
Unit Calculated Volume - 0 cubm
Unit Calculated Weight - 1 kg
Units per Shipping Box - 10
URL - https://www.gigabyte.com/Graphics-Card/GV-N4070WF3OC-12GD#kf
Vendor Homepage - www.gigabyte.com/Graphics-Card/GV-N4070WF3OC-12GD-rev-11#kf
Warranty - 36 months
WarrantyInfo -
Weight - 1,24
Weight & dimensions - Depth - 50 mm
Weight & dimensions - Height - 126 mm
Weight & dimensions - Length - 261 mm
GeForce embleem näitab, et see graafikakaart on piisavalt võimas, et ühilduda uusimate VR (Virtual Reality) seadmetega nagu Oculus Rift, HTC Vive (SteamVR) jne.
