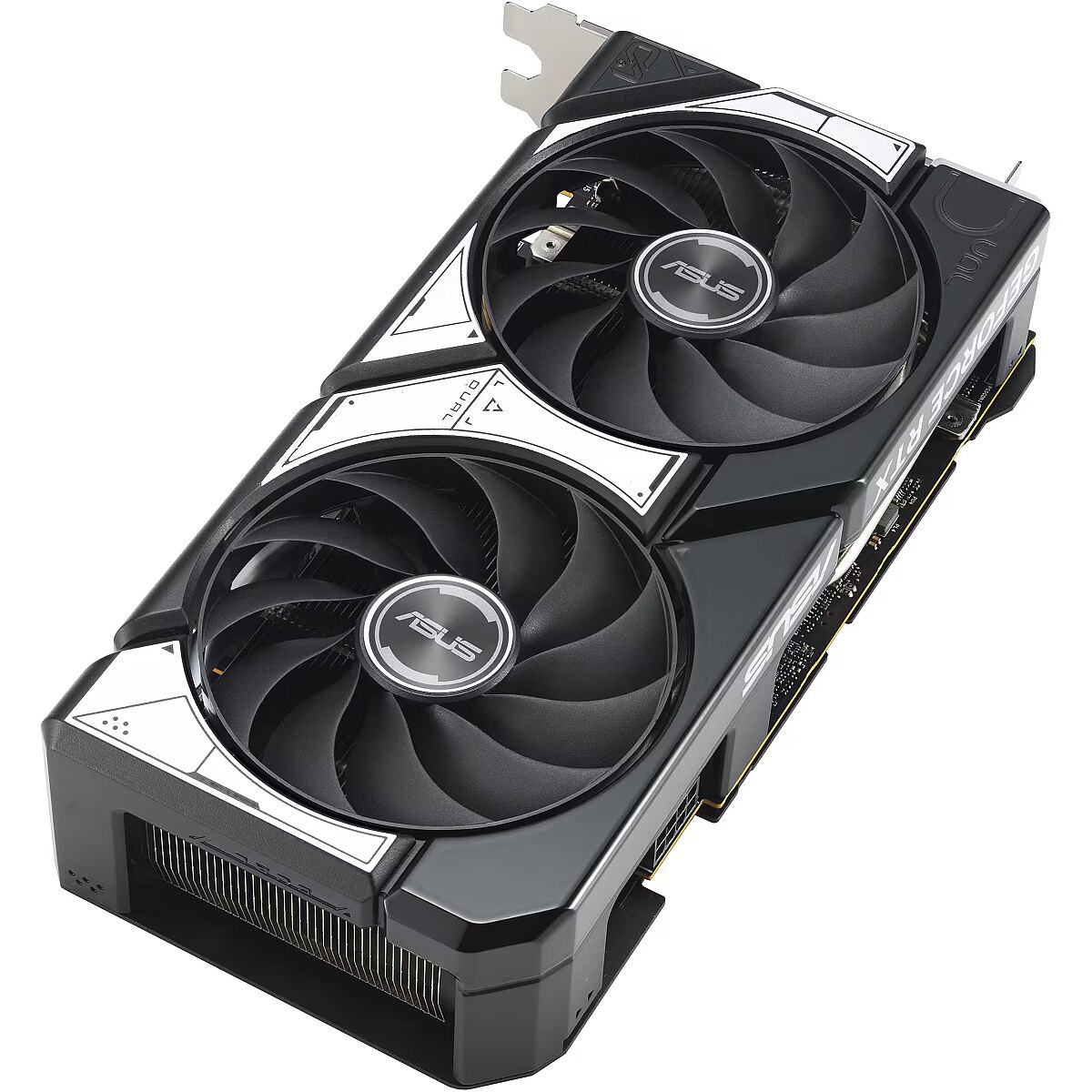

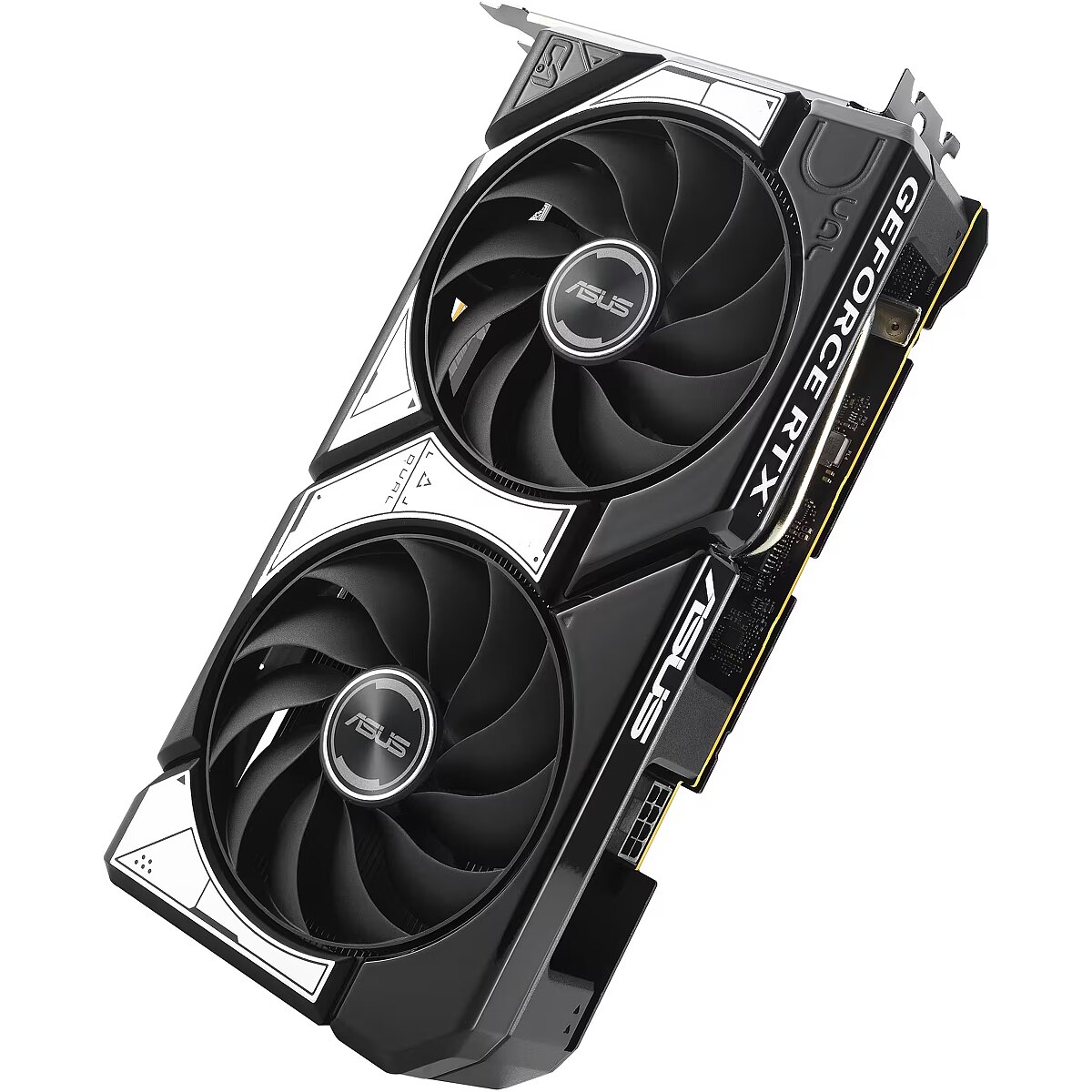

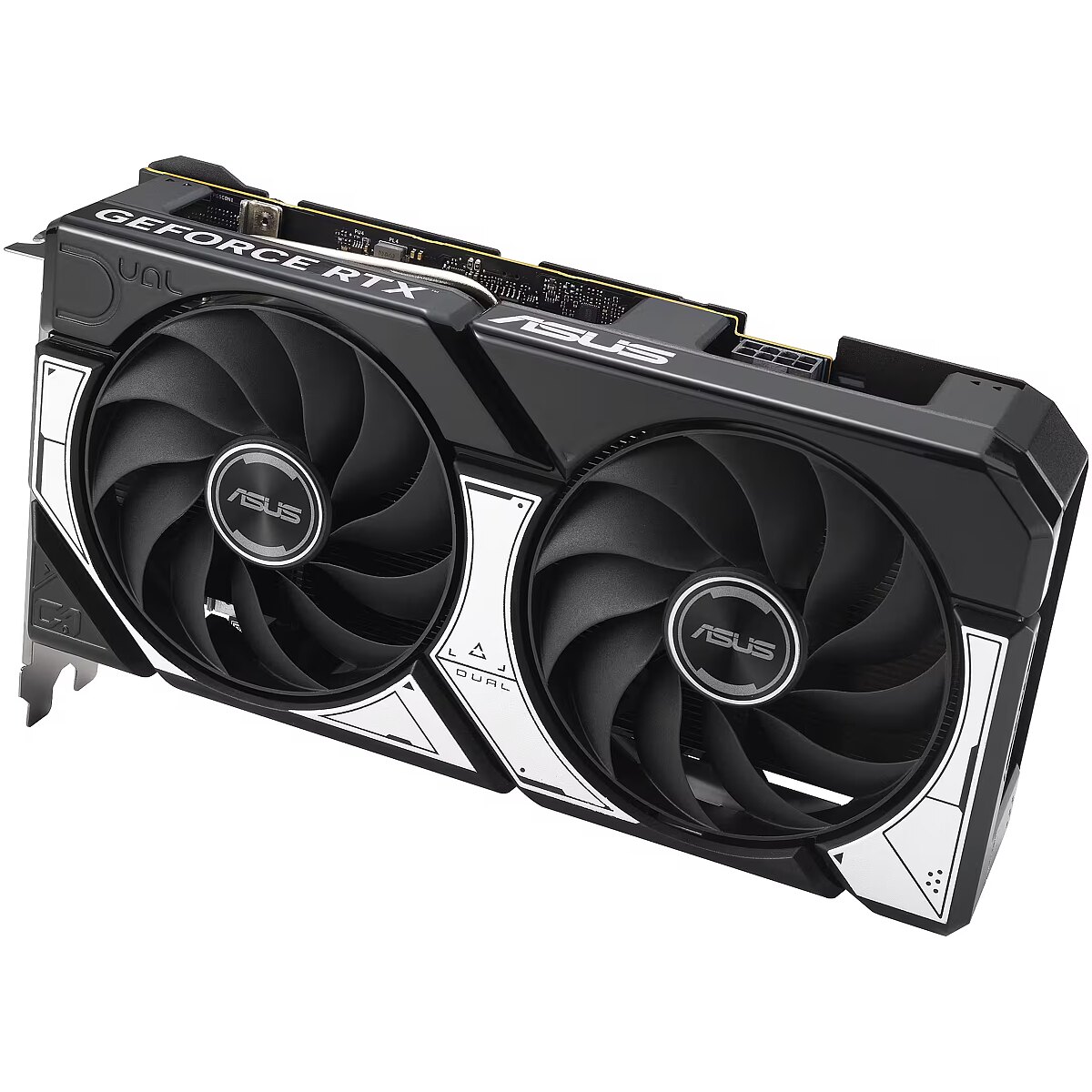

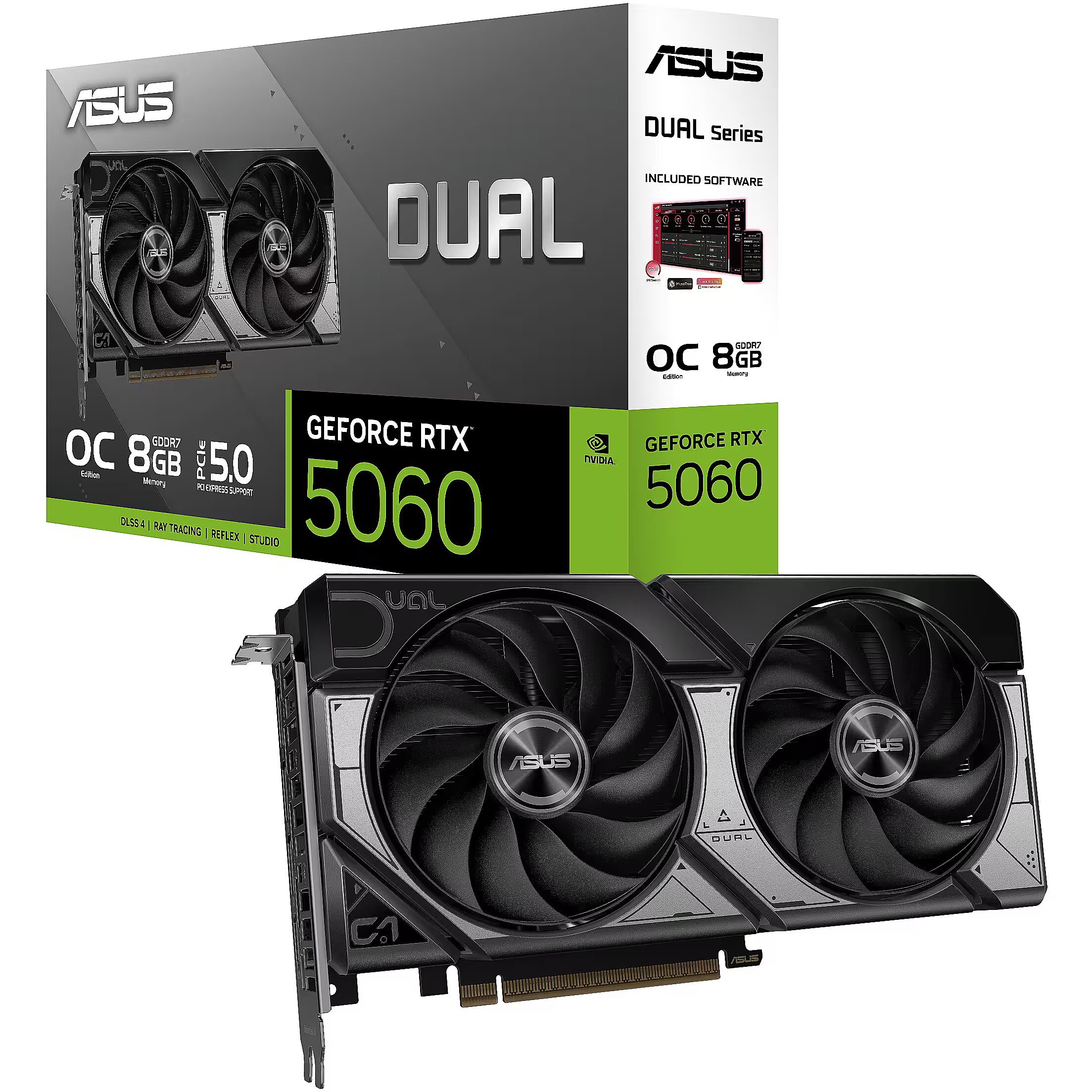

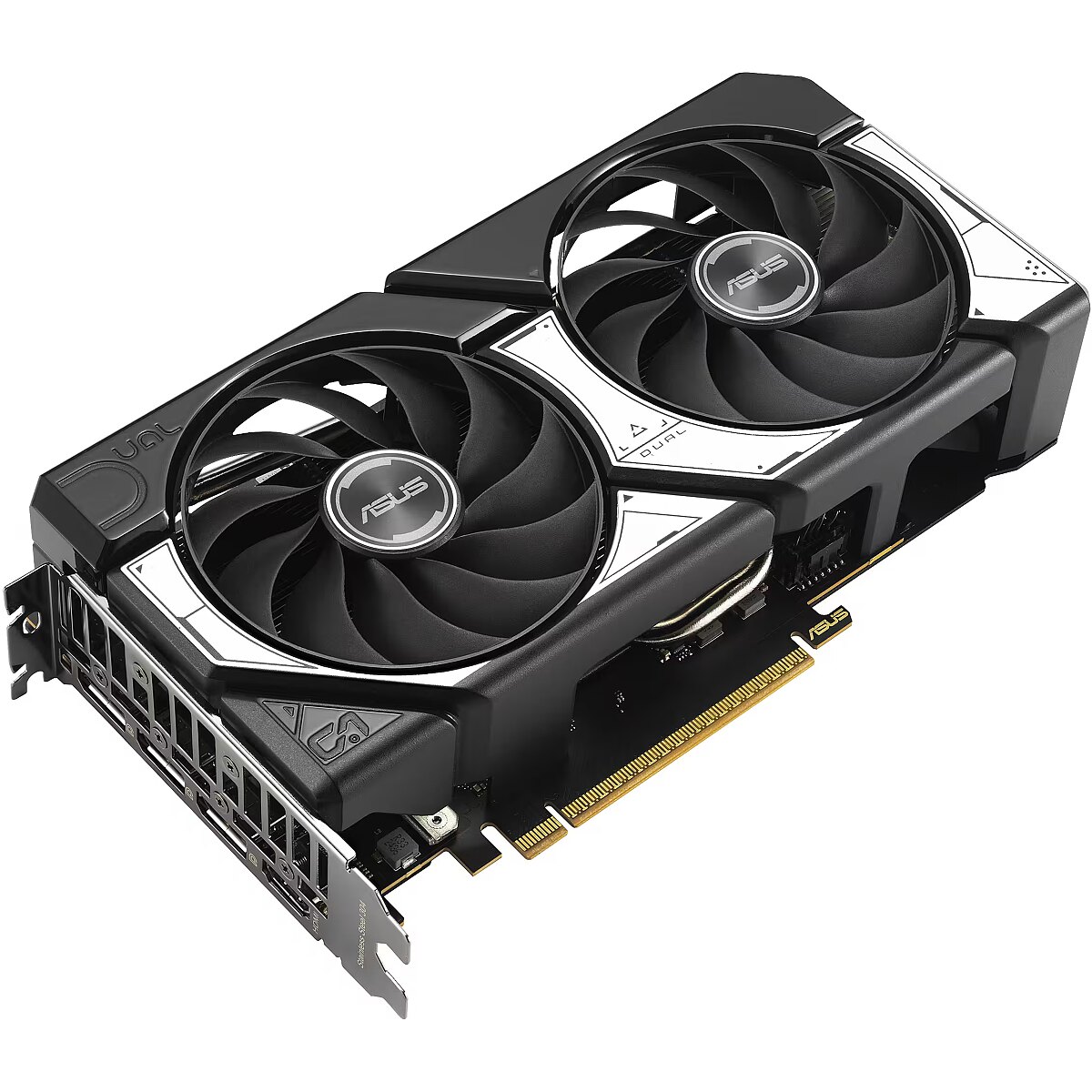

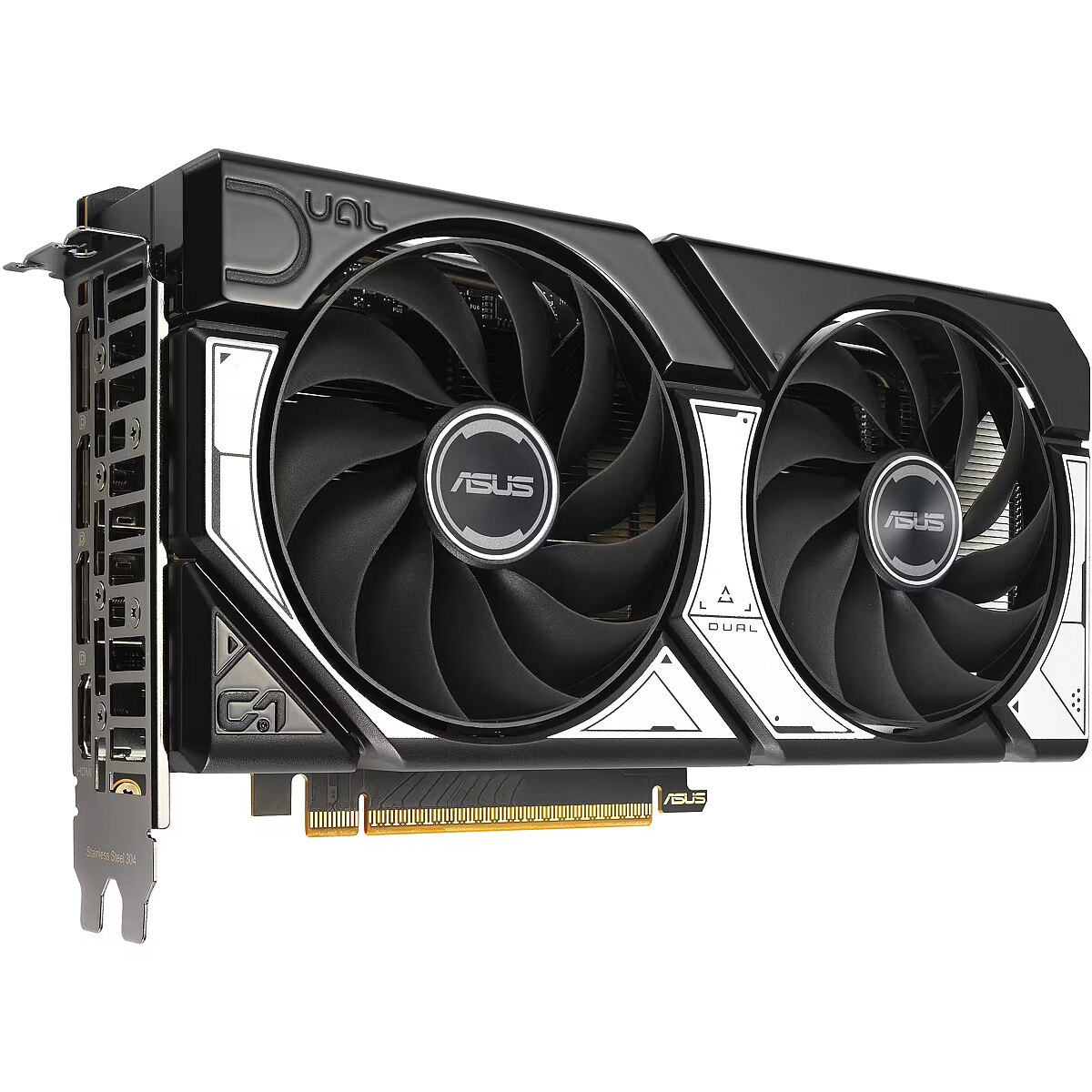

Asus GeForce RTX 5060, 8GB GDDR7, Dual OC (DLSS 4)

Brand - ASUS
BrandPartCode - 90YV0N12-M0NA00
Category - Graphics Cards
Category - Root/Electronics/PC parts/Graphic cards
Category 1 - Grafikkarten
Category 2 - NVidia PCI-Express Grafikkarten
Category Code - VGP
Category_1 - Graphics Cards
Category_2 - Graphics Cards PCIe - Nvidia
Code - 90YV0N12-M0NA00
Cooling technology Design - ASUS Axial-tech
Cooling type Design - Active
CUDA cores Processor - 3840
CUDA Processor - Yes
Dane techniczne: Długość - 22.8 cm
Dane techniczne: Grupa produktowa - Karty graficzne Asus
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Ilość rdzeni cuda - 3840
Dane techniczne: Kolor obudowy - czarno-srebrny
Dane techniczne: Liczba wentylatorów - 2 szt.
Dane techniczne: Liczba zajmowanych slotów - 2.5
Dane techniczne: Maks. taktowanie rdzenia - 2565 MHz
Dane techniczne: Model chipsetu - GeForce RTX 5060
Dane techniczne: Obsługiwane standardy - DirectX 12
Dane techniczne: Obsługiwane standardy - OpenGL 4.6
Dane techniczne: Obsługiwane standardy - Vulkan
Dane techniczne: Producent - Asus
Dane techniczne: Producent chipsetu - NVIDIA
Dane techniczne: Przepustowość pamięci - 448 GB/s

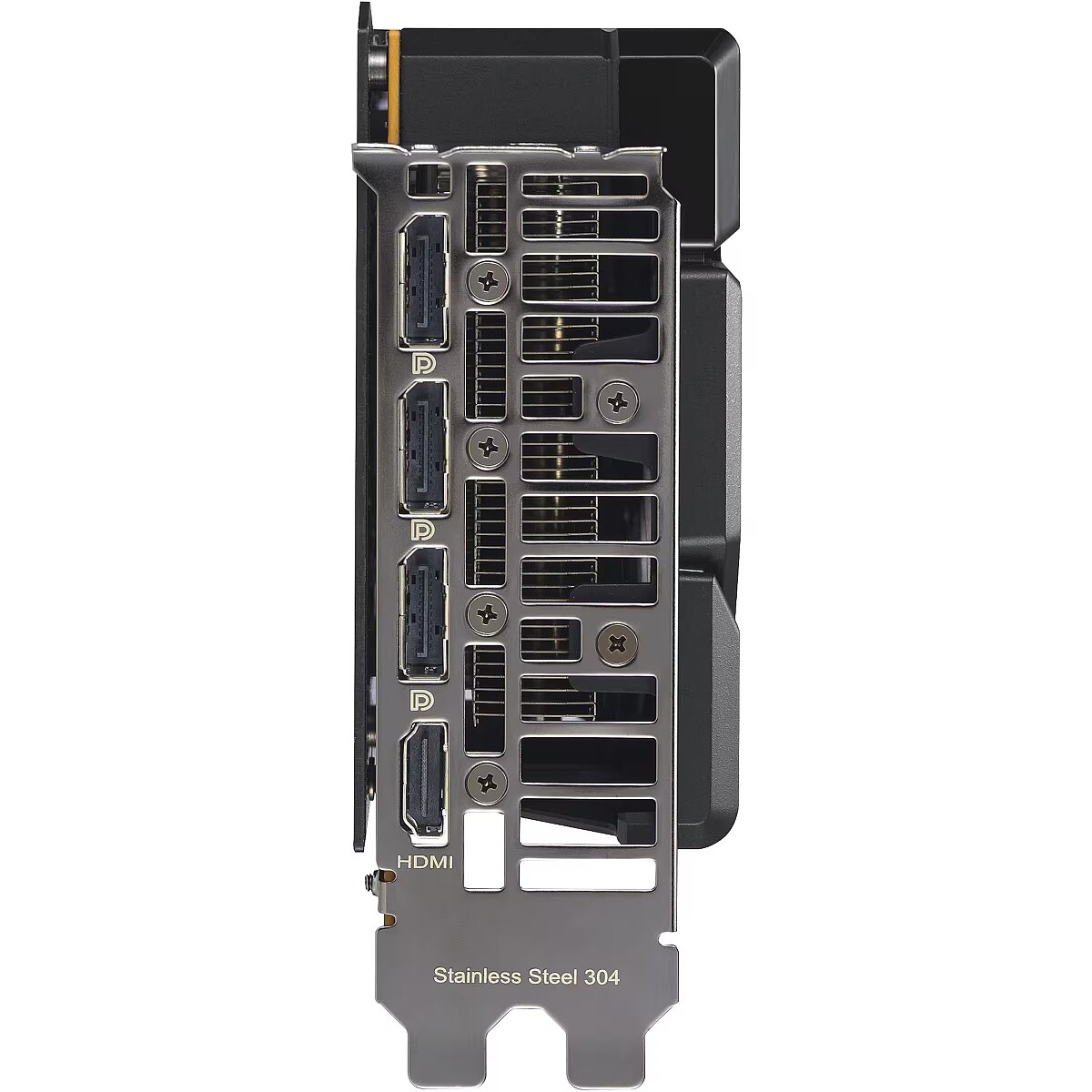

Dane techniczne: Rodzaje wyjść/wejść - 1 x wyjście HDMI
Dane techniczne: Rodzaje wyjść/wejść - 3 x Display Port
Dane techniczne: Seria karty graficznej - RTX z serii 50
Dane techniczne: Szerokość - 12.3 cm
Dane techniczne: Szyna danych pamięci - 128 bit
Dane techniczne: Taktowanie pamięci - 28000 MHz
Dane techniczne: Technologia VR - tak
Dane techniczne: Typ chłodzenia - wentylator
Dane techniczne: Typ zastosowanej pamięci - GDDR7
Dane techniczne: Typ złącza - PCI-Express x16
Dane techniczne: Wielkość pamięci - 8 GB
Dane techniczne: Wsparcie dla CUDA - tak
Dane techniczne: Wsparcie dla HDCP - tak
Dane techniczne: Wysokość - 5 cm
Dane techniczne: Zaawansowane technologie - NVIDIA Ansel
Dane techniczne: Zaawansowane technologie - NVIDIA DLSS 4
Dane techniczne: Zaawansowane technologie - NVIDIA Enkoder
Dane techniczne: Zaawansowane technologie - NVIDIA PhysX Ready
Dane techniczne: Zaawansowane technologie - NVIDIA Reflex
Dane techniczne: Zaawansowane technologie - NVIDIA Studio
Dane techniczne: Zaawansowane technologie - Ray Tracing
Dane techniczne: Zaawansowane technologie - RTX AI
Dane techniczne: Zalecana moc - 550 W
Dane techniczne: Złącze zasilania - 8 PIN
Data transfer rate Memory - 28 Gbit/s
Depth Weight & dimensions - 50 mm
Description - DUAL GEFORCE RTX™ 5060

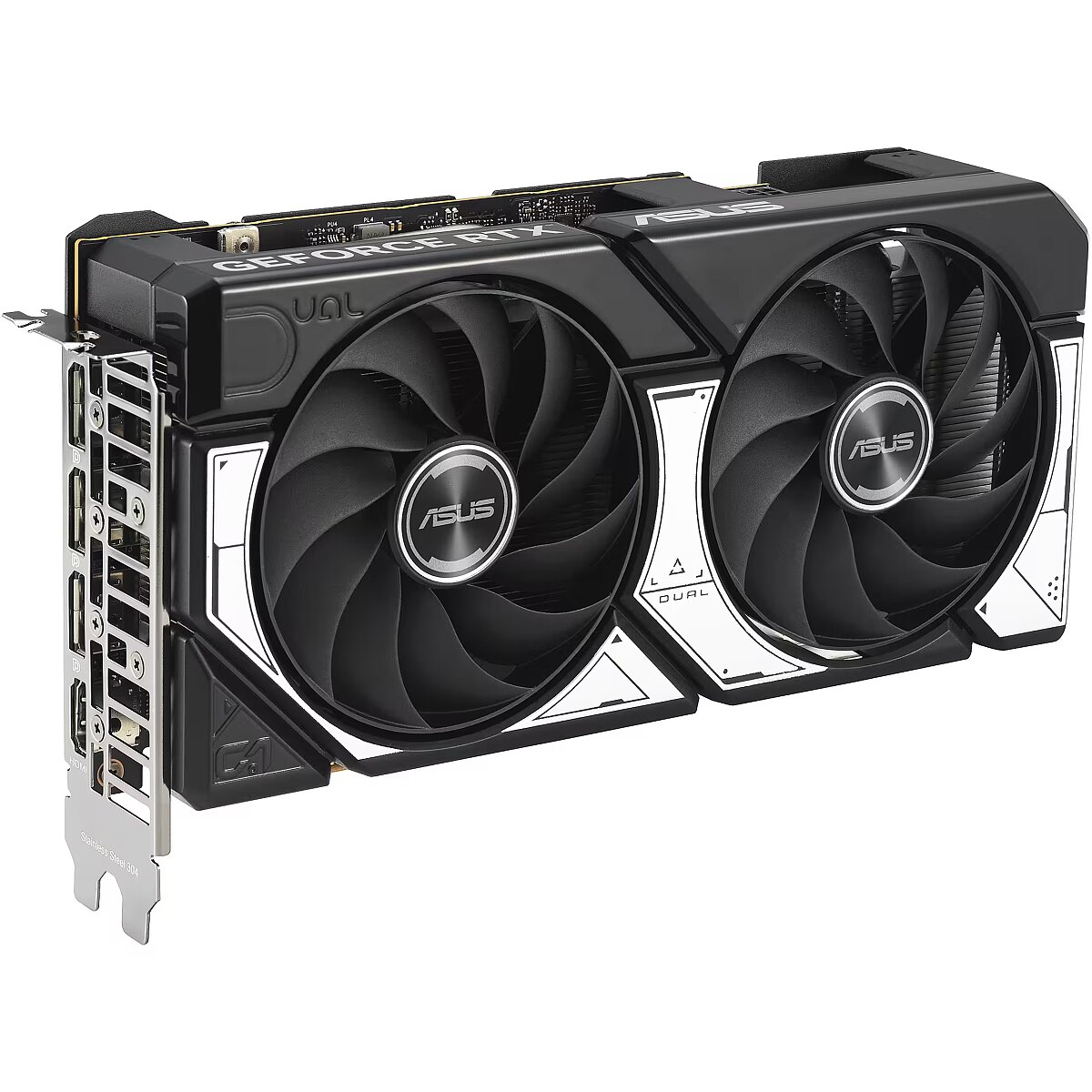

Dual Fans, Perfect Fit
ASUS Dual GeForce RTX™ 5060 combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build. Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build. Cooling
2.5-slot Design

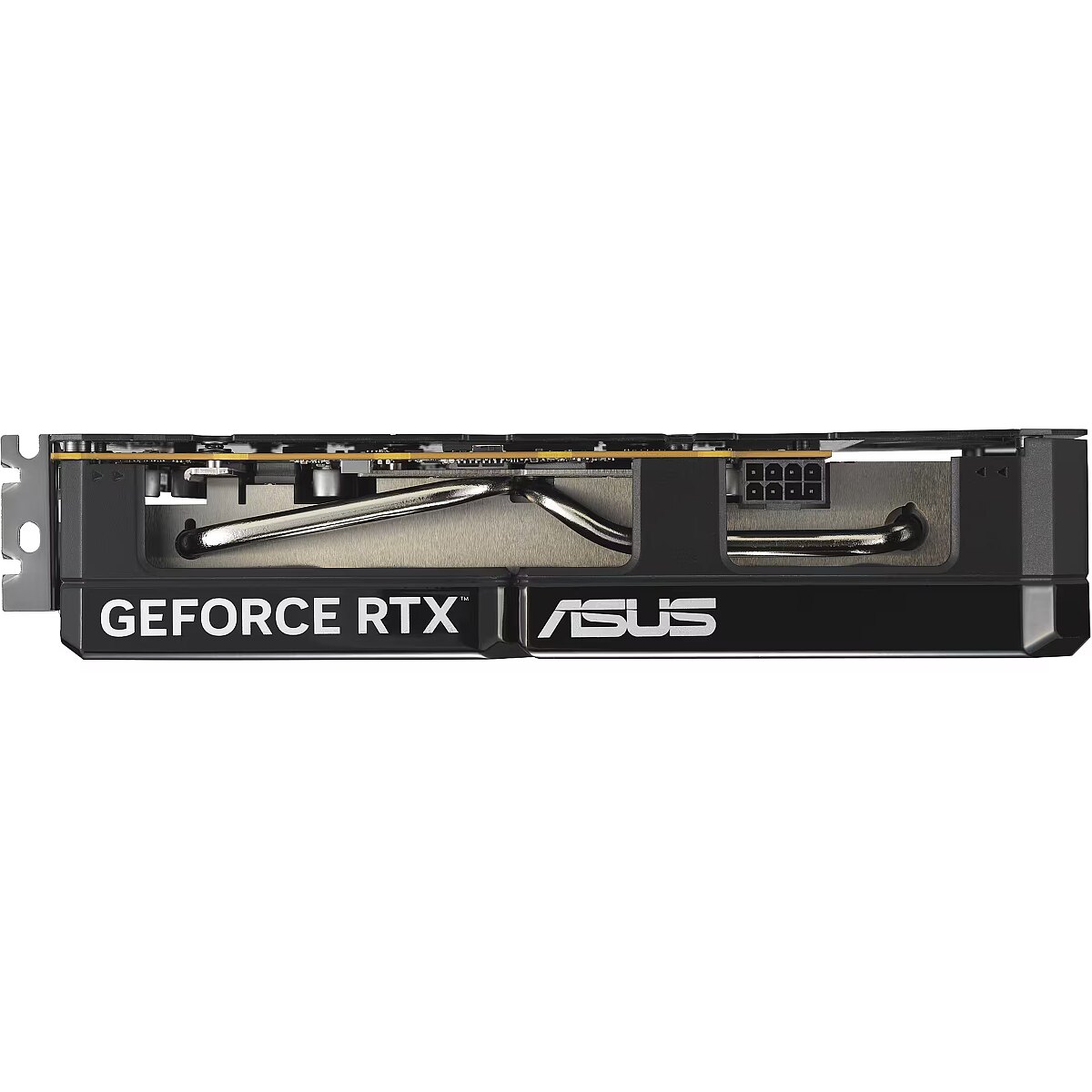

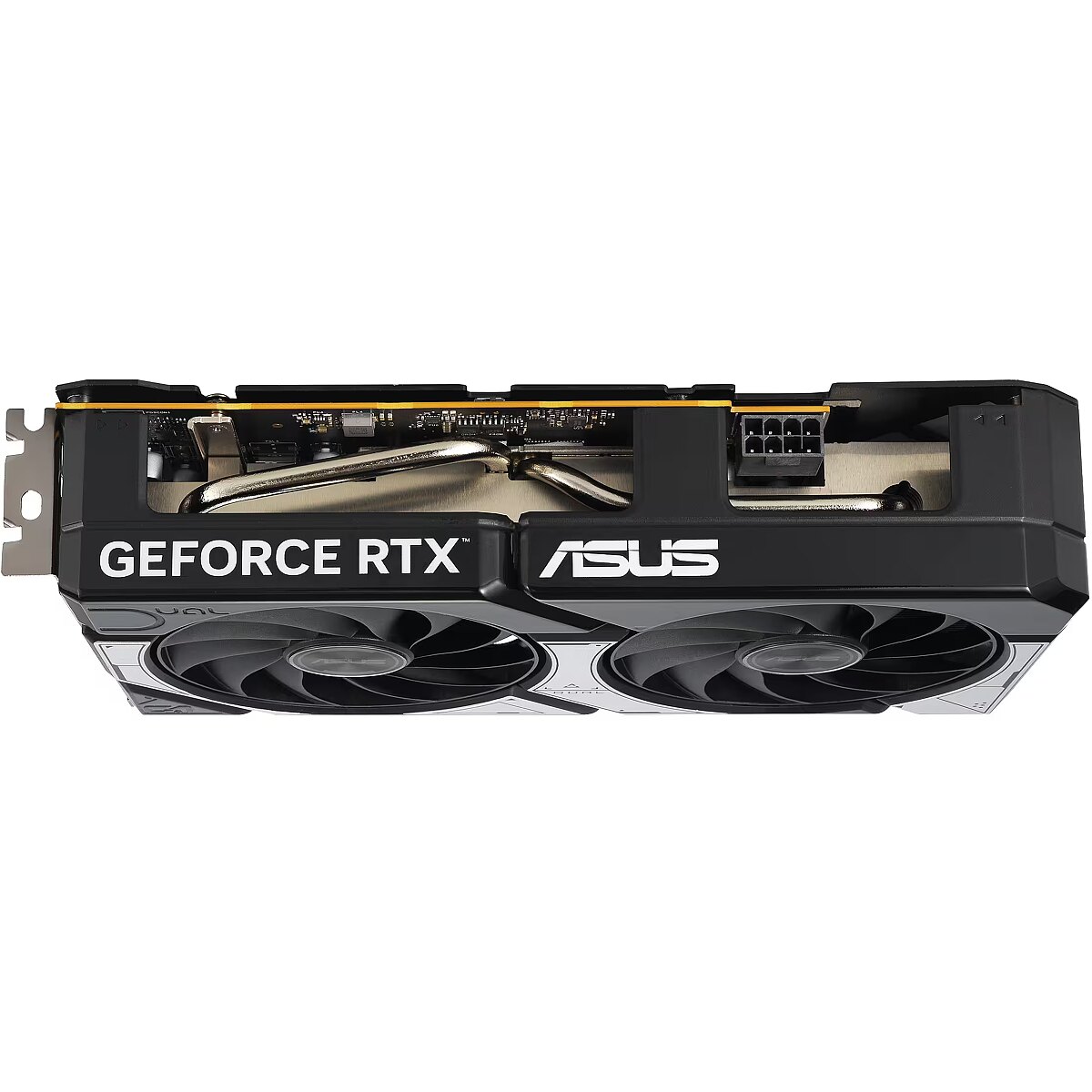

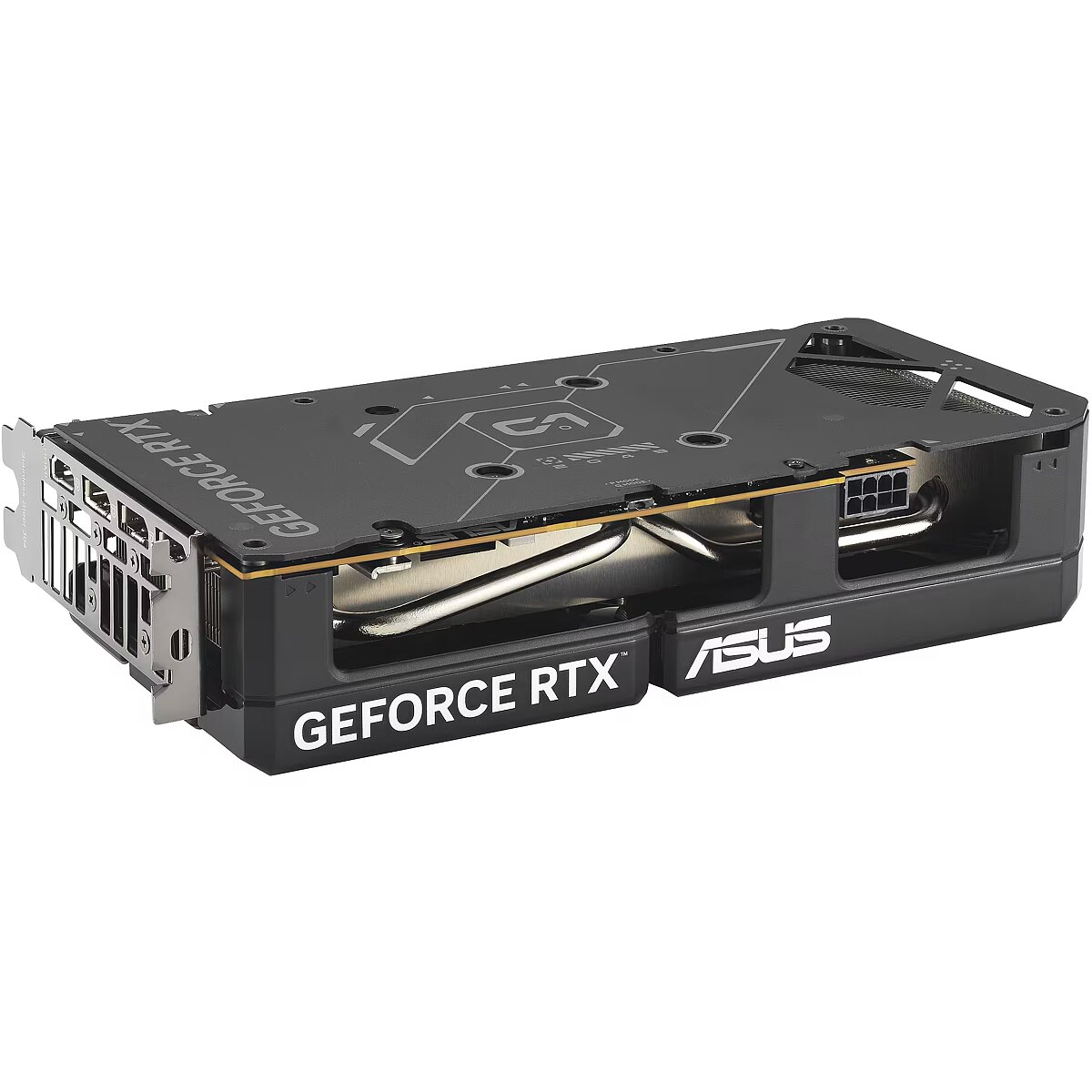

A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size. Axial-tech Upgrades

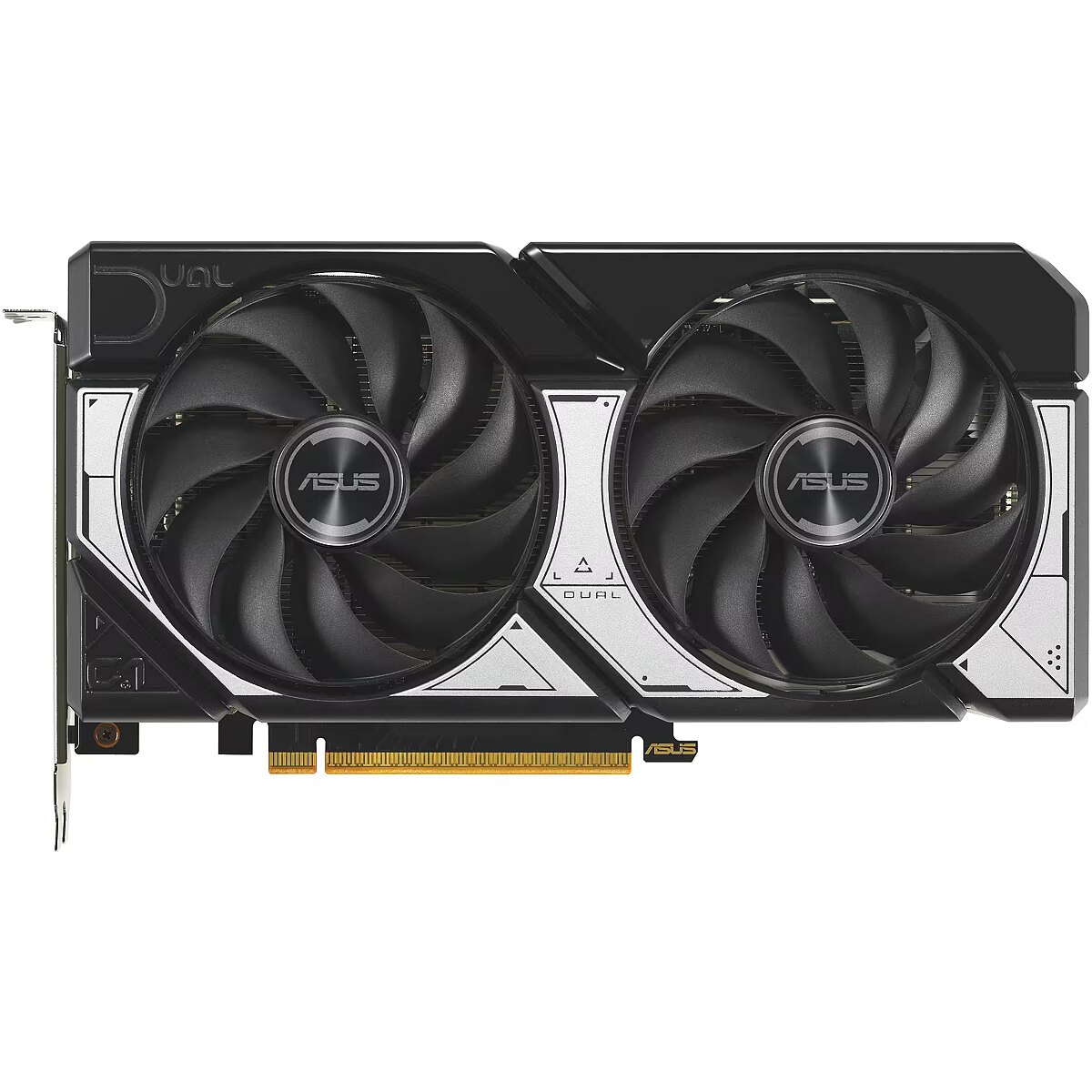

Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure. 0dB Technology
To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 50 degrees and power consumption is low. Dual Ball Fan Bearings
Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs. Vented Backplate

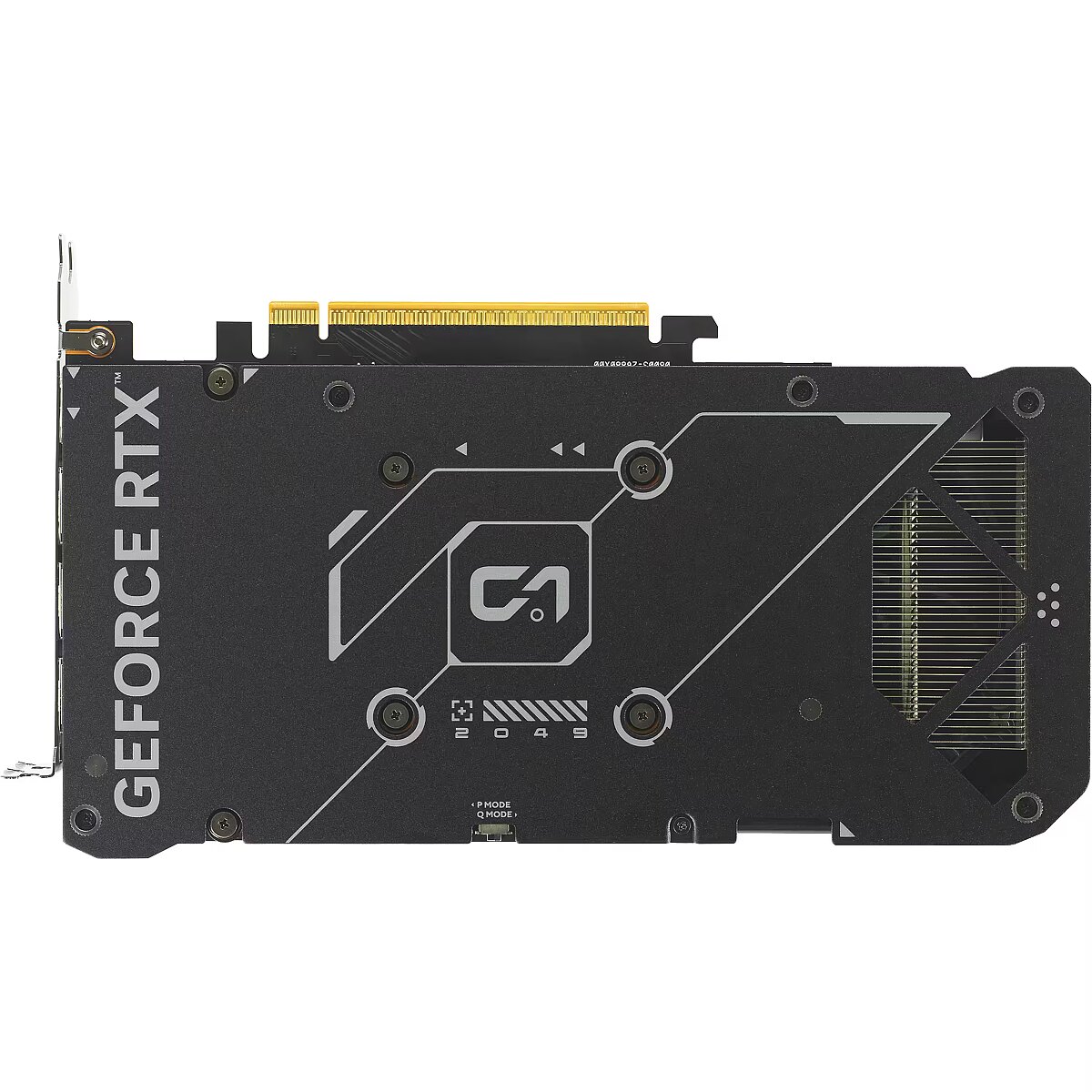

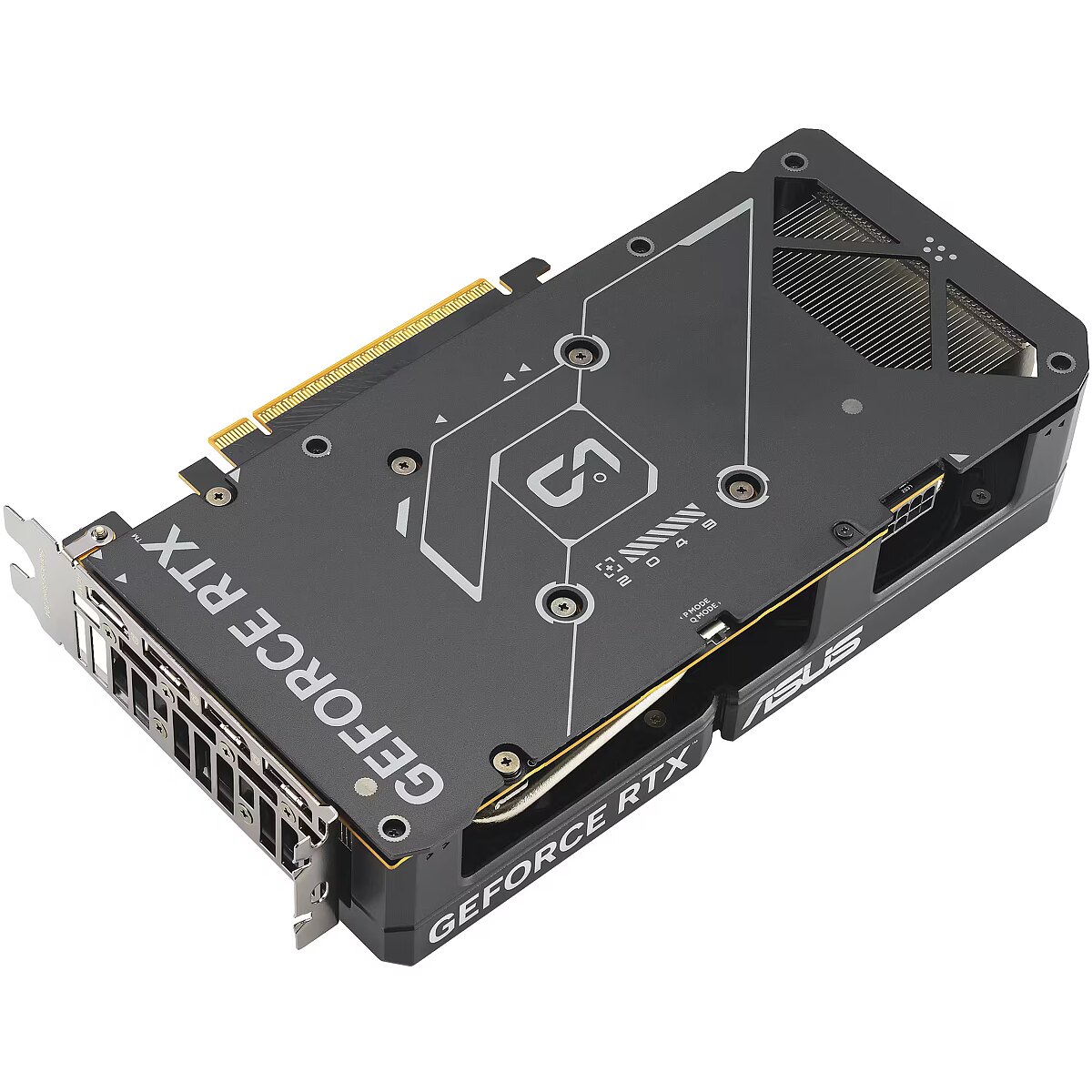

A vented backplate significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
Design - Cooling technology - ASUS Axial-tech
Design - Cooling type - Active
Design - Form factor - Full-Height/Half-Length (FH/HL)
Design - Number of fans - 2 fan(s)
Design - Number of slots - 2.5
Design - Product colour - Black
Design - Product colour - Black, Grey
Design - Product colour - Grey
Design - SFF ready - Yes
dimensionalWeight - 1165
Discrete graphics card memory Memory - 8 GB
DisplayPorts quantity Ports & interfaces - 3
DisplayPort version Ports & interfaces - 2.1b
EAN - 4711636057899
Eans - 4711636057899
EAN_code - 4711636057899
Form factor Design - Full-Height/Half-Length (FH/HL)
Graphics card memory type Memory - GDDR7
Graphics processor family Processor - NVIDIA
Graphics processor Processor - GeForce RTX 5060
Gross Weight Kg - 1,9
GTIN - 0199291057906
GTIN - 199291057906
GTIN - 4711636057899
HDCP Performance - Yes
HDCP version Performance - 2.3
HDMI ports quantity Ports & interfaces - 1
HDMI version Ports & interfaces - 2.1b
Height Weight & dimensions - 123 mm
Interface type Ports & interfaces - PCI Express 5.0
Length Weight & dimensions - 228 mm
Link - https://www.asus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/
LongDesc - DUAL GEFORCE RTX™ 5060Dual Fans, Perfect FitASUS Dual GeForce RTX™ 5060 combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.Build Small. Play Big.You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.Cooling2.5-slot DesignA carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.Axial-tech UpgradesTwo tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.0dB TechnologyTo eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 50 degrees and power consumption is low.Dual Ball Fan BearingsFan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.Vented BackplateA vented backplate significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
LongProductName - Dual GeForce RTX 5060 8GB GDDR7 OC Edition
LongSummaryDescription - ASUS Dual -RTX5060-O8G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5060. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR7, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 2 fan(s)
Manual Packaging content - Yes
Manufacturer - Asus
Manufacturer - ASUS
Manufacturer Code - 90YV0N12-M0NA00
Manufacturer Name - Asustek
Manufacturer_code - 90YV0N12-M0NA00
Maximum displays per videocard Processor - 4
Maximum resolution Processor - 7680 x 4320 pixels
Memory - Data transfer rate - 28 Gbit/s
Memory - Discrete graphics card memory - 8 GB
Memory - Graphics card memory type - GDDR7
Memory - Memory bus - 128 bit
Memory > Discrete graphics adapter memory - 8 GB
Memory > Graphics adapter memory type - GDDR7
Memory bus Memory - 128 bit
Minimum system power supply Power - 550 W
Model - DUAL-RTX5060-O8G
MPN - 90YV0N12-M0NA00
Name - Asus Dual GeForce RTX 5060 8GB GDDR7 OC Edition | NVIDIA | 8 GB | GeForce RTX 5060 | GDDR7 | HDMI ports quantity 1 | PCI Express 5.0
Name - ASUS GeForce RTX 5060 DUAL OC 8GB, graphics card DLSS 4, 3x DisplayPort, 1x HDMI 2.1
Name - ASUS GeForce RTX 5060 DUAL OC 8GB DLSS 4
Name - RTX 5060 8GB ASUS DUAL OC GDDR7
NPU performance up to Performance - 623 TOPs
Number of fans Design - 2 fan(s)
Number of slots Design - 2.5
NVIDIA G-SYNC Performance - Yes
OpenGL version Performance - 4.6
Overclocked (OC) edition Performance - Yes
Package depth Packaging data - 220 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 421.00 mm
Package features > Gross height (mm) - 88.00 mm
Package features > Gross width (mm) - 227.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 103 pc(s)
Package features > Paper/Pasteboard - 608.00 g
Package features > Plastic (No PET) - 152.00 g
Package features > Tare weight (kg) - 0.76 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 68 mm
Package type Packaging data - Box
Package weight Packaging data - 1107 g
Package width Packaging data - 368 mm
Packaging content - Manual - Yes
Packaging data - Package depth - 220 mm
Packaging data - Package height - 68 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.11 kg
Packaging data - Package width - 368 mm
Parallel processing technology support Processor - Not supported
Performance - HDCP - Yes
Performance - HDCP version - 2.3
Performance - NPU performance up to - 623 TOPs
Performance - NVIDIA G-SYNC - Yes
Performance - OpenGL version - 4.6
Performance - Overclocked (OC) edition - Yes
Performance - TV tuner integrated - No
Performance - Virtual Reality (VR) ready - Yes
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 2.1b
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1b
Ports & interfaces - Interface type - PCI Express 5.0
Ports & interfaces > DisplayPorts quantity - 3
Ports & interfaces > HDMI ports quantity - 1
Ports & interfaces > Interface type - PCI Express 5.0
Power - Minimum system power supply - 550 W
Power - Supplementary power connectors - 1x 8-pin
Processor - CUDA - Yes
Processor - CUDA cores - 3840
Processor - Graphics processor - GeForce RTX 5060
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 2535 MHz
Processor - Processor frequency (OC mode) - 2565 MHz
Processor > Graphics processor - GeForce RTX 5060
Processor > Graphics processor family - NVIDIA
Processor boost clock speed Processor - 2535 MHz
Processor frequency (OC mode) Processor - 2565 MHz
Producent: Nazwa producenta / importera - AsusASUS COMPUTER GmBHHARKORT STR. 21-2340880 RATINGENNiemcyEmail: https://www.asus.com/support/Product/ContactUs/Services/questionform/?lang=en&utm_source=asus-qr&utm
Producer - Asus
producerCode - 90YV0N12-M0NA00
ProducerCode - DUAL-RTX5060-O8G
Product colour Design - Black/Grey
productName - ASUS Dual GeForce RTX 5060 8 GB OC graphics card
ProductName - DUAL-RTX5060-O8G
Product Net Weight - 0.5 kg
productSize - Normal
SFF ready Design - Yes
Short description - ASUS VGA 8GB RTX5060 DUAL-O8G 3xDP/1xHDMI DUAL-RTX5060-O8G
ShortDescription - Chipset NVIDIA RTX 5060 | 8GB GDDR7
ShortSummaryDescription - ASUS Dual -RTX5060-O8G, GeForce RTX 5060, 8 GB, GDDR7, 128 bit, 7680 x 4320 pixels, PCI Express 5.0
sizeX - 370
sizeY - 225
sizeZ - 70
Summary - ASUS Dual -RTX5060-O8G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5060. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR7, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 2 fan(s)
Supplementary power connectors Power - 1x 8-pin
Technical details > Gross weight - 1.89 kg
Technical details > Net weight - 1.13 kg
Technical details > Producer - Asus
Technical details > Producer product name - Dual GeForce RTX 5060 8GB GDDR7 OC Edition
Title - ASUS Dual -RTX5060-O8G NVIDIA GeForce RTX 5060 8 GB GDDR7
TV tuner integrated Performance - No
Unit Box Height - 0.22
Unit Box Length - 0.37
Unit Box Width - 0.07
Unit Calculated Volume - 0.006947 cubm
Unit Calculated Weight - 1.24 kg
Units per Shipping Box - 8
URL - https://www.asus.com/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/
Vendor Homepage - https://www.asus.com/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/
Virtual Reality (VR) ready Performance - Yes
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1,10
Weight - 1.1
weight - 1080
Weight & dimensions - Depth - 50 mm
Weight & dimensions - Height - 123 mm
Weight & dimensions - Length - 228 mm
Weight & dimensions - Weight - 647 g
Weight Weight & dimensions - 647 g
