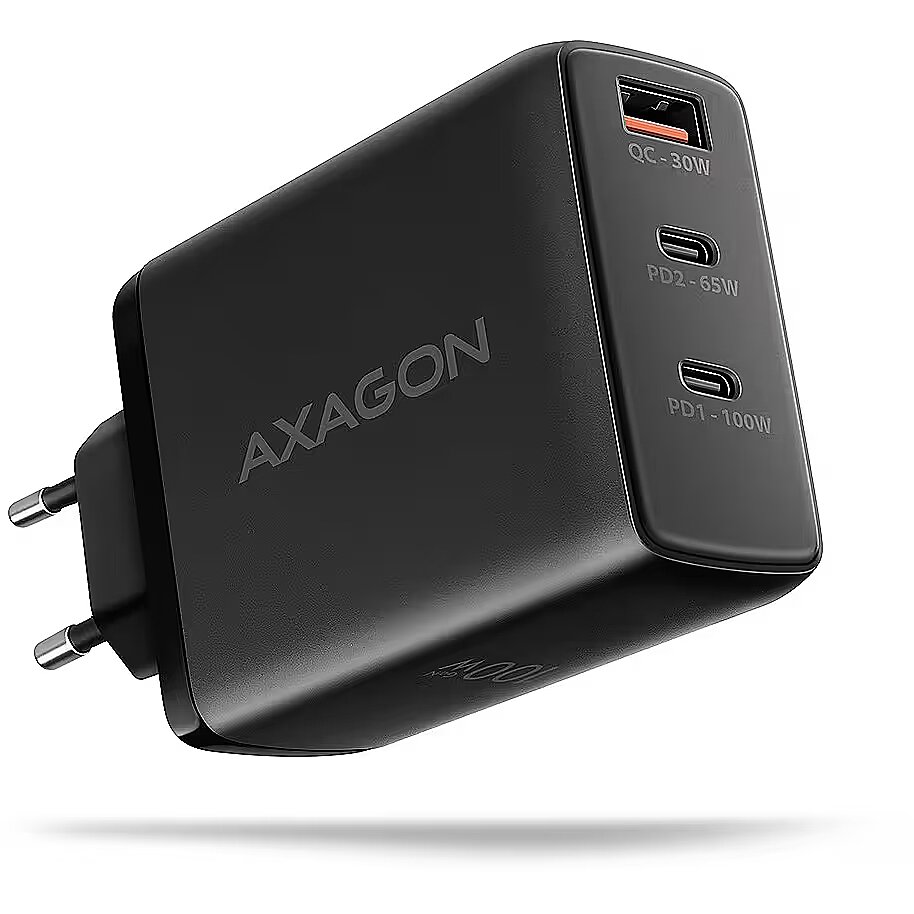

Axagon ACU-DPQ100 GaN 3xport wall charger 100W black

Accessories included - Black wall charger, multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA, Packed in a cardboard box with a hanging hole.
Aizsardzība pret ķēdēm - Pārspriegums Temperatūras pārslodze Pārslodzes strāva Short Circuit Protection
Augstums (mm) - 80 milimetrs
Barošanas adaptera un barošanas avota funkcijas - Qualcomm Quick Charge 2.0Qualcomm Quick Charge 3.0Qualcomm Quick Charge 1.0Power DeliveryQualcomm Quick Charge 4.0GaN TechnologyAutomatic Intelligent Communication
Barošanas ierīces atrašanās vieta - Ārējais
Barošanas ierīces tips - Strāvas adapteris
Brand - Axagon
BrandPartCode - ACU-DPQ100
Category - Mobile Device Chargers
category - Peripherals|Batteries & Power|USB Chargers
Category Code - CHA
Certificates - Certification - CE
Certificates - Compliance certificates - RoHS
Charger features - Wall
code - ACU-DPQ100
Code - ACU-DPQ100
Color - Black
Colour - Black
Compatible with - notebooks, phones and other mobile devices
Connectors - 1 x USB 3.0
Connectors - 2 x USB (Type C)
Description - ACU-DPQ100 PD3.0 & QC4+ THREE OUTPUTS wall charger 100W GaN wallcharger 3x port (USB-A + 2x USB-C), PD3.0 / PPS / QC4+ / SFC2.0 / AFC / SCP / FCP / Apple. 100W total power.

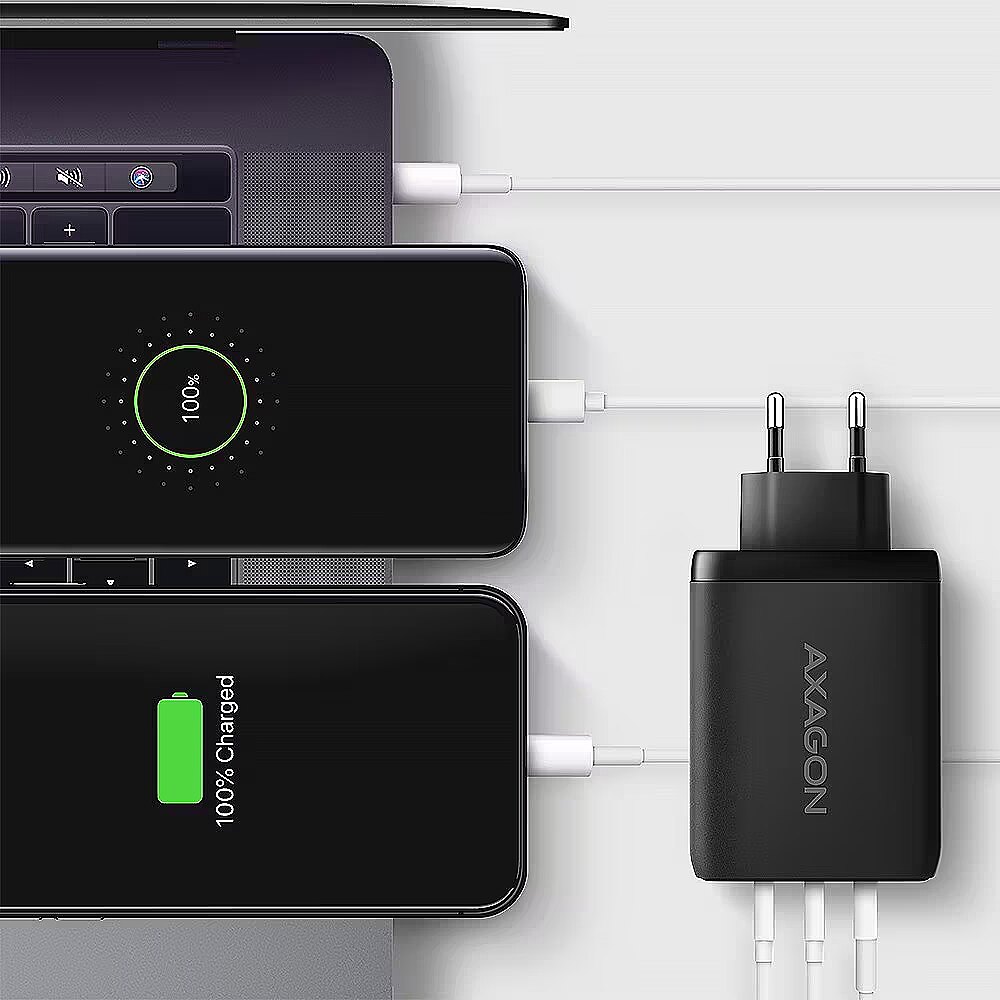

Description - The AXAGON ACU-DPQ100 GaN travel wall charger enables fast charging of up to three mobile devices at the same time. With 100W of total power, the charger charges notebooks, phones and other mobile devices at the highest possible speed. The adapter offers a standard USB-A connector, but also two double-sided USB-C connectors. Compact size and high performance is given by the new GaN technology used. The components used with Galium Nitride work with high efficiency, which allows you to achieve high performance with a small size. The charger is equipped with two Power Delivery 3.0 / Quick Charge 4+ USB Type-C outputs and one Quick Charge 3.0 USB Type-A output, enabling fast charging of not only smartphones and tablets, but also laptops. The Quick Charge 4+ technology allows up to 4 times faster charging of phones than a standard USB charger. Power Delivery 3.0 technology not only supports charging of modern phones, but also enables 100W PD charging of powerful laptops. The charger supports 20W PD charging for iPhone 12, 13, 14 and 15 and also offers 27W PD charging for iPhone 13 Pro, 14 Pro, 15 Pro and their Pro Max models. In addition, it supports 25W SFC charging for Samsung Galaxy S20 - S24, Note and Z Fold series and also offers 45W SFC 2.0 charging for Samsung Galaxy S20 - S24 Ultra, Tab S7+ - S9+, Tab S8 - S9 Ultra. The adapter is also compatible with other fast phone charging standards such as Apple iPhone, iPad, Samsung, Huawei, Honor, Xiaomi. The main advantage of the power adapter is the Power Delivery 3.0 standard for charging Apple MacBook, Lenovo, Asus, HP, Dell and other laptops. You can charge your laptop directly or with the increasingly popular docking stations and port replicators. The advanced protection system at the charging adapter output protects the device being charged from damage. The charger function also detects the device being charged and selects the optimal charging speed and progress. The body of the power adapter has a pleasant shape and size. Compared to classic charging adapters with the same parameters, the size of this charger is up to half the size. The combination of small dimensions, achieved with GaN technology and a wide range of input voltages, makes the charger an ideal travel helper.  Input:
input voltage AC 100V-240V / 2A / 50-60 Hz (WIV function) supports multiple national power standards
two-pin euro plug - integrated in the body of the charger Outputs:

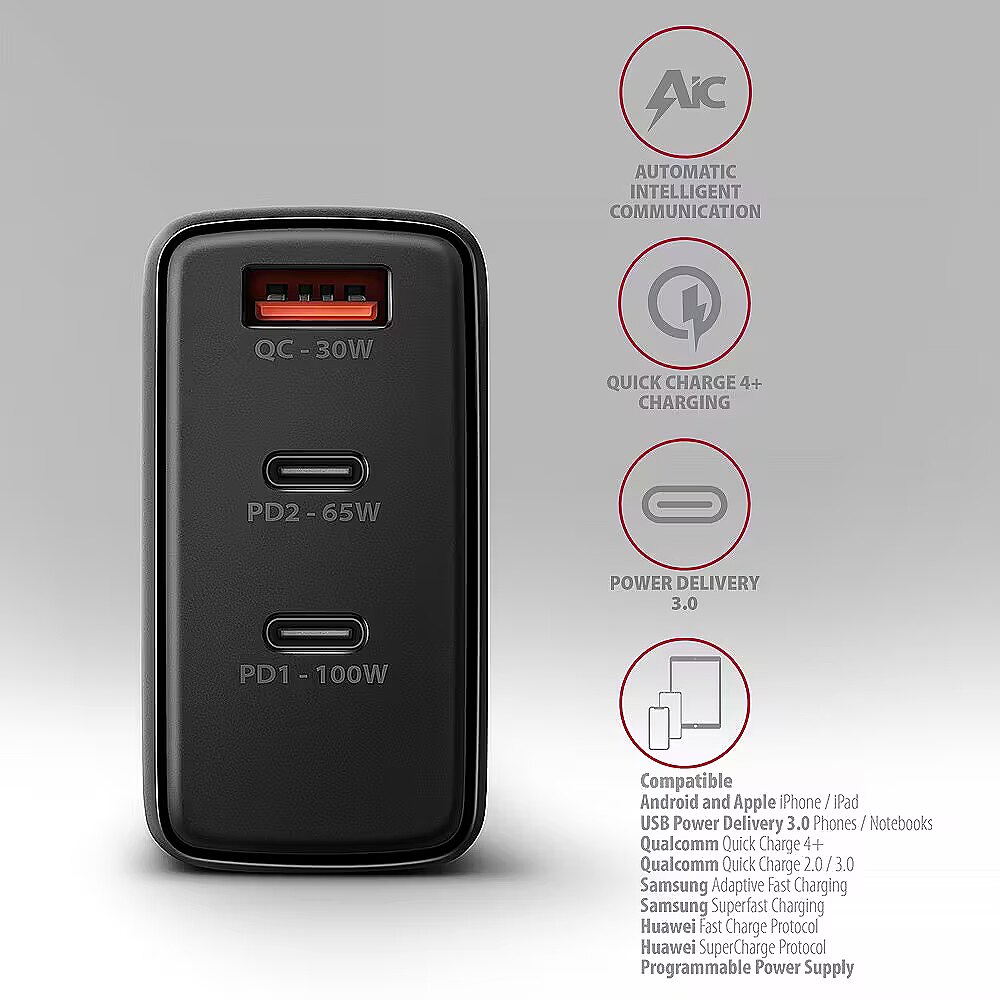

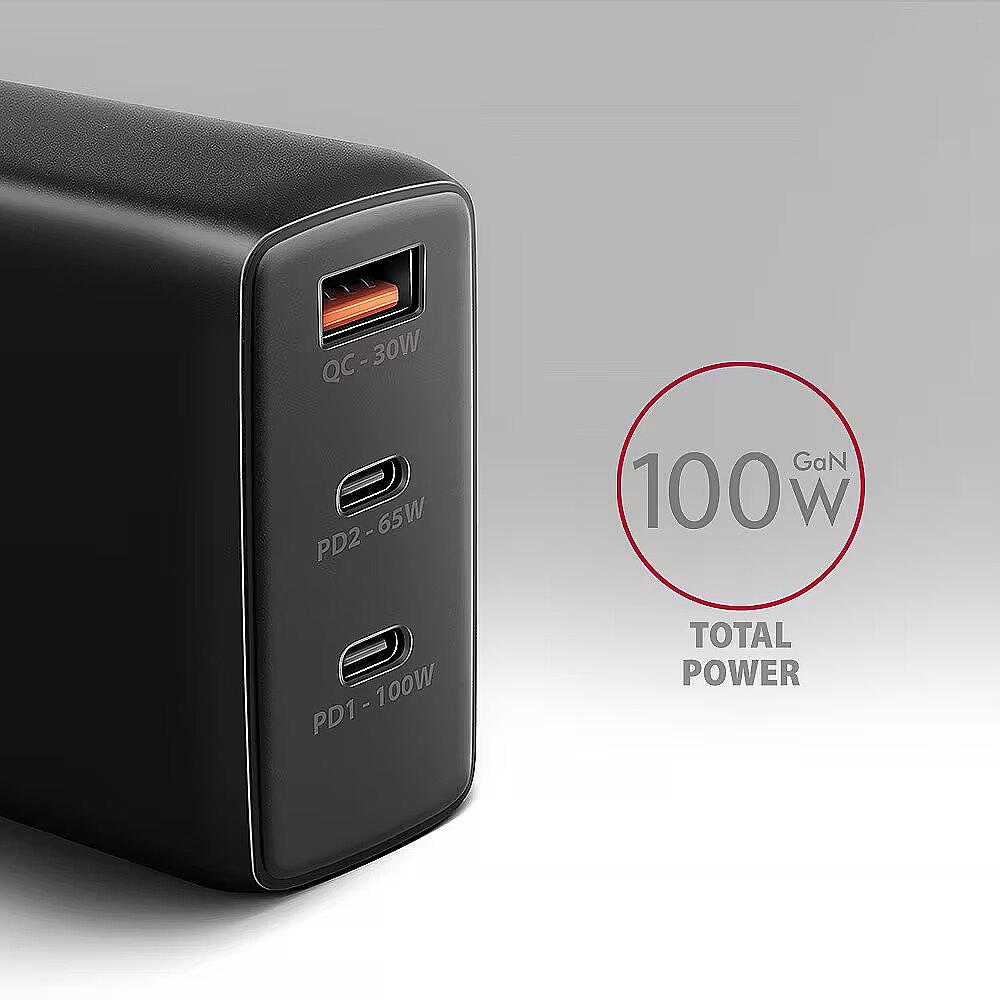

USB-A port QC (phones) max. 30W: 4.5V/5A, 5V/3A, 9V/3A, 12V/2.5A, 20V/1.5A
Charging technology: QC 3.0, QC 2.0, AFC, SCP, FCP, PE+, SMART, Apple 2.4A USB-C port PD2 (phones) max. 65W: 5V/3A, 9V/3A, 12V/2.5A, 15V/3A, 20V/3.25A, PPS: 3.3-11V/3A
Charging technology: PD 3.0, PD 2.0, PPS, QC4+, QC 3.0, QC 2.0, SFC 2.0, SFC, AFC, SCP, FCP, PE+, SMART, Apple PD USB-C port PD1 (laptops, phones) max. 100W: 5V/3A, 9V/3A, 12V/2.5A, 15V/3A, 20V/5A, PPS: 3.3-11V/5A
Charging technology: PD 3.0, PD 2.0, PPS, QC4+, QC 3.0, QC 2.0, SFC 2.0, SFC, AFC, SCP, FCP, PE+, SMART, Apple PD Maximum performance using multiple ports:
maximum power QC + PD2 15W, SMART mode charging is used (max. 5V/3A)
maximum power QC + PD1 83W
maximum power PD1 + PD2 85W
maximum power QC + PD1 + PD2 80W
total maximum power 100W
total maximum current 5A  Supported charging technologies:
Standard charging of all devices that support 5V and Apple iPhone 5, 6, SE, 7 charging.
SMART - charging max. 5V/3A, Quick Charge 1.0, USB Battery Charging 1.2 (DCP 1.5A) and Apple 2.4A (iPad).
PE+ - quick charging using MediaTek Pump Express+ and Pump Express+ 2.0 protocol.
FCP - quick charging of devices that support Huawei Fast Charge Protocol.
SCP - quick charging (up to 40W) using the Huawei SuperCharge Protocol.
AFC - quick charging using the Samsung Adaptive Fast Charging protocol.
SFC - quick charging using Samsung Super Fast Charging and Super Fast Charging 2.0 protocol.
QC - quick charging using the Qualcomm Quick Charge 2.0, Quick Charge 3.0 and Quick Charge 4+ protocol.
PPS - quick charging using the Programmable Power Supply protocol (part of USB PD 3.0 and QC4+).
PD - quick charging using USB Power Delivery 2.0 and Power Delivery 3.0 protocol. Examples of supported phones, tablets and laptops:
SFC - quick charging (up to 25W) of Samsung Galaxy S20, S21, S22, S23, S24 series, Note 10, 20 series, Z Fold 2, 3, 4 series.
SFC 2.0 - quick charging (up to 45W) of Samsung Galaxy S20, S21, S22, S23, S24 Ultra, Tab S7+, Tab S8+, Tab S9+, Tab S8 Ultra, Tab S9 Ultra.
PD - quick charging of Apple iPhone 8, 8 Plus, X, XS, XS Max, XR, 11, 11 Pro, 11 Pro Max phone.
PD - quick charging (up to 20W) Apple iPhone 12, 12 Mini, 12 Pro, 12 Pro Max, 12, 12 Mini, 12 Pro, 12 Pro Max, 13, 13 Mini, 14, 14 Plus, 15, 15 Plus phone.
PD - quick charging (up to 27W) Apple iPhone 13 Pro, 13 Pro Max, 14 Pro, 14 Pro Max, 15 Pro, 15 Pro Max phone.
PD - quick charging (up to 100W) ofLenovo, HP, Dell, Acer, Asus, Apple MacBook Air, MacBook Pro, iPad mini, iPad Air, iPad Pro and others notebooks. The charger supports WIV, AIC and CC functions:

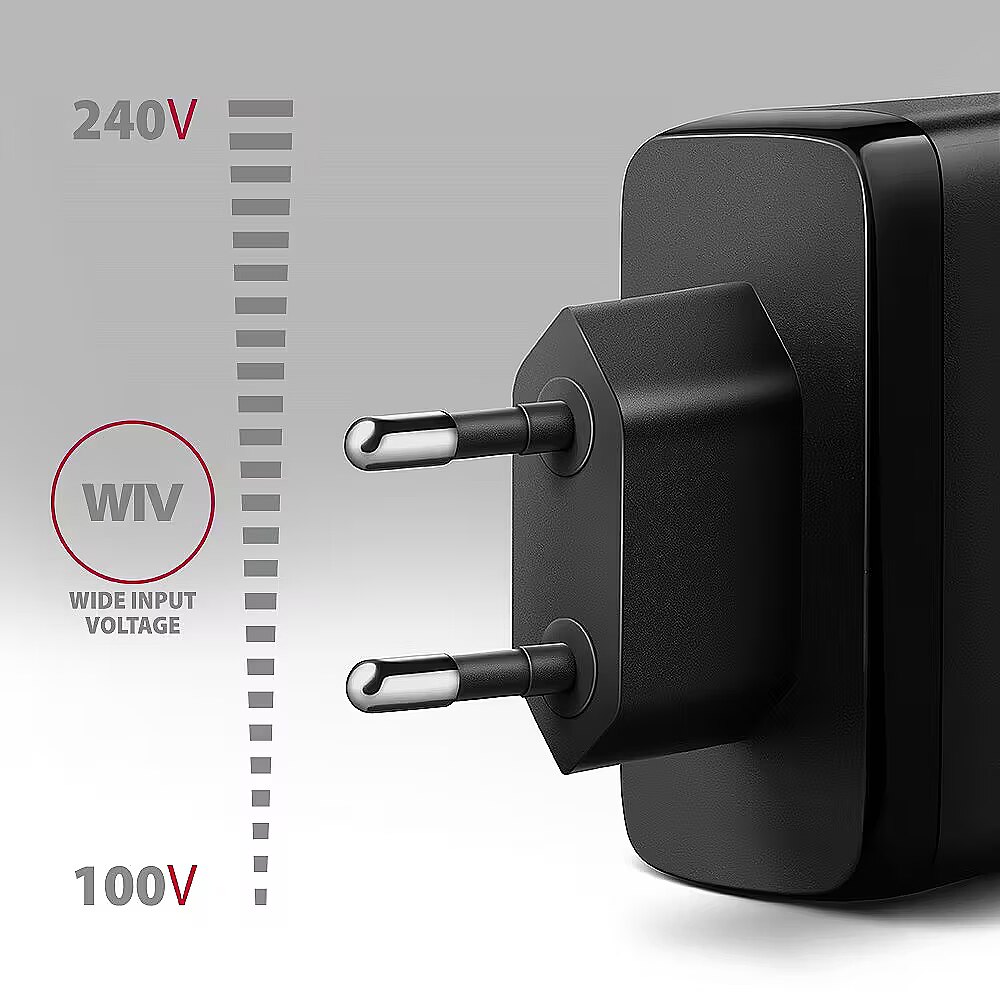

Wide Input Voltage - function of a wide range of input voltage; it protects the adapter against undervoltage and overvoltage at the input and allows the use of more national power standards.
Automatic Intelligent Communication - function of automatic recognition of the connected device to select optimal charging parameters.
Constant Output Current - the current hold function prevents the output power fluctuations; this function ensures steady course of charging. Complex output protection: OCP, OVP, OTP, OSP:

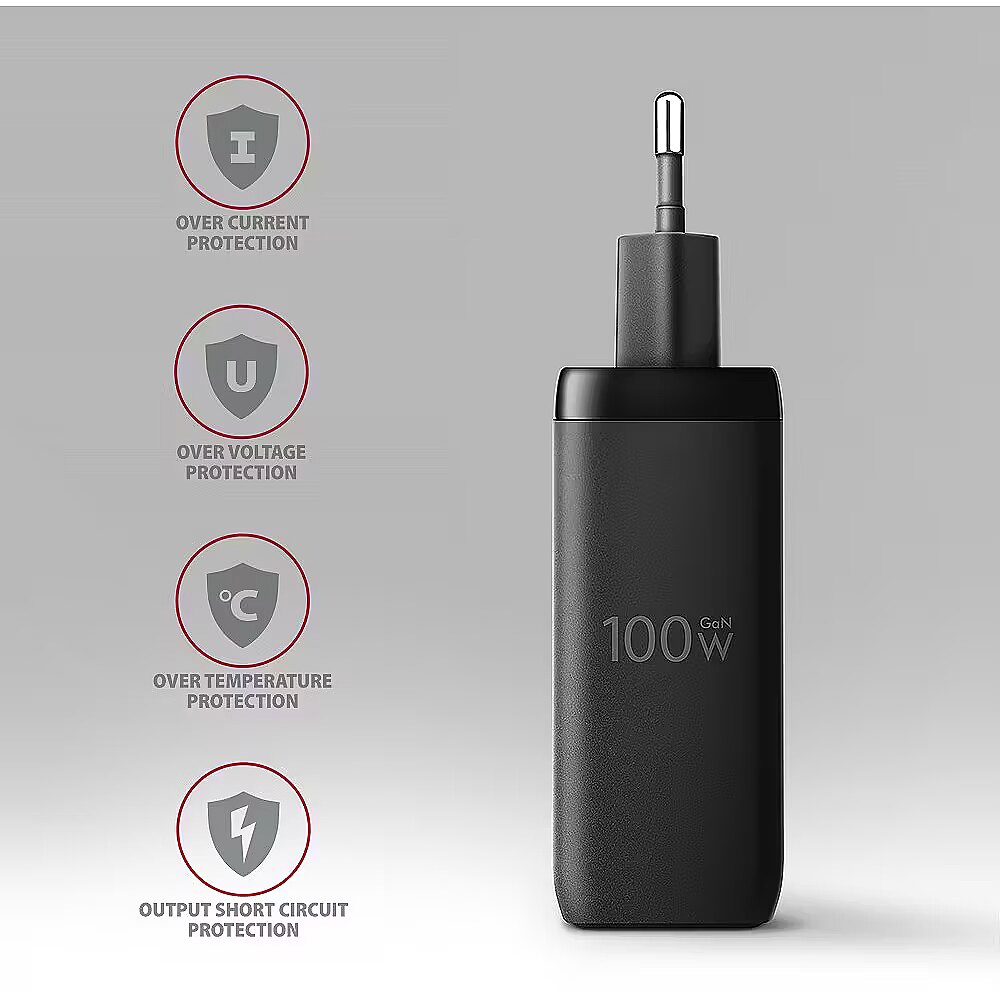

Over Current Protection. Protection of output against current overload.
Over Voltage Protection. Protection against overvoltage at the output.
Over Temperature Protection. Protection against overheating of the adapter.
Output Short Circuit protection. Short circuit protection at the output. Other features:

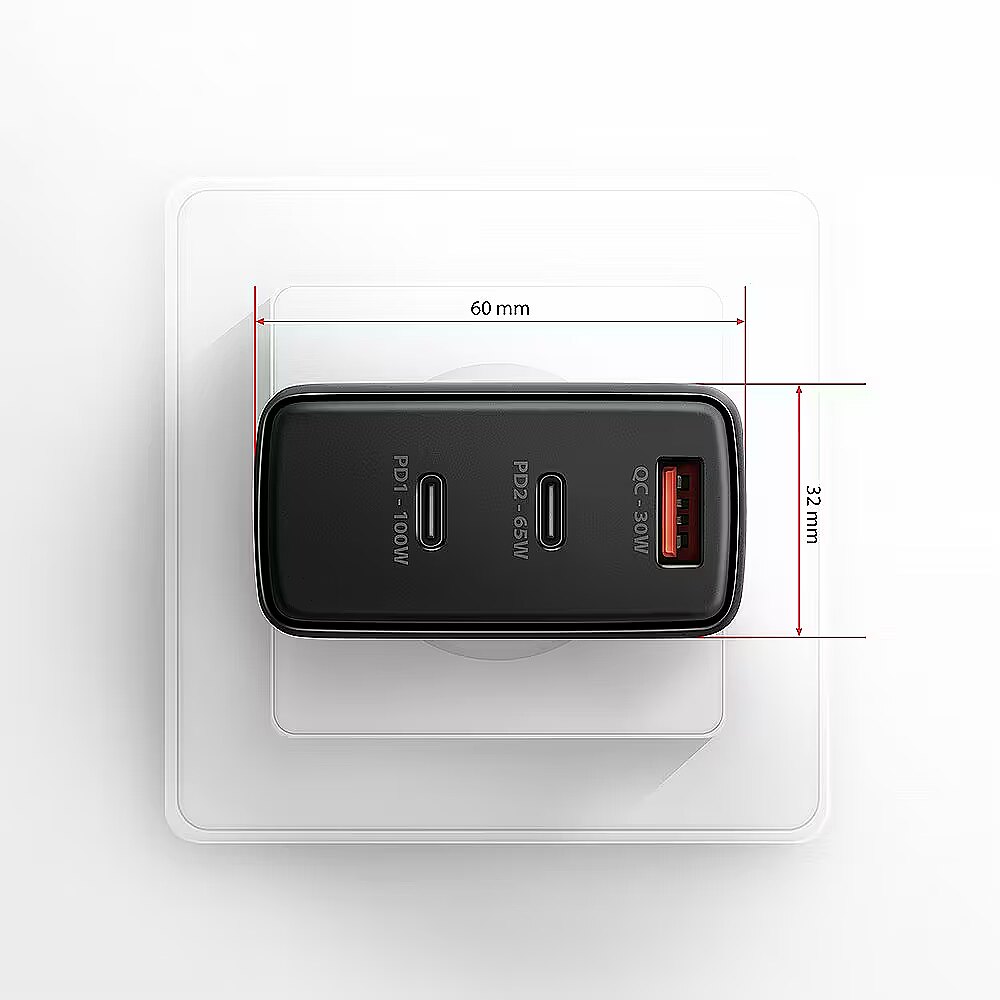

dimensions of the charger body 115 x 60 x 32 mm including a plug,
weight: 242 g,

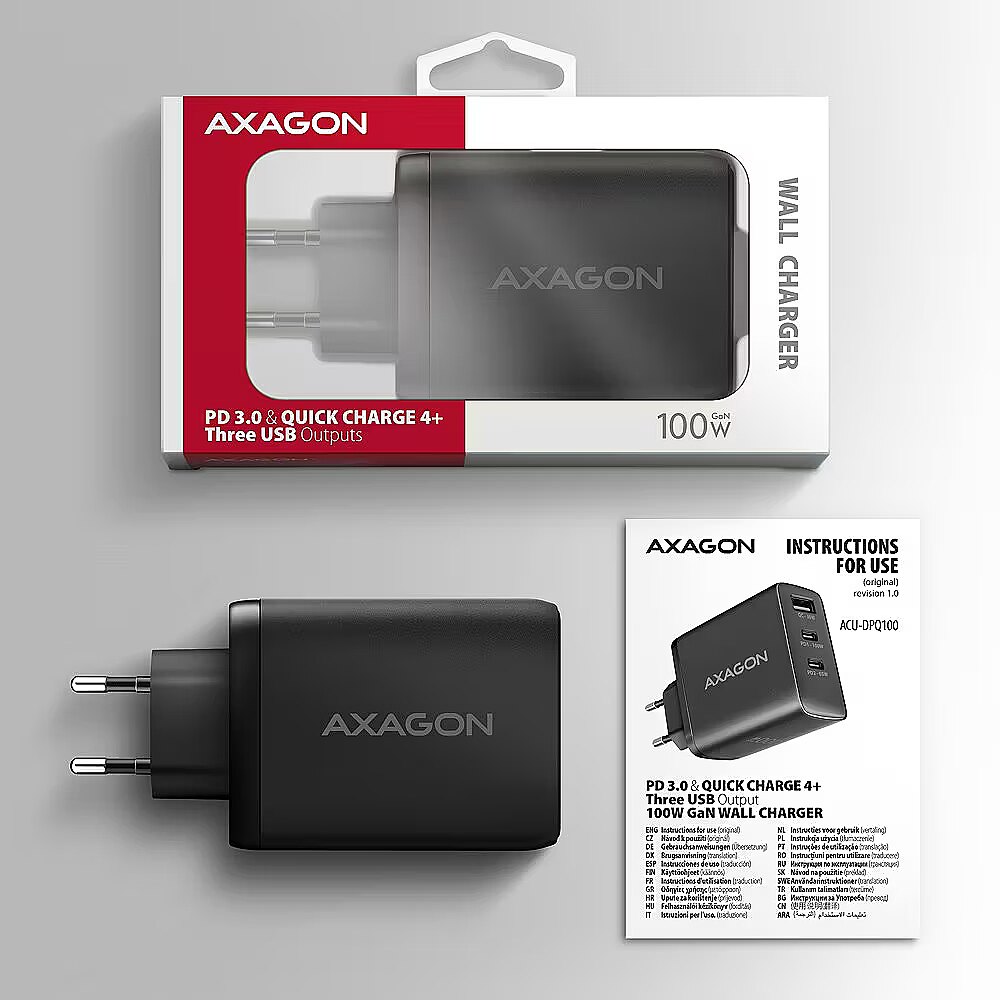

material: non-flammable plastic. Package contains:
black wall charger,
multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
packed in a cardboard box with a hanging hole.
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 40 mm
dimension height - 90 mm
Dimensions - 115 x 60 x 32 mm
dimension weight - 270 g
dimension width - 140 mm
Dziļums (mm) - 115 milimetrs
EAN - 8595247907912
ean - 8595247907912
Features > Colour of product - Black
Formas faktors - Portable
Gabali iepakojumā - 1
Garantija Produkti atgriežami - Jā
Garantijas apstiprināšanas kritēriji - Sērijas numurs
Garantijas termiņš (mēnesis) - 24 mēnesis(-i)
GTIN - 8595247907912
guarantee - 24
guarantee_type - normal
Ieejas barošanas savienotāji Daudzums - 1
Ieejas barošanas savienotāju tips - CEE 7/16
Ieejas spriegums - AC 100-240 volts
Iepakojuma svars Brutto (kg) - 0.19 kilograms
Iepakojuma svars Netto (kg) - 0.191 kilograms
Iepakojuma tips - Mazumtirdzniecība
Iepakojums kastē - 61
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/240426140011290083.jpg
Input Frequency - 50/60 Hercs
Kastes svars Brutto (kg) - 17.3 kilograms
Link - https://www.axagon.eu/en/produkty/acu-dpq100?ami=62
Logistics data - Country of origin - China
LongDesc - The AXAGON ACU-DPQ100 GaN travel wall charger enables fast charging of up to three mobile devices at the same time. With 100W of total power, the charger charges notebooks, phones and other mobile devices at the highest possible speed. The adapter offers a standard USB-A connector, but also two double-sided USB-C connectors.Compact size and high performance is given by the new GaN technology used. The components used with Galium Nitride work with high efficiency, which allows you to achieve high performance with a small size. The charger is equipped with two Power Delivery 3.0 / Quick Charge 4+ USB Type-C outputs and one Quick Charge 3.0 USB Type-A output, enabling fast charging of not only smartphones and tablets, but also laptops.The Quick Charge 4+ technology allows up to 4 times faster charging of phones than a standard USB charger. Power Delivery 3.0 technology not only supports charging of modern phones, but also enables 100W PD charging of powerful laptops.The charger supports 20W PD charging for iPhone 12, 13, 14 and 15 and also offers 27W PD charging for iPhone 13 Pro, 14 Pro, 15 Pro and their Pro Max models. In addition, it supports 25W SFC charging for Samsung Galaxy S20 - S24, Note and Z Fold series and also offers 45W SFC 2.0 charging for Samsung Galaxy S20 - S24 Ultra, Tab S7+ - S9+, Tab S8 - S9 Ultra.The adapter is also compatible with other fast phone charging standards such as Apple iPhone, iPad, Samsung, Huawei, Honor, Xiaomi. The main advantage of the power adapter is the Power Delivery 3.0 standard for charging Apple MacBook, Lenovo, Asus, HP, Dell and other laptops. You can charge your laptop directly or with the increasingly popular docking stations and port replicators.The advanced protection system at the charging adapter output protects the device being charged from damage. The charger function also detects the device being charged and selects the optimal charging speed and progress.The body of the power adapter has a pleasant shape and size. Compared to classic charging adapters with the same parameters, the size of this charger is up to half the size. The combination of small dimensions, achieved with GaN technology and a wide range of input voltages, makes the charger an ideal travel helper. Input:• input voltage AC 100V-240V / 2A / 50-60 Hz (WIV function) supports multiple national power standards• two-pin euro plug - integrated in the body of the chargerOutputs:• USB-A port QC (phones) max. 30W: 4.5V/5A, 5V/3A, 9V/3A, 12V/2.5A, 20V/1.5A• Charging technology: QC 3.0, QC 2.0, AFC, SCP, FCP, PE+, SMART, Apple 2.4A• USB-C port PD2 (phones) max. 65W: 5V/3A, 9V/3A, 12V/2.5A, 15V/3A, 20V/3.25A, PPS: 3.3-11V/3A• Charging technology: PD 3.0, PD 2.0, PPS, QC4+, QC 3.0, QC 2.0, SFC 2.0, SFC, AFC, SCP, FCP, PE+, SMART, Apple PD• USB-C port PD1 (laptops, phones) max. 100W: 5V/3A, 9V/3A, 12V/2.5A, 15V/3A, 20V/5A, PPS: 3.3-11V/5A• Charging technology: PD 3.0, PD 2.0, PPS, QC4+, QC 3.0, QC 2.0, SFC 2.0, SFC, AFC, SCP, FCP, PE+, SMART, Apple PDMaximum performance using multiple ports:• maximum power QC + PD2 15W, SMART mode charging is used (max. 5V/3A)• maximum power QC + PD1 83W• maximum power PD1 + PD2 85W• maximum power QC + PD1 + PD2 80W• total maximum power 100W• total maximum current 5A Supported charging technologies:• Standard charging of all devices that support 5V and Apple iPhone 5, 6, SE, 7 charging. • SMART - charging max. 5V/3A, Quick Charge 1.0, USB Battery Charging 1.2 (DCP 1.5A) and Apple 2.4A (iPad).• PE+ - quick charging using MediaTek Pump Express+ and Pump Express+ 2.0 protocol.• FCP - quick charging of devices that support Huawei Fast Charge Protocol.• SCP - quick charging (up to 40W) using the Huawei SuperCharge Protocol.• AFC - quick charging using the Samsung Adaptive Fast Charging protocol.• SFC - quick charging using Samsung Super Fast Charging and Super Fast Charging 2.0 protocol.• QC - quick charging using the Qualcomm Quick Charge 2.0, Quick Charge 3.0 and Quick Charge 4+ protocol.• PPS - quick charging using the Programmable Power Supply protocol (part of USB PD 3.0 and QC4+).• PD - quick charging using USB Power Delivery 2.0 and Power Delivery 3.0 protocol.Examples of supported phones, tablets and laptops:• SFC - quick charging (up to 25W) of Samsung Galaxy S20, S21, S22, S23, S24 series, Note 10, 20 series, Z Fold 2, 3, 4 series.• SFC 2.0 - quick charging (up to 45W) of Samsung Galaxy S20, S21, S22, S23, S24 Ultra, Tab S7+, Tab S8+, Tab S9+, Tab S8 Ultra, Tab S9 Ultra.• PD - quick charging of Apple iPhone 8, 8 Plus, X, XS, XS Max, XR, 11, 11 Pro, 11 Pro Max phone.• PD - quick charging (up to 20W) Apple iPhone 12, 12 Mini, 12 Pro, 12 Pro Max, 12, 12 Mini, 12 Pro, 12 Pro Max, 13, 13 Mini, 14, 14 Plus, 15, 15 Plus phone.• PD - quick charging (up to 27W) Apple iPhone 13 Pro, 13 Pro Max, 14 Pro, 14 Pro Max, 15 Pro, 15 Pro Max phone.• PD - quick charging (up to 100W) ofLenovo, HP, Dell, Acer, Asus, Apple MacBook Air, MacBook Pro, iPad mini, iPad Air, iPad Pro and others notebooks.The charger supports WIV, AIC and CC functions:• Wide Input Voltage - function of a wide range of input voltage; it protects the adapter against undervoltage and overvoltage at the input and allows the use of more “national power standards”.• Automatic Intelligent Communication - function of automatic recognition of the connected device to select optimal charging parameters.• Constant Output Current - the current hold function prevents the output power fluctuations; this function ensures steady course of charging.Complex output protection: OCP, OVP, OTP, OSP: • Over Current Protection. Protection of output against current overload.• Over Voltage Protection. Protection against overvoltage at the output.• Over Temperature Protection. Protection against overheating of the adapter.• Output Short Circuit Protection. Short circuit protection at the output.Other features:• dimensions of the charger body 115 x 60 x 32 mm including a plug,• weight: 242 g,• material: non-flammable plastic.Package contains:• black wall charger,• multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,• packed in a cardboard box with a hanging hole.
LongProductName - USB-A + 2x USB-C, 100W max, PD3.0 & QC4+
LongSummaryDescription - Axagon ACU-DPQ100. Charger type: Indoor, Power source type: AC, Charger compatibility: Mobile computer, Mobile phone, Netbook, Laptop, Smartphone, Smartwatch, Tablet, Universal. Input voltage: 100 - 240 V, Maximum output voltage: 4.5 V. USB 2.0 ports quantity: 1, USB Type-C ports quantity: 2, Fast charging, Power protection features: Over voltage, Overheating, Overload, Short circuit, Under voltage. Product colour: Black
Maksimālā izejas jauda - 100 Vats
Materiāls - Plastic
Mazumtirdzniecības iepakojuma neto svars Plastmasa - 0.191 kilograms
Mazumtirdzniecības iepakojums Neto svars Kartona kārba - 0.191 kilograms
Model name - ACU-DPQ100
name - ACU-DPQ100 GaN 3xport wall charger 100W black
name - AXAGON ACU-DPQ100 GaN Wall charger, 3x port (USB + dual USB-C), PD3.0/QC4+/PPS/Apple, 100W, schwarz
Name - AXAGON GaN wallcharger, 3x port (USB-A + 2x USB-C), PD3.0/PPS/QC4+/SFC2.0/AFC/SCP/FCP/Apple, 100W | ACU-DPQ100
Nominālais svars - 242 grams
Other features -
Output current (max) - 5 A
Output power capacity, W - 100 Watts
Output Power Connectors Quantity - 3
Output Power Connectors Type - USB/USB-C
Output voltage - 20 V
Output Voltage - DC 5/9/12/15/20 volts
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 38.00 mm
Package features > Gross height (mm) - 90.00 mm
Package features > Gross width (mm) - 155.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 3260 pc(s)
Package features > Paper/Pasteboard - 31.20 g
Package features > Plastic (No PET) - 7.80 g
Package features > Tare weight (kg) - 0.04 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Manual - Yes
Packaging content - Quantity per pack - 1 pc(s)
Packaging data - Package depth - 90 mm
Packaging data - Package height - 38 mm
Packaging data - Package type - Display box
Packaging data - Package weight - 191 g
Packaging data - Package width - 155 mm
Performance - Charger compatibility - Mobile computer, Mobile phone, Netbook, Laptop, Smartphone, Smartwatch, Tablet, Universal
Performance - Charger type - Indoor
Performance - Cooling fan - No
Performance - Fast charging - Yes
Performance - Fast charging technology - Adaptive Fast Charging, GaN, Hypercharge, Power Delivery 3.0, Quick Charge 2.0, Quick Charge 3.0, Quick Charge 4, Quick Charge 4+
Performance - MagSafe compatible - No
Performance - Number of simultaneously connected devices (max) - 3
Performance - Operating principle - Contact
Performance - Power protection features - Over voltage, Overheating, Overload, Short circuit, Under voltage
Performance - Power source type - AC
Performance - Special features - Smart IC
Performance - USB 2.0 ports quantity - 1
Performance - USB Power Delivery (USB PD) - Yes
Performance - USB Power Delivery revision - 3.0
Performance - USB Power Delivery up to - 100 W
Performance - USB Type-C ports quantity - 2
Performance - Wireless charging - No
Platums (mm) - 32 milimetrs
Power - 100 W
Power - Compatible power plug types - EU
Power - Input frequency - 50 - 60 Hz
Power - Input voltage - 100 - 240 V
Power - Maximum output voltage - 4.5 V
Power - Maximum power - 100 W
Power - Minimum output voltage - 20 V
Power - Port 1 output power - 30 W
Power - Port 2 output power - 65 W
Power - Port 3 output power - 100 W
producer - AXAGON
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=240216062324552017&THEME=asbis&LANG=lv
ProductCategory - Kabeļi
ProductCode - ACU-DPQ100
ProductDescription - AXAGON ACU-DPQ100 GaN Wall charger, 3x port (USB + dual USB-C), PD3.0/QC4+/PPS/Apple, 100W, black
ProductName - ACU-DPQ100
Product Net Weight - 0.15 kg
ProductType - Power Adapter
Rated Current - 3 Ampērs
ShortSummaryDescription - Axagon ACU-DPQ100, Indoor, AC, 4.5 V, Black
Technical details > Gross weight - 0.19 kg
Technical details > Net weight - 0.15 kg
Technical details > Producer - AXAGON
Technical details > Producer product family - GaN wallcharger, 3x port (USB-A + 2x USB-C), PD3.0/PPS/QC4+/SFC2.0/AFC/SCP/FCP/Apple, 100W
Technical details > Producer product name - ACU-DPQ100
Title - Axagon ACU-DPQ100 mobile device charger Mobile computer, Mobile phone, Netbook, Laptop, Smartphone, Smartwatch, Tablet, Universal Black AC Fast charging Indoor
Type - Wall
Unit Box Height - 0.11
Unit Box Length - 0.04
Unit Box Width - 0.145
Unit Calculated Volume - 0.000638 cubm
Unit Calculated Weight - 0.27 kg
Units per Shipping Box - 1
URL - https://www.axagon.eu/en/produkty/acu-dpq100
USB - 2 (C tipa USB kabelis)
USB-C Input/Output connectors - 2
USB 3.0 - 1 (USB 3.0 (A tipa))
USB 3.0 Input/Output connectors - 1
Vendor - AXAGON
Vendor Homepage - www.axagon.eu/en/produkty/acu-dpq100?ami=212
vendpn - ACU-DPQ100
Warranty - 24
Warranty - 24 month(s)
Warranty - 24 months
WarrantyInfo -
Weight - 242 g
Weight & dimensions - Depth - 32 mm
Weight & dimensions - Height - 115 mm
Weight & dimensions - Weight - 152 g
Weight & dimensions - Width - 60 mm
Ārējā krāsa - Melna
