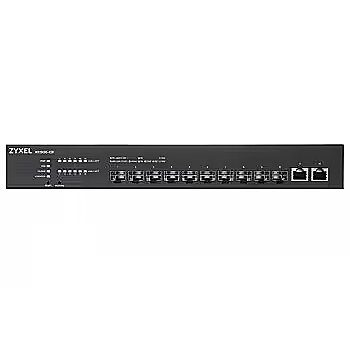

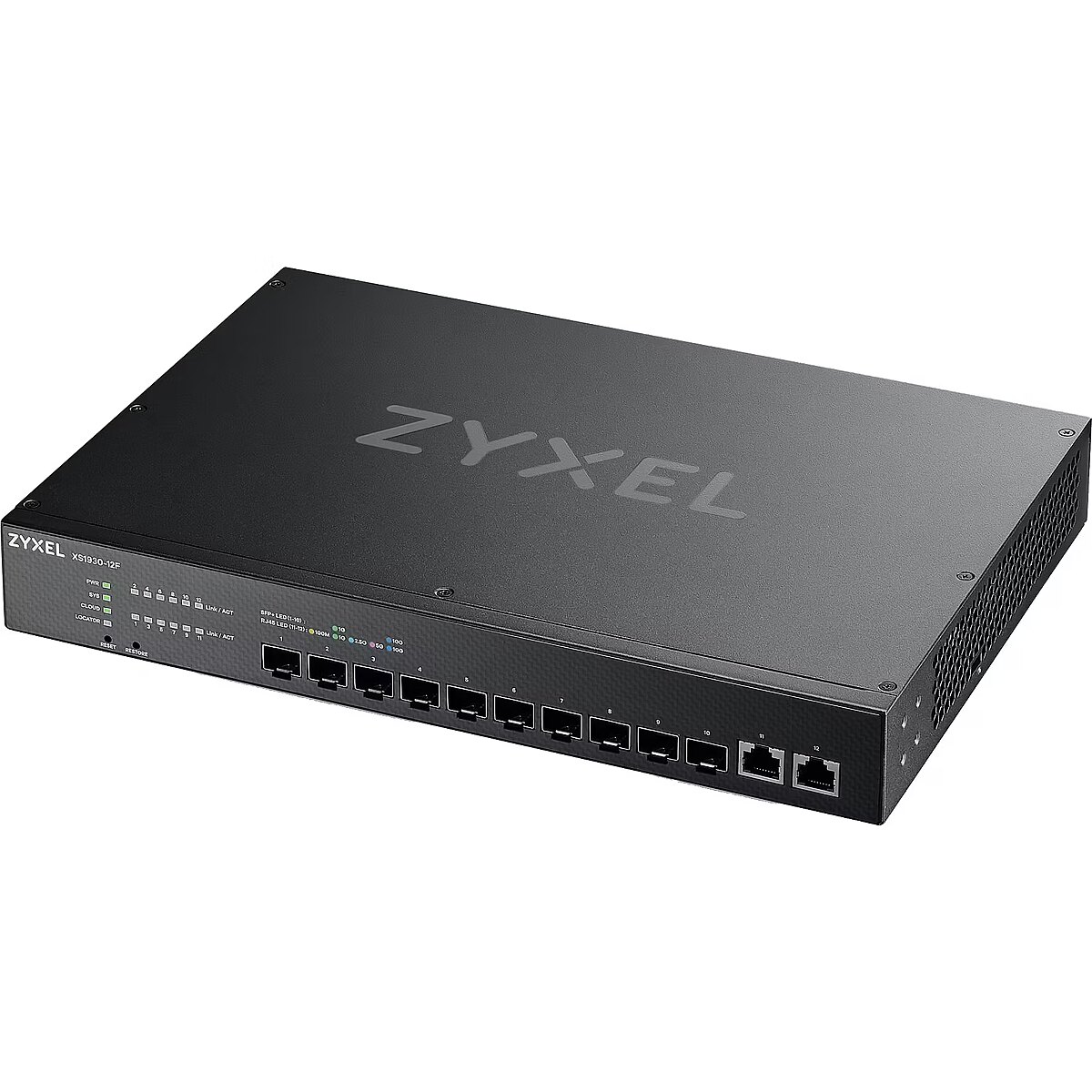

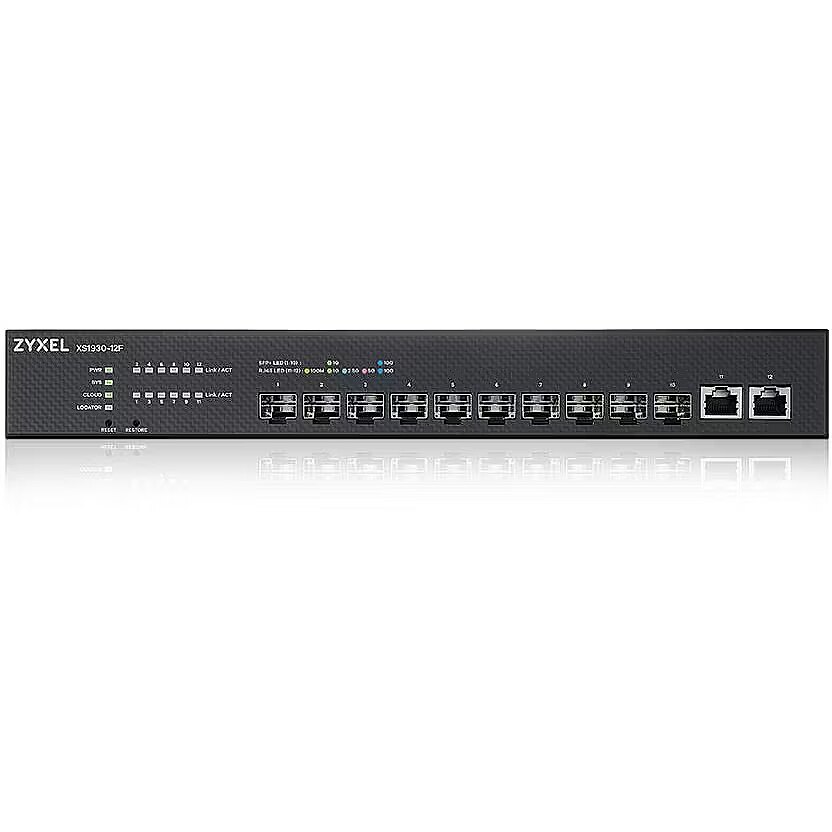

Zyxel XS1930-12F-ZZ0101F, 12port

Category 1 - Netzwerk
Category 2 - Switching Hubs
Number of 10/100/1000 Mbps ports - 2
Data transmission - Forwarding rate - 178.5 Mpps
Data transmission - Switching capacity - 240 Gbit/s
Data transmission - MAC address table - 16000 entries
Data transmission - Packet buffer memory - 2 MB
Data transmission - Static route - Yes
Data transmission - Jumbo frames - 12000
Data transmission - Jumbo frames support - Yes
Authentication method - RADIUS
Brand - Zyxel
BrandPartCode - XS1930-12F-ZZ0101F
DHCP client - Yes
DHCP server - Yes
Design - LED indicators - Yes
Design - Rack mounting - Yes
Design - Product colour - Black
EAN_code - 4718937620791
Forwarding rate - 178.5 Mpps
Power consumption - 24.9 W
Category_1 - Network and Servers
Ethernet LAN (RJ-45) ports quantity - 8
EAN - 4718937620791
Fan - Yes
guarantee - -1
PeriodofWarranty -
WarrantyInfo -
guarantee_type - external
GTIN - 4718937620791
Management, monitoring, configuration - SNMP v1, v2c, v3 SNMP trap group RMON (1, 2, 3, 9) Syslog (IPv4/v6) IEEE 802.1AB LLDP IEEE 802.1AB LLDP-MED Custom default Display port utilization Support NebulaFlex for hybrid mode
Management features - ARP inspection - Yes
Management features - Configuring Location Settings (CLI) - Yes
Management features - MIB support - Y
Management features - Quality of Service (QoS) support - Yes
Management features - Web-based management - Yes
IGMP snooping - Yes
Management features - Switch layer - L2/L3
Management features - Switch type - Managed
Support for Jumbo frames - Yes
Jumbo frame size - 12 KB
Performance - Internal memory - 256 MB
Performance - Flash memory - 32 MB
Weight - 2.2 kg
Weight - 3,67
Weight - 3.681
Weight - 3.720000
Weight, g - 2400
Weight & dimensions - Weight - 3.63 kg
Weight & dimensions - Width - 484 mm
Weight & dimensions - Depth - 337 mm
Weight & dimensions - Height - 79 mm
Category - Network Switches
Category_2 - Network - Switches and Hubs
ean - 4718937620791
Mean time between failures (MTBF) - 1254.657 h
Description - ZYXEL XS1930-12F, 10-PORT 10G SMART MANAGED FIBER SWITCH, 2 MULTI-GIGABIT PORTS, HYBRID MODE, STANDALONE OR NEBULAFLEX CLOUD (5Y WARRANTY)
Description - Biznes musi zarezerwować miejsce na większe zapotrzebowanie na pasmo, w tym rosnącą liczbę urządzeń multi-gigabitowych, takich jak serwery, punkty dostępowe i inne obsługujące więcej niż standardowy gigabit, a także rosnący ruch w sieciach bezprzewodowych i IoT. Przedstawiamy nową rodzinę inteligentnych przełączników zarządzalnych Multi-Gigabit firmy Zyxel. Seria ta została stworzona z myślą o dzisiejszej sieci, zapewniając jednocześnie przyszłościową technologię umożliwiającą sprawną rozbudowę sieci. Zapotrzebowanie na zwiększoną przepustowość sieci bezprzewodowych takich jak gwałtownie rosnące wykorzystanie nowoczesnych smartfonów, tabletów i urządzeń IoT nigdy się nie kończy. Standard 802.11ac spowodował wzrost przepustowości sieci bezprzewodowych poza tradycyjny limit 1 Gbps, szybkie przyjęcie wysokowydajnej infrastruktury bezprzewodowej są teraz w kierunku najnowszego standardu WiFi 6 (11ax) standard.
vendpn - XS1930-12F-ZZ0101F
Accessories included - Kabel zasilający Zestaw do montażu rack
Console port - No
Stackability - Yes
Height - 80.000000
L2 features - L2 multicast group: 1K IGMP snooping (v1, v2, v3) Configurable IGMP snooping timer and priority IGMP snooping statistics IGMP throttling IGMP filtering Static multicast
L3 features -
Width - 337.000000
Logistics data - Harmonized System (HS) code - 85176990
Throughput - 240 Gb/s
ShortSummaryDescription - Zyxel XS1930-12F-ZZ0101F, Managed, L2/L3, Rack mounting
Switch type - Managed
Switch layer - L2
Switch layer - L3
Switching capacity, Gbit/s - 200
MAC address table, entries - 16000
MAC address table size - 16000
MPN - XS1930-12F-ZZ0101F
Multicast features - Multicast support - Yes
Other functions -
Other features -
Designation - CE+WEEE
dimension height - 485 mm
dimension width - 335 mm
dimension depth - 80 mm
Dimensions - 330 x 230 x 44 mm
Dimensions W x D x H, mm - 330 x 230 x 44
dimension weight - 3710 g
Noise level, dB - 28
Name - 2+10P Zyxel XS1930-12F M RM
name - XGS1930-12F Gigabit 10x10GbE SFP+ 2xRJ45
Name - Zyxel XS1930-12F, Switch
Packet transfer speed - 148.8 Mpps
Title - Zyxel XS1930-12F-ZZ0101F network switch Managed L2/L3 Black
LongDesc - Business needs to reserve room for greater bandwidth demands, including growing number of Multi-Gigabit devices such as servers, APs and other devices supporting beyond the standard gigabit, as well as increasing wireless and IoT traffic. Introducing Zyxel’s new family of Multi-Gigabit smart managed switch series that is purpose-built for today’s network while providing futureproof technology for agile network expansion. The XS1930 series consists of 3 models: XS1930-10 with 8 Multi-Gigabit ports and XS1930-12HP with 10 Multi-Gigabit PoE ports providing up to 60 W per port, both equipped with additional 2 SFP+ uplink ports; the fiber model XS1930-12F containing 10 SFP+ ports and 2 Multi-Gigabit ports provides high-bandwidth aggregation connectivity to multiple switches across network. Each of the Multi-Gigabit ports support speed 100M/1G/2.5G/5G/10G that are suitable for every network device. 5-color LED makes network upgrade visible Upgrading to 10 Gigabit Ethernet often require costly wiring upgrades, but thanks to the latest IEEE 802.3bz standard, it can provide Multi-Gigabit technology on existing wiring infrastructure designed for standard Gigabit, protecting your investments while offering up to 10 times more bandwidth capacity without the expensive and disruptive cable upgrades. Each copper port of the new Multi-Gigabit switch is able to automatically detect which speed is needed with the connected device. It may not always operate at the maximum port speed due to quality or length of the cable used by the network. It’s common for Multi-Gigabit switches to operate at different link speed for each individual ports. The XS1930 Series is designed with unique 5-color LED, providing an intuitive indication of connection speed for each individual ports. For example, when a WiFi 6 (11ax) access point connects to a XS1930-12HP switch, the LED of the connected port will instantly and clearly light up with a color that represents the best achievable performance beyond Gigabit. Superior PoE paves the way for high performance WiFi 6 APs The demand for increased bandwidth of wireless networks such as the skyrocketing use of modern smartphones, tablets, and IoT devices never ends. The 802.11ac standard has pushed wireless capacity beyond the traditional 1 Gbps limit, the rapid adoption of high-performance wireless infrastructure are now moving towards the latest WiFi 6 (11ax) standard. The XS1930-12HP supports new high power IEEE 802.3bt (PoE++) offering up to 60 W per port. The PoE++ backwards compatibility with existing PoE/PoE+ devices allow customers to continue to power existing APs and accessories at the same time, offering enough power for 11AX AP that requires more than the traditional 30 W per port. XS1930-12HP provides a large power budget of up to 375 W which gives enough headroom for connections up to 8 WiFi 6 (11ax) APs. The user-friendly PoE consumption indicator located on the front panel and Web GUI provides real-time power utilization. Trustworthy aggregation switch for agile network expansion When your business adopts the XGS1930 access switch series (Gigabit switch with 10G uplinks), it carries up to four 10G fiber ports for uplinks and server connections. These 10G fiber ports can also be used in time of network expansion when connecting to a 10G fiber aggregation switch. Incorporated with its advanced features, XS1930- 12F with up to ten SFP+ fiber ports provide high-bandwidth backbone connectivity for multiple access switches to flexibly address versatile network infrastructure demands Near silent Multi-Gigabit operation The XS1930 Series brings more speed silently to your network with Zyxel’s advanced smart fan design, it is able to automatically adjust speeds based on the device temperature to minimize system acoustic noise, offering near silent network environment while your upgrade your home or office networks to 10G high speed connection. NebulaFlex — simply manage it your way! The XS1930 Series supports NebulaFlex technology which provides extended flexibility, especially for those who hesitate to step up for cloud networking. You can easily switch network management modes between standalone, and our license-free Nebula cloud management platform. The NebulaFlex even allows you to change your mind at any time without additional cost while protecting previous investments on wired technology. Smart managed switch design inside and out Under the stylish carbon-like cover comes a new hardware and software that widens user experience and control with intuitive features like the One-touch ‘Restore’ button on the front panel. SMB features such as VLAN, enhanced QoS, Link Aggregation, IPv6 and DoS prevention along with IPv4/IPv6 Layer 3 static routing all can be configured through its user-friendly web interface without learning any complex command line interface (CLI).
LongSummaryDescription - Zyxel XS1930-12F-ZZ0101F. Switch type: Managed, Switch layer: L2/L3. MAC address table: 16000 entries, Switching capacity: 240 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3z. Power connector: AC-in jack. Rack mounting
LongProductName - 10G 12-Port Fiber aggregation switch
Length - 490.000000
Spanning tree protocol - Yes
Ports & interfaces - Power connector - AC-in jack
Ports & interfaces - SFP+ module slots quantity - 10
Port mirroring - Yes
Power over Ethernet (PoE) Support - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
RAM memory - 256
Ports quantity - 10
SFP+ slots quantity - 2
Number of SFP+ ports - 10
Application - Home and small office
Quality of Service (QoS) support - Yes
QoS - No. of hardware queues per port: 8 802.1p queuing methods: SPQ, WRR, WFQ Storm control: broadcast, unknown L2MC, unknown unicast (DLF) Rate limiting per port Policy-based rate limiting Policy-based prioritization
Supported protocols and standards - IEEE 802.3z 1000BASE-X IEEE 802.3ab 1000BASE-T Ethernet IEEE 802.3an 10G BASE-T Ethernet IEEE 802.3ae 10 Gbit/s Ethernet over fiber IEEE 802.3af PoE IEEE 802.3at PoE plus IEEE 802.3bt (60 W) PoE over 4 pair IEEE 802.3x flow control IEEE 802.3ad LACP aggregation IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) IEEE 802.1p Class of Service (CoS) prioritization IEEE 802.1X port authentication
Power supply - 100 - 240 V AC, 50/60 Hz
Power supply - Internal
ProductName - XS1930-12F-ZZ0101F
Manufacturer - Zyxel
producer - Zyxel
Manufacturer_code - XS1930-12F-ZZ0101F
ManufacturerPartNumber - XS1930-12F-ZZ0101F
Security - 802.1X Uwierzytelnianie MAC Statyczne przekierowanie MAC SSL Statyczne ARP Izolacja portów Wyszukiwanie MAC Sieć VLAN dla gości Agent przekaźnikowy PPPoE Opcja PPPoE 82 PPPoE IA Włączanie/wyłączanie pułapek związanych z interfejsem (przez port) Ochrona CPU
Security - Loop protection - Yes
Security - Security algorithms - HTTPS, SHA-2, SSL/TLS
Security - DHCP features - DHCP client, DHCP relay
Security - IGMP snooping - Yes
Security - Access Control List (ACL) - Yes
Security - SSH/SSL support - Yes
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -20 - 50 °C
Operational conditions - Heat dissipation - 84.91 BTU/h
Switch class - Managed
Switch class - SMART
URL - https://www.zyxel.com/
VLAN - 802.1Q Static VLANs/Dynamic VLANs: 1K/4K Support up to 4K VLAN ID Independent VLAN Learning (IVL) Port-based VLAN VLAN trunking GVRP
Flash memory, MB - 32
Power - Power source - AC
Power - AC input voltage - 100 - 240 V
Power - AC input frequency - 50 - 60 Hz
Power - Power consumption (max) - 24.9 W
Power consumption, W - 44.3
Network architecture - GigabitEthernet
Network - 10G support - Yes
Network - Broadcast storm control - Yes
Network - Ethernet LAN data rates - 1000,2500,5000,10000 Mbit/s
Network - Link aggregation - Yes
Network - Port mirroring - Yes
Network - Spanning tree protocol - Yes
Network - Number of VLANs - 4000
Network - VLAN support - Yes
Network - Flow control support - Yes
Network - Networking standards - IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3z
Chassis type - Rack
