Ubiquiti Enterprise XG 24, 24x 10xGb, 2x SFP28

10/100/1000/2500 Mbps ports - None
Accessories included -
Application - Medium and large companies
brand - Ubiquiti
category - Ubiquiti > UniFi komutatori > Enterprise
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Certificates - CE FCC IC
Chassis type - Rack
Code - USW-EnterpriseXG-24
Console port - No

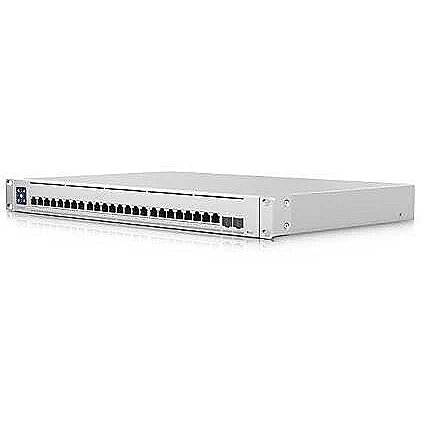

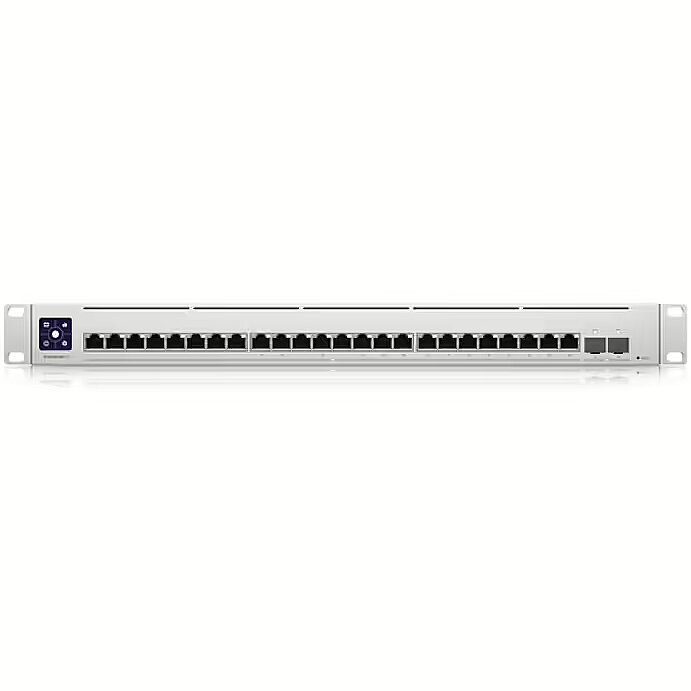

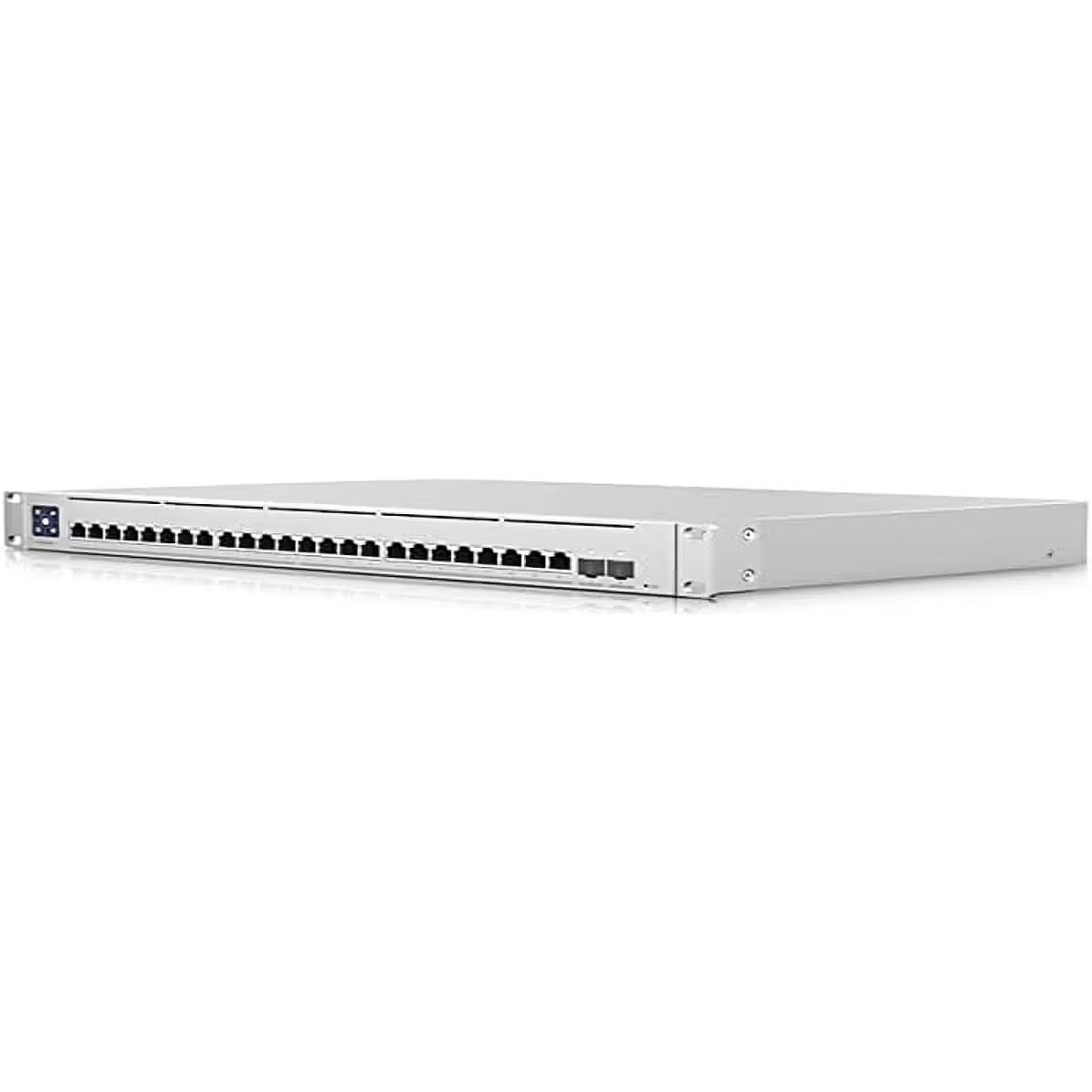

Description - Ubiquiti USW-EnterpriseXG-24 | Switch | 24x RJ45 10Gb/s, 2x SFP28 25G, L3 The Switch Enterprise XG 24 (USW Enterprise XG 24) is a fully managed, multi-gigabit Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports. The USW Enterprise XG 24 also features a 1.3-inch color touchscreen LCM that concisely displays key system and connection information.
Design > Form factor - Rackmountable
Designation - CE+WEEE
dimension depth - 410 mm
dimension height - 520 mm
Dimensions - 442 x 285 x 44 mm
dimension weight - 5500 g
dimension width - 120 mm
EAN - 0810010072917
EAN - 810010072931
ean - 810010072931
EAN - 0810010072931
EAN - 8100100729312
EAN_code - 0810010072931
Environment requirements - Ambient operating temperature -5 to 40°C Ambient operating humidity 10% to 95% non-condensing
Fan - Yes
Forwarding rate - 431.52 Mpps
Gross Weight Kg - 4,9
guarantee - 12
guarantee_type - normal
height - 0.15 m
L2 features - IGMP Scanning STP/RSTP with Port Priority and Disablement Port Isolation Storm Control Voice VLAN Port Spinning LACP Port Aggregation Multicast/Broadcast Rate Limiting MAC Address Blocking Flow Control 802.1X Control Jumbo Frames Self Loop Protection DHCP Scanning/Detailed Scanning Egress Rate Limit LLDP-MED MAC Restricted Port Device Isolation with ACL
L3 features - DHCP for Locally Managed Networks DHCP Relay Routing Between VLANs on the Same Switch Static Routing Between Local Area Networks Network Isolation with ACLs
length - 0.52 m
Management, monitoring, configuration -
Management features > Switch layer - SMB Layer 3 Gigabit Ethernet switch
Management features > Switch type - Managed L3
Manufacturer - Ubiquiti
Manufacturer Code - USW-ENTERPRISEXG-24
Manufacturer Name - Ubiquiti Networks
Manufacturer_code - USW-EnterpriseXG-24
mpn - USW-EnterpriseXG-24
MPN - USW-ENTERPRISEXG-24
Name - 24+2P Ubiquiti USW-EnterpriseXG-24 M RM
name - Networks UniFi Enterprise XG 24 Switch
Name - Ubiquiti Unifi Switch Enterprise 24 XG
Name - Ubiquiti | Unifi Switch | USW-EnterpriseXG-24 | Managed L3 | Rackmountable | Gigabit Ethernet (copper) ports quantity 24 | SFP+ ports quantity 2x 25G SFP | Power supply type Internal
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 24
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of SFP+ ports - None
Number of SFP56 ports - None
Number of SFP ports - None
Other features - 1.3" color touch screen
Other features > Power supply type - Internal
Other functions -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 520 mm
Package features > Gross depth master carton - 530 mm
Package features > Gross height (mm) - 410 mm
Package features > Gross height master carton - 440 mm
Package features > Gross width (mm) - 123 mm
Package features > Gross width master carton - 265 mm
Package features > Net weight master carton - 11.2 kg
Package features > Packing quantity - 2 pc(s)
Package features > Palette Qty - 56 pc(s)
Package features > Paper/Pasteboard - 180.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Tare weight master carton - 1.051 kg
Package features > Volume (m3) - 0.0262236 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PDF - https://www.blobs.lt/products/4/4/7/4/6/3/d162c4969dc48d2eb96d892404ced14a/original.pdf
Ports & interfaces > Gigabit Ethernet (copper) ports quantity - 24
Ports & interfaces > Predominant port type - 1 Gbps (RJ-45)
Ports & interfaces > SFP+ ports quantity - 2x 25G SFP
Power consumption - 100 W
Power supply - AC/DC, internal, 100W
Power supply - Internal
producer - UBIQUITI
Producer product family - Unifi Switch
Producer product name - USW-EnterpriseXG-24
QoS -
Security -
SFP28 ports - 2
Short description - Ubiquiti Switch UniFi 24xRJ45 10G/2xSFP28 25G Managed 19" Rack-Mountable, 1,3" Touchscreen
Stackability - No
Supported protocols and standards -
Support for Jumbo frames - No
Switch class - Managed
Switch layer - L2
Switch layer - L3
Technical details > Gross weight - 5.6 kg
Technical details > Net weight - 5.4 kg
Technical details > Other features - The Switch Enterprise XG 24 (USW Enterprise XG 24) is a fully managed, mult-gigabit, Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports. The USW Enterprise XG 24 also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights
Technical details > Producer - Ubiquiti
Technical_details - Type: switch EAN: 0810010072931 Manufacturer No.: USW-EnterpriseXG-24 Design: desktop Area of application: Business Connections: 24x (of which: 24x 1000/2500/5000/10000) : Auto MDI/MDIX Routing & Switching: Layer 2 switching, Layer 3 switching : 580 Gbps : 431.52MPP/s Firewall: 290 Mbps Power supply: power supply connection, total PoE budget: 120 W, max. PoE supply per port: 32 W Feature: LCM color touch screen with AR switch management | suitable for wall mounting Accessories: wall mounting kit Dimensions: Width: 248mm x Height: 44mm x Depth/Length: 200mm
Throughput - 290 Gb/s
title - Ubiquiti UniFi Switch EnterpriseXG 24
vendpn - USW-EnterpriseXG-24
VLAN -
Warranty - 12
Warranty - 12 month(s)
Weight - 1,80
Weight - 4.5 kg
Weight - 5.68
weight - 6.27 kg
width - 0.41 m
