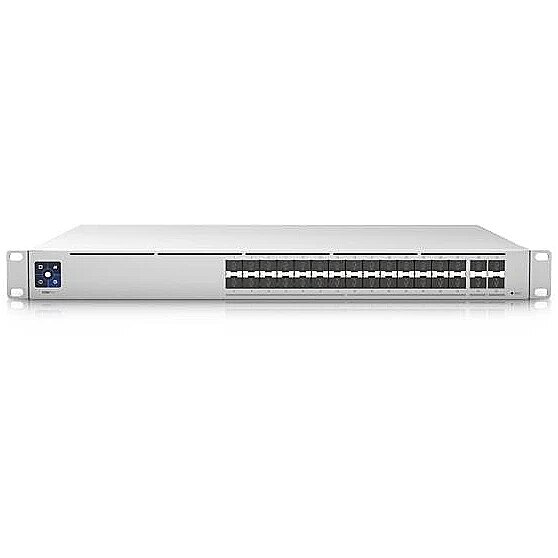

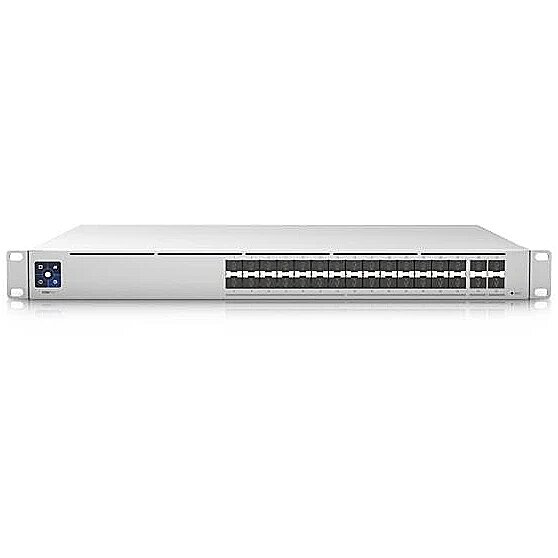

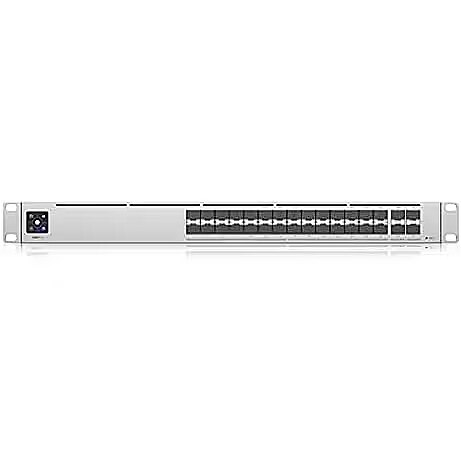

Ubiquiti USW-PRO-AGGREGATION, 32xSFP

10/100/1000/2500 Mbps ports - None
Accessories included -
Activity Status indicators - Yes
Application - Medium and large companies
brand - Ubiquiti
Built-in management - Yes
Category - Root/Electronics/Networks and communication/Switchers
category - Ubiquiti > UniFi komutatori > Aggregation
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Chassis type - Rack
Code - USW-Pro-Aggregation
Console port - No
Dane techniczne: Dodatkowe informacje - ekran dotykowy 1.3"
Dane techniczne: Gwarancja - 1 rok w serwisie sprzedawcy
Dane techniczne: Głębokość - 325 mm
Dane techniczne: Producent - Ubiquiti
Dane techniczne: Przeznaczenie - do szaf RACK 19"
Dane techniczne: Prędkość magistrali wew. - 760 Gb/s
Dane techniczne: Sloty SFP+ 10G - 28 szt.
Dane techniczne: Sloty SFP28 25G - 4 szt.
Dane techniczne: Szerokość - 442 mm
Dane techniczne: Szybkość przekierowań pakietów - 565.44 mpps
Dane techniczne: Typ - zarządzalny
Dane techniczne: Waga - 4.6 kg
Dane techniczne: Warstwa przełączania - 3
Dane techniczne: Wysokość - 44 mm
Data transmission - Forwarding rate - 565.44 Mpps
Data transmission - Static route - Yes
Data transmission - Switching capacity - 760 Gbit/s
Data transmission - Throughput - 380 Mpps
Description - 32-portowy przełącznik warstwy 3 przeznaczony do połączeń 10G SFP+ i 25G SFP28 o dużej przepustowości.
Description - The UniFi Switch Pro Aggregation is a fully managed, Layer 3 switch with (4) 25G SFP28 ports and (28) 10G SFP+ ports. The UniFi Switch Pro Aggregation utilizes high-bandwidth links to create link aggregation that enhances its switching capacity. The UniFi Switch Pro Aggregation is managed with the UniFi Network application (web and mobile), allowing you to easily build, scale, and monitor your enterprise networks. (28) 10 Gbps SFP+ ports (4) 25 Gbps SFP28 ports 760 Gbps switching capacity (1) 1.3” touchscreen with AR switch management (1) Backup 12V DC input connector, SmartPower RPS
Design - Housing material - Steel
Design - LED indicators - Yes
Design - Number of fans - 4 fan(s)
Design - Product colour - Grey
Designation - CE+WEEE
dimensionalWeight - 5961
dimension depth - 480 mm
dimension height - 120 mm
Dimensions - 442 x 325 x 44 mm
dimension weight - 6000 g
dimension width - 540 mm
EAN - 810010072603
ean - 810010072603
EAN - 0810010072603
Eans - 810010072603
EAN_code - 0810010072603
Fan - Yes
Forwarding rate - 565 MB/s
Forwarding rate - 565.44 Mpps
Gross Weight Kg - 4,9
guarantee - 24
guarantee_type - normal
height - 0.15 m
L2 features -
L3 features -
length - 0.54 m
Link Status indicators - Yes
Logistics data - Harmonized System (HS) code - 85176990
Management, monitoring, configuration -
Management features - Switch layer - L3
Management features - Switch type - Managed
Manufacturer - Ubiquiti
Manufacturer Code - USW-PRO-AGGREGATION
Manufacturer Name - Ubiquiti Networks
Manufacturer_code - USW-Pro-Aggregation
Model name - USW-Pro-Aggregation
mpn - USW-Pro-Aggregation
MPN - USW-PRO-AGGREGATION
name - %UBIQUITI Uni 28x10GbE 2 x25G USW-PRO-AGGREGATIO
Name - 28+4P UbiQuiti UniFi Hi-Capacity Aggregation M RM - USW-Pro-Aggregation
Name - Ubiquiti Switch Aggregation | Ubiquiti
Name - UBIQUITI USW-PRO-AGGREGATION
Name - Ubiquiti USW-Pro Aggregation, Switch (silver)
Network - 10G support - Yes
Network - Link aggregation - Yes
Network - Port mirroring - Yes
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - None
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - 28
Number of SFP56 ports - None
Number of SFP ports - None
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -5 - 40 °C
Other features - Temperatura robocza: od -5 do 40°C (od 23 do 104°F) Wilgotność robocza: od 10 do 90% bez kondensacji
Other functions -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 250 mm
Package features > Gross height (mm) - 20 mm
Package features > Gross width (mm) - 150 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 427 pc(s)
Package features > Paper/Pasteboard - 700 g
Package features > Plastic (No PET) - 70 g
Package features > Tare weight (kg) - 0.77 kg
Package features > Volume (m3) - 0.00075 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - No
Ports & interfaces - Power connector - DC-in jack
Ports & interfaces - SFP+ module slots quantity - 28
Ports & interfaces - SFP28 ports quantity - 4
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - DC input voltage - 11.5 V
Power - Input current - 2 A
Power - Power consumption (max) - 100 W
Power - Power supply included - Yes
Power consumption - 100 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Power supply - 1 x Wejście uniwersalne, 100240 V AC, maks. 2 A, 50/60 Hz 1 x Wejście prądu stałego USP RPS, 11,5 V prądu stałego, 8,7 A Zasilacz:AC/DC, wewnętrzny, 100W
Power supply - Inbuilt
Power supply - Internal
Primary port count - 28
Producent: Nazwa producenta / importera - UbiquitiBATNA SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄOlgi Boznańskiej 3e42-202 CzęstochowaPolskaEmail: sklep@batna24.com
producer - UBIQUITI
Producer - Ubiquiti
producerCode - USW-Pro-Aggregation
ProducerCode - USW-PRO-AGGREGATION
productName - Ubiquiti UniFi Switch Pro Aggregation Managed L3 Grey
Product Net Weight - 4.7 kg
productSize - Normal
QoS -
Safety warning - Warnings - Follow the safety guidelines for electrical current.
Security -
Security - DHCP features - DHCP server
SFP+ Ports - 28
SFP28 Ports - 4
SFP28 ports - 4
ShortDescription -
Short description - Ubiquiti Switch UniFi 28xSFP+ 10GBit/4xSFP28 25GBit Managed 19" Rack-Mountable, 1,3" Touchscreen
sizeX - 120
sizeY - 460
sizeZ - 540
Supported protocols and standards -
Switch class - Managed
Switching capacity - 760 Gbps
Switch layer - L3
Switch type - L3
Technical details > Gross weight - 2.34 kg
Technical details > Net weight - 1.57 kg
Technical details > Producer - Ubiquiti
Technical_details - USW-Pro Aggregation, Switch The Switch Pro Aggregation is a fully managed Layer 3 switch with 28x 10G SFP+ ports and 4x 25G SFP28 ports that improves network switching capacity and performance by creating high-bandwidth aggregation links. This rack-mountable switch also offers 760 Gbps switching capacity and features a 1.3-inch LCM color touchscreen that displays key system and connection information. Type: switch Silver EAN code: 0810010072603 Manufacturer No.: USW-Pro-Aggregation Design: Rack Area of application: home networks, business Connections: Network | fiber | 28x SFP+ Routing & Switching: Layers | Managed, Layer 3 switching Routing & Switching: Switching Bandwidth | 760 Gbps Routing & Switching: Forwarding Rate | 380MPP/s LEDs: Activity, LAN link LEDs: 32x Power supply: Power consumption operation: 100 W Features: 4x SFP28 Dimensions: Width: 442mm x Height: 44mm x Depth/Length: 325mm Weight: 4.7kg
Throughput - 380 GB/s
title - Ubiquiti UniFi Switch Hi-Capacity Aggregation
Unit Box Height - 0.48
Unit Box Length - 0.54
Unit Box Width - 0.125
Unit Calculated Volume - 0.03551 cubm
Unit Calculated Weight - 6.58 kg
Units per Shipping Box - 2
Vendor Homepage - store.ui.com/collections/unifi-network-switching/products/unifi-switch-aggregation-pro
vendpn - USW-PRO-AGGREGATION-EU
VLAN -
Warranty - 12
Warranty - 12 month(s)
Warranty - 12 months
warrantyLength - 24
warrantyType - G
Weight - 4,70
Weight - 4.7 kg
Weight - 6.02
weight - 6.7 kg
weight - 5995
Weight & dimensions - Depth - 325 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 4.6 kg
Weight & dimensions - Width - 442 mm
width - 0.46 m
