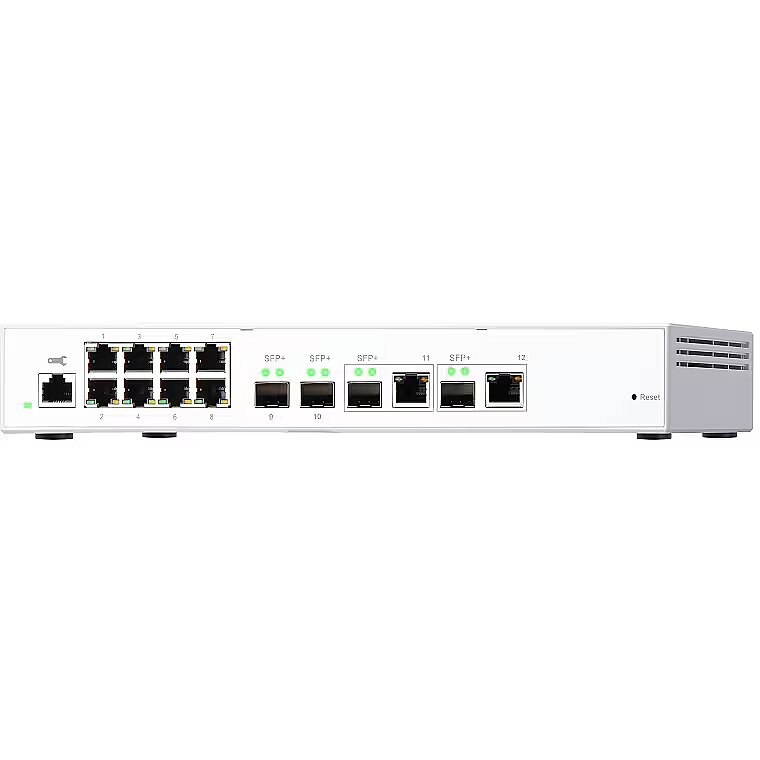

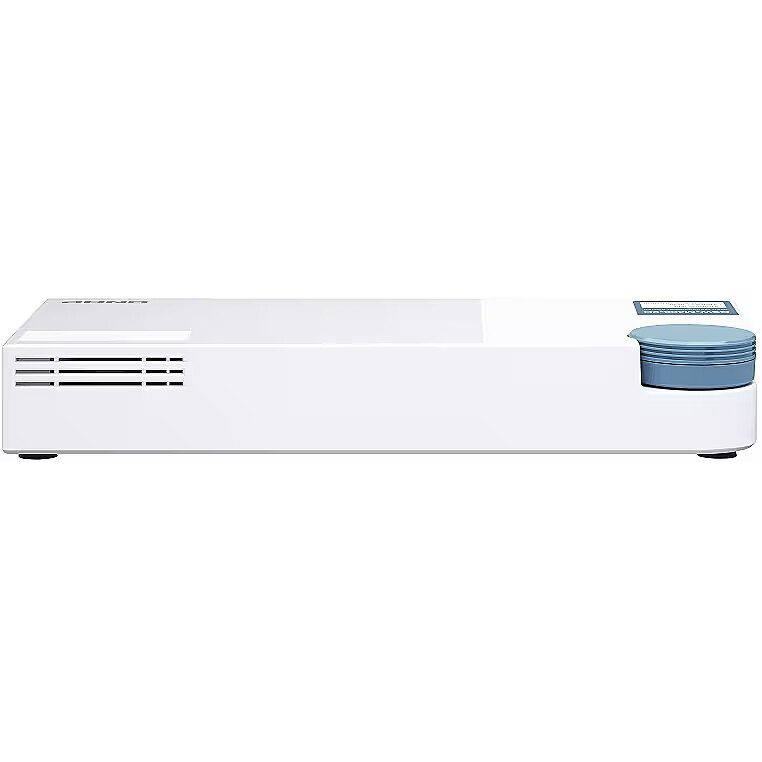

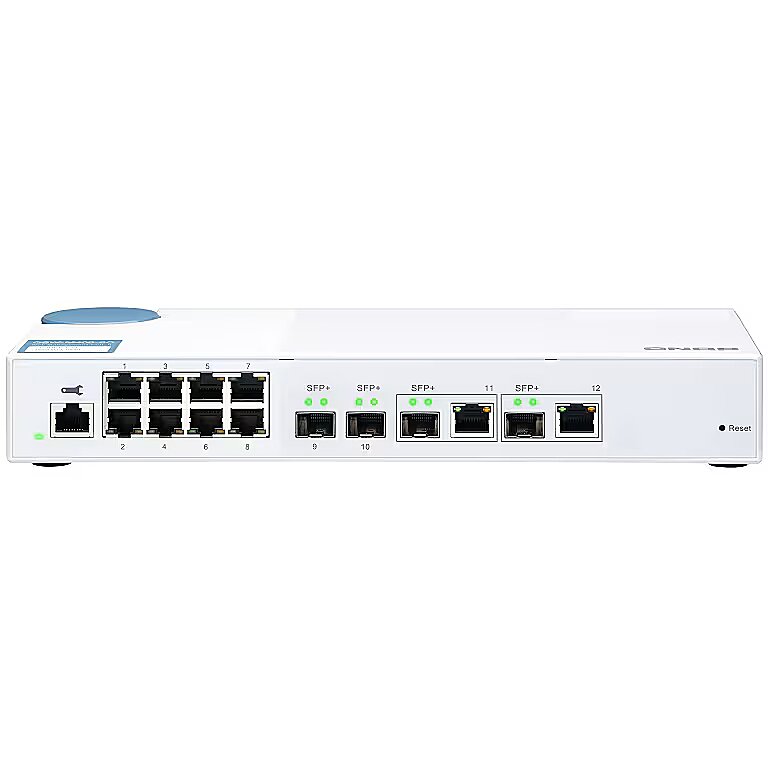

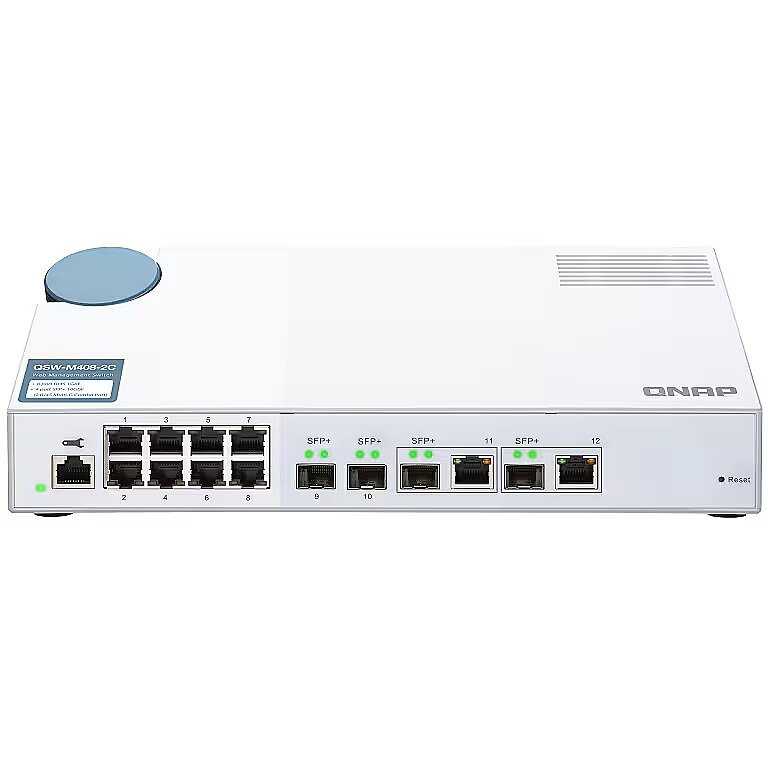

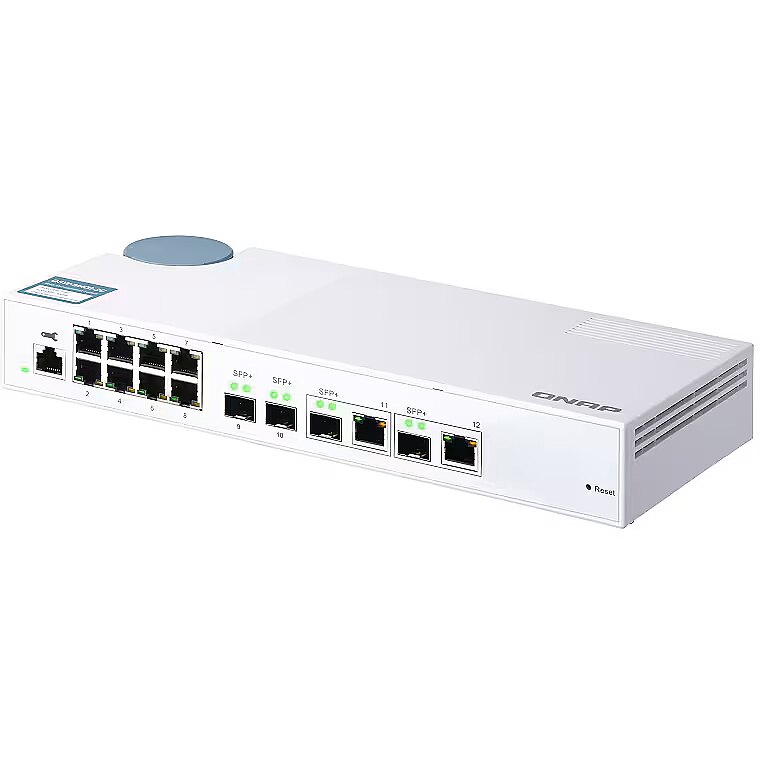

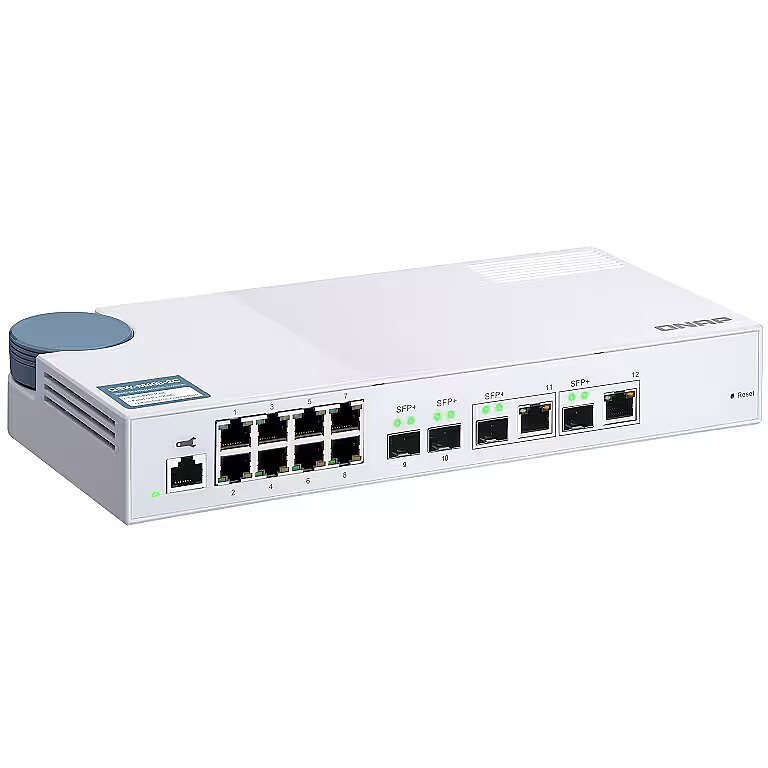

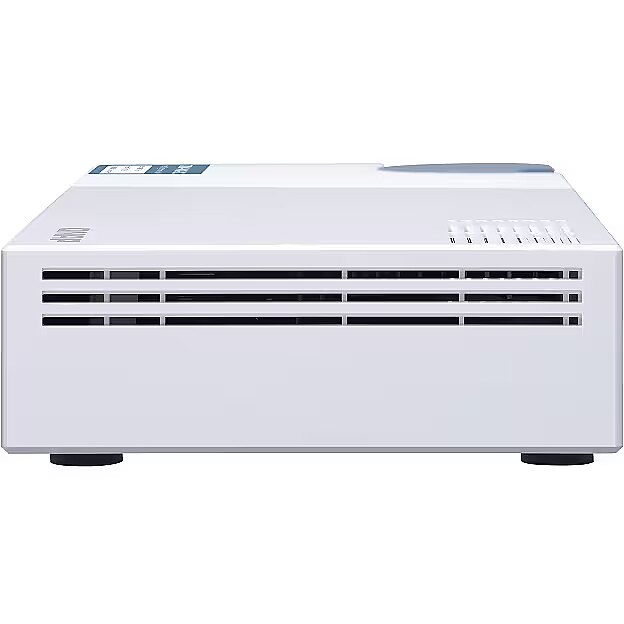

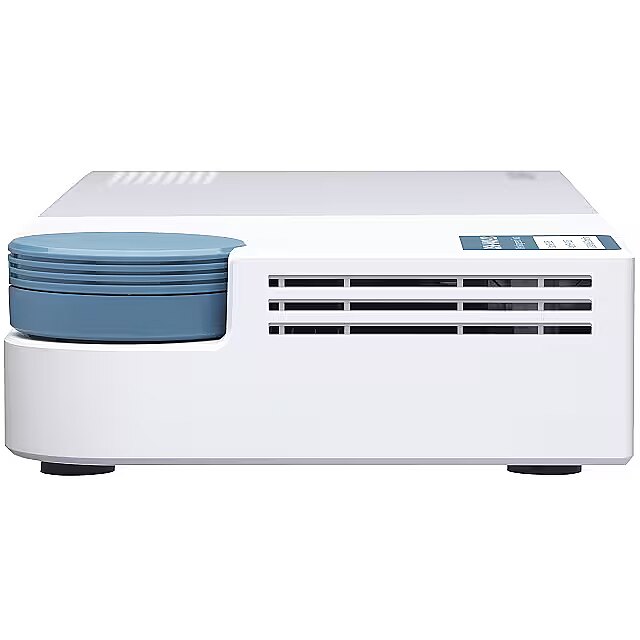

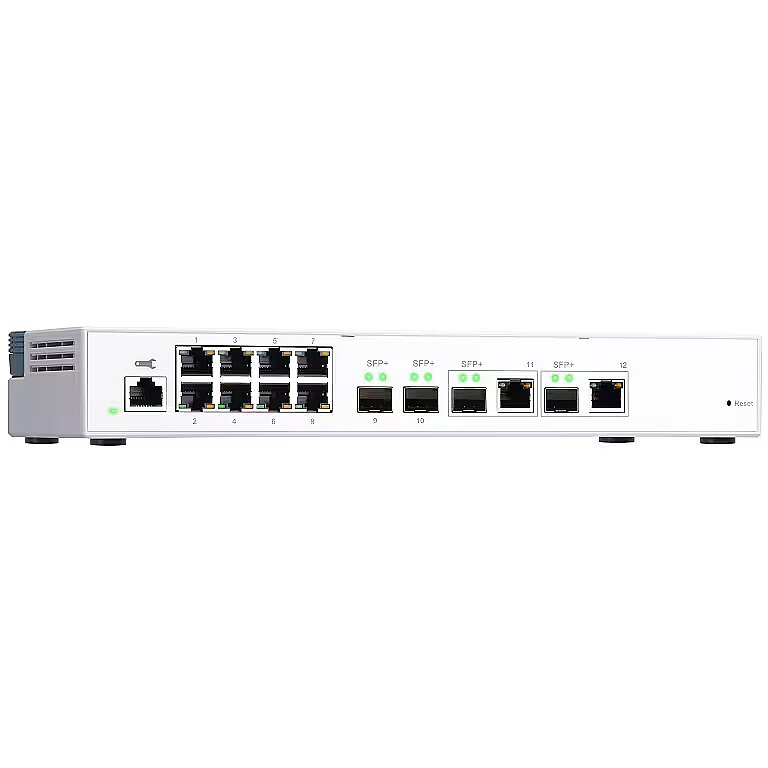

Qnap QSW-M408-2C, 8x1GBPS 2XSFP+NBASE 2X10G SFP+

10/100/1000M LAN Ports - 8
ARTIKEL1 - QSW-M408-2C SWITCH 8PORT 1GBPS
ARTIKEL2 - 2X 0G SFP+NBASE 2X10G SFP+ WMSW
Brand - QNAP
BrandPartCode - QSW-M408-2C
Category - Network Switches
Category Code - SWI
Certificates - Certification - CE, FCC, VCCI, BSMI, CCC
Combo 10/100/1000M-T/SFP LAN Ports - 2
Data transmission - Jumbo frames - 9000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 16000 entries
Data transmission - Switching capacity - 96 Gbit/s
Data transmission - Throughput - 48 Gbit/s
Description - The QSW-M408-2C is a Layer 2 Web Managed Switch equipped with four 10GbE SFP+ ports (with two 10GbE SFP+/RJ45 combo ports) and eight Gigabit ports. Supporting Layer 2 switching and network management via user-friendly web user interface, the QSW-M408-2C offers flexible deployment in a hybrid high-speed network infrastructure and an entry-level network management solution for even non-IT professionals. The QSW-M408-2C is compatible with 10GbE and NBASE-T technologies that supports up to five speeds (10G / 5G / 2.5G / 1G / 100M) to provide higher transmission speeds with your existing Cat 5e and 6a cables. With its high performance, user-friendly management features and desktop size, the QSW-M408-2C allows you to instantly upgrade to a hybrid high-speed network environment at a cost-effective price, while optimizing network bandwidth and ensuring network maintenance security
Design - Electromagnetic compatibility - CLASS A
Design - LED indicators - Activity, Link, Power, Speed, Status
Design - Number of fans - 1 fan(s)
Design - Product colour - White
Design - Rack mounting - No
Design - Reset button - Yes
Design - Stackable - No
Desktop/pedestal Mounting Type - Yes
Dimensions - 42.5 × 290 × 127 mm
EAN - 4713213516706
EANCode - 4713213516706
Full Description Line - Type L2|Desktop/pedestal|8x10/100/1000M|2xCombo 10/100/1000M-T/SFP|2xSPF+|IEEE 802.1ab|IEEE 802.1p|IEEE 802.1Q|IEEE 802.3|IEEE 802.3ab|IEEE 802.3ad|IEEE 802.3ae|IEEE 802.3an|IEEE 802.3u|IEEE 802.3x|IEEE 802.3z|IEEE 802.11az|IEEE 802.1w|Switching capacity 96 Gbps|Dimensions 42.5 × 290 × 127 mm|Product Net Weight 1.15 kg
Gewicht - 1.79
Gross Weight Kg - 1,5
GRUPPE1 - Network
GRUPPE2 - Lan Switch Unmanaged
GTIN - 4713213516706
HERSTELLER - QNAP
HSTNUMMER - QSW-M408-2C
IEEE 802.1ab Network standard - Yes
IEEE 802.1p Network standard - Yes
IEEE 802.1Q Network standard - Yes
IEEE 802.1w Network standard - Yes
IEEE 802.3 Network standard - Yes
IEEE 802.3ab Network standard - Yes
IEEE 802.3ad Network standard - Yes
IEEE 802.3ae Network standard - Yes
IEEE 802.3an Network standard - Yes
IEEE 802.3u Network standard - Yes
IEEE 802.3x Network standard - Yes
IEEE 802.3z Network standard - Yes
IEEE 802.11az Network standard - Yes
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - The QSW-M408-2C is a Layer 2 Web Managed Switch equipped with four 10GbE SFP+ ports (with two 10GbE SFP+/RJ45 combo ports) and eight Gigabit ports. Supporting Layer 2 switching and network management via user-friendly web user interface, the QSW-M408-2C offers flexible deployment in a hybrid high-speed network infrastructure and an entry-level network management solution for even non-IT professionals. The QSW-M408-2C is compatible with 10GbE and NBASE-T technologies that supports up to five speeds (10G / 5G / 2.5G / 1G / 100M) to provide higher transmission speeds with your existing Cat 5e and 6a cables. With its high performance, user-friendly management features and desktop size, the QSW-M408-2C allows you to instantly upgrade to a hybrid high-speed network environment at a cost-effective price, while optimizing network bandwidth and ensuring network maintenance securityFlexible deployment with multiple 10G SFP+ fiber and Gigabit portsThe QSW-M408-2C provides four 10GbE SFP+ ports (with two 10GbE SFP+/RJ45 combo ports) and eight Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, direct attach copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use 10G-SFP-T copper transceiver modules to connect 10GBASE-T/NBASE-T devices through RJ45 Category 6, 5 or 5e cabling. The switching capacity of QSW-M408-2C is 96Gbps, guaranteeing the full potential of each port.
LongProductName - 8x RJ45 1GbE, 2x 10GbE SFP+/RJ45 Combo, 2x 10GbE SFP+, Web Managed, 100-240VAC, 50/60 Hz, 42.5 x 290 x 127 mm, 1.15 kg
LongSummaryDescription - QNAP QSW-M408-2C. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 96 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE...
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2
Management features - Switch type - Managed
Management features - Web-based management - Yes
Manufacturer Code - QSW-M408-2C
Manufacturer Name - QNAP
Model name - QSW-M408-2C
Network - 10G support - Yes
Network - Auto-negotiation - Yes
Network - Cable types supported - Cat5, Cat5e, Cat6
Network - Copper ethernet cabling technology - 10BASE-T, 10GBASE-T, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Networking standards - IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Network - Spanning tree protocol - Yes
Network - Virtual LAN features - Port-based VLAN, Private VLAN
Network - VLAN support - Yes
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Packaging content - Cables included - AC
Packaging content - Quick start guide - Yes
Packaging data - Package weight - 1.57 kg
Performance - Noise level - 21 dB
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - 10G Ethernet (100/1000/10000)
Ports & interfaces - Combo SFP ports quantity - 2
Ports & interfaces - Console port - RJ-45
Ports & interfaces - Fiber optic connector - SFP+
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 8
Ports & interfaces - SFP+ module slots quantity - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 22.04 W
Power - Power source - AC
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Primary port count - 8
ProductName - QSW-M408-2C
Product Net Weight - 1.15 kg
Security - Access Control List (ACL) - Yes
Security - DHCP features - DHCP client
Security - IGMP snooping - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 31.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 22 cm
Shipping Box Weight Shipping/Package Box Dimensions - 1.791 kg
Shipping Box Width Shipping/Package Box Dimensions - 6 cm
Short description - QNAP Switch QSW-M408-2C
ShortSummaryDescription - QNAP QSW-M408-2C, Managed, L2, 10G Ethernet (100/1000/10000), Full duplex
SPF+ LAN Ports - 2
Stck_Kart - 8
Stck_Pal - 0
Storno - N
Switching capacity - 96 Gbps
Switch type - L2
Title - QNAP QSW-M408-2C network switch Managed L2 10G Ethernet (100/1000/10000) White
Unit Box Height - 0.22
Unit Box Length - 0.315
Unit Box Width - 0.06
Unit Calculated Volume - 0.004158 cubm
Unit Calculated Weight - 1.79 kg
Units per Shipping Box - 1
URL - https://www.qnap.com/en/product/qsw-m408-2c
Vendor Homepage - www.qnap.com/en/product/qsw-m408-2c
Warranty - 24 months
WarrantyInfo - 2 Years
Weight & dimensions - Depth - 127 mm
Weight & dimensions - Height - 42.5 mm
Weight & dimensions - Weight - 1.15 kg
Weight & dimensions - Width - 290 mm
