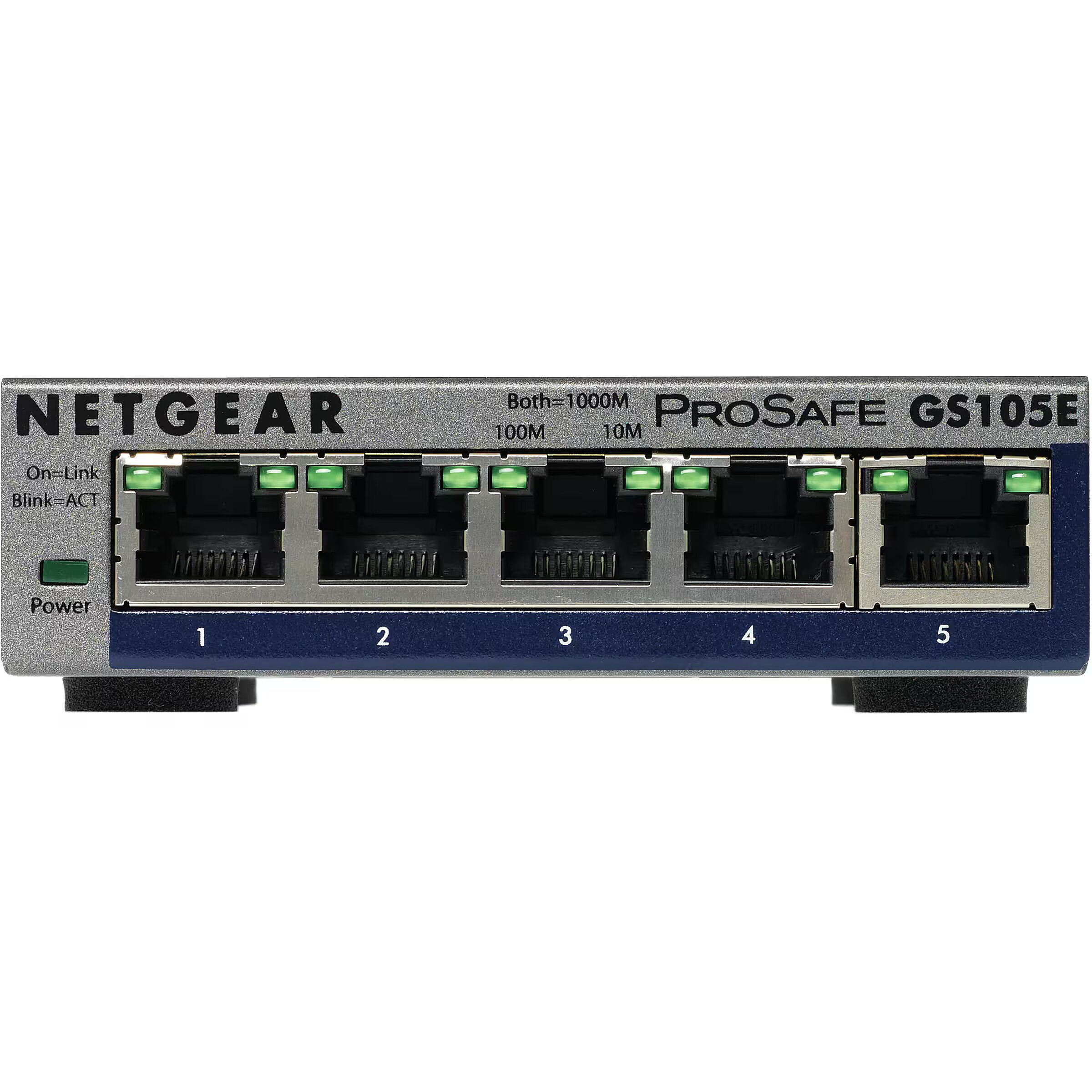

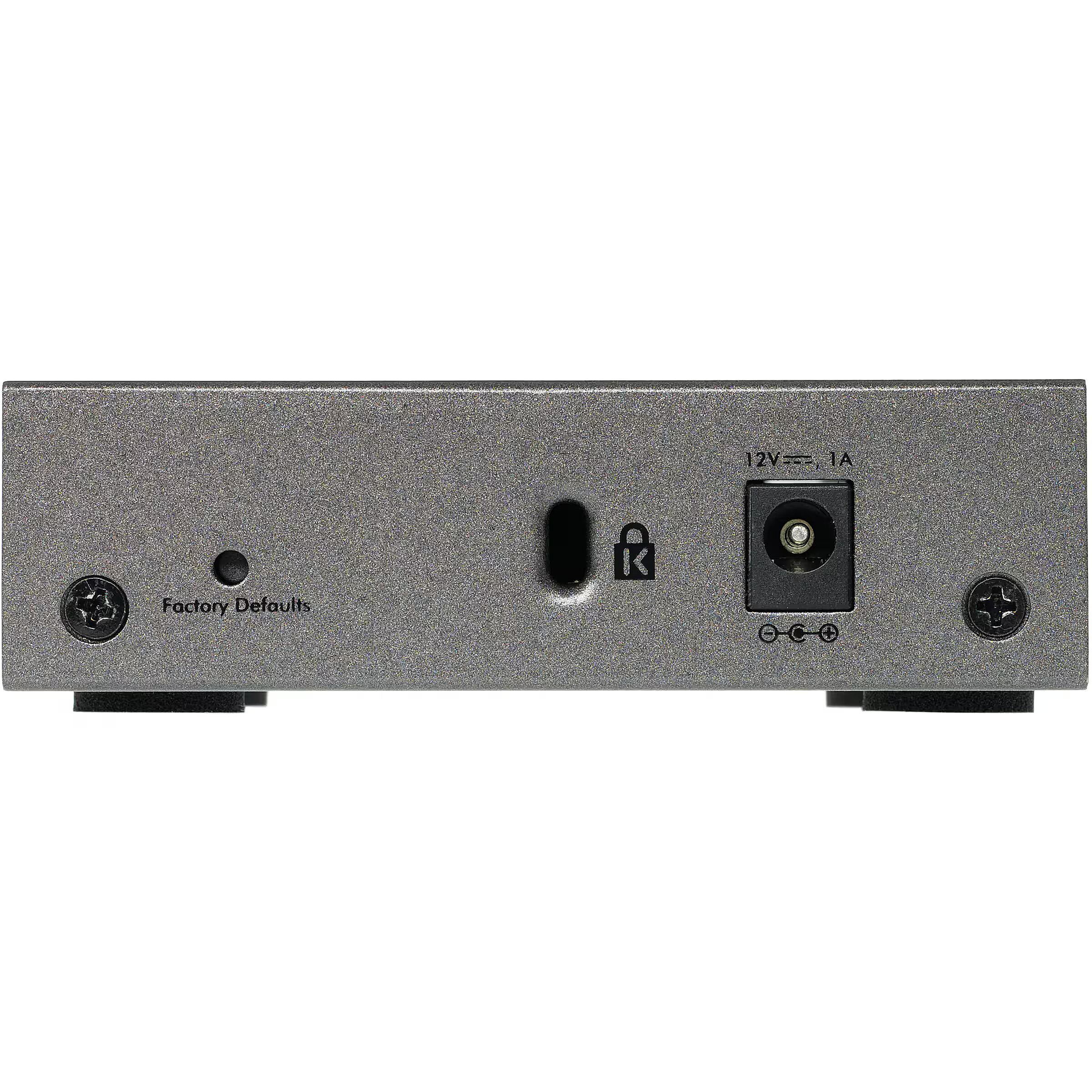

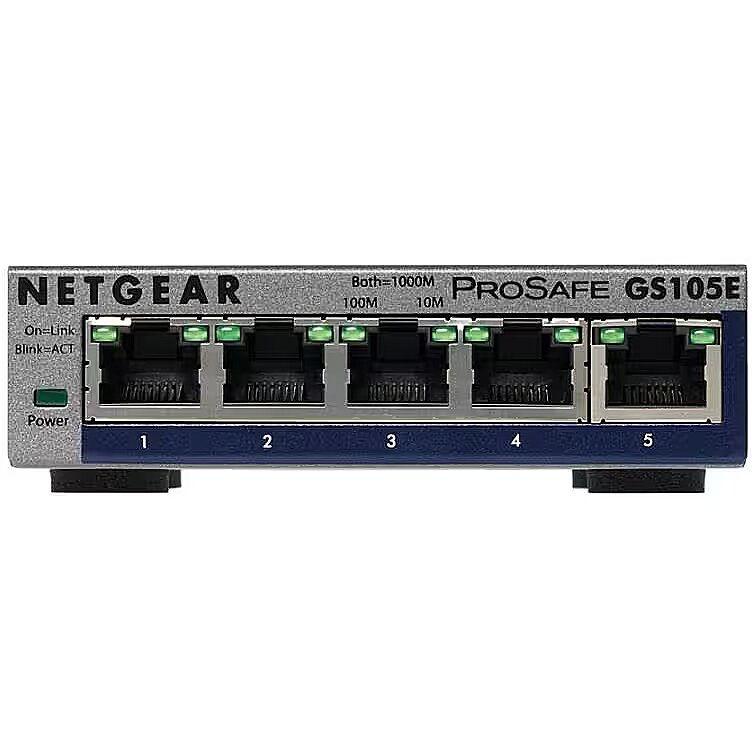

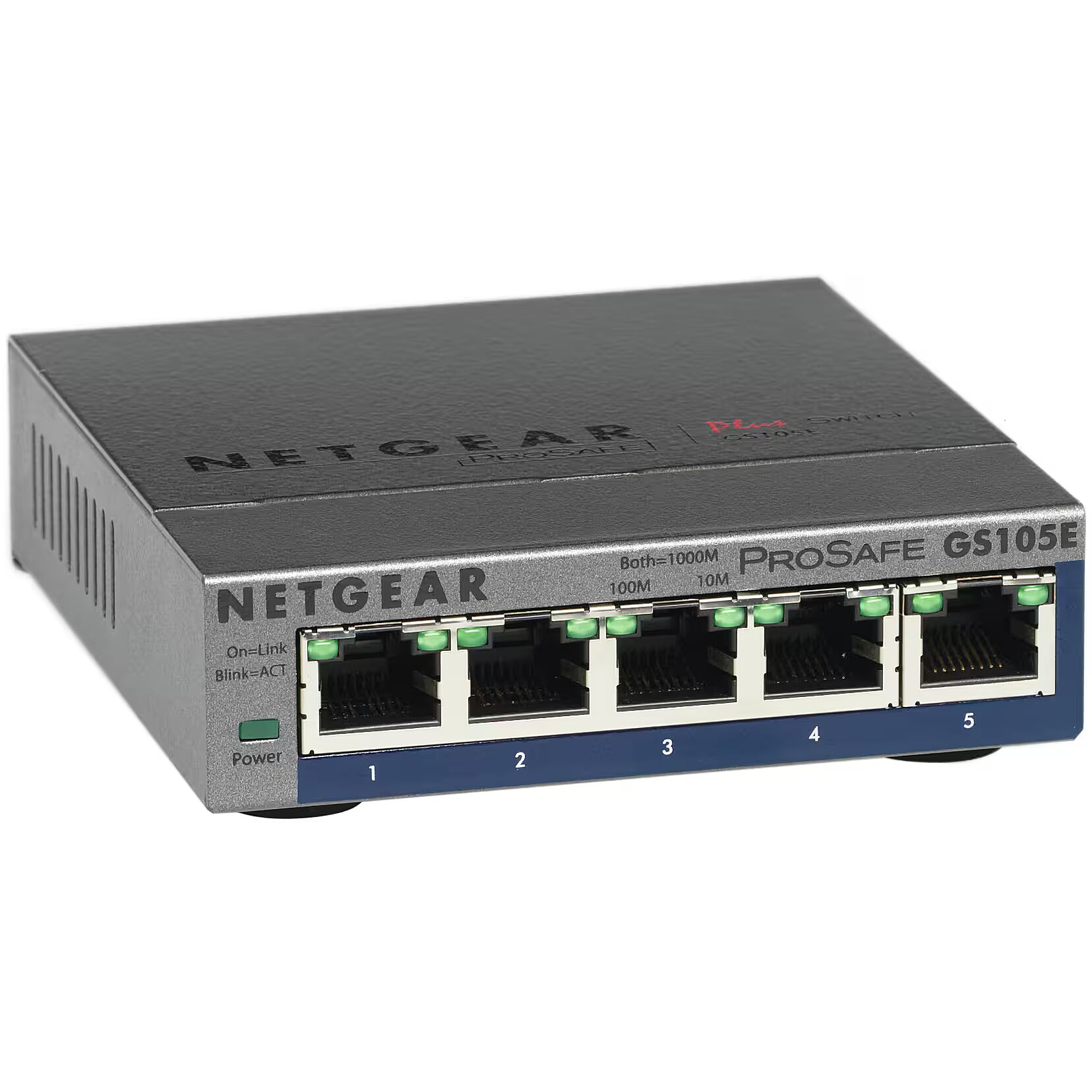

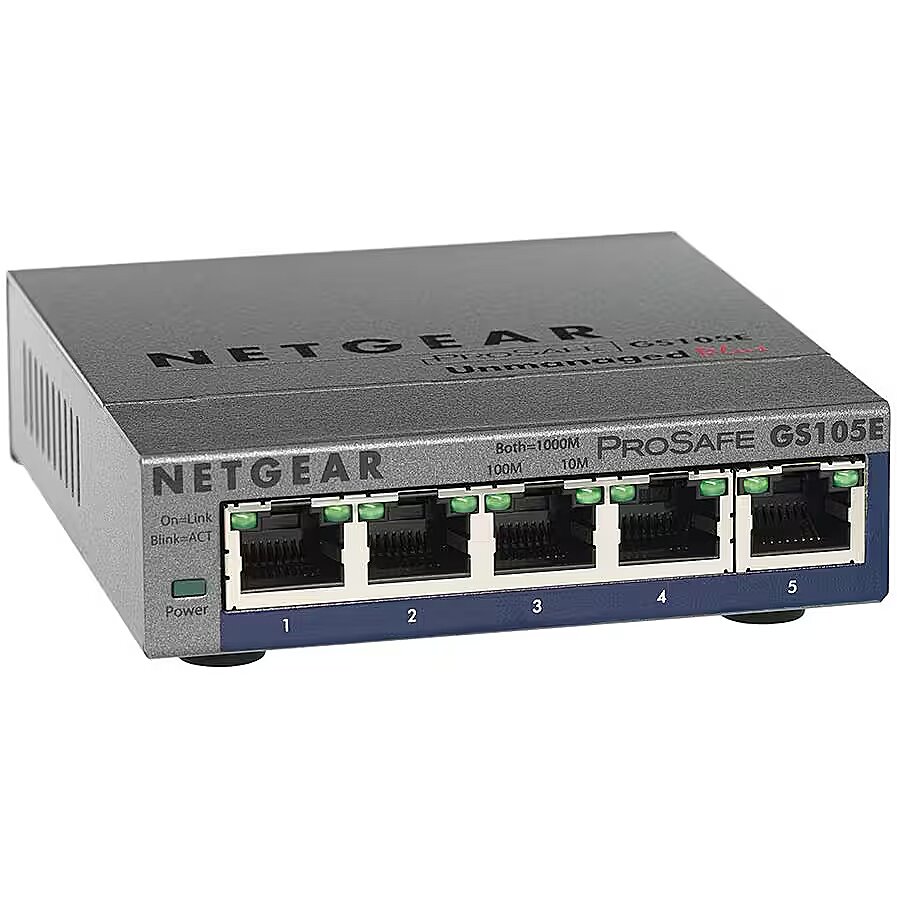

Netgear ProSafe PLUS GS105E, 5x 1G

Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 5
Stck_Pal - 30
Data transmission - Switching capacity - 10 Gbit/s
Data transmission - MAC address table - 8000 entries
Data transmission - Jumbo frames support - Yes
ARTIKEL1 - 5-PORT GBIT E-NET PLUS SWITCH
ARTIKEL2 - 5X 10/100/1000 5-PORT
Brand - NETGEAR
BrandPartCode - GS105E-200PES
Number of COMBO ports - None
Design - LED indicators - Yes
Design - Certification - CE,CSA (CSA 22.2 #950)
UL (UL 1950)/cUL IEC 950/EN 60950
FCC Part 15, VCCI, EN55022 (CISPR 22), C-Tick,
EN50082-1, EN55024, CCC
Design - Product colour - Grey
Design - Stackable - No
EANCode - 0606449101522
EAN_code - 0606449101522
Eans - 606449101522
Power consumption - 4 W
Category_1 - Network and Servers
EAN - 0606449101522
Fan - No
guarantee - 0
WarrantyInfo - Lifetime
guarantee_type - perpetual
warrantyType - W
GTIN - 0240049101522
GTIN - 240049101522
GTIN - 606449101522
GTIN - 0606449101522
GTIN - 5054484570943
GRUPPE1 - Network
GRUPPE2 - Switches Managed
Management features - Quality of Service (QoS) support - Yes
HSTNUMMER - GS105E-200PES
Management features - Switch layer - L2/L3
Management features - Switch type - Managed
Weight - 0,59
Weight - 0.3 kg
Gewicht - 0.57
weight - 620
Weight & dimensions - Weight - 270 g
Weight & dimensions - Width - 94 mm
Weight & dimensions - Depth - 101 mm
Weight & dimensions - Height - 26 mm
Category - Root/Electronics/Networks and communication/Switchers
Category - Network Switches
Category_2 - Network - Switches and Hubs
ean - 606449101522
Mean time between failures (MTBF) - 5905968 h
Gross Weight Kg - 0,4
vendpn - GS105E-200PES
Accessories included - Kit for wall assembly
12V, 1.0A charger
Installation manual
CD with software
Download -
Logistics data - Harmonized System (HS) code - 85176990
Throughput - 10 Gb/s
ShortDescription -
Short description - Netgear 5Port Switch 10/100/1000 GS105E
ShortSummaryDescription - NETGEAR GS105E-200PES, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Full duplex
Switch layer - L2
MAC address table size - 4000
Multicast features - Number of multicast groups filtered - 128
Multicast features - Multicast support - Yes
Other features - Operating temperature: 32° to 122
Operating humidity: 90%
Noise: 0
Designation - CE+WEEE
dimension height - 220 mm
dimension width - 165 mm
dimension depth - 65 mm
Dimensions - 94 x 104 x 28 mm
dimensionalWeight - 423
dimension weight - 620 g
name - Switch Unmanaged Plus 5xGE - GS105E
Name - Netgear GS105E-200PES
Name - Netgear GS105E 1000/UNM/ 5
Packaging data - Quick start guide - Yes
Packaging content - Quick start guide - Yes
Title - NETGEAR GS105E-200PES network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Grey
LongDesc - More Capabilities beyond Plug-and-play ConnectivityToday’s growing businesses demand and rely more on their network to carry out mission-critical business activities. Companies are putting more network traffic and applications on their Ethernet infrastructure. For example, the increasing deployments of VoIP phones and IP cameras require more than simple plug-and-play connectivity. It needs the network intelligence to separate the voice and video traffic from data, and prioritize them accordingly. Additionally, Internet-based applications such as Hotmail and Google Calendaring have made keeping the network up a business-critical need. However, companies do not necessarily have more money or advancedtraining to deal with complex managed switches. The NETGEAR ProSAFE Plus Switches meet this growing need by providing fundamental network features that will help optimize the performance of business networks. ProSAFE Plus Switches also offer traffic monitoring for users to observe traffic behavior. If there are connectivity issues, these switches can identify and even locateconnection problems via cable diagnostic test. To optimize traffic through the switches, ProSAFE Plus Switches offer both port and tag-based prioritization to keep latency-sensitive traffic moving ahead of less critical packets. Also, ProSAFE Plus Switches offer port and 802.1Q-based VLAN as a means of improving security and network performance. ProSAFE Plus Switches are an upgrade from the plug-and-play Unmanaged Switch, delivering great value for empowering your network, delivering great value to the end user.
LongSummaryDescription - NETGEAR GS105E-200PES. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE...
LongProductName - GS105E-200PES - 5x RJ-45, 270 g, 10/100/1000 Mbps
Number of PoE ports (PoE & PoE+) - None
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 5
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Certificates - Certification - CE,CSA (CSA 22.2 #950)
UL (UL 1950)/cUL IEC 950/EN 60950
FCC Part 15, VCCI, EN55022 (CISPR 22), C-Tick,
EN50082-1, EN55024, CCC
Number of SFP ports - None
Stck_Kart - 15
sizeZ - 150
sizeX - 235
Application - Home and small office
Dane techniczne: Gwarancja - 5 lat w serwisie zewnętrznym
Dane techniczne: Waga - 0.25 kg
Dane techniczne: Przeznaczenie - biurkowy
Dane techniczne: Wysokość - 27 mm
Dane techniczne: Szerokość - 100 mm
Dane techniczne: Liczba portów LAN 10/100/1000 - 5 szt.
Dane techniczne: Dodatkowe informacje - zestaw do montażu na ścianie
Dane techniczne: Rozmiar tablicy adresów MAC - 4000
Dane techniczne: Bufor pamięci - 128 KB
Dane techniczne: Prędkość magistrali wew. - 10 Gb/s
Dane techniczne: Głębokość - 94 mm
Dane techniczne: Obsługiwane protokoły - IEEE 802.3i
Dane techniczne: Obsługiwane protokoły - IEEE 802.3ae
Dane techniczne: Obsługiwane protokoły - IEEE 802.3x flow control
Dane techniczne: Grupa produktowa - Przełączniki Netgear
Dane techniczne: Producent - Netgear
Dane techniczne: Typ - zarządzalny
Dane techniczne: Obsługa VLANów - tak
Technical_details - More Capabilities beyond Plug-and-play Connectivity
Today’s growing businesses demand and rely more on their network to carry out mission-critical business activities. Companies are putting more network traffic and applications on their Ethernet infrastructure. For example, the increasing deployments of VoIP phones and IP cameras require more than simple plug-and-play connectivity. It needs the network intelligence to separate the voice and video traffic from data, and prioritize them accordingly. Additionally, Internet-based applications such as Hotmail and Google Calendaring have made keeping the network up a business-critical need. However, companies do not necessarily have more money or advanced
training to deal with complex managed switches. The NETGEAR ProSAFE Plus Switches meet this growing need by providing fundamental network Featuress that will help optimize the performance of business networks. ProSAFE Plus Switches also offer traffic monitoring for users to observe traffic behavior. If there are connectivity issues, these switches can identify and even locate
connection problems via cable diagnostic test. To optimize traffic through the switches, ProSAFE Plus Switches offer both port and tag-based prioritization to keep latency-sensitive traffic moving ahead of less critical packets. Also, ProSAFE Plus Switches offer port and 802.1Q-based VLAN as a means of improving security and network performance. ProSAFE Plus Switches are an upgrade from the plug-and-play Unmanaged Switch, delivering great value for empowering your network, delivering great value to the end user. Transfer Rate LAN 10/100/1000 MBit/s LEDs Activity, 5x Lan, Speed, Power Ports RJ-45 LAN 5 Features bandwidth: 10 GBit/s, 4000 MAC addresses, Quality of Service (QoS), Virtual LAN (VLAN), Port-mirroring, bandwidthn-Management, cabletest, Network-traffic-monitoring, Broadcast-storm-control Product dimensions 101 x 26 x 94 mm Weight 270 grams
sizeY - 60
Supported protocols and standards - IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE802.3x full-duplex
IEEE 802.1p
IEEE 802.1Q VLAN
Power supply - External
ProductName - GS105E-200PES
productName - NETGEAR GS105E-200PES network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Grey
productSize - Normal
producer - Netgear
Producer - Netgear
HERSTELLER - NETGEAR
Manufacturer - Netgear
Producent: Nazwa producenta / importera - Netgear
NETGEAR
6th Floor, Penrose Two, Penrose Dock
T23 YY09 Cork

producerCode - GS105E-200PES
ProducerCode - GS105E-200PES
Manufacturer Code - GS105E-200PES
Manufacturer_code - GS105E-200PES
Manufacturer Name - Netgear
Security - DHCP features - DHCP client
Security - IGMP snooping - Yes
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Storno - Y
Switch class - Unmanaged
URL - https://www.netgear.com/
Network architecture - GigabitEthernet
Network - 10G support - No
Network - Broadcast storm control - Yes
Network - Port mirroring - Yes
Network - Full duplex - Yes
Network - Copper ethernet cabling technology - 10BASE-T
Network - Copper ethernet cabling technology - 100BASE-T
Network - Copper ethernet cabling technology - 1000BASE-T
Network - Copper ethernet cabling technology - 1000BASE-T, 100BASE-T, 10BASE-T
Network - Number of VLANs - 64
Network - VLAN support - Yes
Network - Flow control support - Yes
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3i
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.1p
Network - Networking standards - IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Network - Networking standards - IEEE 802.1Q
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3x
Chassis type - Desktop
