ARTIKEL1 - 24-PORT 10G L2+ MANAGED SWITCH
ARTIKEL2 - 24X10G 8X SFP+
Brand - TP-Link
BrandPartCode - SX3832
Breite - 0
Category - Network Switches
Category 1 - Netzwerk
Category 2 - Switching Hubs
Data transmission - Forwarding rate - 240 Mpps
Data transmission - Jumbo frames - 9000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 32000 entries
Data transmission - Packet buffer memory - 24 MB
Data transmission - Static route - Yes
Data transmission - Switching capacity - 640 Gbit/s
Design - Form factor - 1U
Design - LED indicators - Yes
Design - Number of fans - 2 fan(s)
Design - Product colour - Black
Design - Rack mounting - Yes
Design - Stackable - Yes
EAN - 8885020622652
EANCode - 8885020622652
Gewicht - 4.44
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 8885020622652
HERSTELLER - TP-LINK
Hoehe - 0
HSTNUMMER - SX3832
Laenge - 0

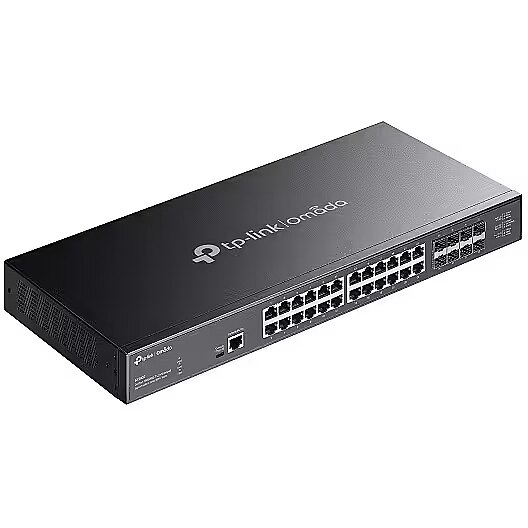

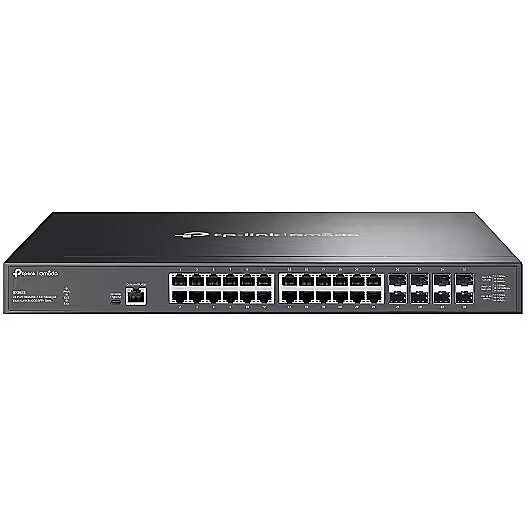

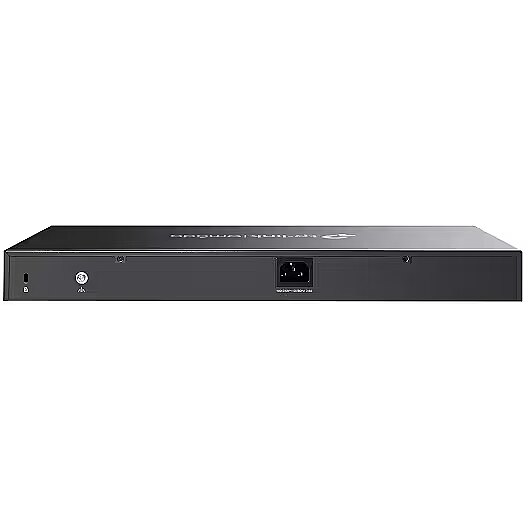

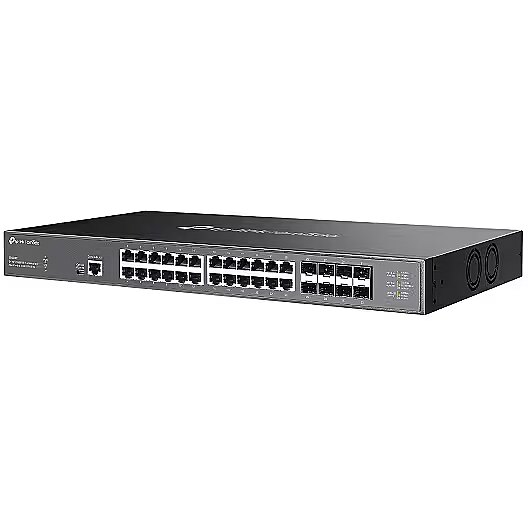

LongDesc - Omada 24-Port 10GBASE-TL2+ Managed Switch with 810GE SFP+ Slots- 24× 1/2.5/5/10 Gbps RJ45 Ports- 8× 10 Gbps SFP+ Slots- Centralized Management- Omada App- Zero-Touch Provisioning- Ethernet Ring Protection Switching- Static Routing- Traffic Separation
LongProductName - 24× 1/2.5/5/10 Gbps RJ45, 8× 1/10 Gbps SFP+, 640 Gbps, 32 K MAC, 9 KB Jumbo, 440 x 220 x 44 mm
LongSummaryDescription - TP-Link Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/USB Type-C. MAC address table: 32000 entries, Switching capacity: 640 Gbit/s. Networking standards: IEEE 802.3az. Rack mounting, Form factor: 1U
Management features - ARP inspection - Yes
Management features - Cloud-managed - Yes
Management features - Configuring Location Settings (CLI) - Yes
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2/L2+
Management features - Switch type - Managed
Management features - System event log - Yes
Management features - Web-based management - Yes
Manufacturer - TP-Link
MPN - SX3832(UN)
Multicast features - Multicast support - Yes
Name - TP-Link Omada Switch 24x GE SX3832 10GBASE-T L2+ Managed
Network - 10G support - Yes
Network - Broadcast storm control - Yes
Network - Ethernet LAN data rates - 10,100 Mbit/s
Network - Flow control support - Yes
Network - IP routing - Yes
Network - Networking standards - IEEE 802.3az
Network - Port mirroring - Yes
Network - Rate limiting - Yes
Network - Spanning tree protocol - Yes
Network - Virtual LAN features - MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN
Network - VLAN support - Yes
Operational conditions - Heat dissipation - 363.23 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -5 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Packaging content - Cables included - AC, LAN (RJ-45)
Packaging content - Quick start guide - Yes
Packaging content - Rack mount kit - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 24
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - 10G Ethernet (100/1000/10000)
Ports & interfaces - Console port - RJ-45/USB Type-C
Ports & interfaces - SFP+ module slots quantity - 8
Ports & interfaces - USB Type-C ports quantity - 1
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 106.5 W
Power - Power source - AC
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
ProductName - Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots
Security - Access Control List (ACL) - Yes
Security - Authentication - Auto VLAN, MAC-based authentication, Port-based authentication
Security - Authentication type - AAA, RADIUS, TACACS+
Security - DHCP features - DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping
Security - IGMP snooping - Yes
Security - Loop protection - Yes
Security - SSH/SSL support - Yes
ShortSummaryDescription - TP-Link Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots, Managed, L2/L2+, 10G Ethernet (100/1000/10000), Rack mounting, 1U
Stck_Kart - 1
Stck_Pal - 0
Storno - Y
Title - TP-Link Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots
URL - https://www.tp-link.com/my/business-networking/omada-switch-l3-l2-managed/sx3832/
WarrantyInfo -
Weight & dimensions - Depth - 220 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Width - 440 mm
