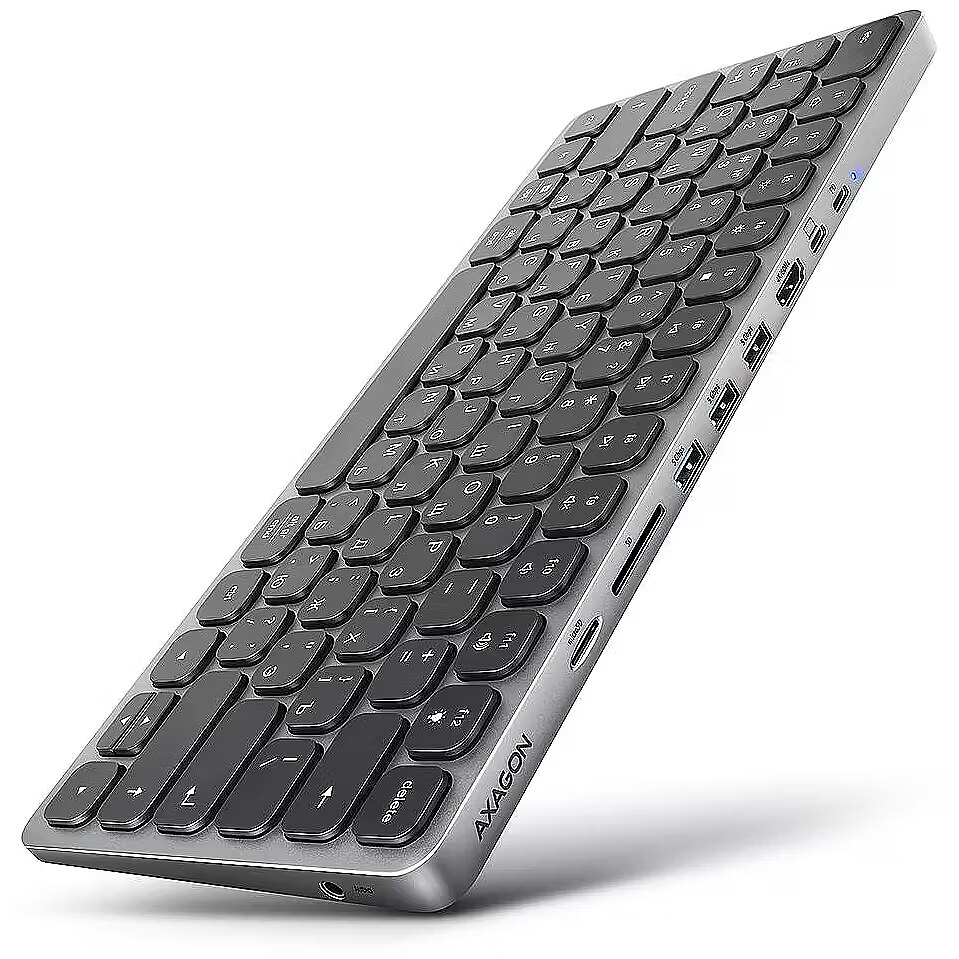

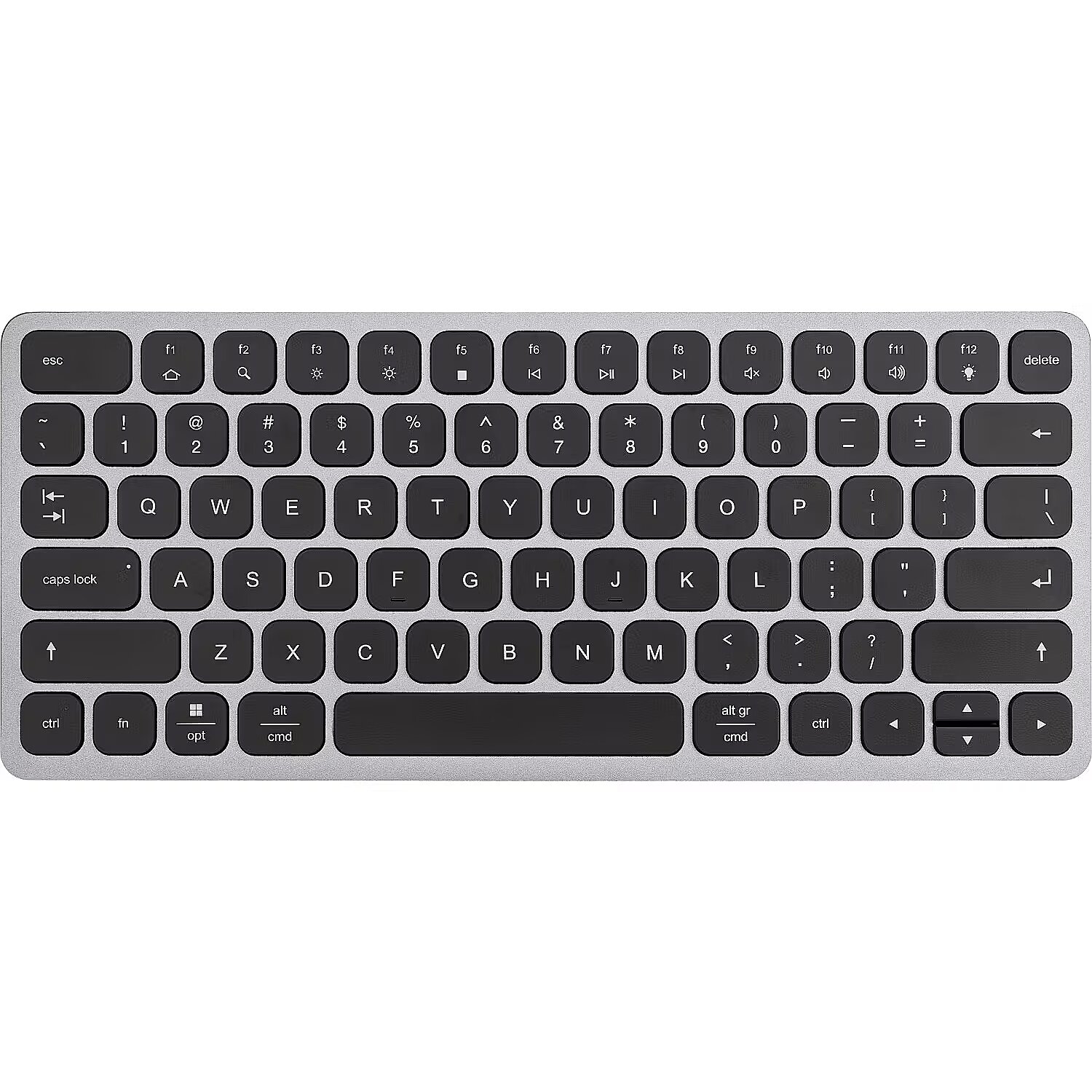

Axagon HMC-KB-CRL

Brand - Axagon
BrandPartCode - HMC-KB-CRL
Design - Keyboard style - Curved
Design - LED indicators - Yes
Design - Material - Aluminium
Design - Adjustable backlight - Yes
Design - Backlight type - LED
Design - Backlight - Yes
Design - Backlight colour - White
Design - Product colour - Aluminium, Black
Docking connector - No
EAN Code - 8595247908995
EAN - 8595247908995
Features - Headphone outputs - 1
Warranty - 24
guarantee - 24
Warranty - 24 month(s)
Warranty - 24 months
Warranty Term (month) - 24 month(s)
WarrantyInfo -
guarantee_type - normal
GTIN - 8595247908995
GTIN - 8595247909008
CnCode - 84716060
Mouse - Mouse included - No
Mouse included Mouse - No
I/O ports - 1 x 3,5 mm minijack (Combo)
I/O ports - 1 x HDMI Type A
I/O ports - 1 x USB-C Power
I/O ports - 2 x Card reader
I/O ports - 3 x USB 3.0 Type A
Cables included Packaging content - USB Type-C
Cable length Features - 0.6 m
Weight - 353 g
Weight & dimensions - Keyboard weight - 353 g
Weight & dimensions - Keyboard dimensions (WxDxH) - 296 x 128 x 11 mm
Card reader integrated Features - Yes
Box Weight Brutto (kg) - 7.9 kg
Category - Keyboards
Category Code - KEY
KB language - ENG/RUS
ean - 8595247908995
Description - AXAGON HMC-KB-CRL KEYBOARD hub turns your phone, tablet or mini-laptop into a full-fledged computer workplace. You connect your mobile device to the 9in1 docking station via the supplied 60 cm long cable. In no time, you have an integrated keyboard, SD and microSD card reader, and connectors for connecting an external monitor, three USB devices, headphones or headset, and Power Delivery power. However, it is necessary that the USB-C port of your mobile device supports video output (DisplayPort Alternate Mode) and Power Delivery. The keyboard, built into an elegant aluminum hub body, is equipped with chiclet keys with a scissor mechanism and 2 mm stroke for precise and quiet typing. The keyboard offers adjustable backlighting in 5 levels, 12 multimedia keys and the possibility of increasing the inclination for comfortable and ergonomic use. Of course, the keys are printed with Cyrilic localization. The HDMI output enables the connection of an external monitor, TV or projector with a resolution of up to 4K/60Hz Ultra HD, 2K/120Hz Quad HD or 1080p/200Hz Full HD and the transmission of multi-channel audio. Thanks to HDR support, you can enjoy a significantly expanded range of colours and contrasts without limitations. Three USB-A 5Gbps outputs allow connection of external drives (up to 2 at the same time), flash drive, mouse, printer and other USB accessories. The USB ports also charge mobile phones and tablets with a power of up to 7.5W. The memory card reader supports reading and writing of all versions of SD and microSD cards with a capacity of up to 2TB. The card reader enables simultaneous handling of cards in both slots and direct copying between them. The 3.5 mm audio output offers the possibility of connecting stereo headphones, a headset or active speakers. The PD USB-C input is designed for a suitable Power Delivery charger. This allows both your mobile device and the hub to be powered directly from the PD charger using Power Delivery 3.0 technology with up to 100W of power. The Multiport Hub with Keyboard is especially ideal for users of phones and tablets Samsung's DeX-enabled Z-series Fold (from Fold3), Galaxy S (from S9), Note (from Note8) and Galaxy Tab S (from S4 except Lite and FE versions). The Dock also enables desktop mode for the Apple iPad Pro and iPad Air (from 2022) tablets. In addition, it ensures compatibility with iPad mini (from 2021) and with iPhone 15 Pro / Pro Max phones, while the image is transferred via mirroring.
Description - AXAGON HMC-KB-CRL KEYBOARD hub turns your phone, tablet or mini-laptop into a full-fledged computer workplace. You connect your mobile device to the 9in1 docking station via the supplied 60 cm long cable. In no time, you have an integrated keyboard, SD and microSD card reader, and connectors for connecting an external monitor, three USB devices, headphones or headset, and Power Delivery power. However, it is necessary that the USB-C port of your mobile device supports video output (DisplayPort Alternate Mode) and Power Delivery. The keyboard, built into an elegant aluminum hub body, is equipped with chiclet keys with a scissor mechanism and 2 mm stroke for precise and quiet typing. The keyboard offers adjustable backlighting in 5 levels, 12 multimedia keys and the possibility of increasing the inclination for comfortable and ergonomic use. Of course, the keys are printed with Cyrillic localization. The HDMI output enables the connection of an external monitor, TV or projector with a resolution of up to 4K/60Hz Ultra HD, 2K/120Hz Quad HD or 1080p/200Hz Full HD and the transmission of multi-channel audio. Thanks to HDR support, you can enjoy a significantly expanded range of colours and contrasts without limitations. Three USB-A 5Gbps outputs allow connection of external drives (up to 2 at the same time), flash drive, mouse, printer and other USB accessories. The USB ports also charge mobile phones and tablets with a power of up to 7.5W. The memory card reader supports reading and writing of all versions of SD and microSD cards with a capacity of up to 2TB. The card reader enables simultaneous handling of cards in both slots and direct copying between them. The 3.5 mm audio output offers the possibility of connecting stereo headphones, a headset or active speakers. The PD USB-C input is designed for a suitable Power Delivery charger. This allows both your mobile device and the hub to be powered directly from the PD charger using Power Delivery 3.0 technology with up to 100W of power. The Multiport Hub with Keyboard is especially ideal for users of phones and tablets Samsung's DeX-enabled Z-series Fold (from Fold3), Galaxy S (from S9), Note (from Note8) and Galaxy Tab S (from S4 except Lite and FE versions). The Dock also enables desktop mode for the Apple iPad Pro and iPad Air (from 2022) tablets. In addition, it ensures compatibility with iPad mini (from 2021) and with iPhone 15 Pro / Pro Max phones, while the image is transferred via mirroring.  Input (connection to mobile device / computer):
USB 5Gbps (USB 3.2 Gen 1 / USB 3.0), USB-C female connector.
Compatible with USB 3.2 Gen 2, USB4 and Thunderbolt 3/4. Input (power supply):
USB Power Delivery 3.0 100W port (only for charging), USB-C female connector.
Powering the mobile device from the mains adapter via the USB-C hub.
PD power must be supported by both the mobile device and the mains charger. USB outputs:
3x USB 5Gbps port, USB-A female connector.
USB-C hub handle the connection of two external drives simultaneously.
Charging of mobile devices (including iPad) with a current of up to 1.5A from the hub's USB-A ports. Video output:
1x HDMI A port, HDMI A female connector.
4K / UHD resolution 4096 x 2160 at up to 60Hz.
2K / QHD / WQHD resolution 2560 x 1440 at up to 120Hz.
1080p / FHD resolution 1920 x 1080 at up to 200Hz.
Support for the above max. supported resolutions and frequencies requires connection to a computer with DisplayPort version 1.4.
For the video output function, the hub must be connected to a USB-C port supporting DisplayPort Alternate Mode (DP Alt Mode) or to a USB-C port supporting Thunderbolt 3/4. A suitable OS is also required. The video output function will not be available without these requirements.
HDR support (High dynamic range, 10bit/RGB support) - realistic reproduction of light and dark details.
HPD (Hot-Plug-Detect) support.
TMDS (Transition Minimized Differential Signalling) support.
HDCP 1.4 and 2.3 (High-bandwidth Digital Content Protection) full support.
Support for 2-channel audio sampling rate up to 192 kHz and up to 24-bit audio - depends on source and end device, i.e. mobile device/computer and TV/monitor/AV receiver. The card reader - two slots:
Slot Micro SD: microSD / microSDHC / microSDXC / TransFlash.
Slot SD: SecureDigital / SDHC / SDXC, MultiMedia Card, MMC, MMC Dual Voltage, MMC mobile, RS-MMC, with adapter - miniSD, microSD / microSDHC / microSDXC, MMC Micro.
UHS-I support. Speed up to 104 MB/s. Support hardware ECC function and CRC function.
2 LUN - the reader is indicated as two disk drives. The possibility of copying from card to card. Audio output / input:
1x 3.5 mm 4pin jack for headset, headphones or active speakers,
2-channel analog stereo output 48 kHz @ 16 bit for playback,
1-channel analog mono microphone input 48 kHz @ 16 bit for recording. Keyboard:
Keys with scissor mechanism and 2 mm stroke for precise and silent typing.
12 multimedia keys: home, search, brightness, stop / start play / pause, previous / next track, mute, volume, backlight.
White key backlight with four intensity settings and backlight off (f12).
Switch between OS: fn+S for Windows / Android, fn+A for macOS / iPadOS / iOS. Other features:
Possibility to connect your device while running thanks to the Hot Plug support.
Full Plug and Play support.
Standby mode support.
Power via USB bus - USB bus power or from PD wall charger.
Heavy-duty aluminium body for better hub cooling.
The LED indicates with constant light the hub connection to the computer.
High quality shielded cable ensures fast communication speed and minimal unwanted interference.
Dimensions 296 x 128 x 11 / 6 mm.
Weight 353 g (without cable).
USB-C cable 60 cm long with connectors C-M straight / C-M bent 90°. Supported operating systems:
Microsoft Windows 10 / 11 and later, macOS, iPadOS, iOS, Linux, Chrome OS and Android.
Compatibility depends on used OS and support from device manufacturer.
DisplayPort Alternate Mode (DP Alt Mode) is only supported in updated OS and also depends on support from device (notebook, phone).
Graphics card drivers may also affect the correct operation of the product. We recommend downloading the latest version of drivers. Package contains:
USB-C Keyboard hub,
USB-C cable 60 cm long,
Keyboard hub travel bag,
  self-adhesive rubber pads to increase the inclination of the keyboard,
multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA,

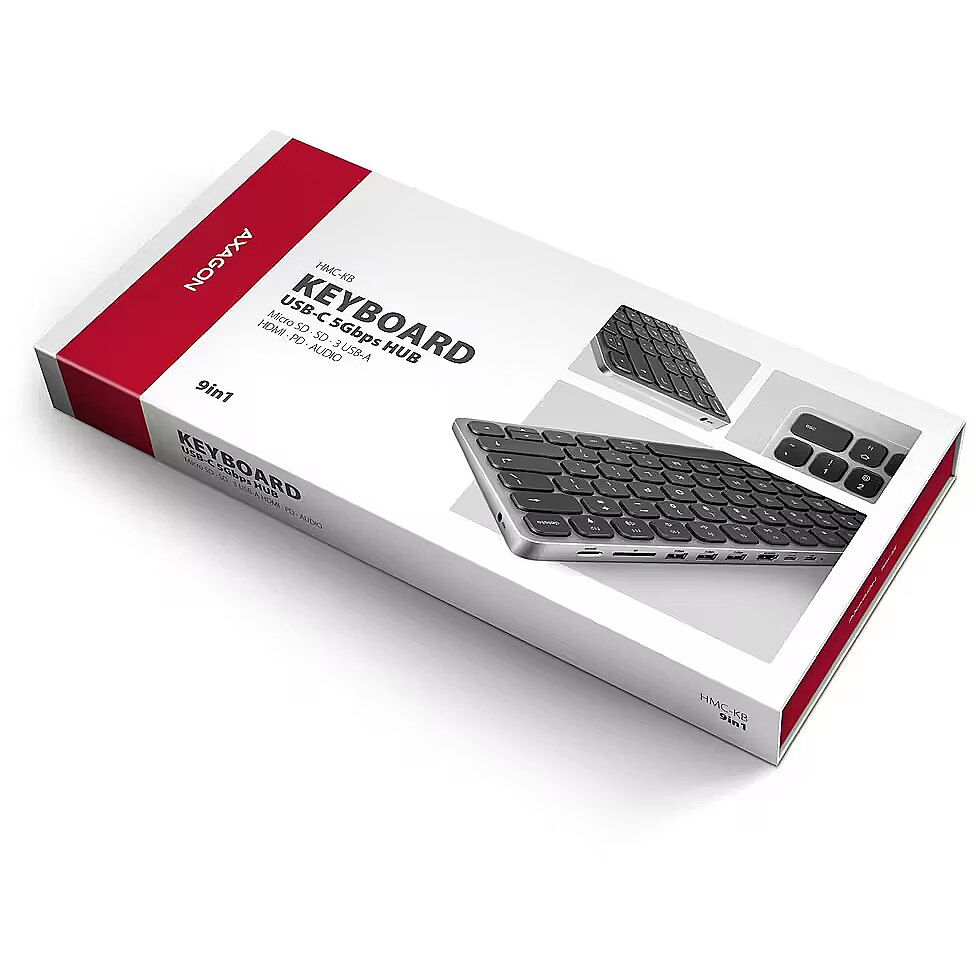

packed in a cardboard box.
Keyboard - Keyboard language - Russian
Keyboard - Keyboard key switch - Scissor key switch
Keyboard - Keyboard layout - QWERTY
Keyboard - Multimedia keys - Yes
Keyboard - Numeric keypad - No
Keyboard - Pointing device - No
Keyboard - Device interface - USB
Keyboard - USB hub - Yes
Keyboard - Windows keys - Yes
Keyboard - Connectivity technology - Wired
Keyboard weight Weight & dimensions - 353 g
Keyboard language Keyboard - Russian
Keyboard key switch Keyboard - Scissor key switch
Keyboard dimensions (WxDxH) Weight & dimensions - 296 x 128 x 11 mm
Keyboard layout Keyboard - QWERTY
Keyboard style Design - Curved
Keyboard - Recommended usage - Home
vendpn - HMC-KB-CRL
Summary - Axagon HMC-KB. Keyboard style: Curved. Connectivity technology: Wired, Device interface: USB, Keyboard key switch: Scissor key switch, Keyboard layout: QWERTY. Backlight type: LED. Cable length: 0.6 m. USB hub, Recommended usage: Home. Product colour: Aluminium, Black
AC adapter included Packaging content - No
Accessories included - USB-C Keyboard hub,
USB-C cable 60 cm long,
Keyboard hub travel bag,
  self-adhesive rubber pads to increase the inclination of the keyboard,
multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA,
packed in a cardboard box.
Code - HMC-KB-CRL
Pouch Packaging data - Yes
Manual languages Packaging content - Multi
Manual Packaging content - Yes
Headphone outputs Features - 1
LED indicators Design - Yes
Link - https://www.axagon.eu/en/produkty/hmc-kb-crl
ShortSummaryDescription - Axagon HMC-KB, Wired, USB, Scissor key switch, QWERTY, LED, Aluminium, Black
Material Design - Aluminium
Model - HMC-KB-CRL
Multimedia keys Keyboard - Yes
Other operating systems supported System requirements - ChromeOS
Designation - CE+WEEE
dimension height - 155 mm
dimension width - 320 mm
dimension depth - 32 mm
Dimensions - 296 x 128 x 11 / 6 mm
dimension weight - 431 g
Vendor Homepage - https://www.axagon.eu/en/produkty/hmc-kb-crl
Name - AXAGON | HMC-KB keyboard USB-C 5Gbps with HUB, microSD/SD, 3x USB-A, HDMI 4K/60Hz, PD 100W | HMC-KB-CRL
name - HMC-KB-CRL hub + keyboa rd 5Gbps HDMI PD Cyrili
Numeric keypad Keyboard - No
Features - Card reader integrated - Yes
Features - Cable length - 0.6 m
Features - Plug and Play - Yes
Features - USB connector type - USB Type-C
Features - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Pointing device Keyboard - No
Packaging data - Pouch - Yes
Packaging data - Package weight - 733 g
Packaging data - Package height - 36 mm
Packaging data - Package width - 317 mm
Packaging data - Package depth - 154 mm
Packaging data - Package type - Box
Pack Weight Brutto (kg) - 0.73 kg
Package weight Packaging data - 733 g
Pack Height (mm) - 36 mm
Package height Packaging data - 36 mm
Pack Width (mm) - 317 mm
Package width Packaging data - 317 mm
Package features > Gross width (mm) - 128.00 mm
Package features > Gross height (mm) - 11.00 mm
Package features > Gross depth (mm) - 296.00 mm
Package features > Volume (m3) - 0.00 m³
Package features > Paper/Pasteboard - 90.00 g
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 2073 pc(s)
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.10 kg
Pack Length (mm) - 154 mm
Packaging content - AC adapter included - No
Packaging content - Cables included - USB Type-C
Packaging content - Manual - Yes
Packaging content - Manual languages - Multi
Packaging content - Number of products included - 1 pc(s)
Pieces in pack - 1
Package depth Packaging data - 154 mm
Package type Packaging data - Box
Package features > Embeeded battery - No
Package features > WEEE tax - Yes
Package features > WEE classification - CL109:6:2017-04-01
Title - Axagon HMC-KB keyboard Home USB QWERTY Russian Aluminium, Black
LongDesc - AXAGON HMC-KB-CRL KEYBOARD hub turns your phone, tablet or mini-laptop into a full-fledged computer workplace. You connect your mobile device to the 9in1 docking station via the supplied 60 cm long cable. In no time, you have an integrated keyboard, SD and microSD card reader, and connectors for connecting an external monitor, three USB devices, headphones or headset, and Power Delivery power. However, it is necessary that the USB-C port of your mobile device supports video output (DisplayPort Alternate Mode) and Power Delivery.The keyboard, built into an elegant aluminum hub body, is equipped with chiclet keys with a scissor mechanism and 2 mm stroke for precise and quiet typing. The keyboard offers adjustable backlighting in 5 levels, 12 multimedia keys and the possibility of increasing the inclination for comfortable and ergonomic use. Of course, the keys are printed with Cyrilic localization.The HDMI output enables the connection of an external monitor, TV or projector with a resolution of up to 4K/60Hz Ultra HD, 2K/120Hz Quad HD or 1080p/200Hz Full HD and the transmission of multi-channel audio. Thanks to HDR support, you can enjoy a significantly expanded range of colours and contrasts without limitations.Three USB-A 5Gbps outputs allow connection of external drives (up to 2 at the same time), flash drive, mouse, printer and other USB accessories. The USB ports also charge mobile phones and tablets with a power of up to 7.5W. The memory card reader supports reading and writing of all versions of SD and microSD cards with a capacity of up to 2TB. The card reader enables simultaneous handling of cards in both slots and direct copying between them. The 3.5 mm audio output offers the possibility of connecting stereo headphones, a headset or active speakers.The PD USB-C input is designed for a suitable Power Delivery charger. This allows both your mobile device and the hub to be powered directly from the PD charger using Power Delivery 3.0 technology with up to 100W of power.The Multiport Hub with Keyboard is especially ideal for users of phones and tablets Samsung's DeX-enabled Z-series Fold (from Fold3), Galaxy S (from S9), Note (from Note8) and Galaxy Tab S (from S4 except Lite and FE versions). The Dock also enables desktop mode for the Apple iPad Pro and iPad Air (from 2022) tablets. In addition, it ensures compatibility with iPad mini (from 2021) and with iPhone 15 Pro / Pro Max phones, while the image is transferred via mirroring.
LongSummaryDescription - Axagon HMC-KB. Keyboard style: Curved. Connectivity technology: Wired, Device interface: USB, Keyboard key switch: Scissor key switch, Keyboard layout: QWERTY. Backlight type: LED. Cable length: 0.6 m. USB hub, Recommended usage: Home. Product colour: Aluminium, Black
LongProductName - USB-C, CRL layout, 1x HDMI, 3x USB-A, 3.5 mm, Card reader slot, USB PD
Plug and Play Features - Yes
Adjustable backlight Design - Yes
Device interface Keyboard - USB
Recommended usage Keyboard - Home
System requirements - Other operating systems supported - ChromeOS
System requirements - Windows operating systems supported - Windows 10, Windows 11
System requirements - Linux operating systems supported - Yes
System requirements - Mac operating systems supported - Yes
System requirements - Mobile operating systems supported - Android, iOS, iPadOS
Vendor - AXAGON
Backlight colour Design - White
Backlight Design - Yes
Backlight type Design - LED
Technical details > Gross weight - 0.45 kg
Technical details > Net weight - 0.35 kg
Technical details > Producer - AXAGON
Technical details > Producer product name - HMC-KB-CRL
Technical details > Producer product family - HMC-KB keyboard USB-C 5Gbps with HUB, microSD/SD, 3x USB-A, HDMI 4K/60Hz, PD 100W
Mobile operating systems supported System requirements - Android/iOS/iPadOS
Linux operating systems supported System requirements - Yes
Mac operating systems supported System requirements - Yes
Windows operating systems supported System requirements - Windows 10/Windows 11
Power - USB Power Delivery (USB PD) - Yes
Power - USB Type-C charging port - Yes
Power source type Power - USB
Number of products included Packaging content - 1 pc(s)
ProductCategory - Aksesuāri
ProductDescription - HMC-KB-CRL USB-C 5Gbps KEYBOARD 9in1 hub - RUS. HDMI, PD and 3 USB-A ports. USB-C cable 60 cm.
ProductCode - HMC-KB-CRL
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=250814130507699637&THEME=asbis&LANG=lv
ProductName - HMC-KB
ProductType - Various Accessories
Product colour Design - Aluminium/Black
producer - AXAGON
USB hub Keyboard - Yes
USB connector type Features - USB Type-C
USB Power Delivery (USB PD) Power - Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Features - 3
USB Type-C charging port Power - Yes
URL - https://www.axagon.eu/en/produkty/hmc-kb-crl
Color - Gray
Power - Power source type - USB
Windows keys Keyboard - Yes
Connectivity technology Keyboard - Wired
Unit Calculated Volume - 0.001736 cubm
Unit Calculated Weight - 0.731 kg
Units per Pallet - 0
Units per Shipping Box - 1
Unit Box Height - 0.035
Unit Box Width - 0.155
Unit Box Length - 0.32
