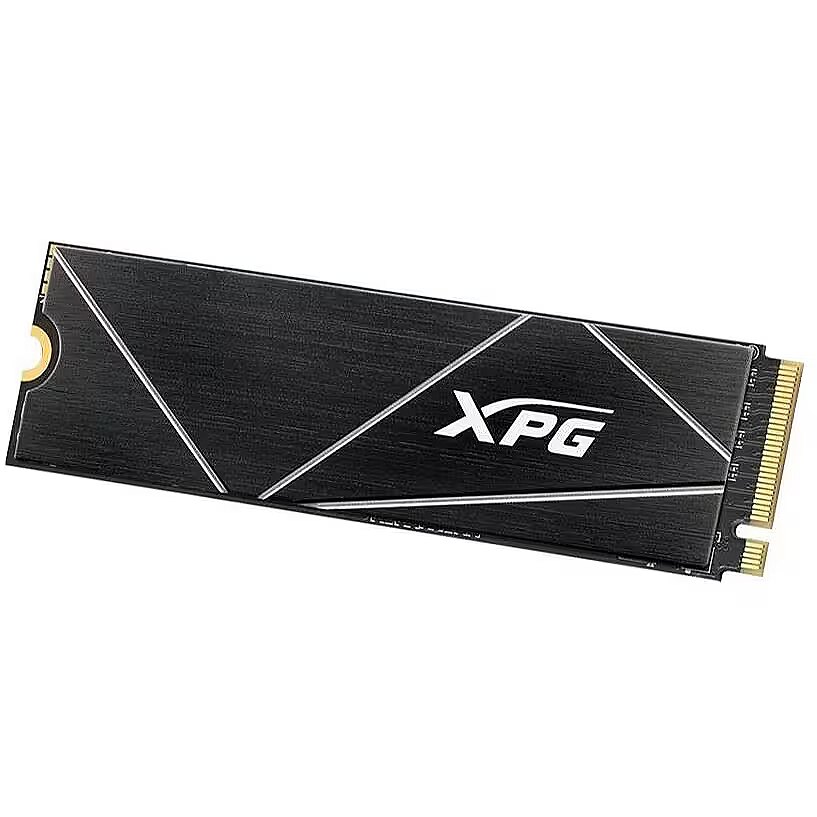

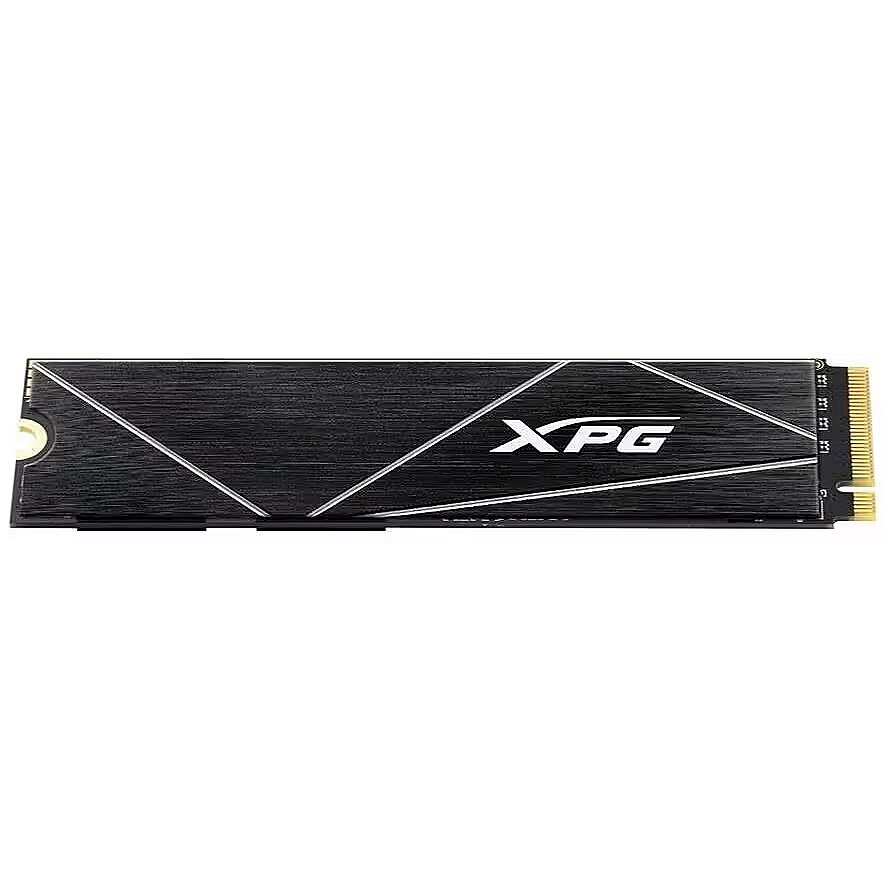

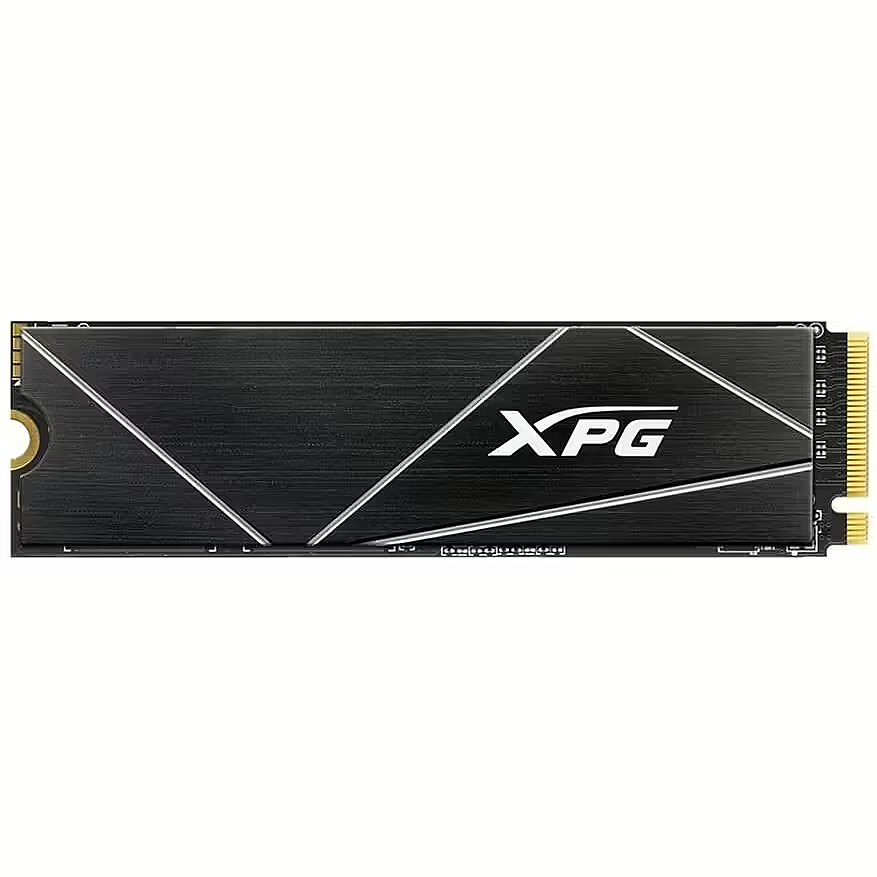

ADATA XPG GAMMIX S70 Blade, 512GB, M.2 Gen4 x4

Drive type - Internal
Data retention Features - 2000000 year(s)
Brand - XPG
BrandPartCode - AGAMMIXS70B-512G-CS
Design > SSD form factor - M.2 2280
EAN_code - 4711085936219
ECC Features - Yes
Category_1 - Hard Drives and Pendrives
EAN - 4711085936219
Features - Data retention - 2000000 year(s)
Features - ECC - Yes
Features - Interface - PCI Express 4.0
Features - Security algorithms - 256-bit AES
Features - Hardware encryption - Yes
Features - End-to-End Data Protection - Yes
Warranty - 60
guarantee - 60
Warranty - 60L months
WarrantyInfo - 5 years limited
guarantee_type - normal
warrantyLength - 60
warrantyType - G
GTIN - 4711085936219
Harmonized System (HS) code Logistics data - 84717070
HDD interface - PCIe 4.0
HDD capacity - 512 GB
Random write (4KB) Features - 510000 IOPS
Random write IOPS (max) - 510 K
Random read (4KB) Features - 425000 IOPS
Random read IOPS (max) - 425 K
Sequential read speed (AS SSD) Features - 5700 MB/s
Sequential read speed (ATTO) Features - 7400 MB/s
Sequential write speed (AS SSD) Features - 2400 MB/s
Sequential write speed (CDM) Features - 2600 MB/s
Sequential read speed (CDM) Features - 7200 MB/s
Sequential write speed (ATTO) Features - 2600 MB/s
Performance > Write speed - 2600 MB/s
Performance > Read speed - 7400 MB/s
Performance > Solid-state drive capacity - 512 GB
Performance > Solid-state drive interface - PCIe Gen4x4
Weight - 0,03
Weight - 7 g
weight - 35
Weight & dimensions - Weight - 10 g
Weight & dimensions - Weight - 11 g
Weight & dimensions - Width - 22 mm
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 4.3 mm
Weight Weight & dimensions - 10 g
Category - Internal Solid State Drives
Category Code - SSU
Category_2 - Internal SSD - M.2
ean - 4711085936219
Disk type - SSD
Description - Speed Ahead with PCIe 4.0
With the latest PCIe Gen4 interface, the GAMMIX S70 BLADE will help you dominate the competition with sequential read/write performance of up to 7400/6800/MB per second. That's up to two times faster than PCIe 3.0 SSDs! For ease of use, it's backward compatible with PCIe 3.0. Cool in the Heat of Battle
Sporting a robust high-temperature resistant aluminum heatsink, the GAMMIX S70 BLADE gets rid of heat effectively. So effective in fact it is able to reduce temperatures by up to 20 percent. Plus, the heatsink looks amazing too with its streamlined surface and ridged geometric lines. Perfect for Compact and Thin Devices
Featuring a M.2 2280 form factor, the GAMMIX S70 BLADE is perfect for laptops and thinner devices, giving you the performance you need regardless of space constraints. Works with PS5
Got a PS5 and need more capacity? The GAMMIX S70 BLADE is your answer. Plug one into your PS5 and enjoy better, smoother performance over the built-in storage. Made to Perform
- Compliant with NVMe 1.4
- Higher capacities and enhanced efficiency and durability with 3D NAND Flash
- M.2 2280 specification: supports the latest generation PCIe 4.0 platform
- Perfect for avid gamers, overclockers, and PC enthusiasts Boosting Your Performance
In combination with Dynamic SLC Caching and DRAM Cache Buffer, the GAMMIX S70 BLADE gives you a performance boost for video editing, rendering, and gaming. The Ultimate Game Cache
Equipped with 3D NAND Flash memory, the S70 BLADE offers capacities of up to 4TB. What's more, with error correcting and protection technologies, it comes with a high Total Bytes Written (TBW) rating for excellent durability and longevity. Security and Integrity
On top of its core performance characteristics, the S70 BLADE supports LDPC error correcting code technology to detect and fix a comprehensive range of data errors for accurate data transmissions. In addition, with End-to-End (E2E) Data Protection, RAID Engine support, and AES 256-bit Encryption, the S70 BLADE ensures data security and integrity.Speed Ahead with PCIe 4.0Cool in the Heat of BattlePerfect for Compact and Thin DevicesWorks with PS5Compliant with NVMe 1.4Boosting Your PerformanceThe Ultimate Game CacheSecurity and Integrity
Description - XPG GAMMIX S70 BLADE Wyprzedź innych dzięki PCIe 4.0
Dysk GAMMIX S70 z najnowszym interfejsem PCIe Gen4 pomoże Ci pokonać rywali dzięki szybkościom sekwencyjnego odczytu/zapisu wynoszącym do 7400/6800 MB na sekundę. To aż do dwóch razy szybciej niż w przypadku dysków SSD PCIe 3.0! W celu ułatwienia użytkowania jest on wstecznie zgodny z interfejsem PCIe 3.0. Chłodzenie w ogniu walki
Dysk GAMMIX S70 BLADE jest wyposażony w solidny i odporny na wysokie temperatury aluminiowy radiator, który skutecznie odprowadza ciepło. Skutecznie na tyle, że jest w stanie obniżyć temperaturę aż do 20 procent. W dodatku radiator ma fantastyczny wygląd, dzięki opływowej konstrukcji i wyżłobionym liniom geometrycznym. Idealny do kompaktowych i płaskich urządzeń
Dzięki formatowi M.2 2280 dysk GAMMIX S70 BLADE jest doskonały do laptopów i bardziej płaskich urządzeń, zapewniając żądaną wydajność pomimo ograniczeń przestrzennych. Zwiększona wydajność
W połączeniu z dynamicznym buforowaniem SLC i buforem DRAM dysk GAMMIX S70 zapewnia większą wydajność do edycji wideo, renderowania i grania w gry. Najlepsza pamięć podręczna do gier
Wyposażony w pamięć flash 3D NAND dysk S70 oferuje pojemność do 2 TB. Dodatkowo, obsługiwane technologie korekcji błędów i ochrony danych odpowiadają za wysoki współczynnik TBW (ang. Total Bytes Written) i zapewniają znakomitą wytrzymałość oraz długi czas użytkowania. Bezpieczeństwo i integralność
Oprócz znakomitej wydajności dysk S70 zapewnia także obsługę technologii kodu korekcji błędów LDPC do wykrywania i korekty szerokiego zakresu błędów danych, co przekłada się na dokładność transmisji danych. Dodatkowo dzięki obsłudze ochrony danych E2E (ang. End-to-End), technologii RAID Engine i 256-bitowego szyfrowania AES dysk S70 oferuje także bezpieczeństwo i integralność danych.
Writing speed - 2600 MB/s
TBW - 370 TB
Write speed Features - 2600 MB/s
vendpn - AGAMMIXS70B-512G-CS
Summary - XPG GAMMIX S70 BLADE. SSD capacity: 512 GB, SSD form factor: M.2, Read speed: 7400 MB/s, Write speed: 2600 MB/s, Component for: PC/Laptop
Component for Features - PC/Laptop
Controller type Features - Innogrit IG5236
Code - AGAMMIXS70B-512G-CS
Form factor (width) - M.2 2280
Height - 3.3 mm
Height Weight & dimensions - 4.3 mm
Width - 22 mm
Width Weight & dimensions - 22 mm
Interface Features - PCI Express 4.0
Link - https://www.xpg.com/us/xpg/830?tab=desc
Logistics data - Harmonized System (HS) code - 84717070
Reading speed - 7200 MB/s
Read speed Features - 7400 MB/s
End-to-End Data Protection Features - Yes
ShortSummaryDescription - XPG GAMMIX S70 BLADE, 512 GB, M.2, 7400 MB/s
Maximum operating temperature Operational conditions - 70 °C
Minimum operating temperature Operational conditions - 0 °C
Model - XPG GAMIX S70 BLADE
Other features - Wymiary z radiatorem: 4,3 x 22 x 80 mm Waga z radiatorem: 10 g
Other features - Compliance certificates - BSMI
Other features - Compliance certificates - CE
Other features - Compliance certificates - CE, RoHS
Other features - Compliance certificates - EAC
Other features - Compliance certificates - Federal Communications Commission (FCC)
Other features - Compliance certificates - RCM
Other features - Compliance certificates - KC
Other features - Compliance certificates - RoHS
Other features - Compliance certificates - UKCA
Other features > Compatibility - NVMe 1.4
Memory type Features - 3D NAND
Designation - CE+WEEE
dimension height - 130 mm
dimension width - 105 mm
dimension depth - 17 mm
dimensionalWeight - 40
dimension weight - 34 g
Vendor Homepage - https://www.adata.com/us/xpg/830
Name - ADATA XPG GAMMIX S70 BLADE 512 GB, SSD (gray, PCIe 4.0 x4, NVMe 1.4, M.2 2280)
Name - ADATA | XPG Gammix S70 BLADE | 512 GB | SSD form factor M.2 2280 | Solid-state drive interface PCIe Gen4x4 | Read speed 7400 MB/s | Write speed 2600 MB/s
name - SSD drive XPG GAMIX S70 BLADE 512GB PCIe 4x4 7.2/2.6 GBs
NVMe Features - Yes
NVMe version Features - 1.4
Features - Random write (4KB) - 510000 IOPS
Features - Random read (4KB) - 425000 IOPS
Features - Sequential write speed (AS SSD) - 2400 MB/s
Features - Sequential write speed (ATTO) - 2600 MB/s
Features - Sequential write speed (CDM) - 2600 MB/s
Features - Sequential read speed (AS SSD) - 5700 MB/s
Features - Sequential read speed (ATTO) - 7400 MB/s
Features - Sequential read speed (CDM) - 7200 MB/s
Features - Write speed - 2600 MB/s
Features - Write speed - 6800 MB/s
Features - Component for - PC/Laptop
Features - Controller type - Innogrit IG5236
Features - Read speed - 7400 MB/s
Features - Memory type - 3D NAND
Features - PCI Express interface data lanes - x4
Features - SSD capacity - 512 GB
Features - SSD form factor - M.2
Features - TBW rating - 370
Features - NVMe - Yes
Features - NVMe version - 1.4
Packaging data - Package type - Box
Package features > Gross width (mm) - 25.00 mm
Package features > Gross height (mm) - 10.00 mm
Package features > Gross depth (mm) - 85.00 mm
Package features > Volume (m3) - 0.00 m³
Package features > Paper/Pasteboard - 80.00 g
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 9091 pc(s)
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.10 kg
Package type Packaging data - Box
Package features > PET - 20.00 g
Package features > Embeeded battery - No
Package features > WEEE tax - Yes
Package features > WEE classification - CL109:6:2017-04-01
PCI Express interface data lanes Features - x4
Title - XPG GAMMIX S70 BLADE 512 GB M.2 PCI Express 4.0 NVMe 3D NAND
LongDesc - Speed Ahead with PCIe 4.0With the latest PCIe Gen4 interface, the GAMMIX S70 BLADE will help you dominate the competition with sequential read/write performance of up to 7400/6800/MB per second. That's up to two times faster than PCIe 3.0 SSDs! For ease of use, it's backward compatible with PCIe 3.0.Cool in the Heat of BattleSporting a robust high-temperature resistant aluminum heatsink, the GAMMIX S70 BLADE gets rid of heat effectively. So effective in fact it is able to reduce temperatures by up to 20 percent. Plus, the heatsink looks amazing too with its streamlined surface and ridged geometric lines.Perfect for Compact and Thin DevicesFeaturing a M.2 2280 form factor, the GAMMIX S70 BLADE is perfect for laptops and thinner devices, giving you the performance you need regardless of space constraints.Works with PS5Got a PS5 and need more capacity? The GAMMIX S70 BLADE is your answer. Plug one into your PS5 and enjoy better, smoother performance over the built-in storage.Made to Perform- Compliant with NVMe 1.4- Higher capacities and enhanced efficiency and durability with 3D NAND Flash- M.2 2280 specification: supports the latest generation PCIe 4.0 platform- Perfect for avid gamers, overclockers, and PC enthusiastsBoosting Your PerformanceIn combination with Dynamic SLC Caching and DRAM Cache Buffer, the GAMMIX S70 BLADE gives you a performance boost for video editing, rendering, and gaming.The Ultimate Game CacheEquipped with 3D NAND Flash memory, the S70 BLADE offers capacities of up to 4TB. What's more, with error correcting and protection technologies, it comes with a high Total Bytes Written (TBW) rating for excellent durability and longevity.Security and IntegrityOn top of its core performance characteristics, the S70 BLADE supports LDPC error correcting code technology to detect and fix a comprehensive range of data errors for accurate data transmissions. In addition, with End-to-End (E2E) Data Protection, RAID Engine support, and AES 256-bit Encryption, the S70 BLADE ensures data security and integrity.
LongSummaryDescription - XPG GAMMIX S70 BLADE. SSD capacity: 512 GB, SSD form factor: M.2, Read speed: 7400 MB/s, Write speed: 2600 MB/s, Component for: PC/Laptop
LongProductName - 512 GB, M.2, PCIe Gen4x4, 3D NAND, 7400 MB/s read, 2600 MB/s write
Hardware encryption Features - Yes
SSD capacity Features - 512 GB
SSD series - XPG GAMMIX S70
SSD form factor Features - M.2
sizeZ - 15
sizeX - 130
Storage temperature (T-T) Operational conditions - -40 - 85 °C
Depth - 80 mm
Depth Weight & dimensions - 80 mm
TBW rating Features - 370
Technical details > Gross weight - 0.11 kg
Technical details > Warranty - 60 month(s)
Technical details > Other features - High-temperature resistant aluminum heatsink
Technical details > NAND flash component - 3D NAND
Technical details > Net weight - 0.01 kg
Technical details > Producer - ADATA
sizeY - 105
ProductName - GAMMIX S70 BLADE
productName - XPG GAMMIX S70 BLADE 512 GB M.2 PCI Express 4.0 NVMe 3D NAND
productSize - Normal
Manufacturer - ADATA
producer - Adata
producerCode - AGAMMIXS70B-512G-CS
Manufacturer_code - AGAMMIXS70B-512G-CS
Producer product name - XPG Gammix S70 BLADE
Security algorithms Features - 256-bit AES
Operating shock Operational conditions - 1500 G
Operating temperature (T-T) Operational conditions - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Operational conditions - Maximum operating temperature - 70 °C
Operational conditions - Minimum operating temperature - 0 °C
Operational conditions - Operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Compliance certificates Other features - CE, RoHS
URL - https://www.adata.com/us/xpg/830
Color - Not applicable
Unit Calculated Volume - 0.0002047 cubm
Unit Calculated Weight - 0.033 kg
Units per Shipping Box - 1
Unit Box Height - 0.015
Unit Box Width - 0.105
Unit Box Length - 0.13
