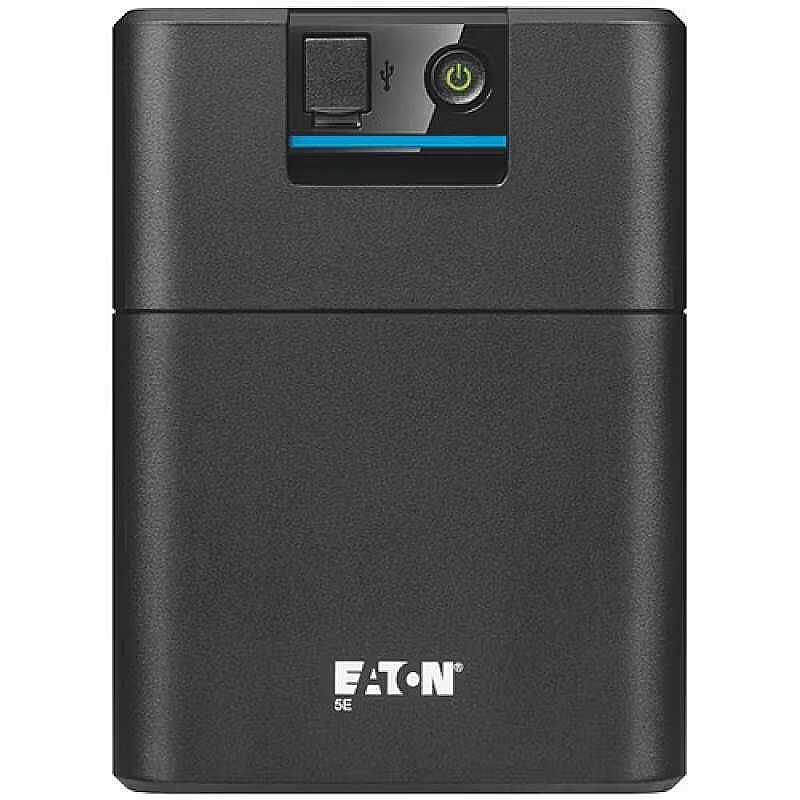

Eaton 5E1600UI, 1600VA 900W, IEC

Accessories included -
Active power - 900 W
Apparent power - 1600 VA
Backup time (100% load) - 8 min
Battery capacity - 7 Ah
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category Code - UPW
Chassis type - Tower
Code - 5E1600UI
Color - Black
Colour - Black
Description - Eaton 5E Gen2 UPS
Description - The 5E Gen2 UPS provides affordable power protection for mission-critical applications in residential and professional environments. Power protection The 5E Gen2 UPS protects your applications and data from unexpected power loss. Double-boost Automatic Voltage Regulation (AVR) technology regulates grid fluctuations (voltage sags and swells) to preserve energy in the battery during power outages. A wide range of models covers the power needs of many IT devices. The Auto-Restart function allows the UPS to automatically restart when mains power returns after the battery has been fully discharged. Perfect protection: Computers, workstations and peripherals; Internet routers, basic NAS servers; TVs, game consoles and other more energy-consuming devices; home security systems; Sales points, ticket machines. Simple installation The UPS 5E Gen2 offers local sockets (FR, DIN/IT, BS and IEC) to facilitate the connection and protection of the most commonly used devices. The fanless design in versions up to 1200 VA ensures silent operation in home conditions. The compact housing allows for convenient installation at home or in the office. Easy UPS management from your computer (for USB models): Automatic connection to Windows/MacOS/Linux power utilities to safely shut down your system. Analyze energy consumption and manage UPS parameters with Eaton UPS Companion software. Peace of mind A leading and trustworthy manufacturer, with many years of experience and high quality standards: CE certificate granted by an external agency (TUV) in accordance with the latest international safety standards. Know that you can rely on batteries 24/7: UPS 5E Gen2 batteries are constantly charged (even when the UPS is turned off). The UPS can start without mains power (cold start). Automatic battery test and battery replacement alarm. Take your worries away with a two-year warranty.
Design > Form factor - Tower
Designation - CE+WEEE
Desktop/pedestal Mounting Type - Yes
dimension depth - 250 mm
dimension height - 310 mm
Dimensions - 330 x 180 x 133 mm
Dimensions - 330 x 180 x 133mm
dimension weight - 11000 g
dimension width - 460 mm
EAN - 3553340704321
ean - 3553340704321
Eans - 3553340704321
Environment requirements - Operating temperature from 0 to 40°C
Features > Colour of product - Black
Filters / protection - Voltage drop
guarantee - 24
guarantee_type - external
Hold-up time (maks) - 10 ms
I/O connectors - 1 x USB (Type B)
Input power ports - Wtyczka sieciowa
Model - 5E1600UI
Name - Eaton 5E 1600 USB IEC G2
Name - Eaton | UPS | 5E Gen2 1600UI IEC | 1600 VA | 900 W
name - UPS 5E 1600 USB IEC G2 5E1600UI
No. of batteries - 2
Number of phases input - 1 (230V)
On/Off Buttons: - YES
Other features - Certifications EN IEC 62040-1:2019 ; EN 62040-2:2006 ; IEC 62040-2: 2016, IEC 62040-3: 2021; C.E. ; EAC ; UKCA ; cm ; Ukr Compliance with EU Directives: LVD (CB report); EMC ; RoHS ; WEEE ; Packaging ; Batteries
Output power capacity, VA - 1600 VA
Output power capacity, W - 900 Watts
Output power connector type - IEC 320 C13
Output power ports - 6 x IEC-C13
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 347.00 mm
Package features > Gross height (mm) - 138.00 mm
Package features > Gross width (mm) - 230.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 102 pc(s)
Package features > Paper/Pasteboard - 500.00 g
Package features > Plastic (No PET) - 40.00 g
Package features > Tare weight (kg) - 0.54 kg
Package features > TI weight (kg) - 5.30 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Performance > Capacity - 1600 VA
Performance > UPS topology - Line-Interactive
Phase - 1phase
producer - Eaton
Producer - Eaton
ProducerCode - 5E1600UI
Producer product family - UPS
Producer product name - 5E Gen2 1600UI IEC
Product Net Weight - 9.3 kg
ShortDescription -
Software - Eaton UPS Companion
Special functions -
Technical details > Capacity - 900 W
Technical details > Gross weight - 9.84 kg
Technical details > Net weight - 9.30 kg
Technical details > Producer - Eaton
Technical details > Warranty - 24 month(s)
Topology - LineInteractive
Unit Box Height - 0.32
Unit Box Length - 0.47
Unit Box Width - 0.245
Unit Calculated Volume - 0.036848 cubm
Unit Calculated Weight - 10.5 kg
Units per Shipping Box - 1
UPS Architecture - line-interactive
USB Communication ports - 1
Vendor Homepage - www.eaton.com/content/dam/eaton/products/backup-power-ups-surge-it-power-distribution/backup-power-ups/eaton_5e_ups/eaton-5e-ups---emea/eaton-dpq-5egen2-ups-datasheet-en-gb.pdf
vendpn - 5E1600UI
Voltage - 12 V
Warranty - 24
Warranty - 24 months
Wave form type - Pure sinewave
Weight - 9.3 kg
