Eaton 5E1600UD, 1600VA 900W

Accessories included -
Active power - 900 W
Alarm - -
Apparent power - 1600 VA
Backup time (100% load) - 8 min
Battery capacity - 7 Ah
BatteryType - Lead-acid
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category Code - UPW
Chassis type - Tower
Color - Black
Colour - Black
ControlPanel - -
Depth - 330 mm
Description - Eaton 5E Gen2 UPS
Description - The 5E Gen2 UPS provides affordable power protection for mission-critical applications in residential and professional environments. Power protection The 5E Gen2 UPS protects your applications and data from unexpected power loss. Double-boost Automatic Voltage Regulation (AVR) technology regulates grid fluctuations (voltage sags and swells) to preserve energy in the battery during power outages. A wide range of models covers the power needs of many IT devices. Auto-restart function allows the UPS to automatically restart when mains power returns after the battery has been fully discharged Simple installation The UPS 5E Gen2 offers local sockets (FR, DIN/IT, BS and IEC) to facilitate the connection and protection of the most commonly used devices. The fanless design in versions up to 1200 VA ensures silent operation in home conditions. The compact housing allows for convenient installation at home or in the office. Easy UPS management from your computer (for USB models): Automatic connection to Windows/MacOS/Linux power utilities to safely shut down your system. Analyze energy consumption and manage UPS parameters with Eaton UPS Companion software. Peace of mind A leading and trustworthy manufacturer, with many years of experience and high quality standards: CE certificate granted by an external agency (TUV) in accordance with the latest international safety standards. Know that you can rely on batteries 24/7: UPS 5E Gen2 batteries are constantly charged (even when the UPS is turned off). The UPS can start without mains power (cold start). Automatic battery test and battery replacement alarm. Take your worries away with a two-year warranty. Perfect protection: Computers, workstations and peripherals Internet routers, basic NAS servers Televisions, game consoles and other more energy-consuming devices Home security systems Sales points, ticket machines.
Designation - CE+WEEE
Desktop/pedestal Mounting Type - Yes
dimension depth - 245 mm
dimension height - 315 mm
Dimensions - 330 x 180 x 133 mm
Dimensions - 330 x 180 x 133mm
dimension weight - 11700 g
dimension width - 460 mm
ean - 3553340704345
Eans - 3553340704345
Environment requirements -
FormFactor - Tower
Full Description Line - 900 Watts|1600 VA|Wave form type Pure sinewave|Topology LineInteractive|Phase 1phase|Output power connector type IEC 320 C13|1xUSB|Desktop/pedestal|On/Off|Colour Black
GrossWeight - -
guarantee - 24
guarantee_type - external
Height - 180 mm
Hold-up time (maks) - 10 ms
I/O connectors - 1 x USB (Type B)
InputConnections - Schuko
InputFrequency - 45-63 Hz
InputVoltage - 140-300 V
InterfacePorts - -
LongDesc -
MANUFDATASHEET - https://www.eaton.com/za/en-gb/skuPage.5E1600UD.html
Model - 5E1600UD
Name - Eaton 5E 1600 USB DIN G2
name - Eaton 5E 1600 USB DIN G2 5E1600UD
No. of batteries - 2
Number of phases input - 1 (230V)
On/Off Buttons: - YES
Other features -

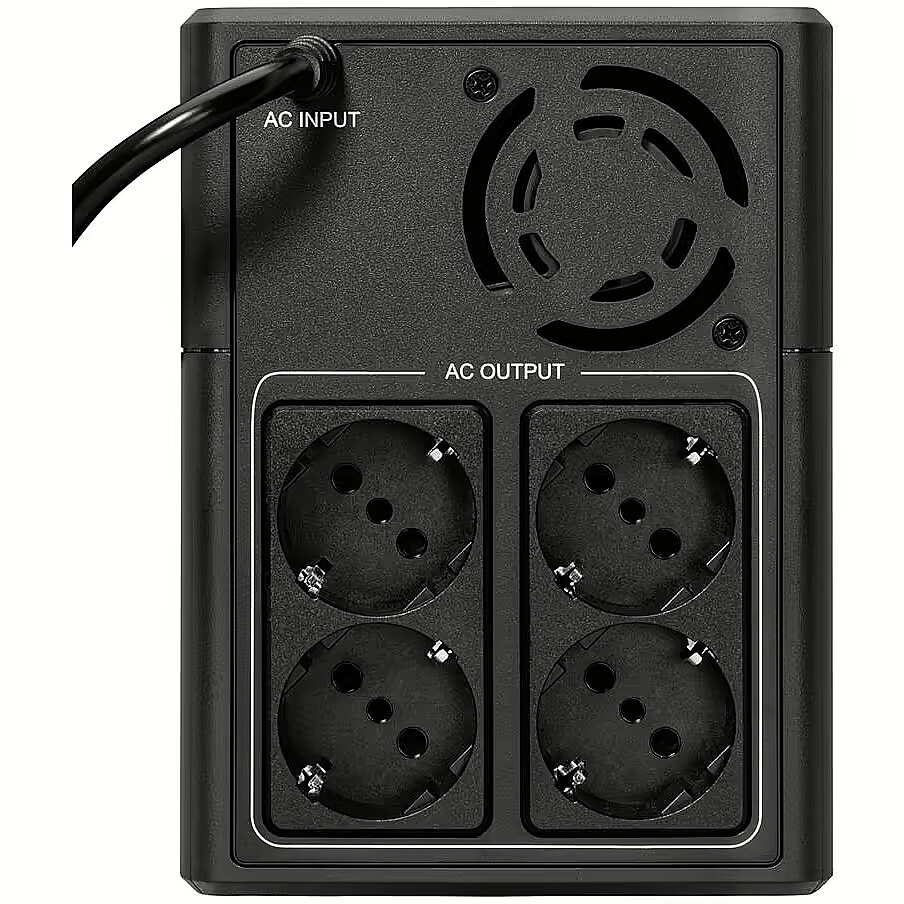

OutputConnections - 4x Schuko
OutputFrequency - 50-60 Hz
Output power capacity, VA - 1600 VA
Output power capacity, W - 900 Watts
Output power connector type - IEC 320 C13
Output power ports - 4 x C/F type (Schuko)
OutputVoltage - 195-257 V
PackageContents -

Quick start

Safety instructions

Phase - 1phase
PowerVAW - 1600 VA
PowerW - 900 W
ProdDesc - Eaton 5E Gen2 UPS
producer - Eaton
Producer - Eaton
ProducerCode - 5E1600UD
Product Net Weight - 9.3 kg
ProductPicture - http://www.tdbaltic.ee/images/ds4/5E900UI-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
RechargeTime - -
RJ45 - -
Runtime - 5/2
Shipping Box Depth Shipping/Package Box Dimensions - 46 cm
Shipping Box Height Shipping/Package Box Dimensions - 31.5 cm
Shipping Box Weight Shipping/Package Box Dimensions - 10.5 kg
Shipping Box Width Shipping/Package Box Dimensions - 25 cm
ShortDescription -
SmartSlot - -
Software -
Special functions -
Topology - LineInteractive
Topology - Line interactive
Unit Calculated Volume Retail box Dimensions - 0.036225 cubm
Unit Calculated Weight - 10.5 kg
Units per Shipping Box - 1
UPS Architecture - line-interactive
USB - Yes
USB Communication ports - 1
Vendor Homepage - www.eaton.com/content/dam/eaton/products/backup-power-ups-surge-it-power-distribution/backup-power-ups/eaton_5e_ups/eaton-5e-ups---emea/eaton-dpq-5egen2-ups-datasheet-en-gb.pdf
vendpn - 5E1600UD
Voltage - 12 V
Warranty - 2 years
Warranty - 24 months
WaveformType - -
Wave form type - Pure sinewave
Weight - 9.3 kg
Weight - 9.260 kg
Width - 133 mm
