Accessories included -
Active power - 700 W
Apparent power - 1000 VA
Battery - Battery capacity - 15 Ah
Battery - Battery technology - Lithium-Ion (Li-Ion)
Battery - Battery voltage - 1000 V
Battery - Built-in battery - Yes
Certificates - Compliance certificates - CE
Color - Gray

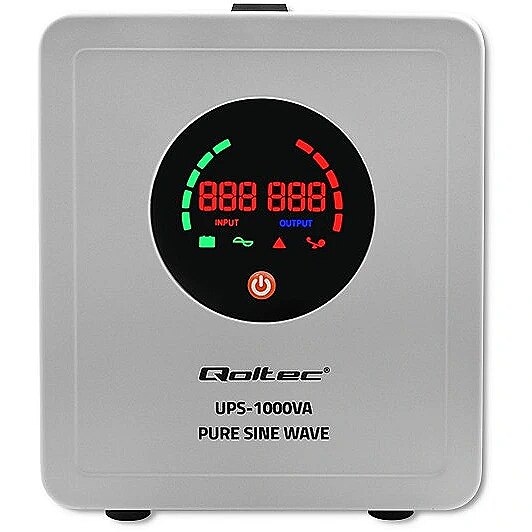

Description - Discover the stability of working with Qoltec's 1kVA Pure Sine Wave UPS
The Pure Sine Wave UPS boasts the highest class and is made of high-quality materials. It is reliable in the event of a mains power outage, automatically switching to battery mode to prevent power loss to connected devices, allowing them to continue operating.
The Qoltec UPS combines many functions to ensure continuous power supply to devices such as:
- power tools,
- fans,
- monitoring systems,
- LED lighting,
- gate drives,
- CO heaters,
- pumps.
It will also find application in working with many other low-power devices requiring continuous power for extended periods. You may already envision the UPS Qoltec Pure Sine Wave 1000VA 700W with a steady phase, perhaps in your basement, workshop, or garage, fulfilling its duty with a connected battery.
Pure Sine Wave - highest quality and device safety
Qoltec's online UPS units provide stable, interference-free clean energy with a sinusoidal waveform. This ensures full protection for your devices, thanks to dual conversion, which first converts AC mains power to DC, then back to AC, ensuring the highest level of power quality and protection against potential network disturbances such as voltage drops, power outages, surges, and failures.
How Line Interactive UPS works
The Line Interactive UPS relies on a built-in AVR (Automatic Voltage Regulation) system. This means that the input voltage is automatically regulated. If there is a drop or increase in voltage, the AVR system adjusts it to a level close to the nominal value. The presence of such a solution in an uninterruptible power supply has a positive impact on the durability of the connected battery and provides a constant voltage to the connected device.
Compatibility with any type of power supply
Qoltec's 1kVA UPS offers:
- long backup time,
- line-interactive - switches to battery mode during power outages,
- high charging current,
- pure sine wave ensuring safety and compatibility with any type of power supply,
- CPU-controlled modular design,
- AVR function (Automatic Voltage Regulator),
- protection against overload, short circuit, voltage drop, overload, battery discharge, overheating, and reverse battery connection,
- powerful transformer with high capacity and specially designed circuit with high load capacity,
- dual conversion delivering stable power.
- 3-step charging current selection,
- effective heat dissipation,
- two output sockets.
Straightforward and readable - for your convenience
The built-in LED display ensures easy device management. You receive real-time information about the status and parameters, making working with the device easy, fast, and reliable.
The LED display and audible alarm inform about:
- low battery voltage,
- battery discharge,
- overload 120%.
Full protection of connected devices
The UPS is designed in accordance with all required standards and quality control system. Equipped with a range of protections, it ensures full protection of connected devices. By following the instructions in our manual, you can enjoy uninterrupted device operation for many years.
Design - Built-in fan - Yes
Design - Cooling type - Active
Design - International Protection (IP) code - IP20
Design - Product colour - Grey
Designation - CE+WEEE
dimensionalWeight - 3489
dimension depth - 370 mm
dimension height - 225 mm
Dimensions - (D/L x W x H): 310 x 160 x 180 mm
dimension weight - 10000 g
dimension width - 230 mm
ean - 5901878507217
Environment requirements - Working temperature: -10C do +40C Storage temperature: -20C do +40C Storage humidity: 10 ~ 90% without condensation
Features - Efficiency - 75%
Features - Efficiency (On-line mode) - 95%
Features - Input frequency - 45/65 Hz
Features - Input operation voltage (max) - 275 V
Features - Input operation voltage (min) - 147 V
Features - Noise level - 56 dB
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 230 V
Features - Power protection features - Battery discharge
Features - Power protection features - Overheating
Features - Power protection features - Overload
Features - Power protection features - Over voltage
Features - Power protection features - Short circuit
Features - Power protection features - Under voltage
Features - UPS topology - Line-Interactive
Filters / protection - Circuit
Filters / protection - Overheating
Filters / protection - Overload
Filters / protection - Surge
Filters / protection - Voltage drop
guarantee - 24
guarantee_type - external
name - Uninterruptible power supply Pure Sine Wave
Operational conditions - Operating temperature (T-T) - -10 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 40 °C
Other features -
Packaging data - Package height - 225 mm
Packaging data - Package width - 365 mm
Ports & interfaces - AC outlet types - Type E
Ports & interfaces - AC outlet types - Type F
producer - Qoltec
producerCode - 50721
productName - Qoltec Pure Sine Wave UPS | 1000VA | 700W | Grey
productSize - Normal
Safety warning - Warnings - Do not disassemble the unit housing, there may be a risk of electric shock.
Safety warning - Warnings - Keep away from sources of fire and water.
Safety warning - Warnings - Use the appliance in well-ventilated areas to avoid overheating.
sizeX - 205
sizeY - 230
sizeZ - 370
Software -
Special functions - Signalling: Failure mode, low battery voltage, overload, overheating, other errors
vendpn - 50721
warrantyLength - 24
warrantyType - G
Weight - 7.1 kg
weight - 7270
Weight & dimensions - Depth - 310 mm
Weight & dimensions - Height - 180 mm
Weight & dimensions - Weight - 7.1 kg
Weight & dimensions - Width - 160 mm
