Accessories included -
Active power - 4500 W
Apparent power - 5 kVA
Backup time (100% load) - 3 min
Chassis type - Tower
Color - Black
Connectors - 1 x USB (Typ B)
Connectors - RS-232 (COM)

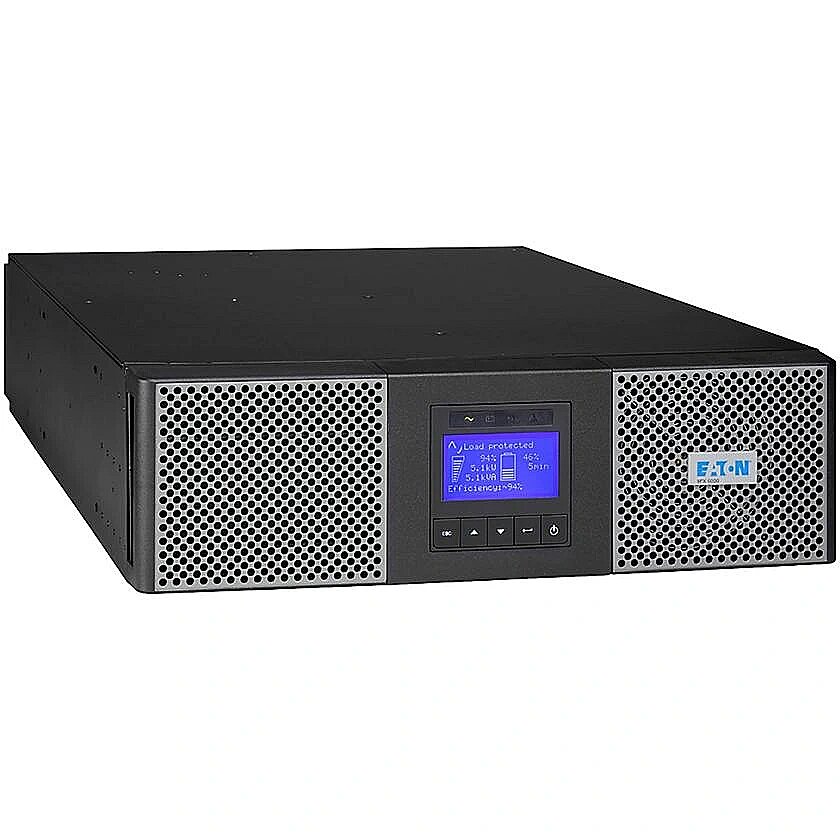

Description - Eaton HotSwap 9PX 5000i
Eaton 9PX provides energy-efficient power protection for small and medium-sized data centers, server and infrastructure facilities. Protecting double conversion with less by 40% and energy consumption by more than 28% of the real power, 9PX is the perfect UPS for IT managers and building managers who are interested in lower energy costs and are looking for solutions to protect power the next generation.
Link to the specifications: http://powerquality.eaton.com/9PX5KiBP.aspx?CX=65
Designation - CE+WEEE
dimension depth - 550 mm
dimension height - 1010 mm
Dimensions - - Height: 440 mm
- Width: 130 mm
- Depth: 685 mm
dimension weight - 65000 g
dimension width - 655 mm
ean - ABEAN-AU51232
Environment requirements - - Noise level:
Filters / protection - Overdischarge
guarantee - 24
guarantee_type - external
Input power ports - Terminal
name - UPS 9PX 5000i RT3U HotSwap 9PX5KiBP
Number of phases input - 1 (230V)
Other features - - Power factor correction PFC
- Input voltage range: 176-276V
- Nominal voltage: 200/208/220/230 / 240V
- Short-circuit current: 90A
- Output voltage: 200/208/220/230 / 240V +/- 1%
- Load Crest Factor
- ABM
- Charging method of temperature compensation
- Automatic battery test
- Protection against deep discharge
- Automatic recognition of the connected bat. external
- 4 potential-free contacts (DB9)
- 1 mini terminal block for remote on. / Off
- 1 mini terminal block for remote shutdown
- 1 port for parallel DB15
- 1 dniazdo card NMS underlying communications, MBMS, RMS

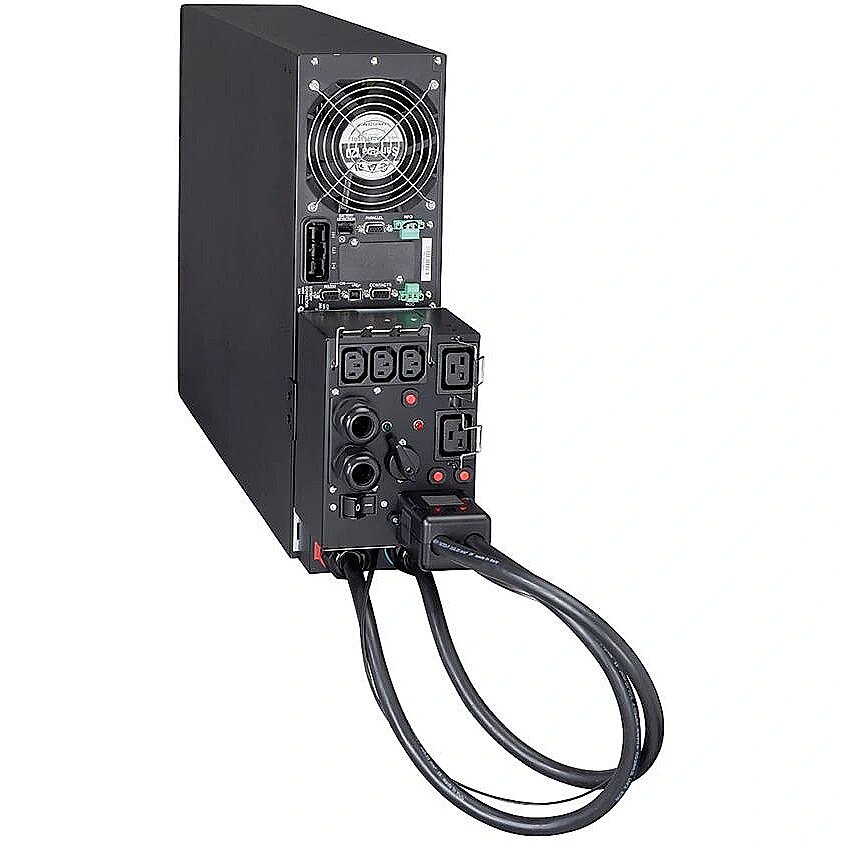

Output power ports - 1 x Terminal
Output power ports - 2 x IEC-C19
Output power ports - 3 x IEC-C13
producer - Eaton
Software -
Special functions - - Energy efficiency
- Graphic LCD display (7 languages)
- Higher real power (W)
- Power factor
- Parallel operation using HotSync technology
- Maintenance Bypass
- Measurement of energy (kWh)
- Compatible with virtualization environments
- Connector input. / Output - Hardwired
UPS Architecture - on-line double conversion
vendpn - 9PX5KiBP
Video -
Weight - 48 kg
