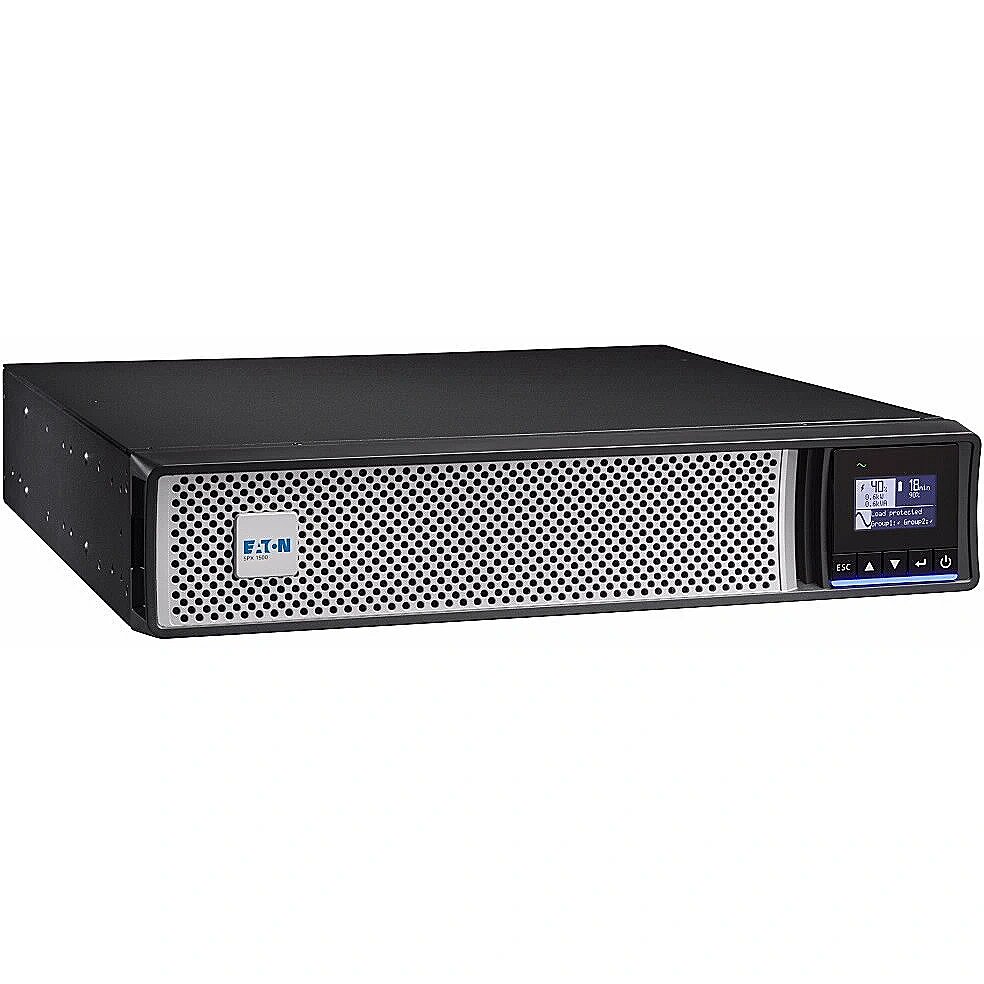

Eaton 5PX3000IRT2UG2, 3000VA 3000W, IEC 2U

Accessories included -
ACoutletsquantity - 10 AC outlet(s)
ACoutlettypes - C13 coupler, C19 coupler
Active power - 3000 W
Apparent power - 3000 VA
ARTIKEL1 - EATON 5PX 3000I RT2U G2
ARTIKEL2 -
AutomaticVoltageRegulationAVR -
Battery -
Batterycapacity -
Batterytechnology -
Batteryvoltage -
Breite - 0.59
Cablesincluded -
Certificates - CE cTUVus EAC Cm UKCA Ukr KCC ENERGY STAR certified
Chassis type - Desktop
Chassis type - Rack
Code - 5PX3000IRT2UG2
Color - Black
Color - Gray
Depth - 603 mm
Description - Zasilacz UPS Eaton 5PX Gen2 3000 VA Wyjątkowa wydajność, łatwość zarządzania i możliwości dla menedżerów IT.
Design -
Designation - CE+WEEE
dimension depth - 570 mm
dimension height - 230 mm
Dimensions - 438 x 603 x 85.5 mm
dimension weight - 39000 g
dimension width - 780 mm
Displaytype - LCD
EAN - 743172104809
ean - 743172104809
EANCode - 0743172104809
Efficiency -
Environment requirements - Temperatura pracy 0 do 40°C Poziom hałasu < 40 dB przy typowym obciążeniu
Features -
Formfactor - Rackmount/Tower
Gewicht - 38.4
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 36
guarantee_type - external
Heatdissipation -
Height - 85.5 mm
HERSTELLER - EATON
HighLights -
Hoehe - 0.24
Hotswapbattery - Yes
HSTNUMMER - 5PX3000IRT2UG2
Inputfrequency - 47/70 Hz
Inputoperationvoltagemax - 294 V
Inputoperationvoltagemin - 160 V
Input power ports - IEC-C20
Laenge - 0.79
Link - https://www.eaton.com/ph/en-us/skuPage.5PX3000IRT2UG2.html
LongDesc -
ManufDatasheet - https://www.tdbaltic.ee/leaflets/EATON/5PX3000IRT2UG2.pdf
name - 5PX 3000i RT2U G2 3000VA / 3000W
Name - Eaton 5PX 3000i RT2U G2 | 5PX3000IRT2UG2 | 3000 VA | 3000 W
Networkcardslot -
Noiselevel - 40 dB
Numberofbatterycells -
Numberofinputphases -
Numberofoutputphases -
Number of phases input - 1 (230V)
Operatingaltitude -
OperatingrelativehumidityHH -
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Other features - 1 USB port + 1 serial RS232 port + 1 mini-terminal block dla Remote ON/OFF + 1 mini-terminal block dla Remote Power OFF + 1 mini-terminal block
Outputfrequency -
Outputoperationvoltagemax -
Outputoperationvoltagemin -
Outputpower - 3000 W
Outputpowercapacity - 3 kVA
Output power ports - 2 x IEC-C19
Output power ports - 8 x IEC-C13
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 605.00 mm
Package features > Gross height (mm) - 87.00 mm
Package features > Gross width (mm) - 440.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 31 pc(s)
Package features > Paper/Pasteboard - 900.00 g
Package features > Plastic (No PET) - 100.00 g
Package features > Tare weight (kg) - 1.00 kg
Package features > TI weight (kg) - 0.5 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.02 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packagingcontent -
Performance > Capacity - 3000 VA
Performance > UPS topology - Line-Interactive
Portsinterfaces -
Powerfactor -
Powerplug - C20 coupler
ProdDesc - Eaton 5PX 3000i RT2U G2
producer - Eaton
Productcolour - Black
Productcondition - Original
ProductHighLights -

• Line-Interactive
• 3 kVA 3000 W
• Waveform: Pure sine
• 10 AC outlet(s)
• Rackmount/Tower Black

ProductPicture - https://www.tdbaltic.ee/images/products/EATON/5PX3000IRT2UG2_1.jpg
ProductPicture1 -
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
ProductPicture5 -
Quickinstallationguide -
Rackmountkit -
RS232ports -
Serialinterface - Yes
Serialinterfacetype - RS-232
Serialportsquantity - 1
Software -
Special functions - Automatyczna regulacja napięcia (AVR) Wydajność energetyczna, redukcja kosztów energii i chłodzenia Zapewnia czystą falę sinusoidalną Zapewnia większą moc rzeczywistą (W), aby chronić więcej urządzeń dzięki współczynnikowi mocy Unity (VA=W) Wyświetlacz LCD do wyświetlania stanu w czasie rzeczywistym i pomiary Długi czas podtrzymania z maksymalnie 4 opcjonalnymi EBM Licznik zużycia energii (do zarządzanych grup gniazdek) Uniwersalny produkt do instalacji w szafie lub wieży 1 gniazdo na opcjonalną kartę com (karta zarządzania siecią, karta przekaźnikowa lub sieć i przemysł karty) Zgodny ze środowiskami wirtualnymi (VMware, Hyper-V, Citrix Xen, Redhat) 1 port USB + 1 port szeregowy
Stck_Kart - 1
Stck_Pal - 1
Storno - Y
Technical details > Capacity - 3000 W
Technical details > Gross weight - 32.70 kg
Technical details > Net weight - 31.70 kg
Technical details > Producer - Eaton
Technical details > Producer product family - 5PX 3000i RT2U G2
Technical details > Producer product name - 5PX3000IRT2UG2
Typicalbackuptimeathalfload -
UPS Architecture - line-interactive
UPStopology - Line-Interactive
USBport - Yes
USBporttype -
vendpn - 5PX3000IRT2UG2
Video -
Warranty - 3 lata po rejestracji
Warranty - 12 months
Warranty - 24
Warranty - 24 month(s)
Warrantyandmisc -
Waveform - Pure sine
Weight - 31.7 kg
Weight - 31.7 kg
Weightdimensions -
Width - 438 mm
