ACoutletsquantity - 10 AC outlet(s)
AC outlets quantity Ports & interfaces - 10 AC outlet(s)
AC outlet types Ports & interfaces - C13 coupler/C19 coupler
ACoutlettypes - C13 coupler, C19 coupler
Active power - 2200 W
Stck_Pal - 1
Battery -
Battery - Automatic battery test - Yes
Battery - Hot-swap battery - Yes
Numberofbatterycells -
Batterycapacity -
Batteryvoltage -
Batterytechnology -
ARTIKEL1 - EATON 5PX 2200I RT2U G2
ARTIKEL2 -
Automatic battery test Battery - Yes
AutomaticVoltageRegulationAVR -
Design -
Design - Display type - LCD
Design - LED indicators - Yes
Design - Safety - IEC/EN 62040-1, UL1778, CSA22.2
Design - Rack capacity - 2U
Design - Certification - IEC/EN 62040-2, FCC B, CISPR22 B
CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm
Design - Product colour - Black
Design - Form factor - Rackmount/Tower
Design > Form factor - Rack/Tower
EANCode - 0743172104793
Displaytype - LCD
Display type Design - LCD
Special functions - Automatyczna regulacja napięcia (AVR) Wydajność energetyczna, redukcja kosztów energii i chłodzenia Zapewnia czystą falę sinusoidalną Zapewnia większą moc rzeczywistą (W), aby chronić więcej urządzeń dzięki współczynnikowi mocy Unity (VA=W) Wyświetlacz LCD do wyświetlania stanu w czasie rzeczywistym i pomiary Długi czas podtrzymania z maksymalnie 4 opcjonalnymi EBM Licznik zużycia energii (do zarządzanych grup gniazdek) Uniwersalny produkt do instalacji w szafie lub wieży 1 gniazdo na opcjonalną kartę com (karta zarządzania siecią, karta przekaźnikowa lub sieć i przemysł karty) Zgodny ze środowiskami wirtualnymi (VMware, Hyper-V, Citrix Xen, Redhat) 1 port USB + 1 port szeregowy
EAN - 743172104793
Number of phases input - 1 (230V)
Formfactor - Rackmount/Tower
Features - Power protection features - Overdischarge
Warranty - 3 lata po rejestracji
Warranty - 12 months
Warranty - 24 months
Warranty - 36
guarantee - 36
Warrantyandmisc -
guarantee_type - external
warrantyLength - 24
warrantyType - G
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
Harmonized System (HS) code Logistics data - 85078000
HSTNUMMER - 5PX2200IRT2UG2
Apparent power - 2200 VA
Serialinterface - Yes
Serialinterfacetype - RS-232
Serial interface type Ports & interfaces - RS-232
Serial interface Ports & interfaces - Yes
Sustainability compliance Sustainability - Yes
Sustainability certificates Sustainability - ENERGY STAR
Performance > Waveform - Sine wave
Performance > Capacity - 2200 VA
Performance > UPS topology - Line-Interactive
Cablesincluded -
Weight - 28.2 kg
Weight - 28.2 kg
Gewicht - 35
weight - 35000
Weightdimensions -
Weight & dimensions - Weight - 28.2 kg
Weight & dimensions - Width - 438 mm
Weight & dimensions - Depth - 603 mm
Weight & dimensions - Height - 85.5 mm
Weight Weight & dimensions - 28200 g
Management card included Packaging data - No
Category Code - UPW
ean - 743172104793
Environment requirements - Temperatura pracy 0 do 40°C Poziom hałasu < 40 dB przy typowym obciążeniu
Quickinstallationguide -
Description - Zasilacz UPS Eaton 5PX Gen2 2200 VA Wyjątkowa wydajność, łatwość zarządzania i możliwości dla menedżerów IT.
Description - Exceptional efficiency, manageability and energy metering capabilities for IT managers Performance and efficiency - Eaton 5PX Gen 2 provides Unity power factor (W=VA) capability. With 11% more power than other UPS it can protect more servers.
- Energy Star 2.0 certified, 5PX Gen2 offers best-in-class efficiency performance to reduceenergy consumption and cooling costs. - When operating in battery mode the 5PX provides a high-quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
- Each 5PX Gen2 battery configuration provides the best size /runtime ratio. Management and Cybersecurity - Innovative graphical LCD display brings all operating information at first sight. It also enhances commissioning and configuration capabilities.
- 5PX Gen2 Netpack models are delivered with Eaton Gigabit network management card, which provides Dual cybersecurity certifications (UL 2900-1 & IEC 62443-4-2) and enables connection to Eaton Cyber Secured Monitoring solutions.
- Together with 5PX Gen2, Eaton Gigabit network management card allows both remote UPS settings and remote firmware upgrade to ensure easy deployment (fleet management) and reduced maintenance cost. - 5PX Gen2 meters energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software.
- Eaton’s Intelligent Power Software seamlessly integrates with leading virtualization environments and cloud orchestration tools. Availability and flexibility - 5PX Gen2 2200VA & 3000VA are available in RT2U format (optimized for rack mounting) or RT3U (for tower installation or short-depth racks). Pedestals and rail kits are included with all models.
- 5PX Gen2 load segment control enables prioritized shutdowns of non-essential equipment to maximize battery runtime for critical devices (2 groups). - Eaton ABM® battery management technology uses a three stage charging technique that optimizes battery health and extends lifetime by up to 50%.
- Up to 4 external hot-swappable battery modules can be added for longer power availability.
vendpn - 5PX2200IRT2UG2
Summary - Eaton 5PX2200IRT2UG2. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 2200 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Compliance certificates: CE, Certification: IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm. Safety: IEC/EN 62040-1, UL1778, CSA22.2
Accessories included -
Code - 5PX2200IRT2UG2
Form factor Design - Rackmount/Tower
Hotswapbattery - Yes
Hot-swap battery Battery - Yes
Height - 85.5 mm
Height Weight & dimensions - 85.5 mm
Waveform - Pure sine
Waveform Features - Pure sine
Width - 438 mm
Width Weight & dimensions - 438 mm
LED indicators Design - Yes
Link - https://www.eaton.com/fr/en-gb/skuPage.5PX2200IRT2UG2.html
Logistics data - Harmonized System (HS) code - 85078000

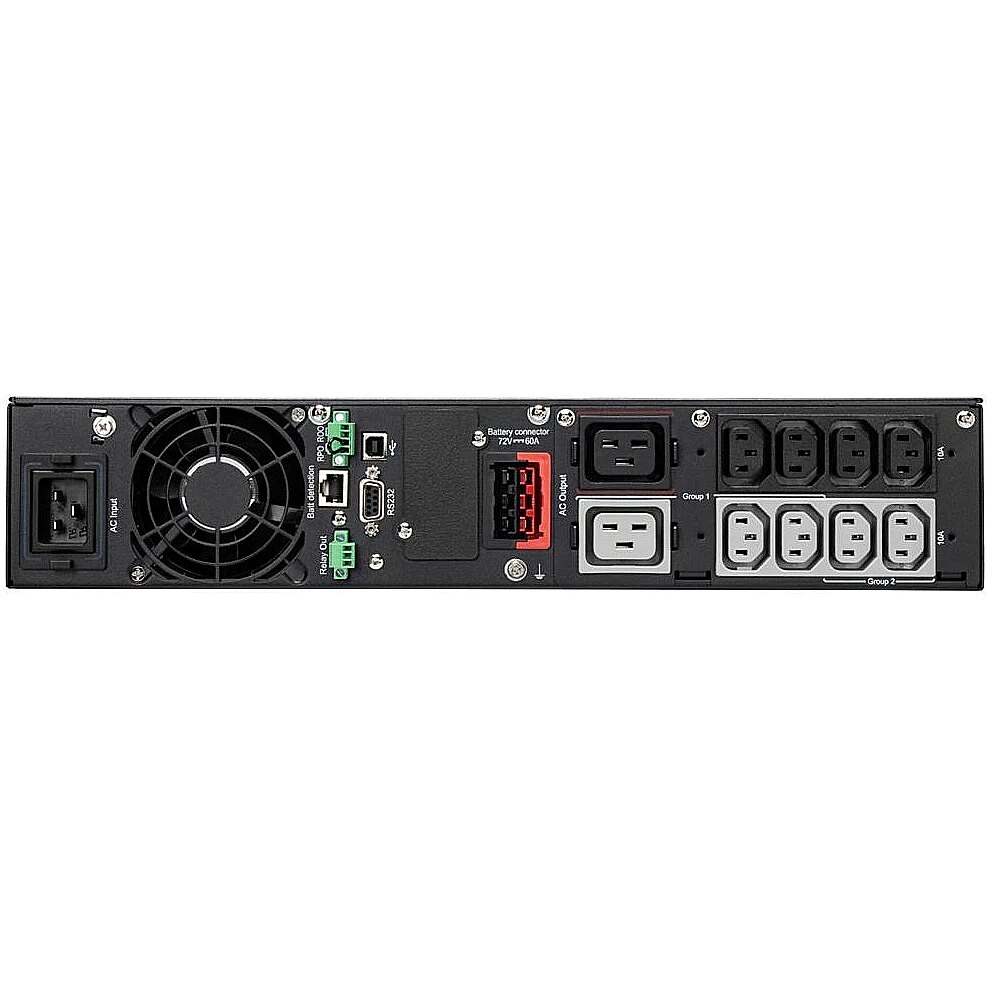

Other features - 1 USB port + 1 serial RS232 port + 1 mini-terminal block dla Remote ON/OFF + 1 mini-terminal block dla Remote Power OFF + 1 mini-terminal block
Other features - Nominal output voltage - 230 V
Other features - Output connections - 8 x IEC C13 (10A)
2 x IEC C19 (16A)
Other features > Special features - Automatic Voltage Regulation (AVR); Energy efficient, reduce energy and cooling costs; Delivers clean sinewave output; Provides more real power (watts) to protect more equipment with a Unity power factor (VA=W); LCD display for real-time status and measurements; Long backup time with up to 4 optional EBM; Meter energy consumption (down to the managed outlet groups); Versatile product for rack or tower installation; 1 slot for optional com card (Network management card, Relay card or Network and Industrial card); Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat); 1 USB port + 1 serial port
Designation - CE+WEEE
dimension height - 230 mm
dimension width - 580 mm
dimension depth - 780 mm
Dimensions - 438 x 603 x 85.5 mm
dimensionalWeight - 21715
dimension weight - 35000 g
Noiselevel - 40 dB
Noise level Features - 40 dB
Vendor Homepage - https://www.eaton.com/
name - 5PX 2200i RT2U G2 2200VA / 2200W
Name - Eaton | UPS | 5PX 2200i RT2U G2 | 2200 VA | 2200 W
Nominal output voltage Other features - 230 V
Safety Safety regulation & standards - IEC/EN 62040-1, UL1778, CSA22.2
Features -
Features - Waveform - Pure sine
Features - Noise level - 40 dB
Features - Input operation voltage (max) - 294 V
Features - Input operation voltage (min) - 160 V
Features - Input frequency - 47/70 Hz
Features - Output power capacity - 2.2 kVA
Features - Output power - 2200 W
Features > Colour of product - Black/Silver
Features - UPS topology - Line-Interactive
Packaging data - Management card included - No
Package features > Gross width (mm) - 585 mm
Package features > Gross height (mm) - 235 mm
Package features > Gross depth (mm) - 785 mm
Package features > Volume (m3) - 0.107917875 m³
Package features > Paper/Pasteboard - 6000.00 g
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 16 pc(s)
Package features > Plastic (No PET) - 700.00 g
Package features > Tare weight (kg) - 6.70 kg
Package features > TI weight (kg) - 25.00 kg
Packagingcontent -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Type of battery - Accumulator
Package features > Embeeded battery - Yes
Package features > WEEE tax - Yes
Package features > WEE classification - CL109:5:2017-04-01
LongDesc -
Ports & interfaces - AC outlets quantity - 10 AC outlet(s)
Ports & interfaces - Serial ports quantity - 1
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - Power plug - C20 coupler
Ports & interfaces - USB port - Yes
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - AC outlet types - C19 coupler
Portsinterfaces -
ProdDesc - Eaton 5PX 2200i RT2U G2
Rack capacity Design - 2U
Rackmountkit -
RS232ports -
Serialportsquantity - 1
Serial ports quantity Ports & interfaces - 1
Certificates - CE cTUVus EAC Cm UKCA Ukr KCC ENERGY STAR certified
Certification Certificates - IEC/EN 62040-2, FCC B, CISPR22 B
CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm
Certificates > Certification - CE, cTUVus, EAC, Cm, UKCA, Ukr, KCC, ENERGY STAR certified
Numberofinputphases -
Inputfrequency - 47/70 Hz
Input operation voltage (max) Features - 294 V
Input operation voltage (min) Features - 160 V
Inputoperationvoltagemax - 294 V
Inputoperationvoltagemin - 160 V
Input frequency Features - 47/70 Hz
Input power ports - IEC-C20
Heatdissipation -
Stck_Kart - 1
sizeZ - 780
sizeX - 580
Depth - 603 mm
Depth Weight & dimensions - 603 mm
Software -
Technical details - Compliance certificates - CE
Technical details > Gross weight - 35.2 kg
Technical details > Warranty - 36 month(s)
Technical details > Capacity - 2200 W
Technical details > Net weight - 28.5 kg
Technical details > Producer - Eaton
Technical details - Sustainability certificates - ENERGY STAR
Technical details - Sustainability compliance - Yes
sizeY - 240
Power protection features Features - Overdischarge
Powerplug - C20 coupler
Power plug Ports & interfaces - C20 coupler
ProductHighLights -
- Line-Interactive
- 2.2 kVA 2200 W
- Waveform: Pure sine
- 10 AC outlet(s)
- Rackmount/Tower Black
productName - Eaton 5PX2200IRT2UG2 uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 2200 W 10 AC outlet(s)
ProductPicture - https://www.tdbaltic.ee/images/products/EATON/5PX2200IRT2UG2_1.jpg
ProductPicture1 -
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
ProductPicture5 -
Productcondition - Original
productSize - SmallPallet
Productcolour - Black
Product colour Design - Black
producer - Eaton
HERSTELLER - EATON
ManufDatasheet - https://www.tdbaltic.ee/leaflets/EATON/5PX2200IRT2UG2.pdf
producerCode - 5PX2200IRT2UG2
Producer product name - 5PX 2200i RT2U G2
Producer product family - UPS
HighLights -
Efficiency -
Operatingaltitude -
OperatingrelativehumidityHH -
Operating temperature (T-T) Operational conditions - 0 - 40 °C
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Storno - Y
Typicalbackuptimeathalfload -
UPS topology Features - Line-Interactive
UPS Architecture - line-interactive
UPStopology - Line-Interactive
USBport - Yes
USBporttype -
USB port Ports & interfaces - Yes
Compliance certificates Certificates - CE
Video -
Numberofoutputphases -
Outputoperationvoltagemax -
Outputoperationvoltagemin -
Outputfrequency -
Outputpowercapacity - 2.2 kVA
Outputpower - 2200 W
Output power ports - 2 x IEC-C19
Output power ports - 8 x IEC-C13
Output power capacity Features - 2.2 kVA
Output power Features - 2200 W
Output connections Other features - 8 x IEC C13 (10A)
2 x IEC C19 (16A)
Color - Gray
Color - Black
Powerfactor -
Networkcardslot -
Unit Calculated Volume - 0.1045 cubm
Unit Calculated Weight - 35.3 kg
Units per Shipping Box - 1
Unit Box Height - 0.23
Unit Box Width - 0.575
Unit Box Length - 0.79
Chassis type - Rack
Chassis type - Tower
