Accessories included -
ACoutletsquantity - 6 AC outlet(s)
ACoutlettypes - C13 coupler
Active power - 390 W
Apparent power - 650 VA
ARTIKEL1 - BACK UPS PRO BR 650VA 6 OUTLETS
ARTIKEL2 - AVR LCD INTERFACE BACK UPS PRO B
AutomaticVoltageRegulationAVR - Yes
Battery -
Battery - Automatic battery test - Yes
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 12 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Batterycapacity -
Batterytechnology - Sealed Lead Acid (VRLA)
Batteryvoltage -
Brand - APC
BrandPartCode - BR650MI
Breite - 0.26
Cablesincluded - USB cable
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Category_1 - Power
Category_2 - UPS
Certificates - Certification - A-tick, C-tick, CE, EAC, GS Mark, RCM, TISI
Charging time - 12 h
Chassis type - Tower
Code - BR650MI
Color - Black
Depth - 310 mm
Description - Power supply BR650MI UPS Back Pro BR 650VA 6xC13, AVR,LCD
Design -
Design - Cable length - 1.83 m
Design - Cooling type - Passive
Design - Display type - LCD
Design - Form factor - Tower
Design - LED indicators - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 260 mm
dimension height - 430 mm
Dimensions - 190 x 91 x 310 mm
dimension weight - 7500 g
dimension width - 140 mm
Displaytype - LCD
EAN - 731304346937
ean - 731304346937
EAN - 0731304346937
EANCode - 0731304346937
Eans - 0731304346937
EAN_code - 0731304346937
Efficiency -
Environment requirements - Working temperature: 0 - 40 ° C Relative humidity during work: 095% Working height: 0-3000 meters Storage temperature: -15 - 45 ° C Relative humidity during storage: 0-95% Storage height: 0-15000 meters Noise heard at a distance of 1 meter from the surface of the device: 45.0dBA
Features -
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Low battery alarm, Overload alarm
Features - Automatic Voltage Regulation (AVR) - Yes
Features - ECO mode - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 294 V
Features - Input operation voltage (min) - 176 V
Features - Maximum current - 10 A
Features - Noise level - 45 dB
Features - Output frequency - 50/60 Hz
Features - Output power - 390 W
Features - Output power capacity - 0.65 kVA
Features - Response time - 12 ms
Features - Surge protection - Yes
Features - Surge protection features - Network
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Filters / protection - Overload
Formfactor - Tower
Gross Weight Kg - 7,4
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304346937
GTIN - 0731304346937
guarantee - 24
guarantee_type - external
Heatdissipation -
Height - 190 mm
HERSTELLER - APC
HighLights -
Hoehe - 0.15
Hotswapbattery - Yes
HSTNUMMER - BR650MI
I/O connectors - 1 x USB (Type B)
I/O connectors - 2 x RJ-11
I/O connectors - 2 x RJ-45 LAN
Inputfrequency - 50/60 Hz
Inputoperationvoltagemax - 294 V
Inputoperationvoltagemin - 176 V
Input power ports - IEC-C14
Laenge - 0.44
Link - https://www.se.com/lt/lt/product/BR650MI/apc-backups-pro-650va-390w-tower-230v-6x-iec-c13-outlets-avr-lcd-user-replaceable-battery/
Logistics data - Harmonized System (HS) code - 85078000
LongDesc -
LongDesc - Security through emergency powerThe APC Back-UPS PRO BR650MI has a built-in battery that ensures that all connected equipment, such as a PC, NAS, router, modem and media box, continues to work if the power goes out. In addition, this APC emergency power supply can also automatically shut down a NAS or PC in time via the USB connection. Useful when the APC ups is almost empty. This prevents downtime, damage to equipment, and loss of data.Safety and convenienceIn addition, this safe APC Back-UPS PRO protects valuable equipment against peak voltage caused by lightning strikes, for example. With these UPS you can secure both your power and network connections (1Gbit). Because the APC Back-UPS PRO is also equipped with an LCD screen, it is easy to use.InsuranceDespite the high risk of lightning strikes and surges, APC has full confidence in its products and offers this APC Back-UPS:- Equipment protection policy of 150,000 eurosExtend the lifespanThe internal battery cartridge (APCRBC110) can be replaced easily, safely and independently by the user. This without having to switch off the APC BR650MI or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Back-UPS.Warranty extensionThe factory warranty of the BR650MI is 3 years and can be upgraded to 6 years with the APC service pack (WBEXTWAR3YR-SP-01).Save on operational costsThe BR650MI features a customizable AVR, which extends battery life and maximizes runtime by correcting low and high voltages without discharging the battery. In addition, the UPS has Greenmode, a smart power-saving operating mode that optimally combines efficiency and protection. Furthermore, the emergency power supply has 6 Battery+surge protected outputs. PowerChute Serial Shutdown software and a USB cable are also included.
LongProductName - APC Back-UPS PRO BR650MI - Emergency power supply, 6x C13 output, USB, 650VA
LongSummaryDescription - APC BR650MI. UPS topology: Line-Interactive, Output power capacity: 0.65 kVA, Output power: 390 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery life (max): 5 year(s), Battery recharge time: 12 h. Form factor: Tower, Product colour: Black, Cable length: 1.83 m. Certification: A-tick, C-tick, CE, EAC, GS Mark, RCM, TISI
Manufacturer - APC
Manufacturer Code - BR650MI
Manufacturer Name - APC by Schneider Electric
Manufacturer_code - BR650MI
ManufDatasheet - https://www.tdbaltic.ee/leaflets/APC/BR650MI.pdf
MPN - BR650MI
Name - APC Back-UPS Pro 650VA BR650MI
Name - APC Back-UPS Pro BR650MI 650VA 390W AVR
Name - APC Back Pro BR650MI
name - Power supply BR650MI UPS Back Pro BR 650VA 6xC13, AVR,LCD
Name - Schneider Electric APC Back-UPS Pro | BR650MI | 650 VA | 390 W
Networkcardslot -
No. of batteries - 1
Noiselevel - 45 dB
Numberofbatterycells -
Numberofinputphases -
Numberofoutputphases -
Number of phases input - 1 (230V)
Operatingaltitude - 0 - 3000 m
OperatingrelativehumidityHH - 0 - 95%
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features -
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 230 V
Other features > Special features - Data line protection ensures complete protection of your equipment against surges; LCD display shows basic UPS status with load and battery bar graphs
Outputfrequency - 50/60 Hz
Outputoperationvoltagemax -
Outputoperationvoltagemin -
Outputpower - 390 W
Outputpowercapacity - 0.65 kVA

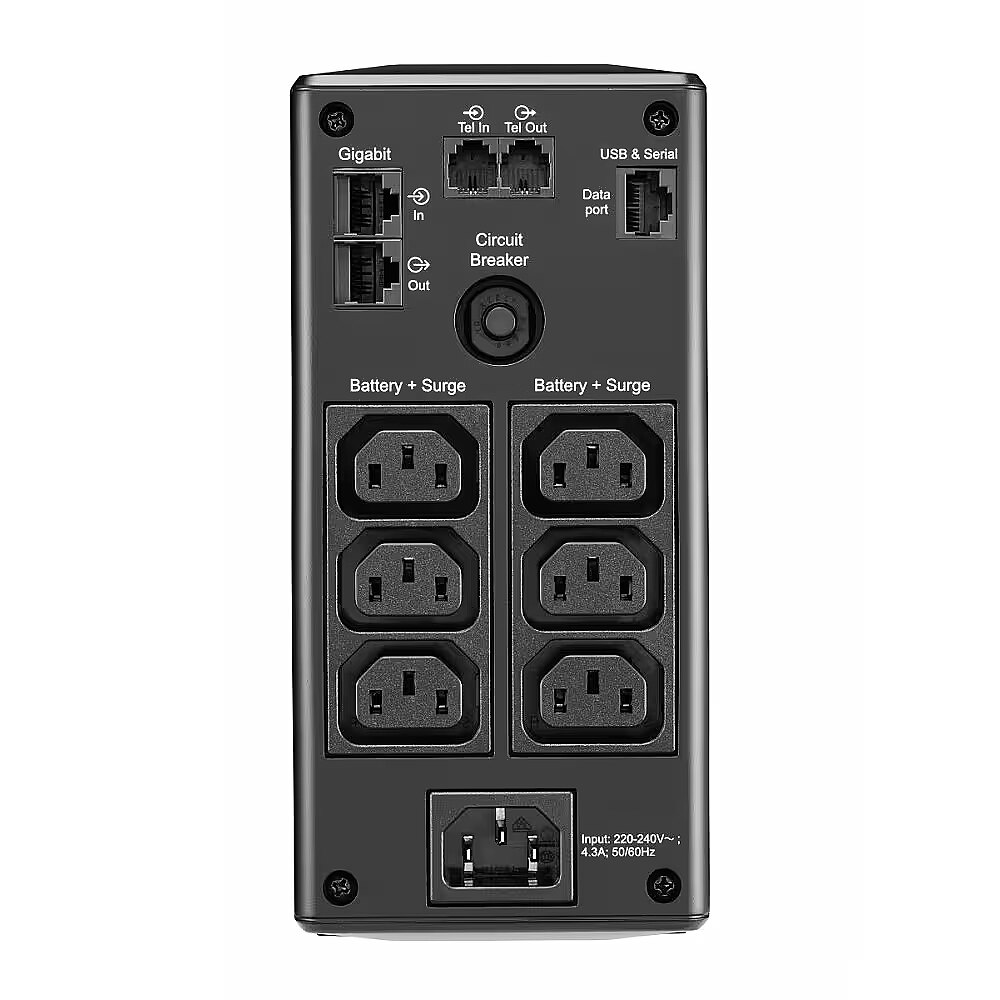

Output power ports - 6 x IEC-C13
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 255.00 mm
Package features > Gross height (mm) - 143.00 mm
Package features > Gross width (mm) - 440.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 108 pc(s)
Package features > Paper/Pasteboard - 800.00 g
Package features > Plastic (No PET) - 200.00 g
Package features > Tare weight (kg) - 1.00 kg
Package features > TI weight (kg) - 2.20 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.02 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packagingcontent -
Packaging content - Cables included - USB cable
Packaging content - Manual - Yes
Packaging data - Package depth - 143 mm
Packaging data - Package height - 255 mm
Packaging data - Package weight - 7.4 kg
Packaging data - Package width - 440 mm
Performance > Capacity - 650 VA
Performance > UPS topology - Line-Interactive
Ports & interfaces - AC outlets quantity - 6 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Cabling technology - 10/100/1000Base-T(X)
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
Portsinterfaces -
Powerfactor -
Powerplug - C14 coupler
ProdDesc - Back UPS Pro BR 650VA, 6 Outlets, AVR, LCD Interface
producer - APC
Producer - APC
ProducerCode - BR650MI
Productcolour - Black
Productcondition - Original
ProductHighLights -
- Line-Interactive
- 0.65 kVA 390 W
- Waveform: Sine
- 6 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Tower Black
ProductName - BR650MI
ProductPicture - https://www.tdbaltic.ee/images/products/APC/BR650MI_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/APC/BR650MI_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/APC/BR650MI_3.jpg
ProductPicture3 - https://www.tdbaltic.ee/images/products/APC/BR650MI_4.jpg
ProductPicture4 - https://www.tdbaltic.ee/images/products/APC/BR650MI_5.jpg
ProductPicture5 - https://www.tdbaltic.ee/images/products/APC/BR650MI_6.jpg
Quickinstallationguide -
Rackmountkit -
RS232ports -
Serialinterface -
Serialinterfacetype -
Serialportsquantity -
ShortDescription -
Short description - APC Back-UPS Pro BR 650 VA BR650MI
ShortSummaryDescription - APC BR650MI, Line-Interactive, 0.65 kVA, 390 W, Sine, 176 V, 294 V
Software -
Special functions -
Stck_Kart - 2
Stck_Pal - 64
Storno - Y
Sustainability - Sustainability certificates - Green Premium
Technical details > Capacity - 390 W
Technical details > Gross weight - 7.40 kg
Technical details > Net weight - 6.40 kg
Technical details > Producer - Schneider Electric
Technical details > Producer product family - APC Back-UPS Pro
Technical details > Producer product name - BR650MI
Title - APC BR650MI uninterruptible power supply (UPS) Line-Interactive 0.65 kVA 390 W 6 AC outlet(s)
Transfer time (max) - 10 ms
Typicalbackuptimeathalfload -
UPS Architecture - line-interactive
UPStopology - Line-Interactive
URL - https://www.apc.com/shop/ye/en/products/Back-UPS-Pro-BR-650VA-6-Outlets-AVR-LCD-Interface/P-BR650MI
USBport - Yes
USBporttype -
vendpn - BR650MI
Voltage - 12 V
Warranty - 12 months
Warranty - 24
Warranty - 24 month(s)
Warrantyandmisc -
WarrantyInfo - 2 years repair or replace, 3 years repair or replace for European Union countries
Waveform - Sine
Weight - 6.4 kg
Weight - 6.4 kg
Weight - 7,35
Weight - 7.42
Weight & dimensions - Depth - 310 mm
Weight & dimensions - Height - 190 mm
Weight & dimensions - Weight - 6.4 kg
Weight & dimensions - Width - 91 mm
Weightdimensions -
Width - 91 mm
