APC Back-UPS BK350EI 350VA, 210W, IEC

Accessories included - - CD with software and documentation
- Detachable IEC power cord 1.2 m
- Detachable IEC power cord 1.8 m
- Telephone cable
- USB cable
- Warranty Card
ACoutletsquantity - 4 AC outlet(s)
ACoutlettypes - C13 coupler
Active power - 210 W
Apparent power - 350 VA
ARTIKEL1 - BACK-UPS 350EI 350VA
ARTIKEL2 - 210W IN
AutomaticVoltageRegulationAVR -
Battery -
Battery - Automatic battery test - Yes
Battery - Battery capacity - 7 Ah
Battery - Battery capacity - 116 VAh
Battery - Battery life (max) - 6 year(s)
Battery - Battery recharge time - 6 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Battery voltage - 12 V
Battery - Typical backup time at full load - 8.6 min
Battery - Typical backup time at half load - 22.1 min
Batterycapacity - 7 Ah
Battery capacity - 7 Ah
Battery recharge time, h - 6
Batterytechnology - Sealed Lead Acid (VRLA)
Batteryvoltage - 12 V
Brand - APC
BrandPartCode - BK350EI
Breite - 0.24
Cable length, m - 1.83
Cablesincluded - Phone (RJ-11), USB cable
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Category_1 - Power
Category_2 - UPS
Certificates - Certification - C-tick, CE, EN 50091-1, EN 50091-2,GOST, VDE, PEP, EOLI
Certificates - Compliance certificates - RoHS
Certification - C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE
Charging time - 6 h
Chassis type - Tower
Color - Beige
Connections - RJ-45
Connections - Serial (RS-232)
Connections - USB
Connectors - 1 x USB (Typ B)
Connectors - RJ-45
Data line protection - RJ45 Analog phone line for phone/fax/modem/DSL
Depth - 284 mm
Depth, mm - 284
Description - APC BACK-UPS CS 350VA USB/SERIAL 230V
Description - BACK-UPS CS 350VA USB/SERIAL 230V BK350EI
Design -
Design - Cable length - 1.83 m
Design - Certification - C-tick, CE, EN 50091-1, EN 50091-2,GOST, VDE, PEP, EOLI
Design - Form factor - Tower
Design - LED indicators - Battery replacement
Design - Product colour - Beige
Designation - CE+WEEE
dimensionalWeight - 4172
dimension depth - 185 mm
dimension height - 235 mm
Dimensions - 91 x 284 x 165 mm
dimension weight - 6651 g
dimension width - 415 mm
Displaytype -
ean - 731304016342
EAN - 0731304016342
EANCode - 0731304016342
EAN_code - 0731304016342
Efficiency - 98.6%
Environment requirements - - Operating environment 0 - 40 °C
- Operating relative humidity 0 - 95%
- Height asl during operation 0-3000 meters
- Storage temperature -15 - 45 °C
- Storage relative humidity 0 - 95%
- Storege height asl 0-15000 meters
- Audible noise at 1 meter from surface of unit 40.00 dBA
- Thermal Dissipation 19.00 BTU/hr
Features -
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Low battery alarm, Overload alarm
Features - Efficiency - 98.6%
Features - Hold time (max) - 10 ms
Features - Hold time (min) - 6 ms
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 266 V
Features - Input operation voltage (min) - 180 V
Features - Maximum current - 7 A
Features - Output frequency regulation - 47 - 63 Hz
Features - Output power - 210 W
Features - Output power capacity - 0.35 kVA
Features - Power protection features - Overload
Features - Surge energy rating - 310 J
Features - Surge protection - Yes
Features - Surge protection features - Digital Subscriber Line (DSL)
Features - Surge protection features - Digital Subscriber Line (DSL), Fax, Modem, Telephone
Features - Surge protection features - Fax
Features - Surge protection features - Modem
Features - Surge protection features - Telephone
Features - UPS topology - Standby (Offline)
Filters / protection - Surge
Formfactor - Tower
Form factor - Tower
Frequency range, Hz - 47 - 63
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304016342
GTIN - 0731304016342
guarantee - 24
guarantee_type - external
Heatdissipation -
Height - 165 mm
Height - 236.000000
Height, mm - 165
HERSTELLER - APC
HighLights -
Hoehe - 0.19
Hotswapbattery -
HSTNUMMER - BK350EI
Input connection - IEC-320-C14
Input current, A - 7
Inputfrequency - 50/60 Hz
Input frequency, Hz - 50/60 +/- 3
Inputoperationvoltagemax - 266 V
Inputoperationvoltagemin - 180 V
Input power ports - IEC-C14
Input voltage, V - 180 - 266
Laenge - 0.42
Length - 189.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 48 pc(s)
LongDesc - APC Back-UPS CS, 210 Watts / 350 VA,Input 230V / Output 230V, Interface Port DB-9 RS-232, USB
LongDesc - This product is part of the Back-UPS range. The BK350EI features a total of 6 power outlets, 5 of which are UPS battery backup and one that is surge only. Its runtime at 100W is 14 minutes 52 seconds. It provides data line protection with a RJ45 analog phone line for phone or fax or modem or DSL. Its dimensions are 16.5 x 9.1 x 28.4 cm and 6.32kg. The BK350EI ensures office systems and their valuable data are protected from dangerous power surges, spikes and blackouts.
LongProductName - Back-UPS, 350VA/210W, Tower, 230V, 4x IEC C13 Outlets , User Replaceable Battery
LongSummaryDescription - APC Back-UPS, 350VA/210W, Tower, 230V, 4x IEC C13 Outlets , User Replaceable Battery. UPS topology: Standby (Offline), Output power capacity: 0.35 kVA, Output power: 210 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery capacity: 116 VAh. Form factor: Tower, Product colour: Beige, Cable length: 1.83 m. Compliance certificates: RoHS, Certification: C-tick, CE, EN 50091-1, EN 50091-2,GOST, VDE, PEP, EOLI
Manufacturer - APC
ManufacturerPartNumber - BK350EI
Manufacturer_code - BK350EI
ManufDatasheet - https://www.tdbaltic.ee/leaflets/APC/BK350EI.pdf
Maximum power, W - 210
MPN - BK350EI
name - APC Back-UPS 350 230V BK350EI
Name - APC Back-UPS CS 350VA black350EI ++
Name - APC Back-UPS Tower BK350EI 350VA 210W 230V
Networkcardslot -
No. of batteries - 1
Noiselevel -
Nominal input voltage, V - 230
Nominal output voltage, V - 230
Numberofbatterycells -
Numberofinputphases -
Numberofoutputphases -
Number of phases input - 1 (230V)
Operatingaltitude - 0 - 3000 m
OperatingrelativehumidityHH - 0 - 95%
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C

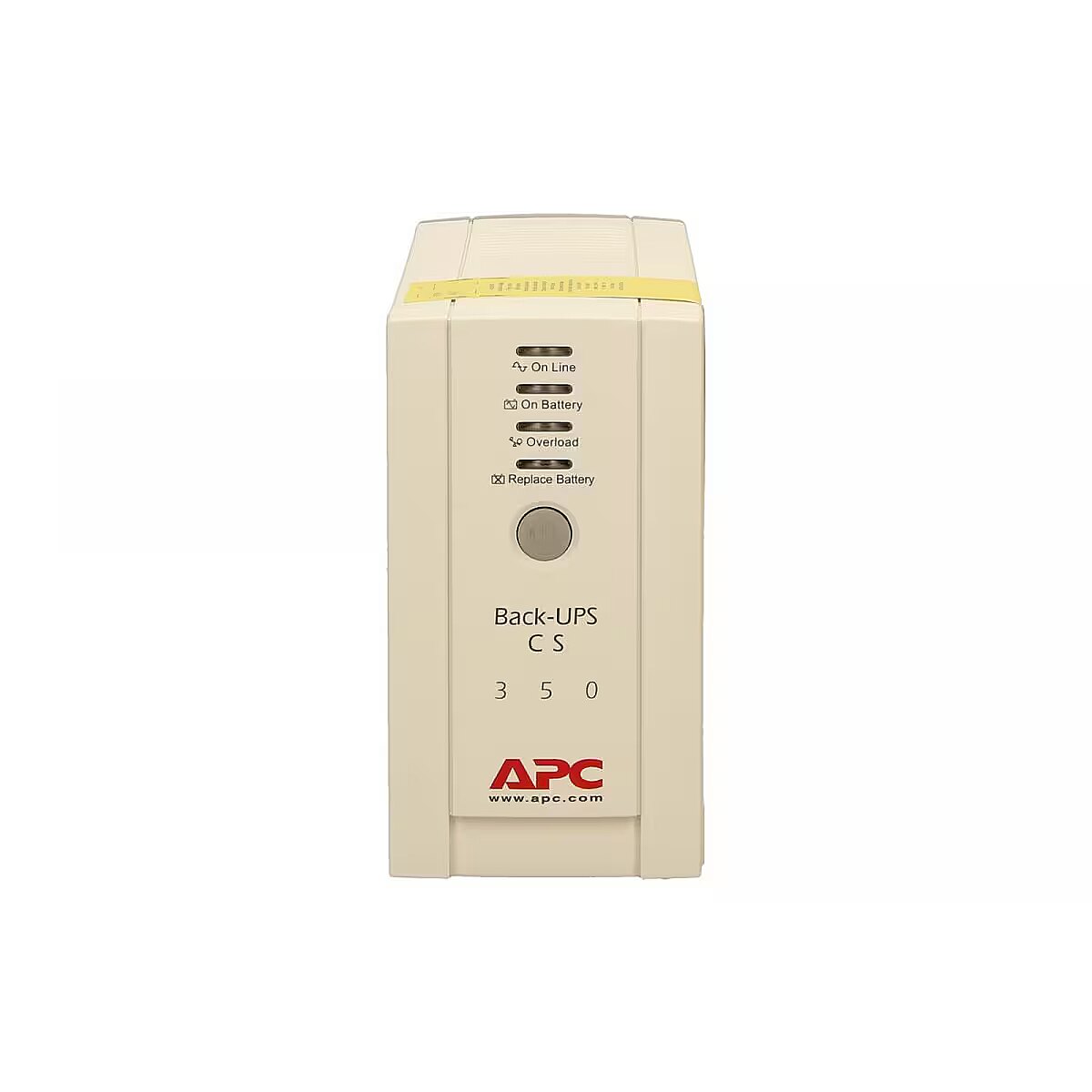

Other features - - Front panel: The LEDs indicate operation On Line: battery operation; Replace Battery; Overload indicators
- Audible Alarm: Alarm when on battery; distinctive low battery; overload continuous tone alarm overload
- Surge energy (in Joules): 300 Joules
- Filtering: Full time multi-pole noise filtering; 5% IEEE surge let-through; Zero clamping response time; meets UL 1449
- Data Line Protection RJ-45 Modem / Fax (two wire single line)
- Approvals: C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE
Other features - Filtering - Yes
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 230 V
Outputfrequency -

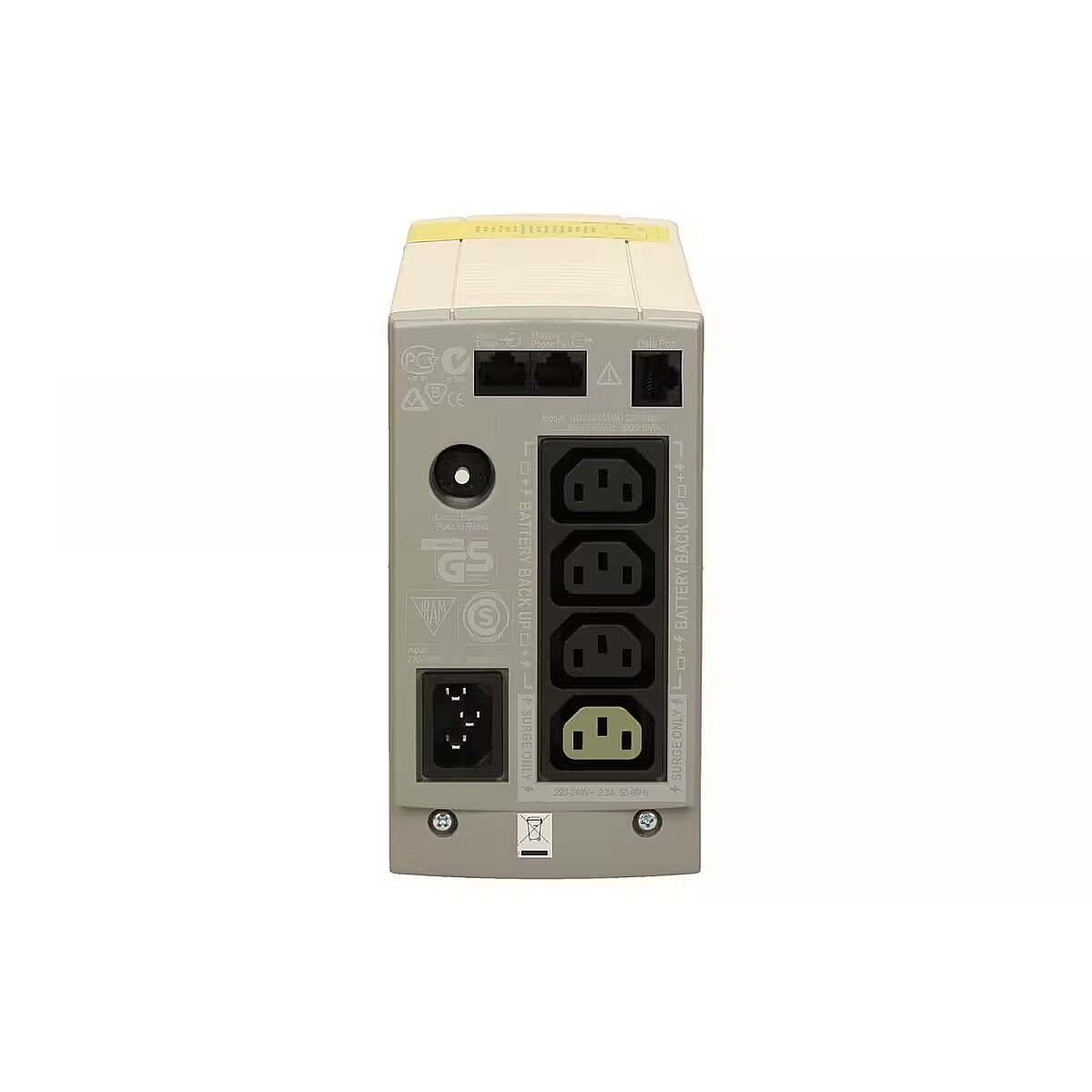

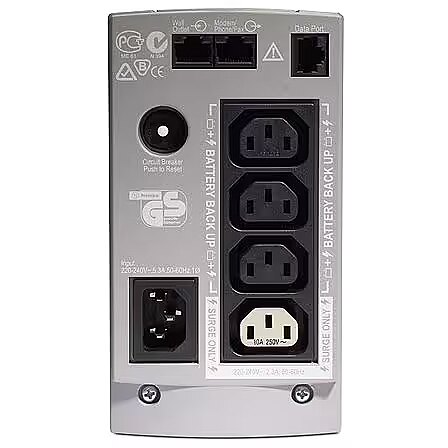

Output interface - 1 x IEC 320 C13 (Surge Protection), 3 x IEC 320 C13 (Battery Backup), 2 x IEC Jumpers (Battery Backup)
Outputoperationvoltagemax -
Outputoperationvoltagemin -
Outputpower - 210 W
Output power, W - 210
Outputpowercapacity - 0.35 kVA
Output power capacity (VA) - 350
Output power ports - 4 x IEC-C13
Packagingcontent -
Packaging content - Cables included - Phone (RJ-11), USB cable
Packaging content - Quick installation guide - Yes
Packaging data - Bundled software - PowerChute Personal Edition
Packaging data - Cables included - Phone (RJ-11), USB cable
Packaging data - Package depth - 368 mm
Packaging data - Package height - 178 mm
Packaging data - Package weight - 7.05 kg
Packaging data - Package width - 241 mm
Packaging data - Quick installation guide - Yes
Packaging data - Software CD - Yes
Packaging data - Warranty card - Yes
PeriodofWarranty - 2 Y
Ports & interfaces - AC outlets quantity - 4 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Number of output IEC jumpers - 2
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - USB port - Yes
Portsinterfaces -
Powerfactor -
Powerplug - C14 coupler
ProdDesc - APC Back-UPS CS/350VA Offline
producer - APC
producerCode - BK350EI
Productcolour - Beige
Productcondition - Original
ProductHighLights -

• Standby (Offline)
• 0.35 kVA 210 W
• 4 AC outlet(s)
• Sealed Lead Acid (VRLA) 12 V 7 Ah
• Tower Beige

productName - APC Back-UPS, 350VA/210W, Tower, 230V, 4x IEC C13 Outlets , User Replaceable Battery
ProductName - Back-UPS, 350VA/210W, Tower, 230V, 4x IEC C13 Outlets , User Replaceable Battery
ProductPicture - https://www.tdbaltic.ee/images/products/APC/BK350EI_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/APC/BK350EI_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/APC/BK350EI_3.jpg
ProductPicture3 - https://www.tdbaltic.ee/images/products/APC/BK350EI_4.jpg
ProductPicture4 - https://www.tdbaltic.ee/images/products/APC/BK350EI_5.jpg
ProductPicture5 -
productSize - Normal
Quickinstallationguide - Yes
Rackmountkit -
RS232ports -
Runtime - 9 min (full load) / 23 min (half load)
Serialinterface -
Serialinterfacetype -
Serialportsquantity -
ShortSummaryDescription - APC Back-UPS, 350VA/210W, Tower, 230V, 4x IEC C13 Outlets , User Replaceable Battery, Standby (Offline), 0.35 kVA, 210 W, 180 V, 266 V, 50/60 Hz
sizeX - 200
sizeY - 424
sizeZ - 246
Software -
Special functions -
Stck_Kart - 8
Stck_Pal - 84
Storage temperature range (T-T), °C - 0 - 40
Storno - Y
Surge energy rating, J - 310
Sustainability - Sustainability certificates - ENERGY STAR, Green Premium
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - ENERGY STAR
Technical details - Sustainability certificates - Green Premium
Technical_details - The re-invention of the most relied upon desktop UPS in history: the Back-UPS!
The Back-UPS CS provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management Featuress and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These Featuress along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems. Key Featuress:
- Audible alarms - Automatic restart of loads after UPS shutdown - Automatic self-test - Battery replacement without tools - Battery-protected and surge-only outlets - Dataline Surge Protection - Hot-swappable batteries - LED status indicators - Power conditioning - Resettable circuit breakers - Safety-agency approved - Transformer-block spaced outlets - User-replaceable batteries Device Type Standalone UPS Power Rating 350 VA / 210 Watt Input Voltage 196-264 V Buffering Time Full Load: 4.7 minute(s) Half Load: 18.1 minute(s) Ports / Interfaces serial: 1x USB: 1x Outputs Type 1 3x IEC 320 (C13) connected to Battery Yes Type 2 1x IEC 320 (C13) connected to Battery No Protection Line Protection: 1x RJ-11/RJ-45 Alert Messages optical: LED-Status-Anzeige von operating, Batterieoperating, changing the battery and overload Operating Temperature Storage Temperature -5 - 45 °C Charging time to 95% (at half load) 8 hour(s) Output V 230 VAC Operating via Battery: 230 VAC Product dimensions 92x165x285 mm Weight 6.3 kg RoHS Compliant Yes
Title - APC Back-UPS, 350VA/210W, Tower, 230V, 4x IEC C13 Outlets , User Replaceable Battery
Typicalbackuptimeathalfload - 22.1 min
UPS Architecture - line-interactive
UPS devices and accessories - Yes
UPStopology - Standby (Offline)
URL - https://www.apc.com/
USBport - Yes
USBporttype -
vendpn - BK350EI
Voltage - 12 V
Warranty - 24 months
Warrantyandmisc -
WarrantyInfo - 2 years
warrantyLength - 24
warrantyType - F
Waveform -
Weight - 6,20
Weight - 6.4
Weight - 6.32 kg
Weight - 6.32 kg
Weight - 6.580000
weight - 6230
Weight & dimensions - Depth - 284 mm
Weight & dimensions - Height - 165 mm
Weight & dimensions - Package height - 178 mm
Weight & dimensions - Package width - 241 mm
Weight & dimensions - Weight - 6.32 kg
Weight & dimensions - Width - 91 mm
Weight, kg - 6.32
Weightdimensions -
Width - 91 mm
Width - 416.000000
Width, mm - 91
