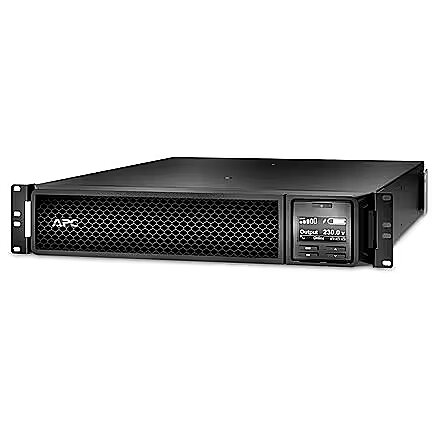

APC Smart-UPS SRT3000RMXLI-NC 3000VA,2700W, IEC, 2U

Accessories included - - 1 x power cable - 2.44 m,
- 1 x serial cable - external,
- 1 x USB cable - external,
- Rack Mount Kit.
ACoutletsquantity -
ACoutlettypes - C13 coupler, C19 coupler
Active power - 2700 W
Apparent power - 3000 VA
ARTIKEL1 - SMART UPS SRT
ARTIKEL2 - 3000VA RM 230V IN
AutomaticVoltageRegulationAVR - Yes
Backup time (100% load) - 4 min
Battery -
Battery - Automatic battery test - Yes
Battery - Battery capacity - 505 VAh
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery - Typical backup time at full load - 4 min
Battery - Typical backup time at half load - 11.8 min
Batterycapacity - 505 VAh
Battery recharge time, h - 3
Batterytechnology - Sealed Lead Acid (VRLA)
Batteryvoltage -
Brand - APC
BrandPartCode - SRT3000RMXLI-NC
Breite - 0.61
Cable length, m - 2.44
Cablesincluded -
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Certificates - Certification - CE, VDE, RCM, EAC, IEC/EN 62040-1, IEC/EN 62040-2, UL-1778, FCC 15 A, CSA
Certificates - Compliance certificates - RoHS
Certification - CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR (EU), RCM, VDE
Charging time - 3 h
Chassis type - Rack
Color - Black
Connections - RJ-45 10/100 Base-T
Connections - RJ-45 Serial
Connections - Smart-Slot
Connections - USB
Connectors - 1 x USB 2.0
Connectors - RJ-45
Connectors - SmartSlot
Depth - 635 mm
Depth, mm - 635
Description - APC Smart-UPS SRT 3000 VA rack-mountable, 230 V with AP9631 network card
Description - APC SMART-UPS SRT 3000VA RM 230V NETWORK CARD
Design -
Design - Cable length - 2.44 m
Design - Display type - LCD
Design - Form factor - Rackmount
Design - International Protection (IP) code - IP20
Design - LED indicators - Battery replacement
Design - Product colour - Black
Design - Rack capacity - 2U
Designation - CE+WEEE
dimension depth - 870 mm
dimension height - 246 mm
Dimensions - 43.2 cm x 63.5 cm x 8.5 cm (width x depth x height)
dimension weight - 39920 g
dimension width - 600 mm
Displaytype - LCD
ean - 731304327592
EAN - 0731304327592
EANCode - 0731304327592
Efficiency - 92%
Environment requirements - - Minimum operating temperature 0 ° C,
- Max. Operating temperature 40 ° C,
- humidity 0 - 95% (non-condensing).
Features -
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Battery replacement
Features - Auto-restart - Yes
Features - Automatic Voltage Regulation (AVR) - Yes
Features - Crest factor - 3:1
Features - Efficiency - 92%
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 40 - 70 Hz
Features - Input operation voltage (max) - 275 V
Features - Input operation voltage (min) - 100 V
Features - Noise level - 55 dB
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 2700 W
Features - Output power capacity - 3 kVA
Features - Output voltage Total Harmonic Distortion (THD) - 2%
Features - Power protection features - Overload
Features - Surge energy rating - 340 J
Features - Surge protection - Yes
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Form factor - Rack
Formfactor - Rackmount
Frequency range, Hz - 50/60
Gewicht - 39.48
Gross Weight Kg - 39,92
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304327592
GTIN - 0731304327592
guarantee - 36
guarantee_type - external
Heatdissipation -
Height - 85 mm
Height - 570.000000
Height, mm - 85
HERSTELLER - APC
HighLights -
Hoehe - 0.26
Hold-up time (maks) - 0 s
Hotswapbattery - Yes
HSTNUMMER - SRT3000RMXLI-NC
Input connection - British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
Inputfrequency - 40 - 70 Hz
Inputoperationvoltagemax - 275 V
Inputoperationvoltagemin - 100 V
Input power ports - IEC-C20
IP classification - IP20
Laenge - 0.88
Length - 240.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 6 pc(s)
Logistics data - Total carbon footprint (kg of CO2e) - 4988.41
LongDesc -
LongDesc - Stay always online and prevent data lossAn APC Smart-UPS On-Line always supplies perfectly clean power to all connected equipment thanks to its double conversion technology. Even power outages have no influence on this. The APC Smart-UPS On-Line then automatically supplies emergency power without having to switch. This way you prevent unwanted failure of, for example, a PC, server, storage or switch. With the APC PowerChute Network Shutdown software you can even have critical IT hardware shut down automatically and in a controlled manner when the battery of the UPS is almost empty. This way you prevent data loss, downtime and physical damage to hardware.Extend the runtimeYou can easily increase the number of minutes that the APC SRT3000RMXLI-NC can independently supply emergency power by connecting external battery packs (SRT96RMBP). A runtime of several hours is even possible.AvailabilityThe Smart-UPS On-Line has an internal bypass and uses double conversion, maximizing the availability and lifespan of connected hardware. It also makes the UPS compatible with an emergency power generator. The Un-Line double conversion technology ensures clean, uninterrupted power to protected equipment even when generator power is used.SafetyIn addition, a Smart-UPS On-Line protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for business use. Ease of useThe APC Smart-UPS SRT is easy to operate thanks to a tilting graphic LCD screen and physical buttons. This makes it possible to set and read the basic functionalities. Because the background color of the screen changes depending on the type of warning, the severity of the situation can be quickly visually assessed. Thanks to the included 4-post rail kit, you can easily mount the UPS in a rack.Manage your Smart-UPSThanks to the pre-installed APC Network Management Card (AP9641), you can easily connect the APC UPS to the network. This way you can monitor and manage the UPS remotely (SNMP) and the UPS can send a shutdown signal to multiple physical and/or virtual servers using PowerChute Network Shutdown software.PowerChute Network ShutdownPowerChute Network Shutdown is UPS management software that works with the UPS Network Management Card to protect Windows, Linux and Host ESXi, as well as hyperconverged and virtual infrastructure*. In the event of a power outage, PowerChute can properly shut down your virtual machines and the preconfigured boot sequence ensures they are turned back on.*An additional license is required for HCI and virtual machine support:1 year: SWPCNS1Y-DIGI3 years: SWPCNS3Y-DIGI5 years: SWPCNS5Y-DIGIRemote management and monitoring of your networkThe network card can be managed remotely via the easy-to-use web browser interface, remote management software EcoStruxure™ IT (SFTWES1-DIGI) or other SNMP-compatible system. Tip EcoStruxure™ IT also includes the functionalities of the support contract below.Support contractThe optional network card support contract license* ensures you are always up to date and secure and includes additional benefits such as frequent updates with:• New and improved features• Security updates• Advanced support*The above license is available in the variants:1 year: SWNMC3SU-1Y-DIGI3 years: SWNMC3SU-3Y-DIGI5 years: SWNMC3SU-5Y-DIGIExtend the lifespanThe internal battery cartridge (APCRBC152) can be replaced easily, safely and independently by the user. This without having to switch off the APC SRT3000RMXLI-NC or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always remains online.Warranty extensionThe manufacturer's warranty of the SRT3000RMXLI-NC is 3 years, with the exception of the battery cartridge, which has a 2-year manufacturer's warranty. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-04).Switched Outlet Groups: Remote reboot and phased start-upThanks to the Switched Outlet Groups, it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which limits oversizing of the UPS.It is also possible to reset a group of multiple UPS outputs and the equipment connected to them. If a network card (ap9640) is used in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this can even be done remotely.You also cannot eliminate critical loads; This way you extend the runtime for critical equipment.Green PremiumThis label is Schneider Electric's commitment to products with best-in-class environmental performance. Green Premium promises to comply with the latest regulations, transparency on environmental effects and circular and low CO2 emission products.Green Premium:- Stands for an energy-efficient product that helps our customers achieve their CO2 reduction goals and save energy costs at the same time. The energy efficiency of this product is at least 10% higher than the market average.- Provides insight into the environmental effects of the product, this data is available 24/7 via the digital product environmental profile, see https://checkaproduct.se.com/- Commits to minimal use of hazardous substances within and beyond regulatory compliance (RoHS/REACh)Included in the box1x SRT3000RMXLI-NC1x USB cable1x C13 to C14 power cord 1.2M1x Software CD with Powershute Network Shutdown Edition1x Documentation CD1x Schuko to C19 input power cord 2M1x British BS1363A to C19 input power cord1x C19 to C20 input power cord 2.5M2x Rackmount mounting brackets1x Temperature sensor
LongProductName - APC Smart-UPS On-Line SRT3000RMXLI-NC - 3000VA, 8x C13 & 2x C19, rackmount, NMC
LongSummaryDescription - APC Smart-UPS On-Line SRT3000RMXLI-NC - 3000VA, 8x C13 & 2x C19, rackmount, NMC. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, Serial interface type: RJ-45. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 505 VAh, Typical backup time at full load: 4 min. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Compliance certificates: RoHS, Certification: CE, VDE, RCM, EAC, IEC/EN 62040-1, IEC/EN 62040-2, UL-1778, FCC 15 A, CSA
Manufacturer - APC
Manufacturer Code - SRT3000RMXLI-NC
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - SRT3000RMXLI-NC
ManufDatasheet - https://www.tdbaltic.ee/leaflets/APC/SRT3000RMXLI-NC.pdf
MPN - SRT3000RMXLI-NC
Name - APC Smart UPS SRT Rack 2HE SRT3000RMXLI-NC 3000VA 2700W inkl. Netzwerkkarte
name - SRT3000RMXLI-NC SmartUPS SRT3kVA/2700W Rack NMC
Networkcardslot -
No. of batteries - 1
Noiselevel - 55 dB
Noise level, dB - 55
Nominal input voltage, V - 230
Nominal output voltage, V - 230
Numberofbatterycells -
Numberofinputphases -
Numberofoutputphases -
Number of phases input - 1 (230V)
Operatingaltitude - 0 - 3000 m
OperatingrelativehumidityHH - 0 - 95%
Operating relative humidity range, % - 0 - 95%
Operating temperature range (T-T), °C - 0 - 40
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features -
Other features - Output voltage - 230 V
Outputfrequency - 50/60 Hz
Outputoperationvoltagemax - 240 V
Outputoperationvoltagemin - 220 V
Outputpower - 2700 W
Output power, W - 2.7 KW
Outputpowercapacity - 3 kVA
Output power capacity (VA) - 2.7 KWatts / 3.0 kVA

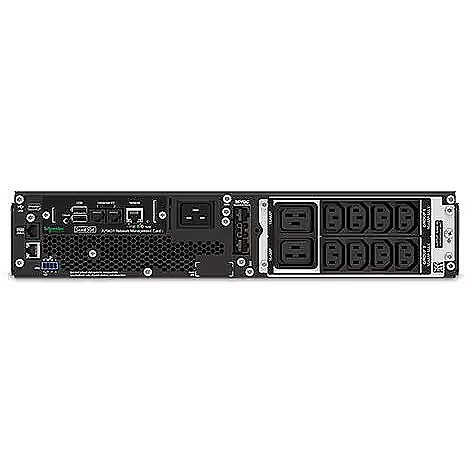

Output power ports - 2 x IEC-C19
Output power ports - 8 x IEC-C13
Packagingcontent -
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 871 mm
Packaging data - Package height - 246 mm
Packaging data - Package weight - 39.3 kg
Packaging data - Package width - 599 mm
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Power plug - C20 coupler
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RJ-45
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
Portsinterfaces -
Powerfactor -
Powerplug - C20 coupler
ProdDesc - APC Smart-UPS SRT 3000VA RM2U 230V w NIC
producer - APC
Productcolour - Black
Productcondition - Original
ProductHighLights -

• Double-conversion (Online)
• 3 kVA 2700 W
• Waveform: Sine
• Sealed Lead Acid (VRLA)
• Rackmount Black

ProductName - APC Smart-UPS On-Line SRT3000RMXLI-NC - 3000VA, 8x C13 & 2x C19, rackmount, NMC
ProductPicture - https://www.tdbaltic.ee/images/products/APC/SRT3000RMXLI-NC_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/APC/SRT3000RMXLI-NC_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/APC/SRT3000RMXLI-NC_3.jpg
ProductPicture3 - https://www.tdbaltic.ee/images/products/APC/SRT3000RMXLI-NC_4.jpg
ProductPicture4 - https://www.tdbaltic.ee/images/products/APC/SRT3000RMXLI-NC_5.jpg
ProductPicture5 - https://www.tdbaltic.ee/images/products/APC/SRT3000RMXLI-NC_6.jpg
Quickinstallationguide - Yes
Rackmountkit -
RS232ports -
Serialinterface - Yes
Serialinterfacetype - RJ-45
Serialportsquantity -
Short description - APC Smart-UPS SRT 3000 VA RM SRT3000RMXLI-NC
ShortSummaryDescription - APC Smart-UPS On-Line SRT3000RMXLI-NC - 3000VA, 8x C13 & 2x C19, rackmount, NMC, Double-conversion (Online), 3 kVA, 2700 W, Sine, 100 V, 275 V
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 8
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Sustainability - Sustainability certificates - Green Premium
Title - APC Smart-UPS On-Line SRT3000RMXLI-NC - 3000VA, 8x C13 & 2x C19, rackmount, NMC
Transfer time (max) - 0 s
Typicalbackuptimeathalfload - 11.8 min
UPS Architecture - on-line double conversion
UPS devices and accessories - Yes
UPStopology - Double-conversion (Online)
URL - https://www.apc.com/shop/au/en/products/APC-Smart-UPS-SRT-3000VA-RM-230V-Network-Card/P-SRT3000RMXLI-NC
USBport - Yes
USBporttype -
vendpn - SRT3000RMXLI-NC
Voltage - 230 V
Warranty - 36 months
Warrantyandmisc -
WarrantyInfo - 3 year warranty on the UPS (excluding battery) and 2 years on the battery (the warranty consists of replacement or repair)
Waveform - Sine
Weight - 31.3 kg
Weight - 31.3 kg
Weight - 39.22
Weight - 40.000000
Weight & dimensions - Depth - 635 mm
Weight & dimensions - Height - 85 mm
Weight & dimensions - Weight - 31.3 kg
Weight & dimensions - Width - 432 mm
Weight, kg - 31.30
Weightdimensions -
Width - 432 mm
Width - 600.000000
Width, mm - 432
