Accessories included - 1 European 16 A input power cable (1.8 m), 2 IEC10A output wires (1.8 m), 1 USB cable (1.8 m), 1 serial cable (1.8 m), Short instruction manual, Safety instructions.
ACoutletsquantity - 9 AC outlet(s)
ACoutlettypes - C13 coupler, C19 coupler
Active power - 2700 W
Apparent power - 3000 VA
ARTIKEL1 - EATON 9SX 3000I
ARTIKEL2 - .
AutomaticVoltageRegulationAVR -
Battery -
Battery - Automatic battery test - Yes
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Hot-swap battery - Yes
Battery - Typical backup time at half load - 15.5 min
Batterycapacity -
Batterytechnology - Sealed Lead Acid (VRLA)
Batteryvoltage -
Cablesincluded -
Charging time - 30 min
Chassis type - Tower
Color - Black
Depth - 412 mm
Description - UPS with double conversion online 3000 VA / 2700 W, multilingual LCD display, energy meter, 8 IEC 10 A + 1 IEC 16 A sockets (2 manageable groups), slot for optional management card, USB and serial ports, potential-free contacts, connector RPO, power management software compatible with the virtual environment, batteries replaceable while the device is in operation, long failover time with four optional EBM modules.
Design -
Design - Certification - IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC
Design - Display type - LCD
Design - Form factor - Tower
Design - Product colour - Black
Design - Safety - IEC/EN 62040-1, UL 1778, CSA 22.2
Designation - CE+WEEE
dimensionalWeight - 18339
dimension depth - 320 mm
dimension height - 580 mm
Dimensions - 346 x 214 x 412 mm
dimension weight - 37000 g
dimension width - 490 mm
Displaytype - LCD
ean - 743172090997
EANCode - 0743172090997
Efficiency -
Environment requirements - Temperature during operation: 0-40°C Noise level: 45 dB
Features -
Features - ECO mode - No
Features - Input frequency - 40/70 Hz
Features - Input operation voltage (max) - 276 V
Features - Input operation voltage (min) - 200 V
Features - Noise level - 45 dB
Features - Number of input phases - 1
Features - Number of output phases - 1
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 200 V
Features - Output power - 2700 W
Features - Output power capacity - 3 kVA
Features - Power factor - 0.9
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Pure sine
Filters / protection - Overdischarge
Formfactor - Tower
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 24
guarantee_type - external
Heatdissipation -
Height - 346 mm
HERSTELLER - EATON
HighLights -
Hotswapbattery - Yes
HSTNUMMER - 9SX3000I
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB 2.0
Inputfrequency - 40/70 Hz
Inputoperationvoltagemax - 276 V
Inputoperationvoltagemin - 200 V
Input power ports - IEC-C20
Logistics data - Harmonized System (HS) code - 85078000
LongDesc -
ManufDatasheet -
name - UPS 9SX 3000i Tower LCD/USB/RS232
Networkcardslot -
Noiselevel - 45 dB
Numberofbatterycells -
Numberofinputphases - 1
Numberofoutputphases - 1
Number of phases input - 1 (230V)
Operatingaltitude -
OperatingrelativehumidityHH -
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - 1 mini-terminal block for remote power off (configurable) 1 block of mini-terminals to the output relay 1 socket for the optional communication module
Other features - Input connection type - IEC C20
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 230 V
Outputfrequency - 50/60 Hz
Outputoperationvoltagemax - 240 V
Outputoperationvoltagemin - 200 V
Outputpower - 2700 W
Outputpowercapacity - 3 kVA

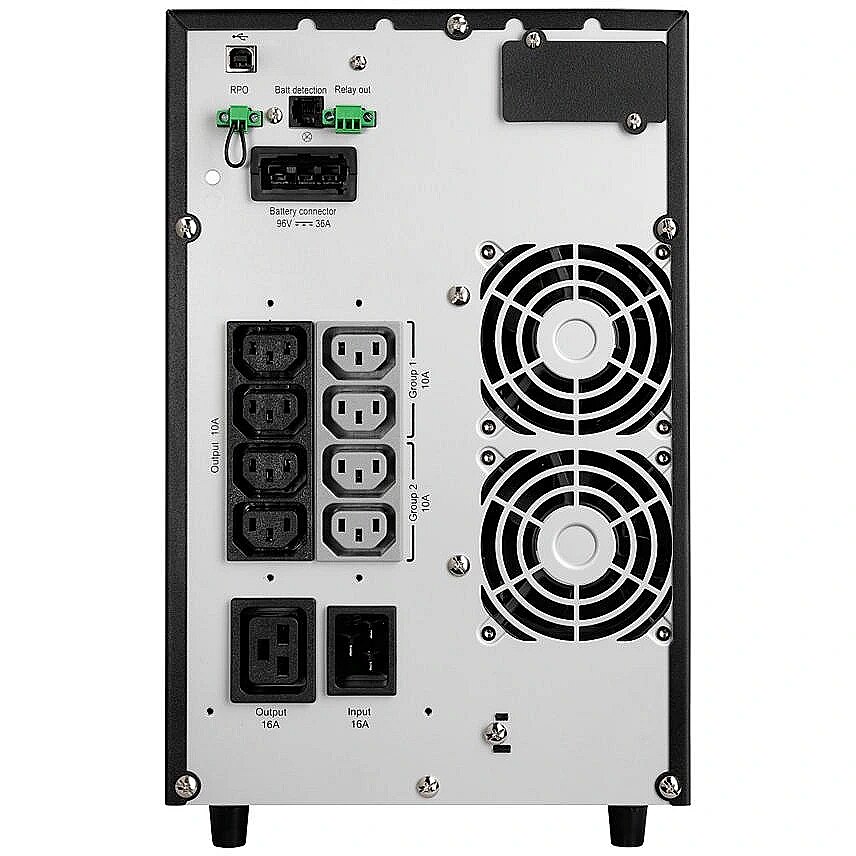

Output power ports - 1 x IEC-C19
Output power ports - 8 x IEC-C13
Packagingcontent -
Packaging data - Bundled software - Intelligent Power Software suite
Packaging data - Management card included - No
Ports & interfaces - AC outlets quantity - 9 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - AC outlet types - C19 coupler
Ports & interfaces - Power plug - C20 coupler
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
Portsinterfaces -
Powerfactor - 0.9
Powerplug - C20 coupler
ProdDesc - Eaton 9SX 3000i
producer - Eaton
producerCode - 9SX3000I
Productcolour - Black
Productcondition - Original
ProductHighLights -
- Double-conversion (Online)
- 3 kVA 2700 W
- Waveform: Pure sine
- 9 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Tower Black

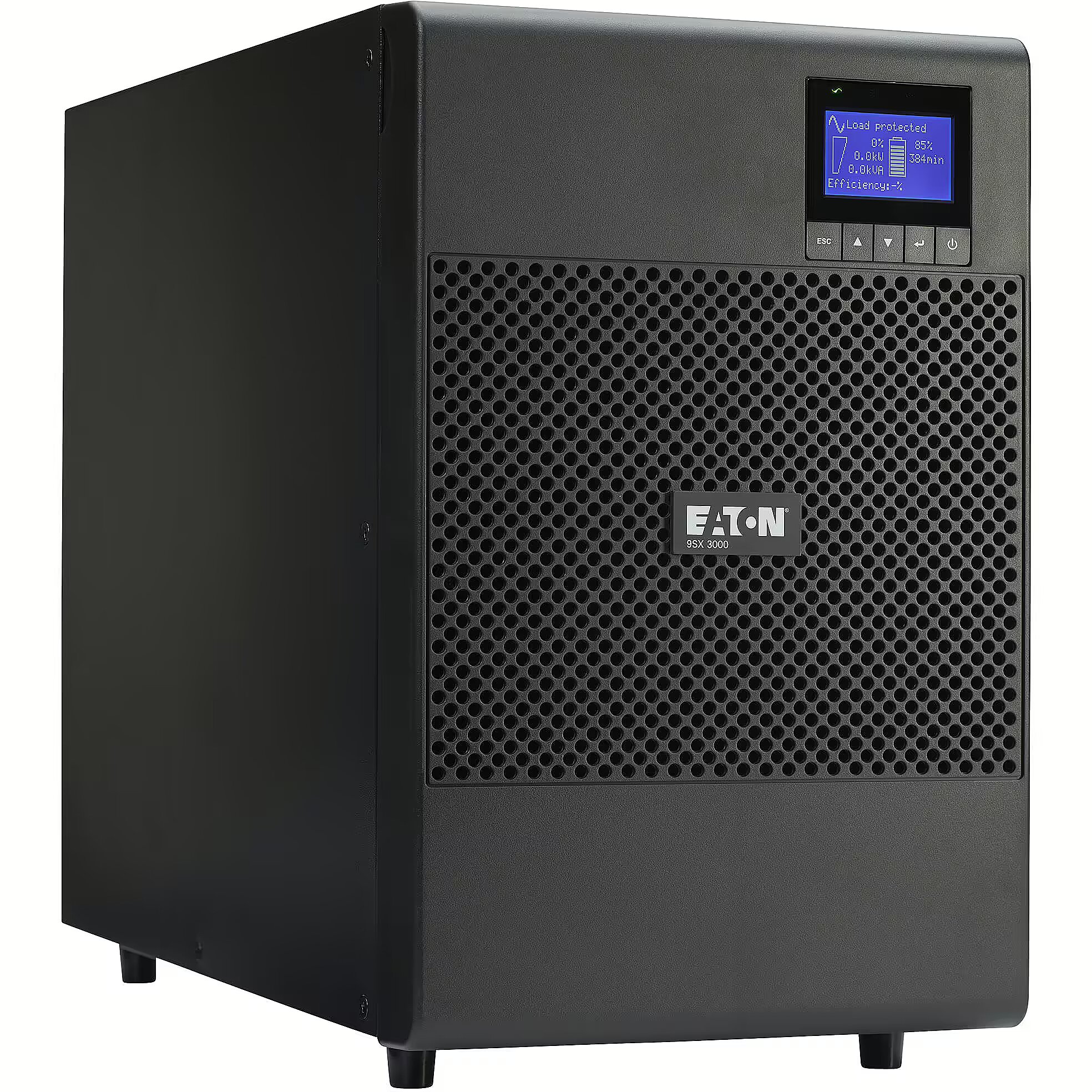

productName - Eaton 9SX uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 9 AC outlet(s)
ProductPicture - https://www.tdbaltic.ee/images/products/EATON/9SX3000I_1.jpg
ProductPicture1 -
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
ProductPicture5 -
productSize - SmallPallet
Quickinstallationguide -
Rackmountkit -
RS232ports - 1
Serialinterface - Yes
Serialinterfacetype - RS-232
Serialportsquantity -
sizeX - 325
sizeY - 570
sizeZ - 495
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 1
Storno - Y
Typicalbackuptimeathalfload - 15.5 min
UPS Architecture - on-line double conversion
UPStopology - Double-conversion (Online)
USBport - Yes
USBporttype -
vendpn - 9SX3000I
Voltage - 230 V
Warranty - 12 months
Warrantyandmisc -
warrantyLength - 24
warrantyType - G
Waveform - Pure sine
Weight - 33.4 kg
Weight - 33.4 kg
weight - 36700
Weight & dimensions - Depth - 412 mm
Weight & dimensions - Height - 346 mm
Weight & dimensions - Weight - 33.4 kg
Weight & dimensions - Width - 214 mm
Weightdimensions -
Width - 214 mm
