Accessories included - USB cable + software
Active power - 1000 W
Apparent power - 1600 VA
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Chassis type - Rack
Chassis type - Tower
Color - Black
Connectors - 1 x USB (Typ B)
Connectors - RJ-11

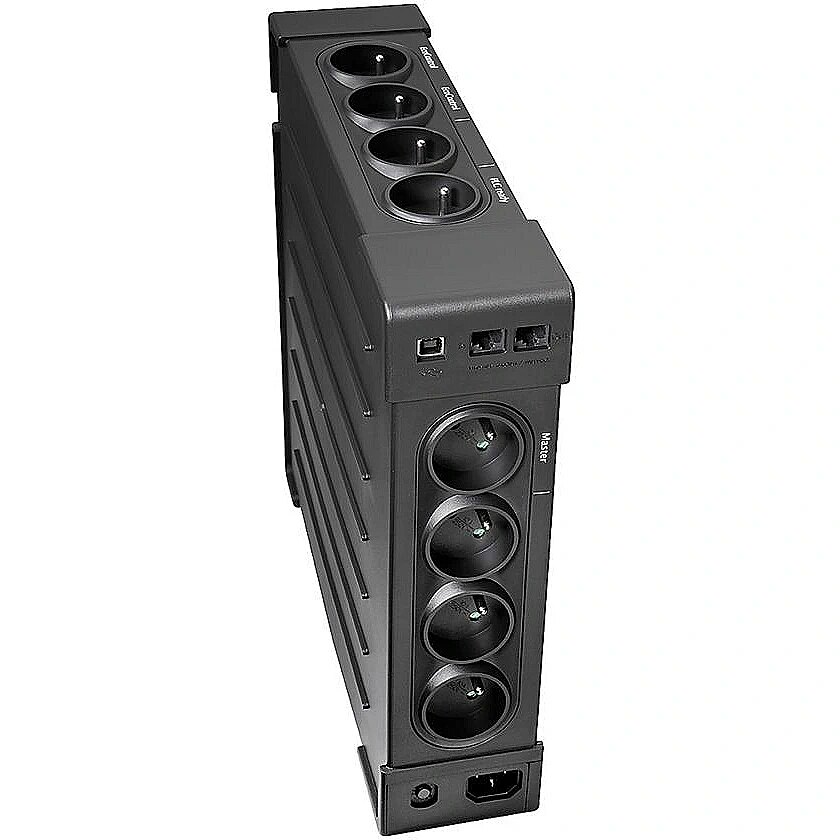

Description - Eaton Ellipse ECO 1600 FR USBThe Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.Product features: http://powerquality.eaton.com/EL1600USBIEC.aspx?CX=101
Designation - CE+WEEE
dimension depth - 400 mm
dimension height - 140 mm
Dimensions - - Height: 263 mm
- Width: 81 mm
- Depth: 235 mm
dimension weight - 8700 g
dimension width - 360 mm
ean - 3553340621611
Eans - 3553340621611
Environment requirements -
Filters / protection - Data line
Filters / protection - Overdischarge
Filters / protection - Surge
guarantee - 24
guarantee_type - external
Input power ports - IEC-C14
Name - Eaton Ellipse ECO 1600 USB FR
name - Ellipse ECO 1600 USB FR EL1600USBFR
Number of phases input - 1 (230V)
Other features - - Input voltage range: 184 - 264V
- 4 output sockets with backup and protection + 4 with protection
- Replaceable sealed lead-acid batteries
- Energy-efficient build
- Time: 50% (11 min), 70% (6 minutes)
Output power ports - 8 x C/E type
producer - Eaton
Producer - Eaton
ProducerCode - EL1600USBFR
ShortDescription -
Software - - Eaton Intelligent Power software included
- Compatible with: Windows 7/Vista/XP, Mac X OS, Linux
Special functions - - Easy installation in an office environment
- Protection of data transmission lines
- Automatic switch
- Indicators LED + audible alarm
- Battery test
- Cold start
- 1 slot PLC
- Automatic deactivation of idle peripherals
- USB port + cable
UPS Architecture - off-line (standby)
vendpn - EL1600USBFR
Video -
Weight - 7.8 kg
