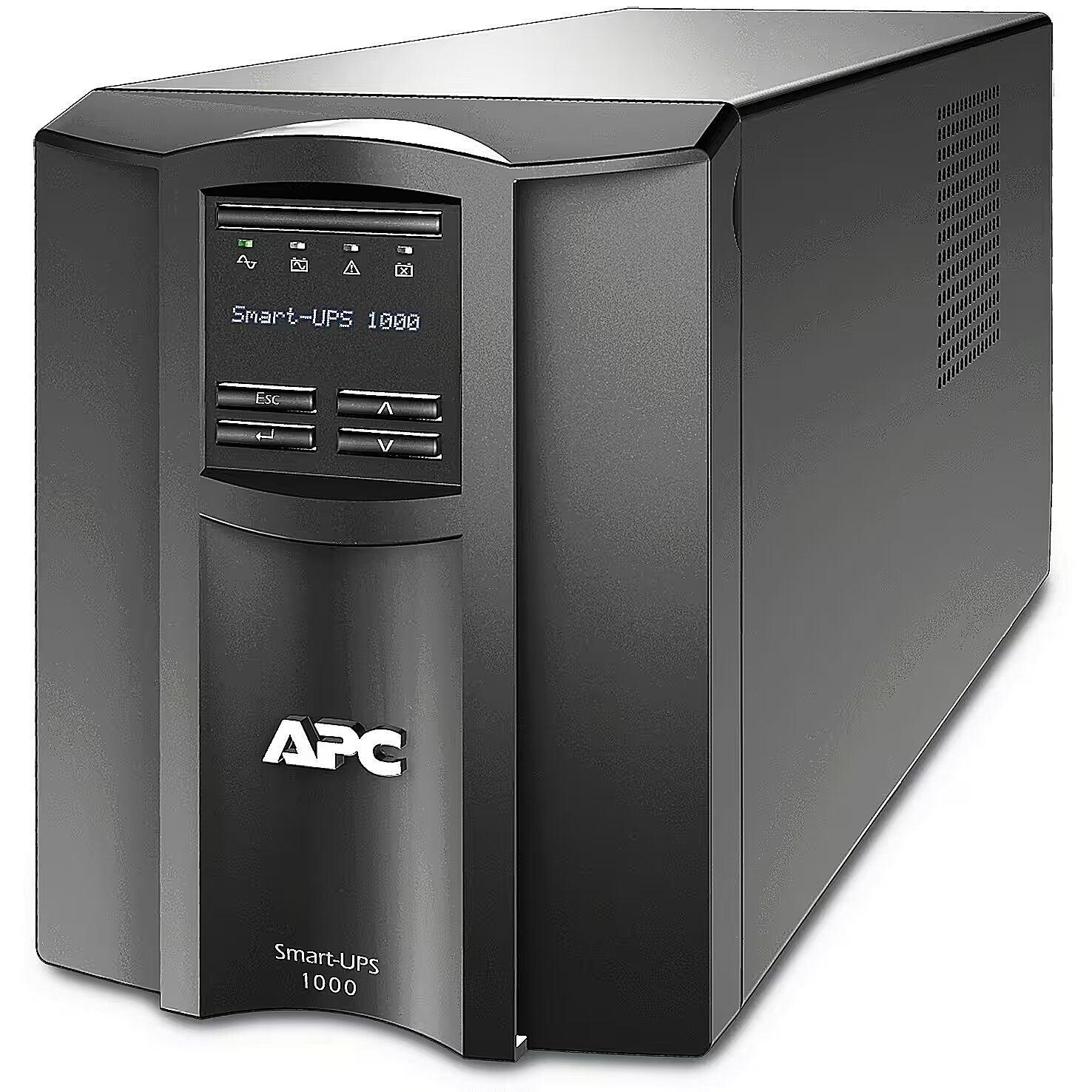

APC Smart-UPS SMT1000IC 1000VA, 700W, IEC

Accessories included - Software CD CD with documentation Installation Guide Smart UPS RS-232 signal cable USB cable
ACoutletsquantity - 8 AC outlet(s)
ACoutlettypes - C13 coupler, IEC Jumpers
Active power - 700 W
Apparent power - 1000 VA
ARTIKEL1 - APC SMART-UPS 1000VA LCD 230V
ARTIKEL2 - WITH SMARTCONNECT
AutomaticVoltageRegulationAVR - Yes
Backup time (100% load) - 5.8 min
Battery -
Battery - Automatic battery test - Yes
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery - Replacement battery cartridge - RBC6
Batterycapacity -
Battery recharge time, h - 3
Batterytechnology - Sealed Lead Acid (VRLA)
Batteryvoltage -
Brand - APC
BrandPartCode - SMT1000IC
Breite - 0.34
Cablesincluded - RJ-45, USB cable
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Category_1 - Network and Servers
Category_2 - Network - Network Accessories
Certificates - Certification - CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH
Certificates - Compliance certificates - RoHS
Certification - CE , CSA , EAC , EN/IEC 62040-1 , EN/IEC 62040-2 , ENERGY STAR V1.0 (EU) , RCM , UL 1778 , VDE
Charging time - 3 h
Chassis type - Tower
Code - SMT1000IC
Color - Black
Connections - RJ-45 Serial
Connections - Smart-Slot
Connections - USB
Dane techniczne: Czas podtrzymania - 5.8 min
Dane techniczne: Czas przełączania na UPS - 6 ms
Dane techniczne: Czas ładowania - 3 godz.
Dane techniczne: Częstotliwość - 50 Hz
Dane techniczne: Gwarancja - 2 lata w serwisie zewnętrznym
Dane techniczne: Ilość gniazd wyjściowych - 8 szt.
Dane techniczne: Interfejs - USB
Dane techniczne: Kształt napięcia wyjściowego - czysta sinusoida
Dane techniczne: Moc wyjściowa czynna - 700 W
Dane techniczne: Moc wyjściowa pozorna - 1000 VA
Dane techniczne: Napięcie wejściowe - 230 V
Dane techniczne: Producent - APC
Dane techniczne: Rodzaj gniazd - IEC 320 C13
Dane techniczne: Sygnalizacja - wyświetlacz LCD
Dane techniczne: Waga - 19.4 kg
Dane techniczne: Wymiary - 171 x 219 x 439 mm
Dane techniczne: Zakres napięcia wyjściowego - 230 V
Dane techniczne: Zastosowanie - wolnostojący
Dane techniczne: Zimny start - tak
Depth - 439 mm
Depth, mm - 439
Description - APC SMART-UPS 1000VA LCD 230V WITH SMARTCONNECT
Description - APC Smart-UPS 1000VA LCD 230V with SmartConnect
Intelligent and efficient power protection in networks, from the basic level to the possibility of scaling back-up time. The perfect solution for servers, POS terminals, routers, switches, hubs and other network devices.
APC SmartConnect - a function that allows you to view the UPS status via a secure internet portal. Thanks to the innovative remote monitoring interface you will receive automatic notifications, firmware updates and advanced support. The easy-to-use APC SmartConnect network communication provides additional value - and even more important - peace of mind.
Design -
Design - Display type - LCD
Design - Form factor - Mini Tower
Design - LED indicators - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 335 mm
dimension height - 595 mm
Dimensions - 219 x 171 x 439 mm
dimension weight - 19400 g
dimension width - 330 mm
Displaytype - LCD
EAN - 731304332978
ean - 731304332978
EAN - 0731304332978
EANCode - 0731304332978
Eans - 731304332978
EAN_code - 0731304332978
Efficiency -
Environment requirements - Operating temperature 0 - 40 ° C Relative humidity during operation 0 - 95% Height m.p. during operation 0-3000 meters Temperature (storage) -15 - 45 ° C Relative humidity (storage) 0 - 95% Height m.p. (storage) 0-15000 meters The noise is heard at a distance of 1 m from the surface of the 41.0dBA device Heat dissipation in online mode 100.0BTU / hour.
Features -
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Low battery alarm, Overload alarm
Features - Auto-restart - Yes
Features - Automatic Voltage Regulation (AVR) - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 302 V
Features - Input operation voltage (min) - 151 V
Features - Noise level - 41 dB
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 700 W
Features - Output power capacity - 1 kVA
Features - Output voltage Total Harmonic Distortion (THD) - 5%
Features - Response time - 10 ms
Features - Surge energy rating - 459 J
Features - Surge protection - Yes
Features - Temperature voltage compensation - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Formfactor - Mini Tower
Form factor - Tower
Frequency range, Hz - 47 - 53 Hz for 50 Hz nominal , 57 - 63 Hz for 60 Hz nominal
Gewicht - 23.65
Gross Weight Kg - 22,77
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304332978
GTIN - 0731304332978
guarantee - 24
guarantee_type - external
Heatdissipation -
Height - 219 mm
Height - 330.000000
Height, mm - 219
HERSTELLER - APC
HighLights -
Hoehe - 0.33
Hold-up time (maks) - 10 ms
Hotswapbattery - Yes
HSTNUMMER - SMT1000IC
I/O connectors - 1 x RJ-45 (iLO Remote Management Network)
I/O connectors - 2 x USB (Type B)
Input connection - IEC-320 C14
Input current, A - 0
Inputfrequency - 50/60 Hz
Input frequency, Hz - 50/60 +/- 3
Inputoperationvoltagemax - 302 V
Inputoperationvoltagemin - 151 V
Input power ports - IEC-C14
Input voltage, V - 160 - 286
Laenge - 0.6
Length - 340.000000
Link - https://www.se.com/lt/lt/product/SMT1000IC/apc-smartups-line-interactive-1000va-tower-230v-8x-iec-c13-outlets-smartconnect-port+smartslot-avr-lcd/
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 12 pc(s)
Logistics data - Total carbon footprint (kg of CO2e) - 984.74
LongDesc -
LongDesc - Stay always online and prevent data lossAs soon as the power goes out, an APC Smart-UPS immediately provides emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the free APC PowerChute software you can even have critical IT hardware shut down automatically and in a controlled manner when the battery of the UPS is almost empty. This way you prevent data loss, downtime and physical damage to hardware.SafetyIn addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use. Battery lifeYou can easily read the expected battery life in the runtime graph, which you can find between the product images. You can easily see how long the UPS supplies emergency power at a certain load.SmartConnectOut-of-box remote UPS monitoring, free for a 6-month trial period. Using the SmartConnect ethernet port, you can easily connect the Smart-UPS to your network and easily monitor it remotely via the secure APC SmartConnect cloud-based web portal*. In addition, the UPS can always be monitored via this port via EcoStruxure IT Expert (SFTWES1-DIGI).* Extend access to SmartConnect through the following licenses:1 year Standard Plan: ERWPMON1-1Y-DIGI3 year Standard Plan: ERWPMON1-3Y-DIGI1 year Advanced Plan: ERWPLUS1-1Y-DIGI3 year Advanced Plan: ERWPLUS1-3Y-DIGIPowerChuteBy connecting the UPS to a maximum of one server via a USB cable, it can automatically provide it with a shutdown signal during a prolonged power outage and thus prevent a hard shutdown. This exact moment can be set via the free APC PowerChute Serial Edition software.Network Management CardIf you connect the UPS directly to your network via the optional APC Network Management Card (AP9640/AP9641), it can easily be managed remotely via SNMP or our remote management software Ecostruxure IT Expert (SFTWES1-DIGI). You can also automatically send a shutdown signal via the network to multiple physical and/or virtual servers. By means of the APC PowerChute Network Shutdown Software associated with the network card can even be differentiated in the shutdown moment and the order in which this happens.Ease of useBy means of physical buttons and an LCD screen make it possible to set and read the basic functionalities.Extend the lifespanThe internal battery cartridge (RBC6) can be replaced easily, safely and independently by the user. This without having to switch off the APC SMT1000IC or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always remains online.Warranty extensionThe manufacturer's warranty of the SMT1000IC is 3 years, with the exception of the battery cartridge, which has a 2-year manufacturer's warranty. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-02).Switched Outlet Groups: Remote reboot and phased start-upThanks to the Switched Outlet Groups, it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which limits oversizing of the UPS. It is also possible to reset a group of multiple UPS outputs and the equipment connected to them. If SmartConnect Advanced (ERWPLUS1-1Y-DIGI) is used, a UPS with SmartConnect port + Ecostruxure IT Expert (SFTWES1-DIGI) or a network card (ap9640) in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this is even possible at a distance.Included in the box1x SMT1000IC1x USB cable 2 meters2x C13 to C14 power cord 2 meters1x Software CD with PowerChute Business Edition1x Cat5E ethernet cable 1x Documentation CDPeace of mind that comes with full equipment compatibility and reliability of a leaderProvides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.Smarter productivity with ability to tailor to your specific application needsIntuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.Avoids costly power problems by keeping your IT equipment and data safe and availableNetwork grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systemsLow operating and maintenance costs with high efficiency, proven reliability and intelligent battery managementPatented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.Save time with easy and convenient remote accessibilityNetwork manageable via serial, USB or optional ethernet. Includes Powerchute Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.
LongProductName - APC Smart-UPS SMT1000IC – 8x C13, USB, SmartConnect, 1000VA
LongSummaryDescription - APC Smart-UPS SMT1000IC – 8x C13, USB, SmartConnect, 1000VA. UPS topology: Line-Interactive, Output power capacity: 1 kVA, Output power: 700 W. AC outlet types: C13 coupler, IEC Jumpers, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery life (max): 5 year(s), Battery recharge time: 3 h. Form factor: Mini Tower, Product colour: Black, Display type: LCD. Compliance certificates: RoHS, Certification: CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH
Manufacturer - APC
Manufacturer Code - SMT1000IC
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - SMT1000IC
Manufacturer_code - SMT1000IC
ManufDatasheet -
Maximum power, W - 700
MPN - SMT1000IC
Name - APC Smart-UPS 1000VA SMT1000IC LCD ++
Name - APC Smart-UPS Tower SMT1000iC 1000VA 700W Line Interactive SmartConnect Port+SmartSlot
Name - APC Smart SMT1000IC
Name - Schneider Electric APC Smart-UPS, Tower, 8x IEC C13 outlets, SmartConnect Port+SmartSlot, AVR, LCD | SMT1000IC | 1000 VA | 700 W | 230 V
name - Uninterruptible Power Supply SMT1000IC 1kV A/600W Tower SmartConne
Networkcardslot -
Noiselevel - 41 dB
Noise level, dB - 41
Nominal input voltage, V - 230
Nominal output voltage, V - 230
Numberofbatterycells -
Numberofinputphases -
Numberofoutputphases -
Number of phases input - 1 (230V)
Operatingaltitude - 0 - 3000 m
OperatingrelativehumidityHH - 0 - 95%
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - Confirmation of conformity CE, CSA, EAC, EN / IEC 62040-1, EN / IEC 62040-2, RCM, UL 1778, VDE
Outputfrequency - 50/60 Hz

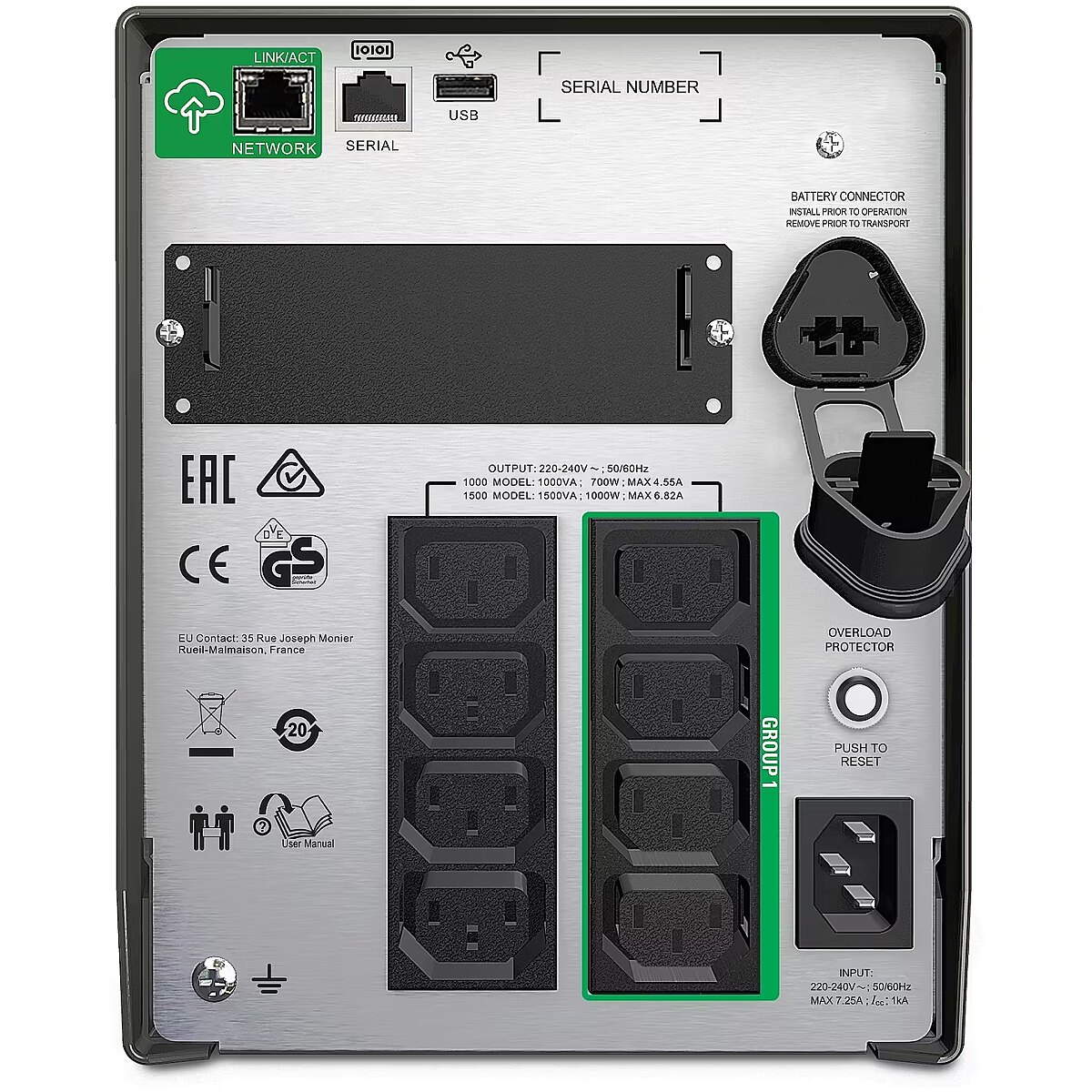

Output interface - 2 x IEC Jumpers (Battery Backup)
8 x IEC 320 C13 (Battery Backup)
Outputoperationvoltagemax - 240 V
Outputoperationvoltagemin - 220 V
Outputpower - 700 W
Output power, W - 700
Outputpowercapacity - 1 kVA
Output power capacity (VA) - 1000
Output power ports - 8 x IEC-C13
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 328.00 mm
Package features > Gross height (mm) - 376.00 mm
Package features > Gross width (mm) - 595.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 12 pc(s)
Package features > Paper/Pasteboard - 3000.00 g
Package features > Plastic (No PET) - 370.00 g
Package features > Tare weight (kg) - 3.37 kg
Package features > TI weight (kg) - 7.68 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.07 m³
Package features > WEE classification - CL109:4:2017-04-01
Package features > WEEE tax - Yes
Packagingcontent -
Packaging content - Cables included - RJ-45, USB cable
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 595 mm
Packaging data - Package height - 376 mm
Packaging data - Package weight - 22.8 kg
Packaging data - Package width - 328 mm
Performance > Capacity - 1000 VA
Performance > UPS topology - Line-Interactive
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 8 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, IEC Jumpers
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial ports quantity - 1
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
Ports & interfaces - USB port type - USB Type-A
Portsinterfaces -
Power > AC adapter input voltage - 230 V
Powerfactor -
Powerplug - C14 coupler
ProdDesc - APC Smart-UPS 1000VA LCD 230V with SmartConnect
Producent: Nazwa producenta / importera - APCSchneider ElectricKonstruktorska 1202-673 WarszawaPolskaEmail: Poland.Helpdesk@se.com
producer - APC
Producer - APC
ProducerCode - SMT1000IC
Productcolour - Black
Productcondition - Original
ProductHighLights -

• Line-Interactive
• 1 kVA 700 W
• Waveform: Sine
• 8 AC outlet(s)
• Sealed Lead Acid (VRLA)
• Mini Tower Black

ProductName - APC Smart-UPS SMT1000IC – 8x C13, USB, SmartConnect, 1000VA
ProductPicture - https://www.tdbaltic.ee/images/products/APC/SMT1000IC_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/APC/SMT1000IC_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/APC/SMT1000IC_3.jpg
ProductPicture3 - https://www.tdbaltic.ee/images/products/APC/SMT1000IC_4.jpg
ProductPicture4 - https://www.tdbaltic.ee/images/products/APC/SMT1000IC_5.jpg
ProductPicture5 - https://www.tdbaltic.ee/images/products/APC/SMT1000IC_6.jpg
Quickinstallationguide - Yes
Rackmountkit -
RS232ports -
Serialinterface - Yes
Serialinterfacetype -
Serialportsquantity - 1
ShortDescription -
Short description - APC Smart-UPS 1000 VA LCD mit SmartConnect
ShortSummaryDescription - APC Smart-UPS SMT1000IC – 8x C13, USB, SmartConnect, 1000VA, Line-Interactive, 1 kVA, 700 W, Sine, 151 V, 302 V
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 18
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 459
Sustainability - Sustainability certificates - Green Premium
Technical details > Capacity - 700 W
Technical details > Gross weight - 22.77 kg
Technical details > Net weight - 19.40 kg
Technical details > Producer - Schneider Electric
Technical details > Producer product family - APC Smart-UPS, Tower, 8x IEC C13 outlets, SmartConnect Port+SmartSlot, AVR, LCD
Technical details > Producer product name - SMT1000IC
Title - APC Smart-UPS SMT1000IC – 8x C13, USB, SmartConnect, 1000VA
Typicalbackuptimeathalfload -
UPS Architecture - line-interactive
UPS devices and accessories - Yes
UPStopology - Line-Interactive
URL - https://www.apc.com/shop/hr/en/products/APC-Smart-UPS-1000VA-LCD-230V-with-SmartConnect/P-SMT1000IC?isCurrentSite=true#
USBport - Yes
USBporttype - USB Type-A
vendpn - SMT1000IC
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
Warrantyandmisc -
WarrantyInfo - 3 years
Waveform - Sine
Weight - 18.9 kg
Weight - 18.86 kg
Weight - 22,00
Weight - 22.000000
Weight - 22.11
Weight & dimensions - Depth - 439 mm
Weight & dimensions - Height - 219 mm
Weight & dimensions - Weight - 18.9 kg
Weight & dimensions - Width - 171 mm
Weight, kg - 18.86
Weightdimensions -
Width - 171 mm
Width - 600.000000
Width, mm - 171
