Alarm - -

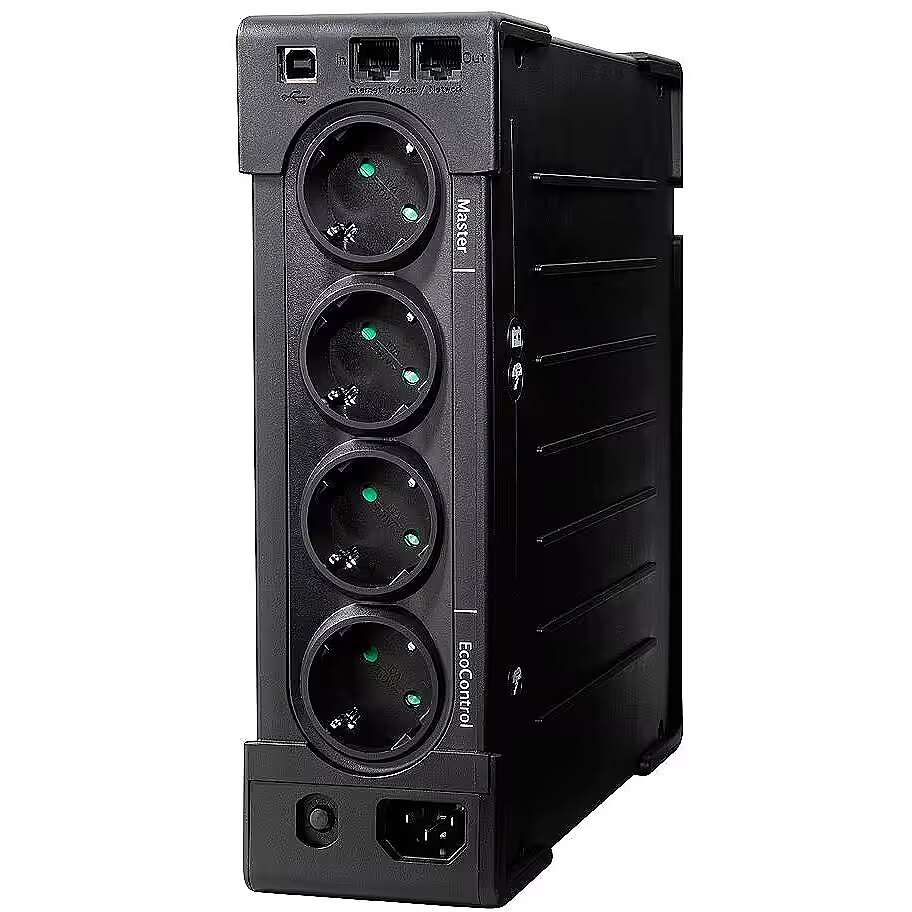

ARTIKEL1 - EATON ELLIPSE ECO 800 USB DIN
ARTIKEL2 - IN
BatteryType - Replaceable sealed lead acid
Category Code - UPW
Color - -
Colour - Black
ControlPanel - -
Depth - 235 mm
Description - Eaton Ellipse ECO 800 DIN USB The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs
Dimensions - 263 x 81 x 235
EANCode - 3553340620829
FormFactor - Tower
Gewicht - 4.67
GrossWeight - 4.750 kg
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
Height - 263 mm
HERSTELLER - EATON
HSTNUMMER - EL800USBDIN
InputConnections - -
InputFrequency - 50-60 Hz autoselect
Input ports - Single, IEC320 C14 (10AMP)
InputVoltage - 184 V - 264 V (adjustable to 161 V - 284 V)
InterfacePorts - -
LongDesc - With an efficient electrical design and the EcoControl function (USB models), which automatically disables peripherals when the master device is turned off, the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.
MANUFDATASHEET - http://www.google.ee/url?sa=t&rct=j&q=&esrc=s&frm=1&source=web&cd=1&cad=rja&ved=0CCgQFjAA&url=http%3A%2F%2Flit.powerware.com%2Fll_download.asp%3Ffile%3DEaton-Ellipse-ECO-datasheet-rev-B-low-pdf.pdf&ei=RuKAUpzhBsPNhAf2mYHIDg&usg=AFQjCNHHroTtcgPB-33mgzDEb-J4xFyDpg&bvm=bv.56146854,d.bGE
OutputConnections - 4
OutputFrequency - -
Output power capacity, VA - 800 VA
Output power capacity, W - 500 Watts
OutputVoltage - 230 V (adjustable to 220 V, 230 V, 240 V
PackageContents - -
PowerVAW - 800 VA
PowerW - 500 W
ProdDesc - 800VA/500W UPS, offline, DIN 3+1, Windows/MacOS/Linux support, USB
Product Net Weight - 4 kg
ProductPicture - http://www.tdbaltic.ee/images/ds4/EL800USBIEC-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
RechargeTime - -
RJ45 - -
Runtime - 11/6
SmartSlot - -
Stck_Kart - 9998
Stck_Pal - 16
Storno - Y
Topology - Offline
Unit Box Height - 0.325
Unit Box Length - 0.284
Unit Box Width - 0.138
Unit Calculated Volume - 0 cubm
Unit Calculated Weight - 5 kg
Units per Shipping Box - 1
USB - Yes
USB Communication ports - 1
Vendor Homepage - powerquality.eaton.com/EL800USBDIN.aspx?cx=101&GUID=E166D4D1-68A2-40B2-A7B6-B8B940ADAA89
Warranty - 2 years
Warranty - 24 months
WaveformType - -
Weight - 4.100 Kg
Width - 81 mm
