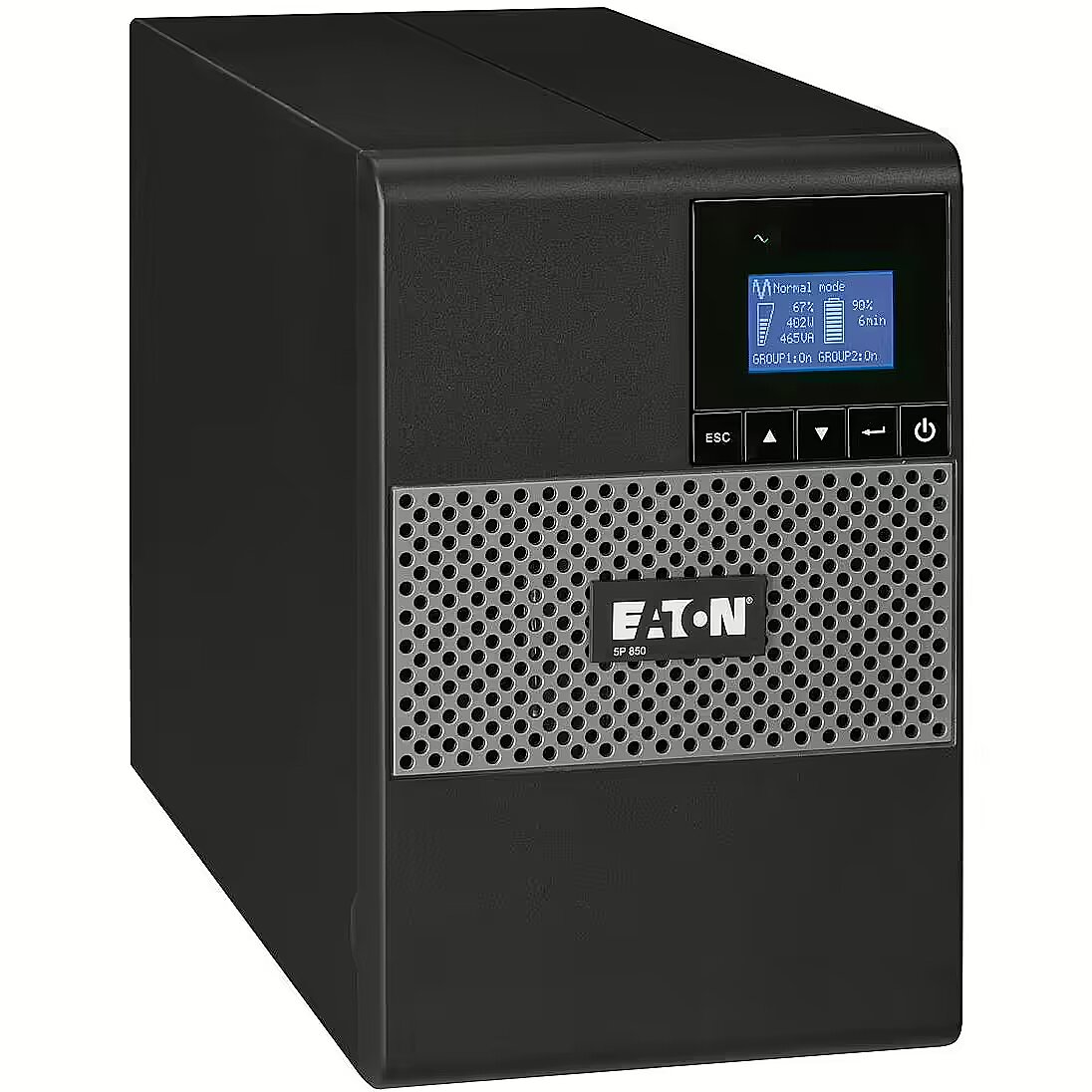

Eaton 5P1150I, 1150VA 770W, IEC

Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
ID: 128359 Tootekood: 5P1150I
Laos 1 üksused
Garantii: 3 aastat
589.32 €
Valmis väljasaatmiseks
esmaspäeval, 04.08.2025
alates 1.99 €
Tarnevõimalused
  • Omniva pakiautomaat
    1-2 tööpäeva jooksul
    1,99 €
  • SmartPosti pakiautomaat
    1-2 tööpäeva jooksul
    1,99 €
  • Kulleri kohaletoimetamine aadressile
    1-2 tööpäeva jooksul
    5,99 €
Peamised tooteparameetrid Kõik parameetrid
  • Aku võimsus (VA): 1150 VA
  • Võimsus (W): 770 W
Näidiku omadused
Näita : Ir
Põhiteave
Aku tüüp : Lead acid
Aku võimsus (VA) 1150 VA
Patareide suutlikkus (mahtuvus) on UPS pikaajalise töötamise näitaja, lahtiühendatuna vooluallikast. See parameeter vastab UPS seadmele, mil on täielikult täislaaditud akumulaator. Juhul, kui soovite välja selgitada, kui suurt mahtuvust vajab teie arvutitehnika, külastage www.apc.ru, kust võite leida võimsuse määramise konfiguraatori.
Laadimisaeg (tundi) : Ei ole määratud
Võimsus (W) : 770 W
Sadamad ja seadmed
Pesade arv (kokku) : 8
Pistikupesa tüüp : IEC320
Pistikupesade arv (aku varukoopia) : 8
RJ-45 : 0
USB : 0
Täpsem spetsifikatsioon
Accessories included -
Active power - 770 W
Alarm - -
Apparent power - 1150 VA
Backup time (100% load) - 4 min
BatteryType - -
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Chassis type - Tower
Color - -
Color - Black
Connectors - 1 x USB (Typ B)
Connectors - RS-232 (COM)
ControlPanel - -
Depth - 345 mm
Description - Eaton 5P 1150i VA - stackable version
New Eaton 5P is a new generation of UPS line-interactive power of 650 VA-1550 VA, with modern LCD equipped with a function of energy measurement. 5P is the ideal power supply for protection of IT equipment and network, such as servers, switches, routers and data storage devices, performed tower and rack-mounted.
Link to the specifications: http://powerquality.eaton.com/5P1150i.aspx?CX=65
Designation - CE+WEEE
dimension depth - 435 mm
dimension height - 325 mm
Dimensions - - Height: 230 mm
- Width: 150 mm
- Depth: 345 mm
dimension weight - 12500 g
dimension width - 230 mm
ean - 743172042842
Eans - 0743172042842
Environment requirements - - Operating Temperature: 0 to 35 degrees C
- Noise level:
Filters / protection - Overdischarge
FormFactor - Other
GrossWeight - 12.300 kg
guarantee - 36
guarantee_type - external
Height - 230 mm
InputConnections - 1 IEC C14 (10A)
InputFrequency - -
Input power ports - IEC-C14
InputVoltage - -
InterfacePorts - -
LongDesc - The new Eaton 5P is the next generation of 650VA-1550VA line-Interactive UPS with advanced LCD and energy metering feature. 5P is the perfect UPS to protect IT & networking devices such as servers, switches, routers and storage devices, in tower or rack format.
MANUFDATASHEET - http://powerquality.eaton.com/Products-services/Backup-Power-UPS/5P.aspx?cx=148
Name - Eaton 5P 1150i
name - UPS 5P 1150 Tower 5P1150i; 1150VA / 770W; RS232/USB
Number of phases input - 1 (230V)
Other features - - Input voltage without the use of batteries: 160-294V 47-70Hz
- Output voltage: 200/208/220/230 / 240V; 50/60 Hz

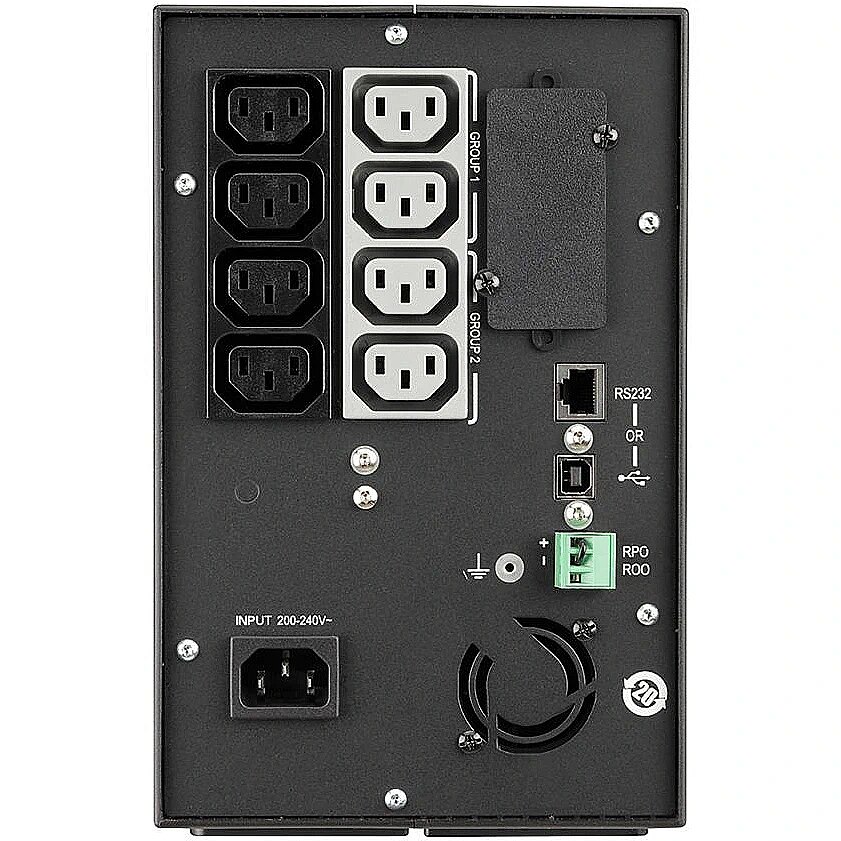

- Two groups of outlets 2 x IEC C13 (10A)
- Automatic battery test
- 1 mini terminal block for remote on. / Off. and the Remote Emergency Power Off
- 1 card slot Communication Network-MS, ModBus-MS, MS-Relay
OutputConnections - 8 IEC C13 (10A)
OutputFrequency - -
Output power ports - 8 x IEC-C13
OutputVoltage - -
PackageContents - -
PowerVAW - 1150 VA
PowerW - 770 W
ProdDesc - 5P 1150VA/770W, line interactive pure sinus output, 4 min at full load, 3 years warranty (2 years for batteries)
producer - Eaton
Producer - Eaton
ProducerCode - 5P1150i
ProductPicture - http://www.tdbaltic.ee/images/ds4/5P1150i-01.jpg
ProductPicture2 - http://www.tdbaltic.ee/images/ds4/5P1150i-02.jpg
ProductPicture3 - http://www.tdbaltic.ee/images/ds4/5P1150i-03.jpg
ProductPicture4 - http://www.tdbaltic.ee/images/ds4/5P1150i-04.jpg
RechargeTime - -
RJ45 - -
Runtime - 12/7
ShortDescription -
SmartSlot - -
Software -
Special functions - - Graphic LCD display (7 languages)
- Energy efficiency up to 98%
- Energy measurement
- Discontinuous charging
- Switchable group of outlets
- Sinusoidal waveform output
- Multiple communication options (compatible with virtual environments)
- Warranty 3 years electronics, 2 years on batteries
Topology - Line interactive
UPS Architecture - line-interactive
USB - -
vendpn - 5P1150i
Video -
Warranty - 3 years
WaveformType - -
Weight - 11.1 kg
Weight - 11.100 Kg
Width - 150 mm
